Step-by-Step Guide to Wiring Your Trailer Socket Correctly
Ensure correct voltage and pin assignment before modifying or installing any plug. Most standard 7-pin configurations follow this sequence: pin 1 (yellow) carries left turn/brake signal, pin 2 (blue) supplies reverse light, pin 3 (white) grounds the circuit, pin 4 (green) handles right turn/brake, pin 5 (brown) feeds tail/license plate lights, pin 6 (red) provides auxiliary power, and pin 7 (black) delivers main lighting voltage. Swapping these wires can damage fuses or blow modules.
Verify wire gauge matches load requirements–18 AWG suffices for signal lights, but 12–14 AWG is mandatory for charging circuits exceeding 10 amps. Use crimp connectors rated for outdoor use; soldering creates brittle joints prone to vibration failure. Always test continuity with a multimeter before connecting to the vehicle’s harness–open circuits often hide in corroded terminals.
Color coding varies by manufacturer. European plugs typically use black-grey-red for brake-light circuits, while North American systems favor green-yellow-white. Check the original equipment manual for exact specifications–aftermarket adapters frequently mismatch voltages, causing erratic behavior in electronic braking controllers. Isolate the ground wire first; poor grounding triggers phantom faults across all functions.
For heavy-duty applications, upgrade to a 13-pin layout. This adds pins 8–13 for continuous power, can-bus signals, and auxiliary circuits. Ensure the tow bar’s plug matches the vehicle’s specific wiring harness model–generic adapters often lack proper diode protection, leading to feedback loops that fry alternators. Always fuse each circuit within 6 inches of the power source to prevent fire hazards.
Connecting Vehicle and Haulage Plugs: A Clear Guide
Begin by identifying the pin configuration of your tow vehicle’s electrical connector. Standard 7-pin variants in Europe follow ISO 1724, where pins 1 (yellow) and 2 (blue) carry left and right turn signals respectively. Pin 3 (white) grounds the circuit–ensure this wire is at least 4 mm² in cross-section to handle current loads up to 15 amperes without voltage drop. Check the tow bar’s manual for variations like the 13-pin Jaeger plug, which combines lighting and auxiliary functions in a single shell.
Verify voltage at each terminal before finalizing connections. Use a multimeter set to DC 12V; clip the black probe to the chassis ground and touch the red probe to each pin while an assistant activates the corresponding function–brake lights, indicators, or fog lamps. A reading below 11.5V suggests corroded joints, undersized cables, or a faulty relay. For older vehicles with separate reverse signal circuits, pin 7 (green) often supplies power only when the transmission is in reverse.
Common Wiring Configurations
- Single-axle setups: Typically require only five wires: left/right turn, brake lights, tail lamps, and ground. Connect these first, as they cover 90% of usage scenarios.
- Heavy-duty loads: Add pins 8 (brown, dedicated fog light) and 9 (purple, reverse light) if exceeding 750 kg gross mass. These auxiliary circuits prevent inadvertent triggering during normal braking.
- Caravans with batteries: A 13-pin arrangement includes two additional pins–one for permanent 12V supply (max 20A fused) and another for charge line feedback, often color-coded orange.
Insulate joints with heat-shrink tubing rather than electrical tape. Pre-cut lengths of 3:1 ratio tubing; slide over the wire before crimping, then apply heat with a hot-air gun until the adhesive seals around the joint. This method withstands exposure to road salt and temperatures from -40°C to +125°C. For splices, use butt connectors rated for 30 amperes; avoid solder-only connections, which can fatigue under vibration.
Test the entire assembly under load. Hook up a test board with LED bulbs replicating the haulage’s lighting pattern. Cycle through each function for 30 seconds–observe for flickering, delayed activation, or uneven brightness. If issues arise, isolate the problem using a load tester: connect all wires except one, then sequentially add each circuit to identify the faulty wire or bulb. Common culprits include oxidized bulb bases or relays with poor contacts.
Maintenance Checks
- Inspect connectors every 3 months; clean contacts with contact cleaner and a nylon brush to remove oxidation. Avoid petroleum-based lubricants–they attract dust and accelerate corrosion.
- Check cable integrity by flexing each wire 90 degrees near terminal ends while monitoring circuit function. Brittleness or cracking indicates UV degradation–replace cables if cracks extend deeper than 1 mm.
- For frequent users, upgrade to tinned-copper wires; they resist corrosion 3x longer than standard copper under humid conditions.
- Secure excess cable length with spiral wrap or loom tubing, anchored in at least three places along the tow bar’s frame to prevent abrasion from suspension movement.
When retrofitting an older vehicle, replace the factory plug if it lacks a rubber gasket or shows signs of water ingress–visible green deposits or a musty odor. Modern plugs often include integrated seals; if unavailable, apply dieletric grease to pins before assembly to displace moisture. For 8-pin North American patterns, note that the center pin (auxiliary) carries 12V switched power–fuse this separately at 20 amperes to prevent overload from fridge compressors or winches.

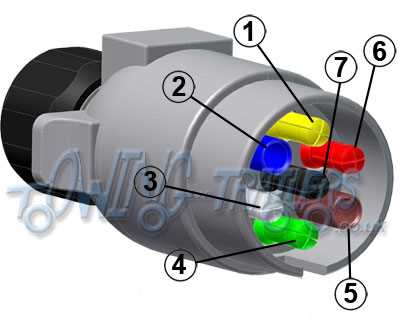

Standard 7-Pin Vehicle Plug Pinout and Signal Specifications
Always verify pin assignments before making electrical connections–manufacturers occasionally deviate from ISO standards, particularly on European models. The standard color scheme for a 7-pin circular connector follows this scheme:
- Yellow (Pin 1 – L): Left turn signal and brake light; runs at 12V when either function is activated.
- Green (Pin 2 – 54G): Right turn signal and brake light; identical voltage behavior as Pin 1.
- Brown (Pin 3 – 31): Ground return; must be connected to the chassis using a minimum 16 AWG wire.
- Blue (Pin 4 – 54): Continuous 12V power for auxiliary circuits; fuse this line with a 5A blade fuse.
- White (Pin 5 – 58): Tail and marker lights; typically draws 2A at 12V.
- Red (Pin 6 – 58L): Trailer side marker lights; pairs with Pin 5 for full illumination.
- Black (Pin 7 – 15): Reversed polarity alert or auxiliary power; voltage present when reverse gear is engaged.
For towing units with auxiliary brakes, the blue pin often carries a modulated signal; bypass this circuit if the coupled device lacks an electronic brake controller. If no brake controller is installed, connect the blue pin directly to ground through a 1A fuse to prevent backfeeding.
Polarity conflicts are the most frequent cause of blown fuses–double-check continuity on each wire with a multimeter before finalizing the coupling. For heavy loads exceeding 300W, run a dedicated 10 AWG ground cable from the power source to the coupling plate and avoid sharing the common ground (brown wire) with lighting circuits.
How to Connect a 13-Pin Vehicle Electrical Plug: Detailed Walkthrough
Start by gathering color-coded cables matching ISO 11446 standards: yellow (left turn), green (right turn), brown (tail lights), red (brake lights), black (power supply), white (earth), blue (reverse lights), and grey (permanent 12V). Strip 5mm of insulation from each wire, twist strands tightly, and insert into the corresponding terminal slot on the plug housing. Crimp connectors firmly using a ratcheting crimper to ensure zero slack–loose connections cause intermittent failures under vibration.
Ground the white wire first by attaching it to the vehicle’s chassis near the mounting point; use a star washer for bare-metal contact. Route remaining wires through the coupling arm, bundling them with split loom tubing to prevent chafing against moving parts. Test continuity with a multimeter: probe each pin (1 through 13) against the earth pin (pin 3) while activating the relevant vehicle function–left indicator should show ~12V on pin 1, brakes on pin 5, etc.
Seal exposed terminals with heat-shrink tubing or dielectric grease before snapping the plug cover closed. Verify functionality by connecting a compatible towed unit and checking all lights, brakes, and auxiliary circuits in sequence–reverse lights (pin 10) must activate only when the gear selector is in reverse. For heavy-duty applications, add a relay module between pin 9 (switched 12V) and high-current accessories to prevent voltage drop under load.
Diagnosing Faulty Vehicle Connector Problems
Check for corrosion on pin contacts first–use a multimeter to verify resistance across each terminal. Even minor oxidation (green/white buildup) can disrupt signal flow, especially in 7-pin setups. Clean contacts with electrical contact cleaner and a wire brush, ensuring no debris remains. For intermittent failures, flex the cable near the plug while monitoring voltage; frayed internal wires often cause momentary drops.
Voltage Drop Testing by Pin Assignment
| Pin (ISO 11446) | Expected Voltage (Engine On) | Fault Symptoms | Common Fix |
|---|---|---|---|
| 1 (LH Turn) | 12V pulsed | No blinker activity | Trace fuse #12 (10A) downstream |
| 3 (Ground) | 0V (ref to chassis) | All circuits inactive | Tighten chassis ground bolt (M10) |
| 5 (RH Marker) | 12V steady | Dim/flickering lights | Check module relay K-85 |
| 6 (Brake Switch) | 12V when pedal depressed | No brake lights | Test brake pedal switch continuity |
Inspect the harness for chafing near suspension components–rubbing against sharp edges wears through insulation faster than UV exposure. Replace damaged sections with heat-shrink tubing (3:1 shrink ratio) instead of electrical tape to prevent moisture ingress. For persistent issues on the towing vehicle side, bypass the factory harness by splicing directly to tail light assembly wires; use crimp connectors with solder sealant for marine-grade reliability.
