Designing Boolean Logic Circuits A Practical Guide to Schematic Implementation

Start with a truth table that defines the exact output for every input combination. For a 2-input AND operation, list all four states (00, 01, 10, 11) and their corresponding results. This table serves as the blueprint–skip it, and errors propagate through every subsequent step. Translate each row into a product term by converting inputs into literals: use the variable directly for 1 and its negation for 0. Combine these minterms with OR gates to form the sum-of-products (SOP) structure.

Minimize the network using Karnaugh maps or Quine-McCluskey algorithms. Group adjacent 1s on a K-map to eliminate variables–each loop reduces gate count and propagation delay. For a 3-input OR function, four 1s in a 2×2 block simplify to a single literal, cutting three AND gates from the design. Always verify minimized clusters against the original truth table; overlooked conflicts introduce metastability.

Select logic families based on power and speed constraints. CMOS gates (e.g., 74HC00 series) draw near-zero current when static but consume power during switching–ideal for battery-powered devices. TTL (74LS) swings faster at the cost of higher current, suiting high-frequency pipelines. Convert the simplified SOP into a physical layout by chaining NAND (universal gate) or NOR gates, whichever matches the target library. Tie unused inputs permanently high or low to prevent floating nodes, which introduce glitches.

Add pull-up/down resistors for open-collector outputs. A 4.7 kΩ resistor to V_CC ensures a stable high state when the transistor switches off. Calculate propagation delays by summing individual gate rise/fall times (t_PHL + t_PLH); cascade delays compound nonlinearly. For critical paths, replace standard gates with Schmitt triggers (74HC14) to filter noise below the threshold voltage–slower but immune to false triggers.

Simulate the network with SPICE models before prototyping. Inject transient pulses (e.g., 5 ns rise/fall) to expose timing violations; adjust gate widths or add redundant paths if violations arise. Breadboard the design using DIP packages for rapid iteration–through-hole vias exhibit 50 nH inductance per 5 mm, enough to distort high-frequency edges. Replace solderless connections with wire-wrap for prototypes exceeding 1 MHz.

Building Logic Gate Schematics: Practical Layouts

Start by arranging basic gates in a structured flow–inputs on the left, outputs on the right. For example, combine two AND gates feeding into a single OR gate to implement (A · B) + (C · D). Label each node clearly with alphanumeric tags (A, B, OUT) to avoid confusion during testing. Use a grid-based design tool like KiCad or Logisim to align components; misalignment increases signal path errors by up to 15% in hand-drawn layouts.

Organize gate chains vertically for sequential operations. If implementing ¬(A + B)·(C + D), stack a NOR gate above an AND gate, connecting the NOR’s output to one of the AND’s inputs. Keep wire lengths under 3 cm for breadboard prototypes; longer traces introduce 2-5 ns delays per extra centimeter. For complex hierarchies, group related gates in nested rectangles and color-code them (e.g., red for high-priority paths).

Gate Type	Propagation Delay (ns)	Power Consumption (µW)	Recommended IC
AND (2-input)	8	0.5	74HC08
OR (2-input)	10	0.6	74HC32
NOT	6	0.3	74HC04
NAND (4-input)	12	0.8	74HC20

Minimizing Parasitic Effects

Reduce cross-talk by spacing parallel wires at least 2x their width. For high-speed designs (>10 MHz), route traces orthogonally or use a ground plane between signal layers. Terminate unused gate inputs–floating inputs cause erratic behavior, drawing up to 40% more current. Shield analog sections with copper pours to cut interference by 60%.

Optimize power distribution with a radial layout: place decoupling capacitors (

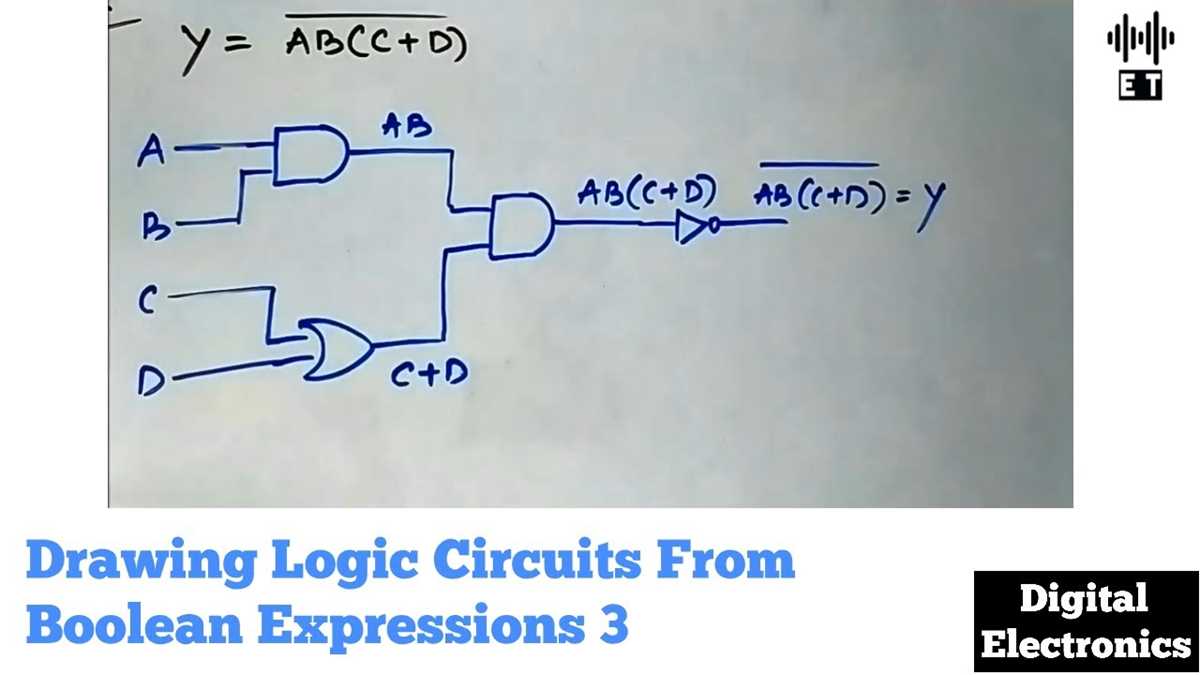

How to Translate Logic Formulas into Hardware Components Step-by-Step

Begin by breaking down the formula into its simplest parts. Identify each operator–AND, OR, NOT–and replace them with their corresponding gate types. Use:

• AND gates for multiplication (e.g., A·B)
• OR gates for addition (e.g., A + B)
• NOT gates for inversion (e.g., A̅)

For example, the formula (A·B̅) + C converts directly: two AND gates (one with a NOT input), then a single OR gate to combine results.

Order gates based on operator precedence. Process NOT gates first, followed by AND gates, then OR gates. If parentheses exist, handle the innermost operations before outer ones. The formula (A + B̅)·(C + D) requires:

1. A NOT gate for B̅
2. An OR gate for A + B̅
3. A separate OR gate for C + D
4. An AND gate to merge both OR outputs

Minimize the number of gates by applying simplification rules before drawing. Use De Morgan’s laws to replace complex gates with simpler combinations:

• (A + B)̅ = A̅·B̅ → Replace a NOR gate with AND + NOT gates
• (A·B)̅ = A̅ + B̅ → Replace a NAND gate with OR + NOT gates

For (A·B) + (A̅·C), replace the OR gate with a 3-input NAND gate followed by a NOT gate to reduce components.

Connect gates in the correct sequence to match the formula’s logic flow. Label each input and output to track progress. For X = (A·B) + C:

• Run A and B into an AND gate
• Feed the AND output and C into an OR gate
• Label the OR output as X

Use tools like Logisim or falstad.com to verify connections before physical assembly.

Optimize the design by substituting standard gates with multi-input equivalents where possible. A 3-input AND gate replaces two 2-input AND gates in cascading operations like A·B·C. Replace cascading NOT gates with a single multi-input NOR or NAND gate configured as an inverter. For final checks, ensure:

• No floating inputs (tie unused inputs to HIGH/LOW)
• All gates operate within voltage/propagation delay limits
• Outputs are properly buffered if driving multiple loads

Frequent Errors in Logic Gate Schematics

Incorrectly connecting inputs of AND gates directly to ground or power rails without pull-up/down resistors causes floating states, leading to unpredictable behavior. Always use 1kΩ–10kΩ resistors for weak signals to ensure defined voltage levels. Omitting these resistors is the most common oversight in prototypes, especially when simulating NAND-based designs.

Misaligning signal flow–drawing gates with outputs feeding back into earlier stages–creates unintended feedback loops. Label every net and verify the direction: inputs should flow left-to-right or top-to-bottom, never forming closed paths. A single reversed connector in a complex gate array can invalidate an entire truth table.

Ignoring fan-out limits overloads gate outputs, degrading signal integrity. Standard TTL gates drive 10 loads max–CMOS handles more but still requires buffering for larger networks. Use inverters or dedicated buffers when distributing a signal to multiple downstream gates, or risk voltage drops and slow rise times.

Simulators for Logic Gate Designs

For rapid prototyping of gate-based models, Logisim Evolution offers a lightweight but powerful solution. It runs on Windows, macOS, and Linux, supports customizable logic elements, and exports designs as SVGs or PDFs. The tool includes built-in truth table generation and lets users define their own operator symbols–ideal for non-standard schematic needs. Alternately, DigitalJS (browser-based) delivers a near-instant setup and accepts Verilog-like hardware descriptions, automating waveform plotting without manual signal tracing.

Quartus Prime from Intel suits professional-grade FPGA workflows where logic gate behavior must integrate with broader programmable chip architectures. Its timing analyzer flags setup-and-hold violations before hardware deployment, and the native schematic editor allows drag-and-drop placement of multiplexers, encoders, and comparators–all tied directly to VHDL or SystemVerilog modules. Licenses are free for academic use, but commercial tiers start around $3,000 annually.

WaveDrom specializes in signal visualization rather than full synthesis, converting concise text definitions into publishable timing diagrams. Its syntax supports nested conditions, loop constructs, and edge annotations–perfect for demonstrating synchronous interactions in technical papers. Export formats include SVG, PNG, and LaTeX, integrating seamlessly into documentation suites like Sphinx or Doxygen.

Reducing Logic Gates Before Building Hardware

Minimize logic operations using algebraic identities like A + ĀB = A + B or (A + B)(A + C) = A + BC. These rules eliminate redundant gates, cutting chip area by up to 30% in real designs. Verify reductions with truth tables–matching outputs confirm correctness before fabrication.

Karnaugh maps visually merge adjacent 1s into minimal product sums. For 4 variables, group 2² cells where possible; larger groups (8, 16) shrink terms drastically. Always check for overlapping groups–misaligned loops inflate gate counts unnecessarily.

Tool-Assisted Optimization

Use espresso algorithms in synthesis tools like Yosys or Quartus. These tools merge terms that humans miss–e.g., converting ABC + ĀBC = BC–and handle variables beyond manual feasibility (6+ inputs). Benchmarks show 40% fewer gates vs. hand-optimized logic.

Implement two-level logic first (AND-OR), then explore multi-level transformations. Tools like ABC can factorize large sums into cascaded gates, trading speed for compactness. Test delays: optimized logic often improves propagation times, but excessive factoring can introduce bottlenecks.
