How to Build and Understand Automotive Alternator Voltage Regulator Wiring
Begin by locating the voltage sensing wire–typically marked in blue or yellow–connected to the battery terminal. This wire feeds critical data to the control module, ensuring the generator maintains output between 13.8V and 14.4V under varying loads. Failure to verify this connection results in inconsistent charging, especially in cold starts or high-demand scenarios like headlights and heated seats active simultaneously.
The field coil excitation circuit relies on a P-channel MOSFET (IRF9540N) or a darlington transistor (TIP122) to regulate current flow. When voltage exceeds 14.5V, the control IC (commonly a L9616 or TA8031SA) triggers the MOSFET’s gate, reducing excitation and preventing overcharging. Bypass capacitors (0.1µF ceramic) must be placed within 10mm of the IC’s VCC pin to suppress voltage spikes from the engine’s inductive loads.
For troubleshooting, measure resistance across the rotor windings–values should range 3.0Ω to 5.0Ω. Readings below 2.5Ω indicate shorted turns, while open circuits suggest broken brushes or burnt slip rings. Replace worn brushes if length drops below 5mm, as excessive wear increases internal resistance, reducing efficiency by 15-20%. Use a 1N4007 diode across the coil to clamp back EMF; failure to do so risks damaging the control module.
In vehicles with dual-battery setups, install a current-sense resistor (0.01Ω, 5W) between the positive terminal and the voltage regulator input. This modification allows monitoring charge distribution–critical for systems where auxiliary batteries power winches or refrigeration. Calibrate the control IC with a 10kΩ potentiometer to fine-tune the upper voltage threshold, balancing battery lifespan against rapid recharge times.
Understanding the Voltage Control System in Automotive Generators

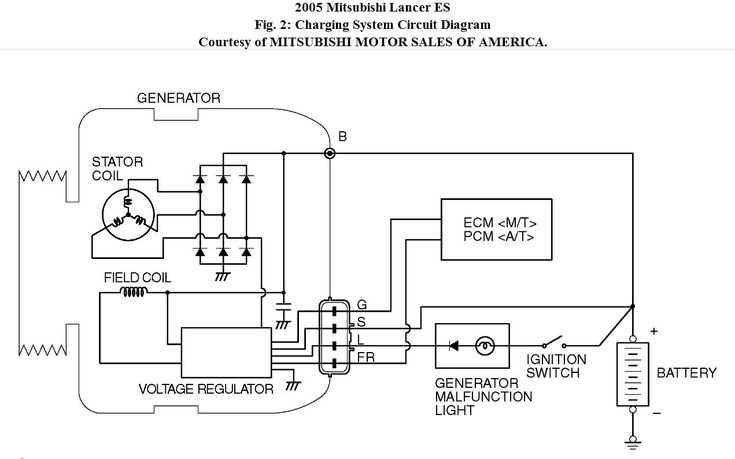

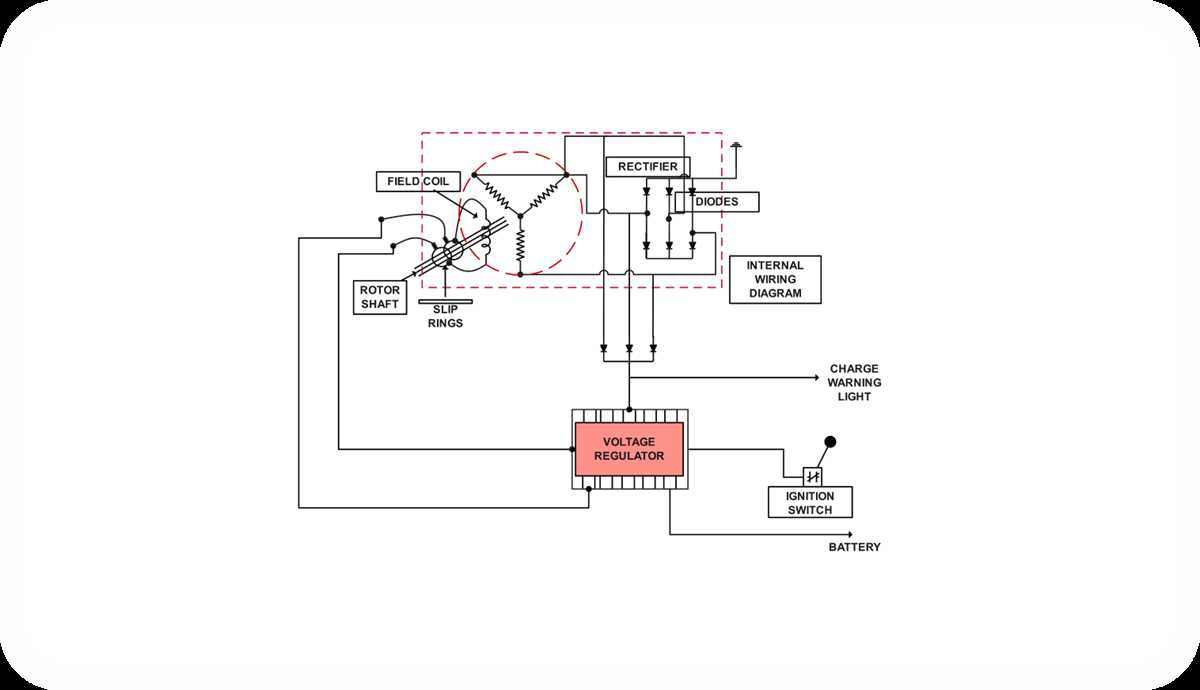

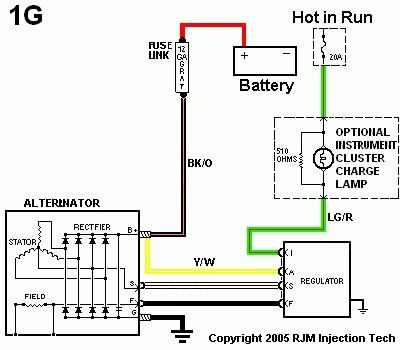

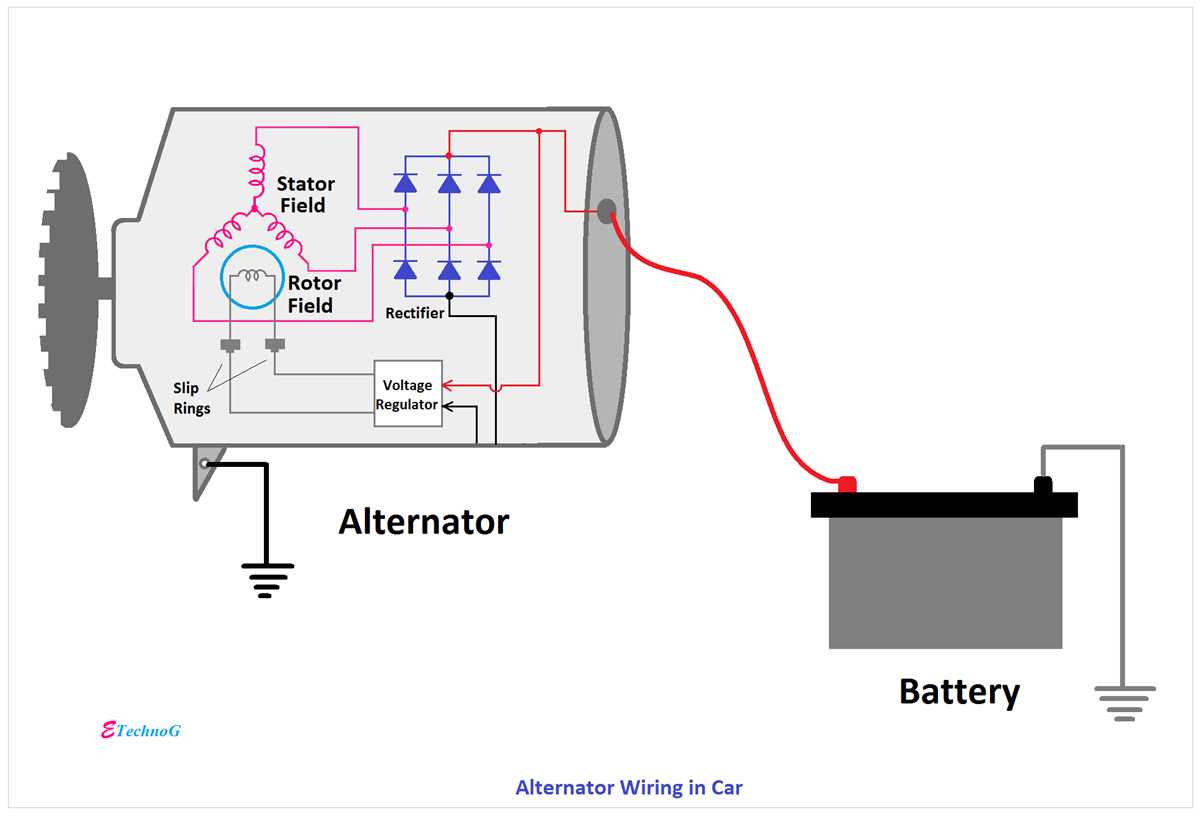

Begin by identifying the key components on the wiring layout: the field coil, diode trio, bridge rectifier, and voltage sensing line. The field coil typically connects to the B+ terminal via a brush holder, while the diode trio supplies excitation current. A common failure point occurs when the voltage sensing line disconnects from the battery positive–ensure this wire maintains a secure, corrosion-free connection to prevent overcharging or undercharging. Use a multimeter to verify the bridge rectifier’s forward voltage drop; silicon diodes should read 0.5–0.7V, while Schottky diodes may show 0.2–0.3V. Replace any diode with a reading outside these ranges.
Critical Adjustments for Stable Output
- Test the internal control unit by applying 12V to the field coil terminal with the ignition off–voltage should drop to near zero when the engine starts. If it remains above 0.5V, the control module requires replacement.
- Check the ground path for resistance. A proper ground should read less than 0.1Ω between the housing and battery negative. Corrosion or loose mounting bolts create voltage drops, leading to erratic output.
- Calibrate the voltage setpoint by adjusting the potentiometer (if present). Turn clockwise to increase the target voltage; most systems require 13.8–14.5V at 2,000 RPM with no load. Exceeding 15V risks battery damage.
For external control systems, examine the wiring harness for splices or repairs. A single frayed wire in the excitation circuit can cause intermittent power loss. When reinstalling, route the voltage sensing wire away from high-current cables to avoid electromagnetic interference. If the system includes a thermal compensation feature, note that output may drop by 0.1V per 10°C rise above 25°C. Verify this behavior during dynamic testing with a load bank attached.
Core Elements of a Standard Vehicle Charging Control System
Begin with a high-quality voltage sensing network–this forms the backbone of stable output. Use precision resistors (1% tolerance) arranged in a voltage divider to monitor system voltage accurately. Values like 1 kΩ and 4.7 kΩ provide a reliable 5:1 ratio, scaling battery voltage to a safe level for control ICs. Avoid carbon-film resistors; metal-film or thick-film types exhibit better thermal stability and noise resistance under variable loads.
The control module must integrate a temperature-compensated reference. A bandgap reference IC (e.g., TL431) delivers consistent 2.5V regardless of ambient fluctuations. Ensure thermal bonding between the reference and key power components to prevent drift during rapid temperature shifts–mismatched thermal expansion causes transient errors up to ±3% in unregulated systems.
Power switching relies on robust MOSFETs rated for continuous drain current exceeding peak field excitation demands (typically 10–15A). Choose N-channel devices with low RDS(on) (below 30 mΩ @ 25°C) to minimize losses. Pair with fast-recovery flyback diodes (e.g., UF4007) on the field coil to suppress inductive kickback–slow diodes risk avalanche breakdown during load dumps.
- Field coil: AWG 14–16 wire, enamel-insulated, wound for ~2–5Ω DC resistance. Over-specified gauge increases weight without improving efficiency.
- Pulse-width modulator (PWM): Dedicated ICs (SG3525) outperform microcontroller-based solutions in noise immunity–switching frequencies of 1–4 kHz balance transient response and ripple.
- Protection network: Include a bidirectional TVS diode (P6KE24A) across the battery terminals to clamp spikes from load disconnects. Absent protection risks permanent gate oxide damage in the switching FET.
Sensing leads demand shielded twisted-pair wiring (minimum 22 AWG) to reject EMI from brush arcing and high-current paths. Route away from power cables by ≥5 cm–inductive coupling induces false triggers in control logic. Terminate shields at a single ground point near the control module to avoid ground loops.
Damping overshoot requires an RC snubber across the switching element. Values of 10Ω/0.1 µF suppress ringing at turn-off edges; excessive capacitance (>1 µF) slows response time, causing voltage undershoot. Verify snubber effectiveness with a scope–ringing amplitude should not exceed 10% of setpoint voltage.
Ground integrity separates reliable operation from intermittent failure. Star-grounding prevents return-path interference: connect battery negative, control module ground, and chassis ground at a single copper busbar. Avoid relying on painted metal surfaces–use serrated washers for electrical continuity. Bonding resistance should measure
Final validation demands load testing with a variable resistive dummy load (1–50A range). Monitor output voltage, ripple (pp), and temperature rise (heatsink
Step-by-Step Wiring Guide for a 12V Generator Control Unit
Begin by identifying the three primary terminals on the voltage stabilizer: the battery terminal, the stator output, and the excitation input. The battery terminal (typically marked “+”) connects directly to the positive pole of the power storage unit via a 4 AWG cable to minimize resistance. Ensure the cable length does not exceed 1.5 meters unless using thicker 2 AWG wire to prevent voltage drop.
Attach the stator output terminal to the charging coil’s positive lead. Most modern systems use a Y-configuration stator with three phases; join all three phase wires using a 3-diode bridge rectifier before routing to the stabilizer. Verify diode orientation–anode to coil, cathode to stabilizer–using a multimeter in diode-test mode (forward bias ~0.6V).
Connecting the Excitation Path
Locate the excitation input terminal, often labeled “F” or “Field.” Splice a 16 AWG wire from this terminal to the ignition switch’s accessory position. Include a 10A fuse within 15 cm of the splice point to protect the rotor windings from transient spikes. For temperature compensation, add a 0.1μF capacitor between the excitation terminal and ground to filter high-frequency noise.
Ground the stabilizer’s negative terminal using a dedicated 8 AWG wire to the engine block, avoiding shared chassis grounds. Ensure the connection surface is bare metal–remove paint or corrosion–and torque the bolt to 12 Nm. Poor grounding can cause erratic output or premature component failure.
Test the assembled system with the engine off: set a multimeter to DC voltage mode and probe the battery terminals. With the ignition on (engine off), the voltage should rise to 13.8–14.2V within 3 seconds. If reading exceeds 14.5V, recheck diode orientation; below 13.5V, verify rotor continuity (resistance should be 2.5–5Ω).
Final Adjustments and Troubleshooting
For fixed-voltage stabilizers, confirm the preset output matches your battery type: 14.2V for lead-acid, 14.6V for AGM. Adjustable units require a precision potentiometer; turn it clockwise to increase voltage, but never exceed 15V to avoid electrolyte loss. Use a load tester to simulate 50% of the maximum amperage draw–voltage should stabilize within 0.2V of the target under load.
If the system fails to maintain voltage, isolate the rotor windings with an ohmmeter. Shorts to ground (0Ω) indicate insulation failure; open circuits (>10Ω) suggest a broken winding. Replace defective rotors immediately–temporary fixes like bridging wires risk catastrophic overcharging.
Seal all connections with marine-grade heat-shrink tubing and anti-corrosion grease. Route wires away from exhaust manifolds and moving pulleys, securing them with zip ties every 20 cm. Label each wire with its function–this simplifies future diagnostics and prevents accidental miswiring during maintenance.
