How to Build an Inductive Proximity Switch Step-by-Step Circuit Guide
For applications requiring non-contact object detection, a well-designed sensor assembly using an LC oscillator paired with a Schmitt trigger delivers reliable performance. Start with a high-frequency coil (200–500 kHz) wound on a ferrite core–optimize inductance by adjusting turns (typically 50–150 for standard 8mm sensors). Connect it in parallel with a capacitor (100–1000 pF, ceramic or polyester) to form the resonant tank. Use a 2N3904 or similar NPN transistor as the oscillator driver, with a 4.7kΩ base resistor and 1kΩ emitter resistor to stabilize current.
Add a comparator stage (LM393 or TL072) to threshold the output–configure the inverting input with a 10kΩ potentiometer to fine-tune sensitivity. A pull-up resistor (4.7kΩ–10kΩ) ensures clean switching at the output, compatible with 5V–24V logic. For noise suppression, place a 100nF decoupling capacitor close to the IC’s power pins. If target materials vary (steel vs. aluminum), adjust the coil’s diameter or add a ferrite shield to minimize false triggers.
Power the circuit with a regulated supply (±5% tolerance) to prevent frequency drift. For extended range (up to 10mm), increase the coil’s Q-factor by reducing series resistance–replace wire with Litz wire if operating above 300 kHz. Test detection distance with a metallic sample (minimum 3mm diameter) at different angles to validate alignment tolerance. For industrial use, add a flyback diode (1N4007) across the output relay to protect against voltage spikes.
When laying out PCB traces, keep oscillator components compact–separate signal paths from power lines using ground planes. For high-speed applications (response time <1ms), shorten feedback loops and use low-ESR capacitors. If integrating with microcontrollers, buffer the output with a MOSFET (IRLML6401) to drive loads up to 500mA. Verify performance with an oscilloscope: the oscillator waveform should collapse cleanly when a target approaches, with minimal ringing.
Designing Edge-Detection Sensors: A Practical Schematic Guide
Start with an LC oscillator core–use a 100μH coil paired with a 470pF capacitor for a stable 200-300kHz signal suitable for most metal targets. Ensure the coil’s ferrite core has a flat sensing face with a diameter at least 1.5x the expected detection range (e.g., 12mm for 8mm reach). Wire the coil directly to a CD4046B PLL chip to minimize noise; avoid long traces between the coil and the IC’s pins 6-9, as parasitic capacitance degrades sensitivity.
Signal Conditioning for Reliable Target Recognition
Insert a 1kΩ resistor between the PLL’s phase comparator output (pin 13) and a low-pass RC network–10kΩ + 1μF–filtering the raw square wave into a smooth DC voltage. This voltage swings 0.5V without a target to 4.2V when a ferrous object sits within the coil’s magnetic field (tested with 1mm mild steel at 5mm distance). Add a 1N4148 diode across the RC network to clamp voltage spikes if the sensor powers inductive loads.
Amplify the filtered signal with an LM358 op-amp: set gain to 10 via 10kΩ (feedback) and 1kΩ (input) resistors. This raises the swing to 0-5V, compatible with 5V logic–no additional level shifting needed. Power the op-amp from the same 12V rail as the oscillator but decouple with 10μF + 0.1μF capacitors placed within 2mm of the IC’s supply pins to suppress supply ripple from motor interference.
Output Stage Configuration
Drive a MOSFET like IRLML6401 directly from the op-amp output–gate resistor ≤100Ω. A 10kΩ pull-down on the MOSFET gate prevents floating output when the target exits the field. For sinking outputs, swap the MOSFET for a ULN2003 transistor array wired to the op-amp output through a 2.2kΩ base resistor; the array’s internal diode protects against back-EMF.
Test response time by moving a 1cm aluminum plate at 50mm/s–measured rise/fall times should stay under 50μs (oscilloscope probe on MOSFET drain). If sluggish, reduce the RC time constant (try 4.7kΩ + 470nF) but expect ±0.3V reduction in the high-state output; compensate with a second op-amp stage set to unity gain.
Mount the completed board in a grounded metal enclosure, keeping the coil’s sensing face flush with the enclosure wall. For non-ferrous metals (copper, brass), swap the 100μH coil for a larger 330μH unit–sensitivity drops 30% but remains usable up to 4mm. Always verify schematic node voltages against expected values before connecting actuators: 0V at op-amp input pin with no target, 4.2V when triggered.
Core Elements of a Sensor Detection Blueprint
Start by selecting an oscillator with a frequency range between 100 kHz and 1 MHz–lower frequencies suit ferrous metals, while higher bands improve sensitivity to non-ferrous targets. Use a Colpitts or Hartley topology with a tank circuit featuring a 10–100 pF capacitor and a 1–10 mH coil; finer adjustments come from trimming the coil’s inductance via a ferrite core. Ensure the coil’s quality factor (Q) stays above 50 to maintain sharp detection edges–suboptimal Q values degrade signal-to-noise ratios, causing false triggers.
Critical Component Specifications
| Component | Recommended Value | Tolerance | Key Consideration |
|---|---|---|---|
| Oscillator capacitor | 47–220 pF | ±5% | Avoid ceramic types to prevent frequency drift under temperature swings |
| Detection coil | 5–50 mH | ±10% | Wire gauge 0.2–0.5 mm for minimal DC resistance; enameled copper reduces eddy losses |
| Schmitt trigger hysteresis | 0.5–2.0 V | ±0.2 V | Set thresholds via resistive divider; lower hysteresis increases bounce susceptibility |
| Output transistor (NPN) | 2N3904 | N/A | Collecter resistor 4.7–10 kΩ; verify saturation voltage stays below 0.3 V at 20 mA load |
Integrate a demodulator stage–typically a diode detector (1N4148) followed by a 100 nF smoothing capacitor–to convert the oscillator’s amplitude modulation into a DC signal. Add a temperature-compensated voltage reference if the setup operates above 60°C; discrete diodes or a precision shunt like the LM4040-2.5 stabilize drift-prone zones. For PCB layouts, keep the coil’s trace width under 1 mm to minimize parasitic inductance, and route high-frequency paths away from ground planes to prevent capacitive coupling.
Step-by-Step Assembly of a Metal-Sensing Detector
Begin with an LC oscillator: solder a 100 μH coil to a 10 nF capacitor in parallel, ensuring the resonant frequency targets 100–200 kHz for optimal detection range (3–8 mm). Connect the coil’s ground to a common reference point, then pair the oscillator output with a Schmitt trigger (74HC14) via a 1 kΩ resistor to sharpen transitions and eliminate noise. Test oscillation by probing the trigger input–stable square waves confirm correct frequency. Next, add a demodulator (e.g., BAS16 diode and 1 nF smoothing capacitor) to convert the AC signal into a DC voltage proportional to target distance.
Attach a comparator (LM393) with a 10 kΩ potentiometer for threshold adjustment–set it to trip when a ferrous or non-ferrous object enters the detection zone. Wire the comparator’s output to an NPN transistor (BC547) or MOSFET (IRFZ44N) to drive an LED or relay, using a 220 Ω resistor to limit current. Verify functionality by gradually moving a 1 mm steel plate toward the coil; the output should toggle consistently at 5 mm. For extended range, increase coil diameter (30% gain) or reduce capacitor value (shifts frequency higher). Calibrate the potentiometer to avoid false triggers from ambient metal.

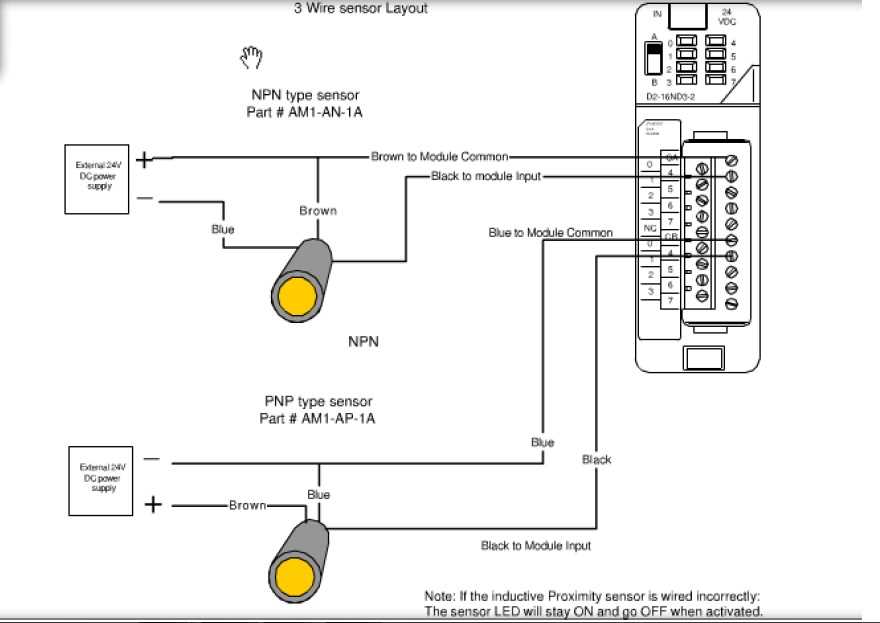

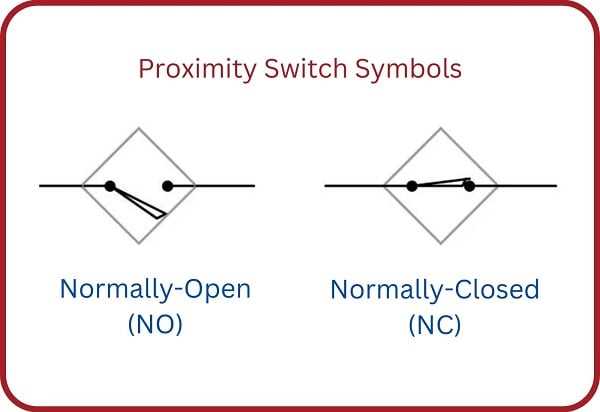

Common Wiring Configurations for NPN vs PNP Sensor Types
For NPN sensors, connect the load between the positive supply (+V) and the sensor’s output (black wire). The sensor grounds the load when activated, pulling the output low. Use this setup when the controller accepts sinking inputs (e.g., PLCs with PNP inputs require an external pull-up resistor). Avoid exceeding 100 mA sink current; opt for a relay or transistor if higher currents are needed. Always verify the sensor’s datasheet for exact voltage ratings–NPN models typically handle 10–30 V DC, with some industrial variants supporting 24–60 V DC.
Key Differences in Load Connection
- NPN (Sinking): Load connects to +V, sensor output to ground. Best for sinking control systems. Ensure the sensor’s negative terminal is grounded to the power supply’s negative rail–floating grounds cause erratic operation.
- PNP (Sourcing): Load connects between sensor output (brown/black wire) and ground. Supplies current to the load when triggered. Use with sourcing controllers or devices requiring a positive signal. For 3-wire PNP, the blue wire is the 0 V reference; never connect it to +V.

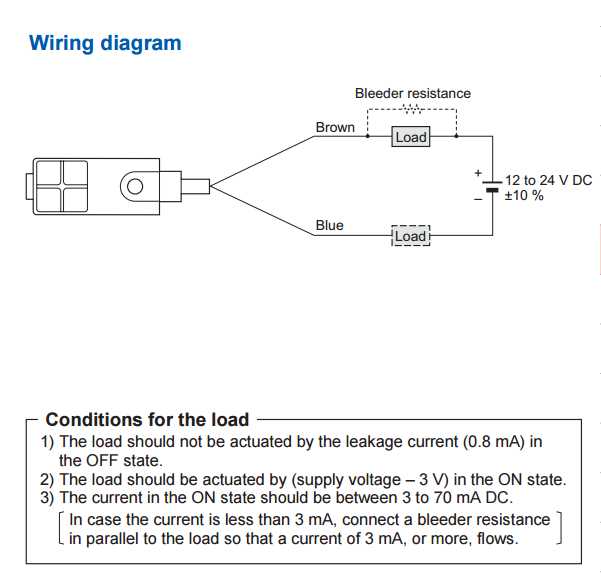

For 2-wire AC/DC models, wiring mimics a mechanical contact: one wire to the load, the other to the power source. These ignore NPN/PNP logic but demand careful voltage selection (e.g., 24 V AC/DC or 230 V AC). For 4-wire sensors, the fourth wire (often white) provides an extended detection range signal–parallel it with the main output for dual-control setups. Test all configurations with a multimeter: activated NPN sensors show near 0 V at output; PNP outputs near +V.
Troubleshooting Interference and Erroneous Activations in Sensor-Based Detection Systems
Start by isolating the sensing element from adjacent conductive structures. Maintain a clearance of at least 1.5 times the sensor’s diameter to prevent eddy current coupling, particularly when nearby metallic objects shift or vibrate. If clearances cannot be adjusted, introduce a grounded shield–a 0.5 mm copper foil wrapped around non-active surfaces–reducing stray capacitance by up to 40%. Verify shield continuity with a multimeter; resistances above 1 Ω indicate poor bonding.
Check cable routing against high-current lines. Separate signal cables from power feeds by at least 20 cm or use twisted-pair wiring with an impedance below 100 Ω. Ground the cable shield only at the controller end to prevent ground loops, which manifest as sporadic activations during transient loads. Measure shield-to-ground resistance–values above 0.1 Ω suggest oxidation, requiring abrasive cleaning of terminal surfaces.
Power Supply Stability Checks
Noise from switching regulators often exceeds sensor hysteresis thresholds. Replace any buck converters near the sensor with linear voltage regulators (e.g., LM7812) outputting a fixed 12 V ±0.2 V. Confirm supply ripple with an oscilloscope set to 20 mV/div; peaks above 50 mV require a π-filter (470 μF electrolytic + 100 Ω resistor in series). For transient immunity, add a 100 nF ceramic capacitor directly across sensor power pins, reducing susceptibility to fast voltage spikes.
Short-duration false triggers–lasting 2–5 ms–typically originate from nearby electromagnetic sources. Map ambient interference using a spectrum analyzer: frequencies matching sensor excitation bands (100–500 kHz) demand shielding upgrades. Encase the sensor in a mu-metal box (0.3 mm thick) with a slot width narrower than 1/8th of the excitation wavelength. If shielding is impractical, relocate the sensor away from transformers, relays, or variable-frequency drives, maintaining a minimum distance of 30 cm.
Load and Output Stage Diagnostics
Sinking outputs configured for NPN transistors often misinterpret leakage current as valid signals. Replace standard 1N4007 diodes with Schottky types (e.g., 1N5817) across inductive loads, clamping flyback voltages below 30 V. For open-collector configurations, use a pull-up resistor calculated as: R = (Vcc – 0.3 V) / 5 mA–typically 2.2 kΩ for 12 V supplies. If false activations persist, substitute the sensor’s output with an opto-isolator (e.g., PC817), eliminating common-mode noise coupling.
Thermal drift in oscillator components–particularly the tank circuit’s capacitor–can shift detection thresholds. Replace film capacitors with NP0/C0G ceramics, ensuring temperature coefficients below ±30 ppm/°C. For critical applications, add a thermistor (e.g., 10 kΩ NTC) in series with the oscillator capacitor, compensating for ambient fluctuations. Validate stability over the operational range (−20°C to +60°C) by monitoring sensor output frequency variation, which should not exceed ±2 kHz from baseline.
