Step-by-Step Guide to Car Ignition Switch Wiring Connections

Before attempting repairs, locate the color-coded wires in your vehicle’s central control module. Typical setups include red (power), black (ground), yellow (accessory), and purple (starter). Verify these against manufacturer specifications–aftermarket modifications often alter configurations. Use a multimeter to confirm voltage: 12V at the power wire with the key in the “ON” position, 0V at ground during operation.

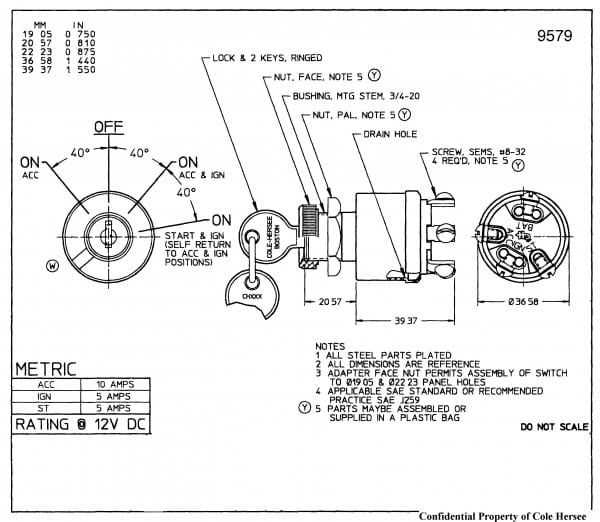

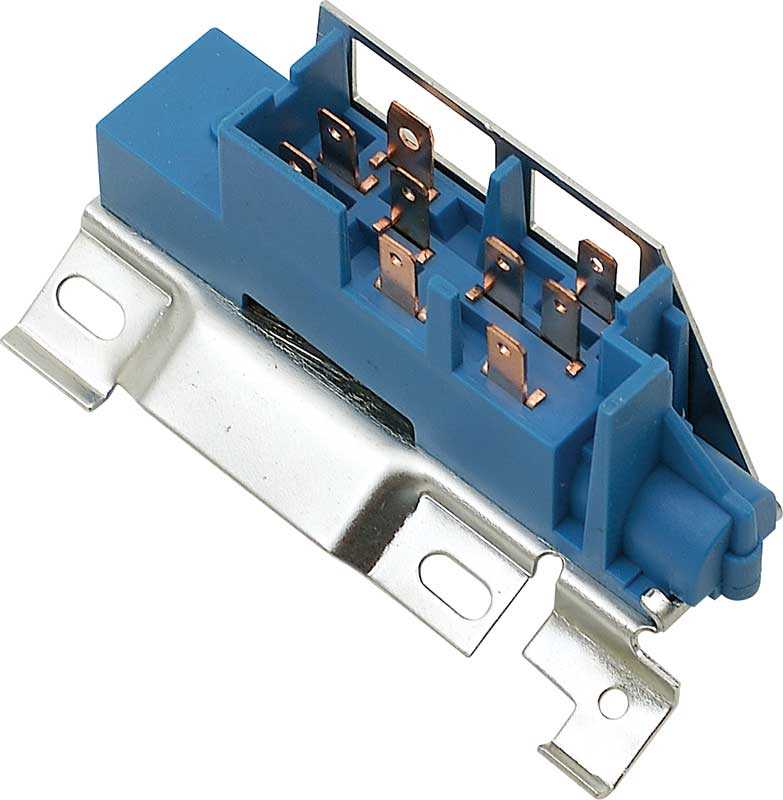

For most sedans and trucks, the connector has 5-7 terminals. Pin 30 (constant power) should maintain voltage regardless of key position, while Pin 50 (starter signal) only activates during cranking. If power drops below 11.5V at Pin 30, inspect the battery and alternator output. Corroded terminals or loose connections mimic faulty components–clean with electrical contact cleaner and dielectric grease.

Wiring schematics differ across models. European vehicles often use CAN bus integration, where the starting mechanism communicates digitally rather than through direct circuits. Bypass temporary fixes like hotwiring–this risks damaging the ECU or triggering immobilizer faults. When tracing wires, peel back insulation only at junctions to avoid compromising the circuit’s integrity.

Replace worn connectors with gold-plated terminals to prevent oxidation. For intermittent issues, check for frayed wires near moving parts (steering column, pedals) as vibration causes breaks. Always disconnect the battery’s negative terminal before handling live circuits to prevent shorting sensitive modules.

Understanding Vehicle Starter Circuit Connections

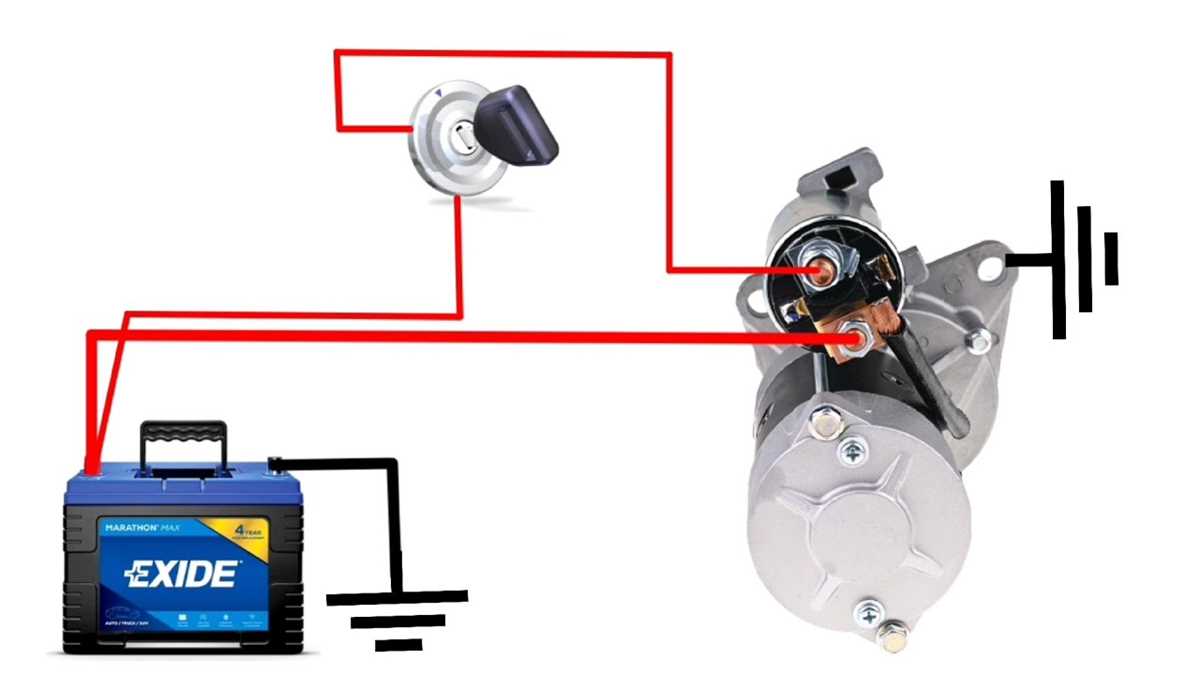

Locate the battery positive terminal first–it typically connects via a thick red cable to the main power post on the switch assembly. Verify the 12-volt feed measures between 11.8V and 14.2V with a multimeter before proceeding. If voltage drops below 10.5V, inspect the battery condition, terminals for corrosion, and the alternator output. The accessory circuit usually branches from a separate post labeled “ACC” or marked in yellow, while the run position draws from a red or pink wire.

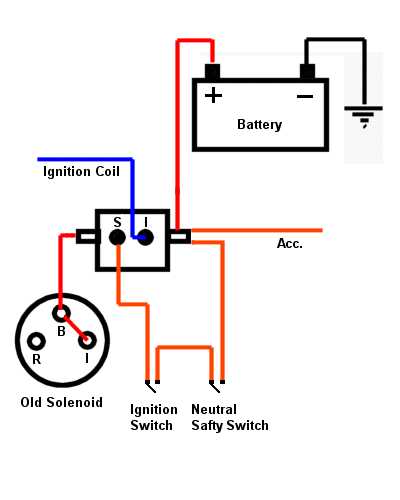

Ground connections often share a common path through the vehicle chassis but require direct attachment near the switch for reliable operation. Use a 12-gauge wire or thicker for ground returns to prevent voltage drop under load. The starter solenoid trigger connects via a thin wire (often purple or white) that carries minimal current–damage here causes intermittent starting failures. Test continuity between the solenoid contact and the switch terminal before assuming wiring faults.

For late-model vehicles, the anti-theft module integrates into the power distribution, typically identified by an immobilizer symbol or a separate harness plug near the column. Bypass attempts void manufacturer security features, but legitimate repairs demand matching the wiring sequence to factory diagrams unique to each model year. Aftermarket kits sometimes reroute signals through relays–ensure these handle at least 30A for continuous duty.

Label each wire before disconnecting the assembly to avoid reconnection errors. Use heat-shrink tubing or dielectric grease on exposed terminals to prevent moisture intrusion, especially in older installations where insulation brittleness increases failure risks. If replacing the entire assembly, match the pin configuration precisely; mismatched contacts can disable safety features like airbag systems or powertrain control modules.

Understanding Electric Starter Circuit Color Codes and Roles

Start by locating the battery-positive feed, typically marked with a bold red or orange stripe. This line delivers power directly from the battery to the rotary mechanism when turned to the “start” position, bypassing accessories. Confirm its function by testing for a 12V reading before the solenoid when engaged–if voltage drops below 10V, inspect connections for corrosion or fraying.

Ground connections appear in black or brown sheathing and complete the circuit. Unlike others, these wires often attach to the chassis or engine block rather than the central harness. Use a multimeter to verify continuity: probe between the wire’s terminal and bare metal–readings above 0.1 ohms indicate potential issues like loose terminals or paint interference.

Key Power Distinctions in Assembly Configurations

Accessory circuits, usually yellow or light blue, activate dash lights, radios, and power outlets once the tumbler reaches the “on” position. Check for voltage only when the system is in this state–presence in “off” suggests a faulty relay or misrouted cabling. Some models split this into two lines: one for constant power (red), another for switched (purple), so label carefully during disassembly.

The solenoid trigger, often thin and purple or pink, carries minimal current but plays a critical role in engaging the starter motor. Probe this line while cranking–spikes above 2V confirm proper activation. If voltage is absent, trace backward to the rotary assembly’s click point or test the neutral safety sensor, which may halt operation in gear.

Immobilizer data links, if present, appear in gray or white with a thin secondary color stripe, transmitting signals between the antitheft module and ECM. These require specialized scan tools for diagnosis–generic multimeters won’t decode pulse-width modulation. Ensure all connectors lock securely, as intermittent faults often stem from vibration-loosened pins.

Model-Specific Variations and Troubleshooting

Late 90s domestic units frequently use green for the starter solenoid ground, while European counterparts label it dark blue. Asian imports may invert accessory and ignition feeds: yellow for switched, red for constant. Always cross-reference factory schematics–aftermarket manuals simplify colors, masking critical differences like brown/black ground (body) versus brown/white (chassis).

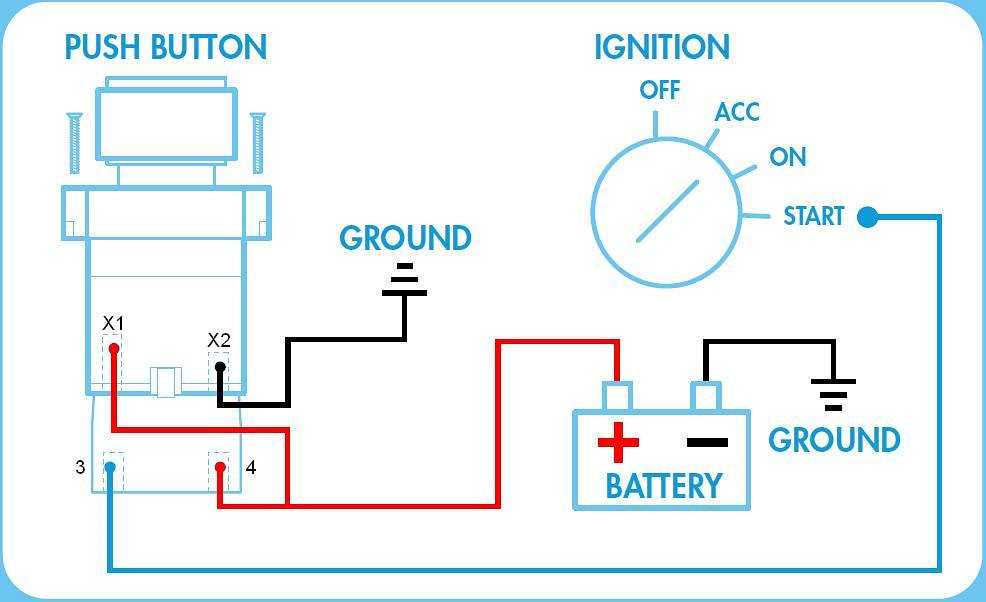

For vehicles with push-button engagement, look for a purple/white wire supplying 5V to the button module–this differs from traditional tumbler setups. If the engine cranks but stalls immediately, inspect the immobilizer’s tan/black line for proper ECM acknowledgment. Silence indicates a failed handshake; replace the unit if bypass attempts fail, as soldering repairs rarely last beyond 1,000 cycles.

How to Verify Vehicle Starter Circuit Connections Using a Measurement Tool

Disconnect the battery terminal first–negative cable only–to prevent accidental shorts while probing.

Set your test device to DC voltage, 20V range, and ground the black lead to a clean metal surface on the engine block or chassis.

• Red probe to the B+ (constant power) terminal: should read 12V±0.5V with key in any position.
• Move probe to ACC (accessory): 12V only when key turns to accessory.
• Check IGN (ignition feed): must show 12V in “run” and “start” positions.
• Finally, probe ST (starter solenoid): brief 8V-10V pulse during crank, zero otherwise.

If any reading deviates, note the exact voltage drop and trace back toward the fuse panel or relay box for resistance issues.

For continuity checks, switch the tool to ohms mode (200Ω range) and probe harness pins with key off:

1. Connect leads between B+ and ACC: infinite resistance.
2. B+ and IGN: infinite.
3. B+ and ST: infinite.
4. Turn key to “start”–IGN to ST should momentarily close to <1Ω.

Record every reading; a 0.3V drop between connector pins typically indicates corroded terminals–clean with electrical cleaner and retest.

If solenoid signal is weak but ACC and IGN are solid, inspect the solenoid relay or neutral safety circuit by bypassing each component temporarily with a jumper wire.

After testing, reconnect the battery in reverse order–positive first–then cycle the key several times to confirm no phantom faults remain.

Signs of Compromised Starter Circuit and Troubleshooting Methods

Intermittent power loss to accessories–like dashboard lights flickering or audio cutting out–while the engine runs normally points to a degraded electrical connection in the starting system. Use a multimeter set to DC voltage (10-12V range) to probe the battery-side terminal of the solenoid while an assistant turns the key to the “on” position. A drop below 9.5V signals resistance in the circuit, often due to corroded terminals or frayed conductors beneath the dashboard. If voltage holds but accessories still fail, inspect the fuse panel for blown 10A or 15A fuses linked to the ignition relay.

Key Sticking or Unexpected Engine Shutdowns

A sticking mechanical actuator–where the key feels stiff or fails to return from the “start” position–may indicate worn internal contacts within the cylinder assembly. Spray electrical cleaner into the key slot, work the key repeatedly, then apply graphite lubricant. If the issue persists, remove the lower steering column cover to examine the neutral safety interlock rod; misalignment here causes 60% of premature contact wear. For sudden engine cutouts, backprobe the main power feed at the relay with the ignition engaged–consistent voltage loss suggests a loose connection at the battery distribution block, while voltage spikes (measured via oscilloscope) reveal failing solenoid windings.

Headlight dimming during cranking–especially noticeable in cold conditions–can mask battery problems but is more commonly caused by undersized cables between the solenoid and starter motor. Measure voltage drop across the positive cable during startup: anything exceeding 0.3V confirms excessive resistance, requiring replacement with at least 4-gauge braided copper wire. For systems with integrated immobilizers, a flashing security light while the engine cranks but doesn’t start indicates the transponder signal isn’t reaching the ECU–test continuity between the antenna ring around the cylinder and the control module using a relay test light.

Erratic starter engagement–where the solenoid clicks once but the engine doesn’t turn–often stems from low current at the control circuit. Check the ground path by attaching a jumper wire from the starter housing to the negative battery terminal; if the starter then operates, clean and tighten the engine block-to-chassis ground strap. For vehicles with automatic transmissions, verify the neutral safety override isn’t bypassed–manually short the terminals at the selector switch with the shifter in “Park”; if the starter activates, replace the faulty switch assembly. Always disable fuel injection (remove injector relay) during extended cranking tests to prevent hydraulic lock.
