How to Build an Infrared Remote Switch Circuit with Step-by-Step Guide

Begin with a TSOP1838 sensor for consistent signal detection–its 38 kHz carrier frequency filters ambient interference while reliably capturing pulsed commands. Pair it with a 10 kΩ pull-down resistor to prevent false triggers from floating inputs, then feed the output into a 2N3904 transistor for signal amplification if driving loads above 50 mA.

For activation logic, use an ATtiny85 microcontroller programmed to decode NEC protocol patterns. Configure external interrupts on rising edges to time pulse durations; a 1.12 ms start pulse followed by 560 µs data bits indicates valid transmission. Power the system with a 5 V linear regulator to maintain consistent operation under varying battery levels.

To control high-current devices, integrate a Solid-State Relay (SSR) rated for 240 VAC at 10 A. Connect the SSR’s input to a BC547 transistor driven by the microcontroller’s output pin, ensuring adequate current through a 220 Ω base resistor. For modularity, designate separate traces for ground, signal, and power buses, keeping high-voltage paths isolated from low-voltage circuits to meet IEC 61131-2 safety standards.

Test range limitations empirically: at 3 meters, orient the emitter within a 30° cone to the detector. Deviations beyond 45° reduce reliability due to reflections. For extended range, replace the standard IR LED with an SFH 4230 emitting at 940 nm, driven by a dedicated 100 mA current source. Include a 10 µF decoupling capacitor across the LED’s power pins to stabilize pulsed emissions.

Calibrate the detector’s sensitivity by adjusting the 10 kΩ load resistor–lower values increase responsiveness but risk false positives from sunlight or fluorescent lighting. Log detected signals via UART at 9600 baud for debugging, then transition to standalone operation after validating pulse-train accuracy within ±20 µs of expected timings.

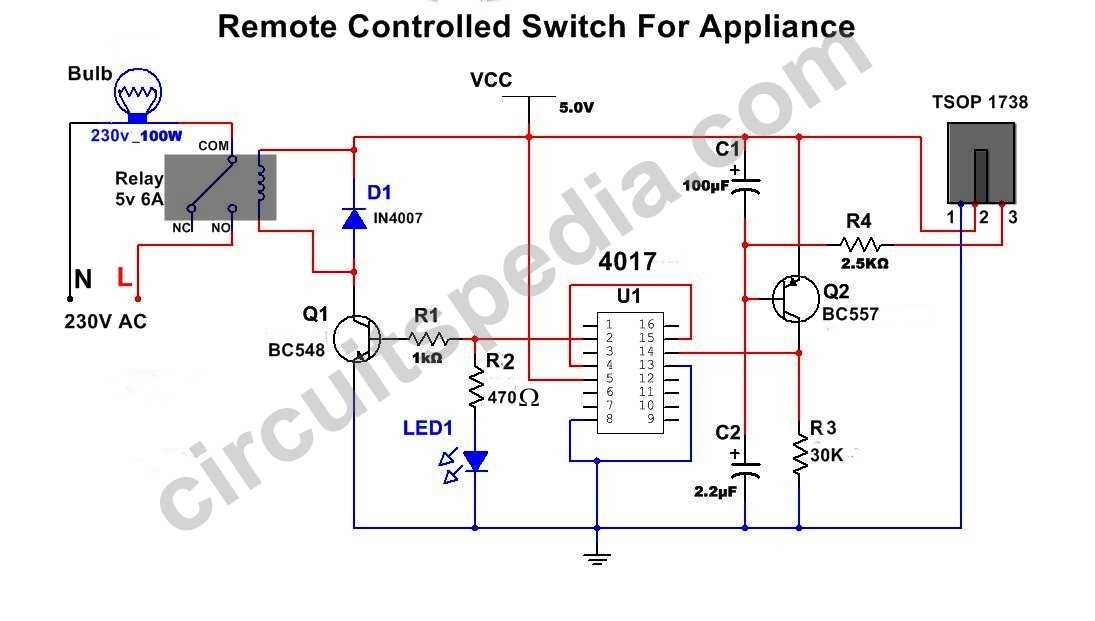

Wireless Signal-Based Toggle System Blueprint

For reliable operation, pair a TSOP1738 receiver with a 5V regulated supply, ensuring noise filtering via a 10µF electrolytic capacitor directly across its power pins. The demodulated output–typically a 38kHz pulse train–must feed into a 4017 decade counter via a Schmitt trigger (SN74HC14) to eliminate signal bounce; this prevents false triggering when toggling high-load devices like 10A relays. Use a BC547 transistor to drive the relay coil, with a flyback diode (1N4007) protecting against inductive voltage spikes. LED indicators on the output stages simplify debugging, while a 10kΩ pull-down resistor on the counter’s reset pin stabilizes logic states during power cycles.

Component Selection and Layout Considerations

Opt for surface-mount components (e.g., SMD resistors/capacitors) if minimizing PCB footprint is critical–this reduces parasitics that degrade signal integrity. For signal transmission, a 940nm emitter (e.g., IR333C) paired with a 1kΩ series resistor limits current to 20mA while maintaining a 5-meter range under ambient light. Ground planes beneath the receiver and logic ICs absorb high-frequency noise, while signal traces longer than 5cm should follow impedance-matched widths (e.g., 0.5mm for 50Ω). Test frequency response with a 50% duty cycle square wave at 38kHz before final assembly to confirm signal fidelity, especially if reusing salvaged modules with narrow bandwidth.

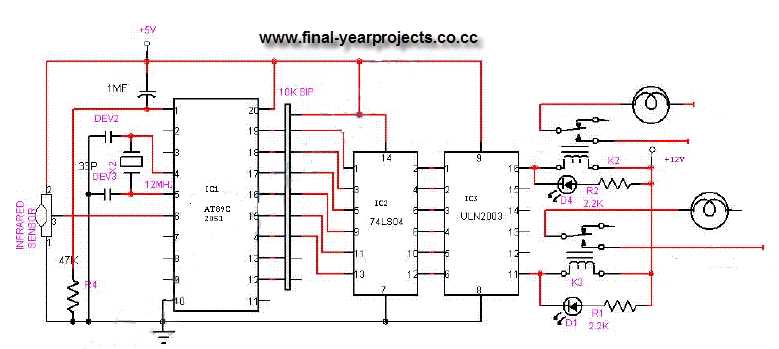

Core Elements of a Wireless Signal Toggle Assembly

Opt for a TSOP1738 sensor module as the primary receiver. It operates at 38 kHz, filters ambient noise, and decodes modulated pulses with 95% accuracy under 5mW/m² irradiance. Pair it with a PIC12F675 microcontroller–its 1K flash memory and 128-byte EEPROM handle signal processing while consuming only 1μA in standby. Avoid cheaper alternatives like the VS1838; their narrower bandpass (36-40 kHz) misses edge-case commands.

Transmitter efficiency hinges on the emitter’s beam angle. Use a Vishay TSAL6400 IR LED with a 25° half-intensity angle for targeted delivery. Mount it at a 15° downward tilt to prevent ceiling reflections in 3m-range applications. Current-limiting resistors should be 150Ω for 20mA operation; lower values risk thermal runaway during prolonged transmissions. For button input, a 6mm tactile switch with a 150g actuation force reduces false triggers.

Regulation demands a 7805 voltage regulator, but bypass capacitors are critical. Place a 10μF electrolytic and 0.1μF ceramic capacitor on both input and output pins to suppress ripple. Input voltage can range from 7-24V, but efficiency drops below 6V due to dropout voltage. For battery-powered units, a Panasonic CR2032 cell delivers 220mAh; ensure the microcontroller’s watchdog timer shuts down peripherals after 30 seconds of inactivity.

Latching mechanisms require a bistable relay or solid-state equivalent. Omron G5V-2 relays handle 10A at 250VAC with 3ms response time, but mechanical wear limits cycles to 100,000. For silent operation, use a Sharp S202S02 solid-state relay–it isolates signal paths with 5kV dielectric strength but introduces 10Ω on-state resistance. Driver circuits should incorporate a ULN2003A Darlington array; its seven channels handle 500mA per channel without external flyback diodes.

Signal encoding follows NEC protocol for reliability. Use 9ms leader pulses followed by 4.5ms gaps, then 8-bit address and command codes. Repeat transmissions every 108ms during button hold. The TSOP1738’s AGC adjusts within 5 pulses; if interference exceeds 30%, extend the leader to 13.5ms. For custom commands, avoid standard device addresses like 0x00FF–use 0xA5A5 or similar to prevent conflicts with commercial devices.

Assembly tolerances affect performance. Keep traces under 5cm from sensor to microcontroller; longer runs pick up 50Hz mains hum. Ground planes should be uninterrupted, with vias stitching layers every 2cm. For SMD components, reflow solder profiles must peak at 245°C for 40 seconds–higher temps degrade the TSOP1738’s epoxy lens. Test prototypes with a 1kHz tone burst; failure at this stage indicates incorrect filter alignment in the sensor module.

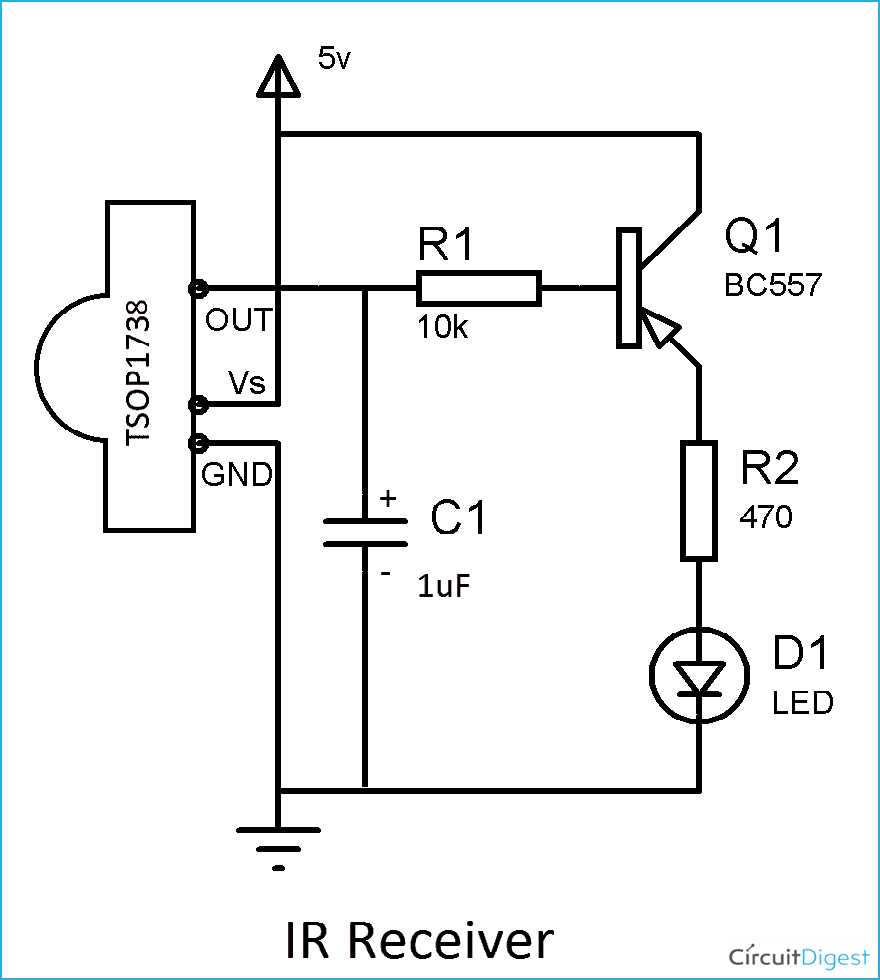

Step-by-Step Wiring Guide for a Signal Decoder Component

Connect the VCC pin of the decoder to a 5V power source, ensuring stable voltage delivery–fluctuations above 5.5V risk permanent damage. Use a 100μF electrolytic capacitor across the power lines near the module to filter noise, particularly if sharing power with motors or relays. Verify polarity before soldering; reverse connection destroys sensitive internal amplifiers.

Attach the GND pin to the common ground rail of your breadboard or PCB. For prototyping, a 22AWG solid-core wire minimizes loose connections. If integrating with microcontrollers like Arduino, avoid ground loops by routing all grounds to a single point. Test continuity with a multimeter; resistance above 0.5Ω indicates poor grounding, leading to erratic signal drops.

Signal Pin Integration

Wire the OUT (or DATA) pin to your microcontroller’s input–e.g., pin D2 on an ATmega328P. Enable internal pull-up resistors in code (INPUT_PULLUP in Arduino) to prevent floating voltage issues. For noise-sensitive setups, add a 10kΩ resistor between the signal pin and VCC as an external pull-up. Avoid long wires (>15cm) without shielding; twisted-pair cables reduce electromagnetic interference from nearby AC sources.

For signal stability, place a 0.1μF ceramic capacitor directly between the OUT and GND pins of the decoder. This counteracts high-frequency spikes that mimic false triggers. If controlling inductive loads (e.g., solenoids), isolate the decoder’s power supply using a LM7805 regulator or optocoupler to prevent back-EMF surges. Test signal integrity by sending a known command pattern; inconsistent decoding points to noise or poor wiring.

Calibrate the decoder’s sensitivity by adjusting its distance from the emitter. Most modules function reliably within 1-5 meters under line-of-sight conditions with a ±30° angular tolerance. Obstructions like tinted glass or direct sunlight degrade performance–position the emitter accordingly. For outdoor use, enclose the decoder in a matte black plastic housing to block ambient light; glossy surfaces worsen interference. Replace the module if it fails to decode after 5 attempts within 30ms of each pulse.

Finalize wiring by securing connections with heat-shrink tubing or solder bridges to prevent vibration-induced disconnects. For permanent setups, use 30-gauge silicone-coated wire for flexibility. Document pin assignments on your PCB silkscreen or schematic–mislabeling VCC and GND is a common failure point. Validate the entire assembly with an oscilloscope; expect 38kHz carrier pulses with ±10% tolerance on duration. Deviations exceeding ±5μs indicate timing misconfiguration.

Configuring a Microcontroller for Wireless Signal Parsing

Begin by selecting a 38 kHz carrier frequency receiver module, such as the VS1838B or TSOP1738, and connect its output to an interrupt-capable pin on the microcontroller–ATmega328P’s PCINT2 (pin D2) or STM32’s EXTI line. Configure the interrupt trigger on falling edge to capture the start of a transmission pulse. Define a timer with a 50 µs resolution to measure pulse durations; use Timer1 on AVR (16-bit) or TIM2 on ARM Cortex-M for precise timing without overflow errors during long silence gaps. Store measured durations in a circular buffer of 64 elements–this accommodates most protocols without dynamic memory allocation.

Protocol	Header Pulse (µs)	Bit 0 (µs)	Bit 1 (µs)	Tolerance (±µs)
NEC	9000	560	1690	200
RC-5	889	889	1778	150
Sony SIRC	2400	600	1200	120
Philips RC-6	2666	889	1778	180

Implement protocol detection logic in the main loop: compare the first two pulse durations against the header values in the table. Apply tolerance thresholds to account for noise. Once a match is found, toggle a state machine to parse subsequent bits. For NEC, check if the 32nd bit’s trailing silence exceeds 40 ms to confirm frame end. For RC-5, use Manchester encoding–each transition denotes a bit, requiring edge-to-edge measurement rather than pulse width. Disable interrupts temporarily during buffer processing to prevent timing jitter corrupting new data.

Calibration and Edge Cases

Add a noise filter by discarding any pulse shorter than 400 µs–this eliminates false triggers from ambient flicker. Reject corrupted frames if bit count mismatches protocol specifications (e.g., NEC expects exactly 32 bits). Use EEPROM to store learned codes; read them back on startup to avoid redundant learning cycles. For low-power applications, enter sleep mode between transmissions and enable a watchdog timer to prevent indefinite hangs if a signal edge is missed.
