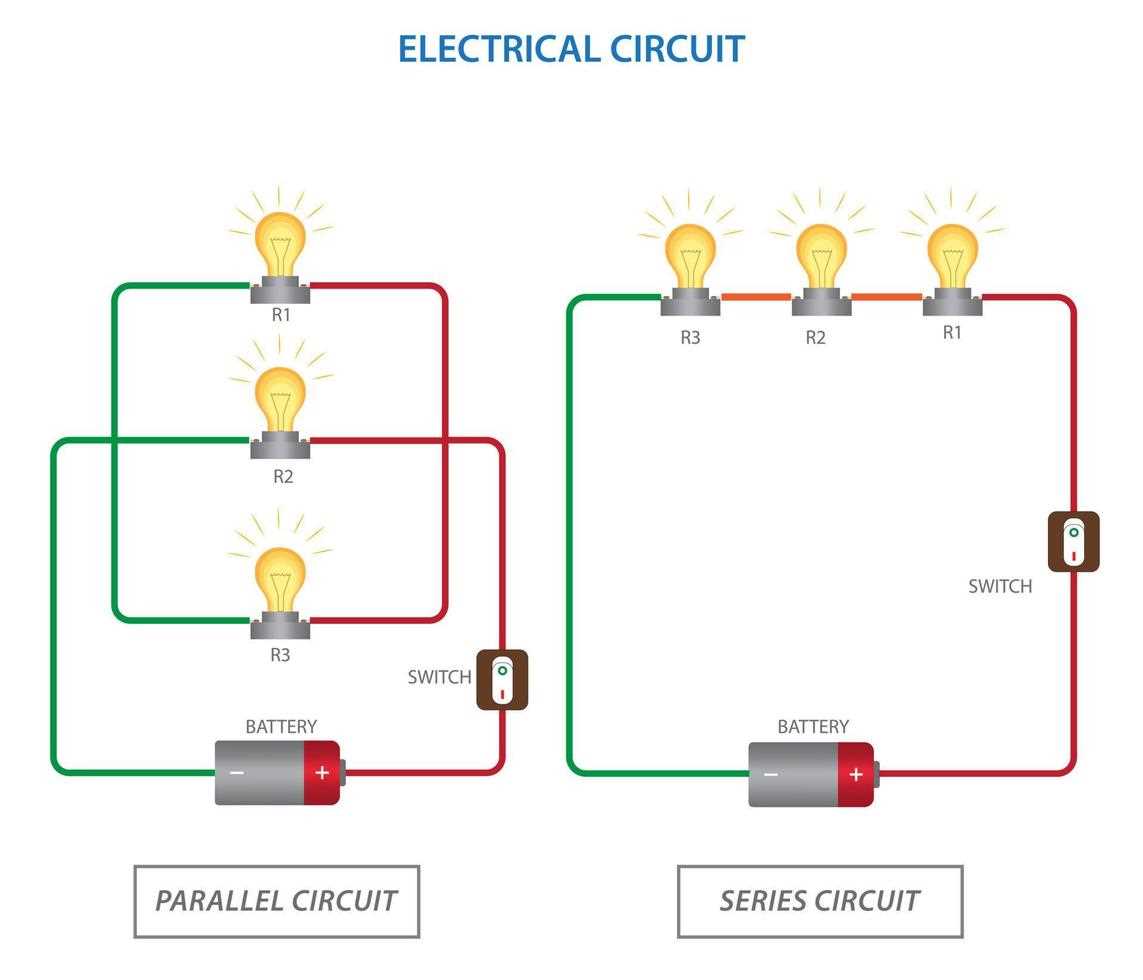

How to Build a Simple Electrical Circuit with a Switch and Light Bulb
Begin by connecting the power source–preferably a 5V to 12V DC battery–to a conductive pathway leading to the load. A small resistive filament or LED should follow, ensuring a current-limiting resistor is placed in series if using an LED to prevent burnout. Standard incandescent lights tolerate direct current within their rated voltage but degrade faster under continuous load.
Insert a mechanical toggle or push-button interrupt between the source and load to regulate flow. Single-pole single-throw (SPST) variants suffice for basic on/off operation. Position the interrupt after the power entry but before the filament to isolate both components during toggling, reducing arcing risk. Copper traces or 18-22 AWG solid wire handle typical currents under 2A without excessive heat buildup.
Verify polarity if integrating diodes or polarized capacitors to avoid reverse-voltage damage. LEDs require anode-to-cathode orientation aligned with the power source, distinguishable by the longer lead. Use a multimeter in continuity mode to confirm the closed loop when engaged–open-circuit readings indicate a faulty connection or failed interrupt. Thermal junctions or protoboards simplify prototyping but solder permanent installations for reliability.
Calibrate resistance to maintain safe dissipation. A 60W bulb at 12V draws 5A; ensure conductive paths handle this without exceeding 10°C/W thermal rise. Resistors dissipating over 1/4W should be physically spaced from flammable substrates. For AC applications, bridge rectifiers convert alternating to direct flow before reaching the filament–omit this step for DC-only setups.
Label each node visibly: “V_in” at the power entry, “S1” for the interrupt, “L1” at the filament. Color-code wires–red for power, black for ground–to minimize cross-wiring errors. Test under load for 30 minutes; persistent flickering suggests loose connections or unrated wire gauge.
Building a Simple Lighting Schematic: Key Steps
Start by placing the power source at the leftmost point of your layout–this ensures a logical flow for current. Ensure the battery or cell terminal markings are clearly labeled (+/-) to prevent polarity errors during assembly. For a 1.5V AA battery, the expected current through a standard lamp (e.g., 0.3A) should guide wire gauge selection: 22-24 AWG copper wire is optimal for safety and minimal resistance loss.
Position the manual cutoff–whether a push-button, toggle, or slide variant–between the power feed and the luminous element. Verify its contact rating matches the load: most miniature lamps tolerate up to 5A, but exceeding this risks arcing or premature failure. Test the switch’s mechanical action before soldering; intermittent connections cause flickering or dark starts.
Mount the filament assembly–incandescent, LED, or halogen–using a holder that isolates heat. For LEDs, incorporate a current-limiting resistor (e.g., 220Ω for a 5V supply) to prevent thermal runaway. Calculate resistance using Ohm’s law: R = (Vsource – VLED) / ILED. Bypass the resistor only if the power source’s internal resistance already limits current sufficiently.
Route conductor paths to avoid cross-talk: keep high-impedance segments (like gate feeds) orthogonal to low-power lines. For breadboard prototypes, use color-coded jumpers–red for positive, black for ground, yellow for signal–to streamline troubleshooting. Secure connections with twist-and-solder or terminal blocks; loose joints escalate resistance, reducing brightness output by up to 15%.
Label every node: mark the power rail, switch midpoint, and lamp base with alpha-numeric tags (e.g., “A1,” “S1,” “L1”) printed on heat-shrink tubing. This prevents miswiring when replicating or expanding the setup. For durability, encase the entire assembly in a non-conductive enclosure (polycarbonate or ABS), leaving only the switch and lamp exposed–this mitigates accidental short circuits in household environments.
Validate functionality with a multimeter before powering on: set the meter to continuity mode to confirm each segment’s integrity. Power up incrementally, monitoring voltage drop across the lamp (expect
Key Elements for a Minimal Lighting Setup
A 1.5V AA battery suffices for low-power illumination, but stacking two in series doubles voltage for brighter filament activation. Alkaline cells last 2–3x longer than zinc-carbon under identical loads, though rechargeables introduce voltage sag.
Conductor Specifications
Solid 22 AWG copper wire (0.64 mm² cross-section) handles 7A continuously; stranded variants flex repetitively but add 10% resistance per meter. Insulation thickness varies–single PVC coats survive 60°C while silicone-extended cables tolerate 180°C for short bursts.
| Material | Resistivity (μΩ·cm) | Corrosion Resistance |
|---|---|---|
| Copper | 1.68 | High (oxidizes slowly) |
| Aluminum | 2.82 | Moderate (forms oxide layer) |
| Steel | 10.0 | Low (rusts rapidly) |
Tungsten filaments in 3V lamps reach 250°C; lower voltages extend lifespan but cut lumen output non-linearly. Incandescents rated at 60 mA draw 180 mW–LEDs require 20 mW at 5 mA for equivalent brightness.
Magnetic reed actuators toggle at 3–5 gauss; lever types need 50 g closing force for reliable contact. Gold-plated contacts prevent oxidation; silver alternatives demand periodic cleaning if idle over 30 days.
Fuse selection depends on steady-state current: 100 mA fast-blow fuses trip in 20 ms for 2x overcurrent, whereas slow-blow endure 10x spikes for 100 ms. Polyfuses reset after cooling but drift 15–20% resistance upward post-trip.
Thermal relief pads on PCB traces widen to 2 mm per amp to dissipate 0.45 W/cm². Adhesive thermal tape bonds heat sinks with 1.5 W/m·K conductivity–soldered assemblies conduct at 50 W/m·K.

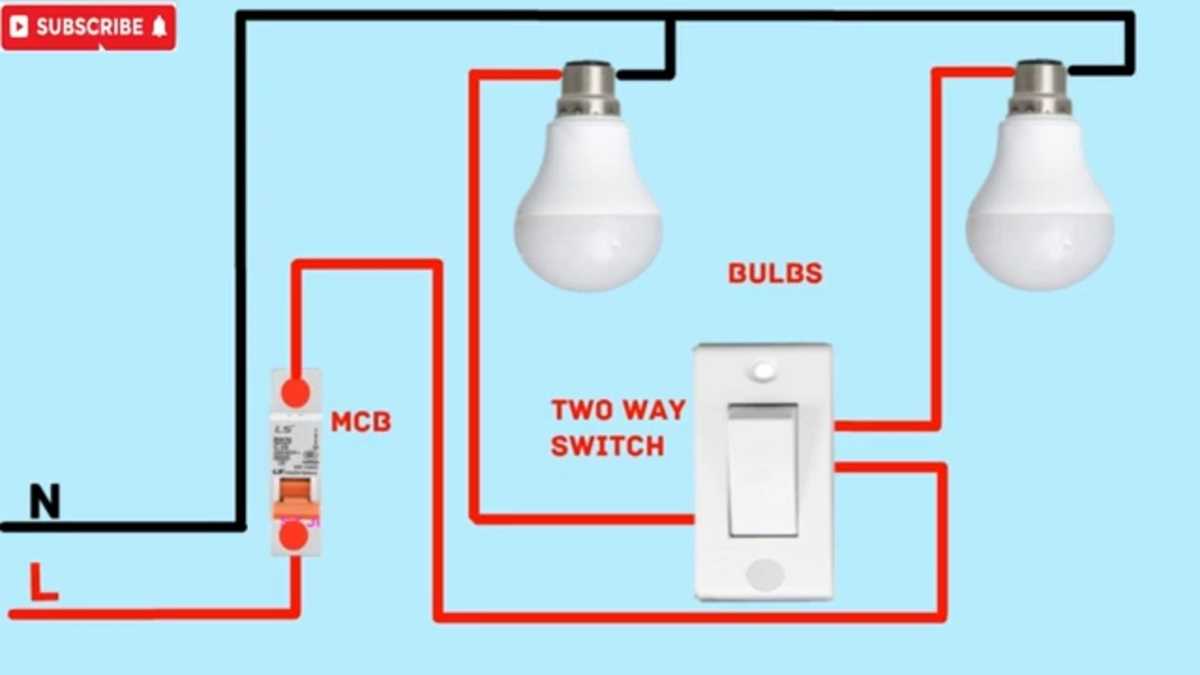

Detailed Guide to Connecting a Toggle Lever to an Illuminating Device
Select a single-pole control mechanism rated for 15 amperes at minimum–this ensures compatibility with standard lighting loads. Confirm the wiring uses 1.5 mm² copper conductors, stranded or solid, to handle current safely. Strip 8 mm of insulation from each wire end using precision strippers, avoiding nicked strands that weaken conductivity.
Attach the power source’s live conductor to the upper terminal of the toggle lever using a flat-head screwdriver, tightening until no slack remains–loose connections generate heat and fail prematurely. Route the second conductor from the lever’s lower terminal to the lamp’s contact point, securing it identically. For grounded systems, bond the neutral wire directly to the lamp’s remaining contact, bypassing the lever entirely.
Enclose all exposed junctions in a junction box rated for the installation’s voltage (typically 120V or 230V). Verify no bare conductors remain visible; insulation tape or heat-shrink tubing must cover splices completely. Before energizing, use a non-contact voltage detector to confirm no stray current exists along the path–accidental shorts risk tripping breakers or causing fires.
Test functionality by toggling the lever; the illuminating device should respond instantly without flickering. If delayed or erratic behavior occurs, re-examine terminals for oxidation (clean with emery cloth if needed) or insufficient torque–these are leading causes of intermittent operation.
Frequent Wiring Errors in Lighting Installations
Connect live wires directly to the lamp holder without involving the toggle. This bypasses control, leaving the light permanently on and risks overheating. Always route the phase conductor through the control device first.
Loose terminal screws cause intermittent contact or arcing. Tighten each screw until resistance increases sharply–typically 0.4 Nm for brass terminals. Check connections annually, as thermal cycling loosens them over time.
Mixing voltage ratings leads to premature failure. A 230V lamp wired to 12V transformer output glows dimly then burns out in under 30 minutes. Verify labels before insertion; mismatch voids warranties instantly.
Incorrect Wire Gauge Choices
- 1.5 mm² copper suits 10A loads; thinner strands for 6A circuits sag or melt insulation within weeks.
- AWG 18 tolerates 7A; AWG 16 handles 10A. Exceeding ratings drops voltage 3% per 5 m, reducing lumen output noticeably.
- Solid core wire snaps at sharp bends; stranded flex lasts 5× longer under vibration, crucial for ceiling fixtures.
Reverse polarity confuses novices. Neutral connected to the brass screw, phase to silver, makes the metal frame live when toggled off. Non-contact testers beep at 50V; verify with multimeter before touching.
Daisy-chaining multiple lamps without load calculation overloads wiring. A 10A breaker trips at 2.3 kW; exceeding it trips after 60 seconds of sustained current. Calculate: P = V × I, add 25% buffer for inrush.
Grounding Oversights
- Failing to bond metal boxes to earth creates static buildup; a stray 5mA leak feels like pins and needles.
- Plastic boxes need separate earth wire back to the panel, not just the fixture earth tab, to comply with IEC 60364-4-41.
- LED drivers often omit isolation; touching a live heatsink while grounded delivers 140VAC shocks.
Skipping strain relief deforms cable jackets. A 5 kg chandelier pulls 1 mm/day; after 3 months, conductors short internally. Use PG11 glands for rigid conduit, nylon clamps for flexible cables.
Essential Equipment for Safe Electrical Assembly and Verification
Solderless breadboard (400+ tie points) ranks first for prototyping–avoid irreversible errors before permanent connections. Choose one with power rails clearly marked to prevent polarity mix-ups. Pair it with 22-24 AWG solid wire (pre-cut jumper kits save time) for consistent conductivity; stranded wires fray under repeated bending. A precision cutter/stripper (e.g., Klein Tools 11055) removes insulation cleanly without nicking copper, reducing short risks.
Verify functionality using a digital multimeter (DMM) with auto-ranging DC voltage (Fluke 17B+ minimum). Measure across components: 0.5-3V drop across a standard LED indicates proper current, while infinite resistance on an open toggle confirms no leakage. Wear anti-static wrist straps if handling MOSFETs for dimming, and keep a fire-resistant mat (silicone-coated) beneath the workspace to contain accidental sparks.
