Understanding Laptop Schematic Diagrams A Practical Guide for Beginners

Begin by identifying power rails. On most layouts, these appear as thick lines labeled VCC, VBAT, or 3V3. Trace them backward to the main supply–typically a battery connector or DC jack–then forward to voltage regulators. Note switching converters (buck/boost ICs) indicated by inductors and capacitors clustered nearby. Each rail feeds specific subsystems: core voltage powers the processor, I/O voltage handles peripherals, and standby voltage keeps firmware accessible during sleep.

Pinpoint signal lines by their labeling conventions. High-speed interfaces (PCIe, DDR) use differential pairs marked TX+/TX- and RX+/RX-. Control lines (I2C, SPI) appear as SCL/SDA or MOSI/MISO alongside pull-up resistors (4.7kΩ–10kΩ). Locate reset circuits by searching for PWR_OK signals tied to a supervisor IC, ensuring sequencing complies with datasheets–misordering risks latch-up.

Decode protection components (TVS diodes, polyfuses) adjacent to exposed ports (USB, HDMI). Their placement reveals potential fault paths. Follow ESD guards (ESDxx markings) to chassis ground; improper routing invites surge damage. Note thermal sensors (NTC thermistors) positioned near heat-generating blocks (GPU, CPU)–their traces converge on embedded controller firmware overseeing fan curves.

Isolate firmware storage. Flash ICs (SPI NOR) show typical pinouts: CS, CLK, IO0–IO3, VCC, GND. Trace enable lines (WP#/HOLD#) to super I/O controllers; corrupted signals lead to boot failures. Verify BIOS write-protection by locating JPx jumpers or GPIO-controlled gates–circumventing these enables firmware reflash for recovery.

Map core-logic clusters. Northbridge/SOC blocks center around processor pads, connected via traces ≤0.1mm. Southbridge peripherals (SATA, USB hub ICs) radiate outward, linked by high-density vias. Identify decoupling caps (0.1µF) placed within 2–5mm of supply pins–absence causes voltage ripple exceeding 50mVpp, risking unstable operation.

Prioritize testing points. Look for TP_xxx labels near voltage rails–use these for multimeter probes. On-board LEDs (Dxx) visualize power states: amber signals charging, green confirms rail activation, blinking indicates fault codes. Cross-reference probe readings with datasheet tolerances (±5% for digital rails, ±10% for analog).

Mastering Electronic Blueprints for Portable Computers

Locate power rails first–identify VCC_CORE, 3V3, 5V, and 12V lines by tracing thick red or purple lines. These typically originate from the charging IC or DC jack and split into secondary regulators.

Use component designators as anchors. Resistors (R101), capacitors (C201), and inductors (L302) follow sequential numbering based on circuit blocks. Variations like RN5 or CN7 indicate resistor/capacitor networks.

Key Symbols and Their Behavior

• MOSFETs (Q7): Check for body diode orientation; reversed placement often causes boot failures.
• USB ports: Look for differential pairs D+/D- terminated with 22Ω-100Ω resistors and ESD diodes.
• Crystal oscillators (Y1): Surrounded by load capacitors (~18pF) and a dedicated driver IC.

Decode I²C/SMBus lines by their pull-up resistors (usually 2.2kΩ-10kΩ to 3V3). Common buses include EC_SMB (embedded controller) and DDR_SMB (memory module communication). Missing pull-ups often prevent POST.

1. Highlight noise-sensitive nets like LVDS_CLK or PCIe_RX–these require impedance matching (85Ω-100Ω) and minimal vias.
2. Verify ground symbols (GND, AGND, DGND). Mixed grounds create coupling; star grounding indicates critical analog sections.
3. Trace fan speed lines (FAN_TACH); open-drain outputs with pull-up resistors (4.7kΩ) signal PWM control failure if floating.

Debugging with Schematics

Short circuits reveal shunt resistors (R_sense) in power paths–measure voltage drop across 5mΩ-20mΩ components. Unusual drops (>100mV) indicate excessive current consumption, often from damaged MOSFETs or capacitors.

Identifying Critical Elements and Notation in Portable Device Blueprints

Start by locating the power delivery network–integrated circuits (ICs) like the EC (Embedded Controller), PWM (Pulse Width Modulation) chips, and MOSFETs are marked with rectangular symbols, often labeled U_XXX, Q_XXX, or PU_XXX. The EC typically sits near the keyboard connector or battery interface, while PWM controllers cluster around inductors (L_XXX) and capacitors (C_XXX) with thick traces indicating high-current paths. Trace colors matter: red usually signifies 3.3V or 5V rails, yellow denotes 12V or variable voltages, and orange highlights critical signals like SDA/SCL for I2C buses.

• Voltage regulators (LDO_XXX or BUCK_XXX): Look for small circles with three or four pins, often adjacent to coils or resistors. Check for output capacitors–failed LDOs frequently overheat and swell boards.
• Data lines: High-speed interfaces (e.g., PCIe, USB) appear as parallel traces, sometimes with differential pairs (DP_XXX/DN_XXX). Shielding vias or ground pours confirm signal integrity.
• Connectors: Labeled CN_XXX or J_XXX, pinouts are rarely detailed–cross-reference with service manuals for function assignments.
• Test points: Small circular pads (TP_XXX) mark debug interfaces (e.g., JTAG, UART). Probe these for live voltage readings during fault isolation.

Symbols vary by manufacturer: Dell’s schematics use triangular arrows for enable lines (EN), while Lenovo employs solid dots. Apple diagrams invert polarity indicators (e.g., +3V3 vs. 3V3 for system rails). Always verify component footprints against the board’s layout–discrepancies between schematic and physical placement are common in cost-optimized designs. Resistors (R_XXX) and diodes (D_XXX) often serve as current sensors; measure their voltage drop to detect shorted rails.

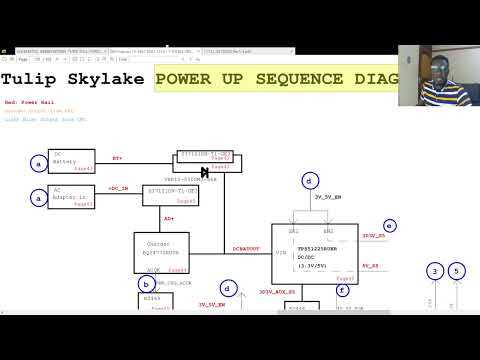

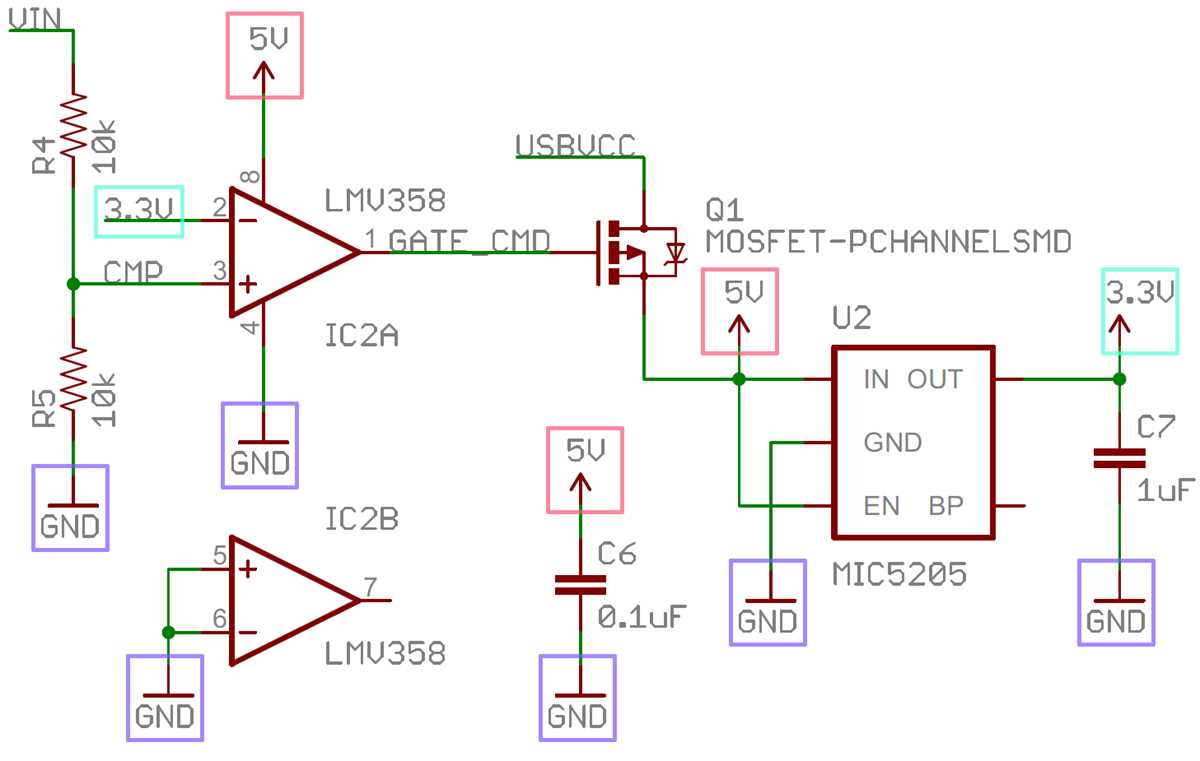

Tracing Power Delivery Paths on a Portable Computer Mainboard

Identify the primary voltage rails first. Locate the battery connector (e.g., JBAT1 or BATT) and follow its lines to the charging IC (integrated circuit). Common identifiers include B+, VBAT, or SYS_BATT. Use the net labels to verify continuity–mismatched labels often indicate series resistors or fuses.

Examine the power sequencing between the charger input (DCIN) and system rails. Look for pairs like VCC_CORE, +5V_ALW, or +3V3, which originate from buck converters. Trace each path backward to the inductor (e.g., L5, L12) and input capacitor (CIN). Mark components handling over 1A with a red pen–these are high-current paths requiring thicker traces.

Check for current-sense resistors near the charging IC (e.g., RSENSE). Their values typically range from 5–20 mΩ. Measure voltage drop across them during operation: ΔV = I × R. Deviations exceeding 50 mV suggest a faulty charging loop or degraded MOSFET.

Prioritize fault-prone nodes

Focus on the MOSFETs controlling battery charge/discharge (e.g., Q10, Q12). Their gate voltages should toggle between 0V and the IC’s drive voltage (e.g., 12V). An always-on MOSFET risks thermal runaway. Probe the enable pin of associated regulators–missing signals often stem from corrupted EC firmware.

Map the standby rails (+3V3_SB, +5V_SB) separately. These operate even when the machine is off, supplied directly from the battery or AC adapter. Verify their capacitors (e.g., C33, C40) have ESR below 100 mΩ; swollen caps on these rails cause intermittent shutdowns.

Use a thermal camera post-trace to validate findings. Hotspots on inductors or MOSFETs exceeding 70°C indicate excessive resistance. Cross-reference with the silk-screen on the PCB–laser-marked values (e.g., “100” for 100 µH) confirm component roles.

Verify with load testing

Inject 1A via an external PSU to critical rails (e.g., +12V_GPU). Monitor for sag under load–rails dropping below 90% of nominal voltage signal weak pull-up stages, undersized traces, or failing LDOs. Document each observation; discrepancies between schematic and board layout are common in aftermarket revisions.

Decoding Signal Flow Between Chips and Connectors

Start by tracing power rails first–identify main voltage lines (VCC, VDD, VCORE) and their decoupling capacitors near each IC. Use the silkscreened net names to follow paths: a “CLK” label adjacent to a crystal oscillator indicates a clock signal, often distributed via series resistors to prevent reflections. For high-speed interfaces like PCIe or USB, locate termination resistors (typically 22Ω–56Ω) near the connector; their absence suggests signal integrity issues may arise.

Interpret bus architectures by mapping shared signals:

Bus Type	Key Signals	Typical Voltage Levels	Termination Requirements
I2C	SCL, SDA	3.3V/5V	Pull-up resistors (4.7kΩ)
SPI	SCK, MOSI, MISO, CS#	1.8V–5V	None (slave devices define)
LVDS	Diff pairs (TX+, TX-)	1.2V differential	100Ω differential pairs

Track these signals from the host controller to peripheral chips, noting any multiplexing (e.g., a single GPIO routed to both a sensor and LED driver).

Isolate connector pinouts by cross-referencing schematics with PCB silkscreen. For FPC connectors, count pins from the marked “1” or “A” side, matching them to the diagram’s pin numbers. Note polarity: USB-C connectors list VBUS, CC, and D+/-/RX/TX pairs; mismatches here cause port failures. Check for series capacitors on data lines (e.g., 27pF for USB 2.0) and confirm their presence near the connector rather than the chip.

Analyze control signals by their logic states. A “RESET#” line (active low) will connect to a pull-up resistor and a momentary switch to ground–trace this path to the EC or PCH. Watch for level shifters: a direction pin (e.g., “DIR”) on a TXB0104 chip indicates voltage translation (1.8V ↔ 3.3V). For DDR memory, locate the “CK” and “DQS” differential pairs; mismatched routing lengths here cause timing violations.

Document conflicts between nets and layers. Use a highlighter to mark signals crossing beneath large components (e.g., heatsinks or inductors), as these are prone to crosstalk. For power delivery, verify buck/boost converter outputs with a multimeter; a measured 1.0V rail on a “VCORE” label that reads 0.8V suggests a faulty inductor or cap. Always verify ground connections–star grounding near high-current chips (e.g., GPU) prevents noise from propagating through the system.
