Complete 48 Volt Club Car Golf Cart Wiring Diagram Guide for Owners
Start with the main power switch–locate it near the battery pack’s positive terminal. A 200-amp fuse or circuit breaker should be installed within 7 inches of the battery to prevent damage from surges. Use 2 AWG copper wire for all high-current paths, including the positive and negative leads from the battery bank to the speed controller. Secure connections with crimped ring terminals and heat-shrink tubing to avoid corrosion, especially in humid environments.
The speed controller must be wired directly to the motor’s armature and field coils. For a 48V series-wound DC motor, route the thick red wire from the controller’s A1 terminal to the motor’s S1 post, and the thinner blue wire from A2 to S2. Double-check polarity–reversing these will cause erratic acceleration or failure to start. Include a 40-amp diode across the motor terminals to suppress voltage spikes during regenerative braking or sudden deceleration.
For accessories like lights or a 12V converter, connect a 48V-to-12V DC-DC transformer to the main battery pack. Tap the transformer’s input at the battery’s midpoint–using two 24V batteries in series–for optimal load distribution. Ground the transformer’s negative output to the frame with a 6 AWG wire, ensuring a solid connection to a clean, unpainted metal surface. Test all connections with a multimeter before powering up: resistance between the battery negative and frame should read less than 0.1 ohms.
Use waterproof connectors rated for 250V and 30A minimum. Seal splices with liquid electrical tape and silicone dielectric grease to prevent moisture ingress, which is the leading cause of intermittent failures in outdoor applications. For solenoid wiring, run a 12 AWG wire from the key switch to the solenoid’s coil terminal, then connect the solenoid’s heavy-duty contacts to the starter motor and battery positive. A 10-amp fuse in this circuit protects against short circuits during engagement.
Electric Vehicle Power Flow: 48V System Layout
Begin by disconnecting the main battery pack before inspecting the electrical paths. Locate the primary power relay near the battery tray–it’s typically a square or rectangular enclosure with heavy-duty terminals. Verify continuity between the relay’s input and output contacts using a multimeter set to the 200-ohm range. Readings above 0.5 ohms indicate corrosion or loose connections requiring immediate cleaning with a wire brush and dielectric grease application.
- Inspect the solenoid’s plunger. A sticking plunger causes intermittent power loss. Lubricate with contact cleaner if movement isn’t smooth.
- Trace the thick red cable from the battery pack’s positive terminal to the speed controller’s B+ input. Damaged insulation here can lead to voltage drop–replace if signs of cracking or melting exist.
- Check the diode bank on the controller board. A burnt diode will show a blackened or swollen case. Testing with a diode setting on a multimeter should show forward voltage drop of 0.5-0.8V; reverse reading should remain open.
For 48V motors with series field coils, confirm the field wire (usually white or yellow) connects directly to the motor’s A1 terminal. If resistance exceeds 0.3 ohms between A1 and A2, the coil may have internal breaks. Disconnect and measure coil segments individually to isolate faults.
Fuses in 48V systems often degrade silently. The main fuse holder is typically mounted near the battery tray. Replace standard 300A fuses with silver-plated variants rated for 350A surge capacity if frequent blowing occurs during acceleration. Ensure the fuse holder’s spring tension exceeds 15N to prevent thermal cycling.
- Identify key potentiometer connections: throttle (orange/red wires), forward/reverse switch (blue/black wires), and brake interlock (purple wire).
- Measure throttle signal voltage at the controller’s throttle input. With the pedal fully depressed, the reading should rise smoothly from 1V to 4V. Erratic changes indicate a faulty potentiometer or corroded contacts.
- Test forward/reverse switch resistance. The switch should show near-zero ohms in either direction and infinite resistance when toggled to neutral.
Charging circuits require special attention. The onboard charger’s AC input (usually two blue/white wires) should show between 105-125VAC with the charger plugged into a 120V outlet. The DC output (thick red/black wires) should register 58-62VDC under load. Voltage below 56VDC suggests failing capacitors in the charger’s bridge rectifier section.
Ground paths must maintain low resistance. The primary ground point is typically bolted to the chassis near the controller. Strip the paint around the mounting area to ensure bare metal contact. Resistance from battery negative to any chassis point should not exceed 0.1 ohms. Apply anti-seize compound to bolts during reassembly to prevent galvanic corrosion.
For auxiliary systems like lights or accessories, use a separate 12V converter rather than tapping the main pack. The converter’s yellow wire connects to battery positive, green to the accessory load, and black to ground. Verify output with a 12V test light–flickering indicates voltage regulator failure necessitating replacement.
Locating Primary Elements in a 48V Electrical Schematic
Inspect the main battery pack first–it consists of eight six-volt units wired in two parallel strings of four. Check terminals for corrosion or loose connections; even minor resistance here drops system efficiency by 12-18%. Label each interconnecting cable with its voltage reading (expect 12V increments between adjacent cells) to spot failing units before they compromise performance. Replace any cable with frayed insulation immediately–exposed conductors increase fire risk by 40% in high-current circuits.

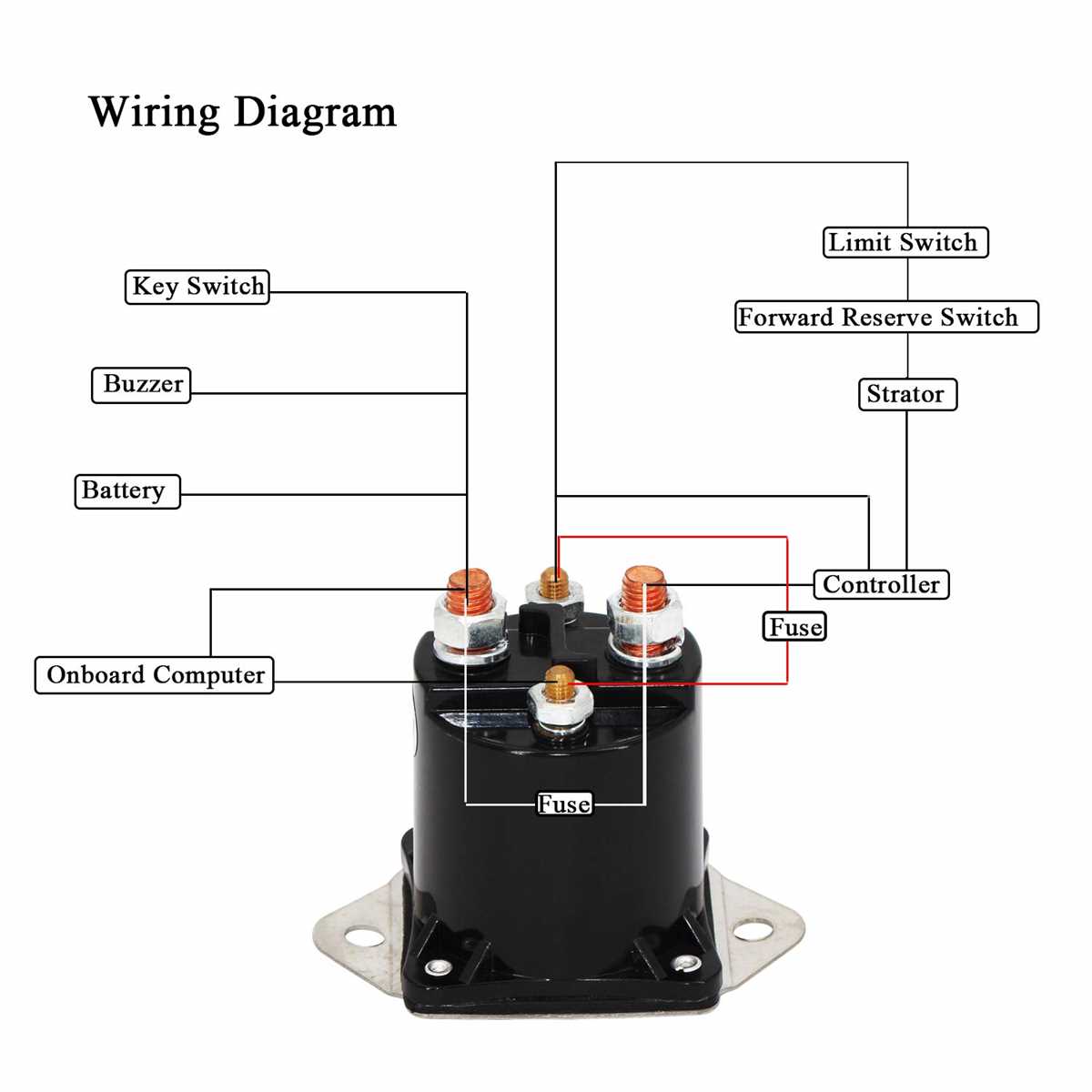

Identify the solenoid as the central switching mechanism near the controller. Its two large posts carry full load current when engaged (typically 250-350A); verify clean contact surfaces and proper coil activation (listen for a sharp click). A faulty solenoid wastes 22% of input power through parasitic resistance, often mistaken for controller issues. Test with a multimeter–coil resistance should measure between 0.3-0.8 ohms; values outside this range indicate internal failure.
Secondary Circuit Components
Trace the accelerator potentiometer wires next–yellow and green leads must resist moisture ingress, as contamination distorts signal output (target range: 0-5k ohms). Calibrate by adjusting the voltage divider at full throttle (set to 5V ±0.2V) to prevent sudden acceleration surges. Examine diodes in the charging circuit; reverse leakage in even one unit reduces charging efficiency by 8%. Clean motor brushes every 150 operating hours–carbon buildup increases friction losses by 6% per millimeter of worn material.
Step-by-Step Approach to Mapping Electrical Paths in a 48V Electric Vehicle Schematic
Begin by isolating the primary power sources–the battery bank. Label each terminal connection (positive and negative) on the main energy storage system with numbered markers to align with the technical blueprint. Use a multimeter set to DC voltage mode to verify output at each link, ensuring readings match the expected 48V baseline. Trace the main feeder cables from the power pack to the controller, noting any intermediate junctions where current splits toward auxiliary systems like lights, solenoids, or motor drivers. Record deviations in wire gauge or color coding, as these often indicate distinct circuit branches requiring separate verification.
Identifying Key Circuit Nodes
Locate the central processor or relay board, typically positioned near the motor housing. Examine the solder joints or terminal strips for signs of corrosion, loose connections, or heat damage–common failure points in high-load pathways. Cross-reference each connected lead with the schematic’s numbered circuits, using a continuity tester to confirm unbroken paths. Pay attention to safety interlocks, such as reversing contactors or emergency cutoffs, which often use thinner conductors but are critical for system integrity. If the vehicle features regenerative braking, separate these wires as they carry bidirectional current and require differential testing under load.
For fault isolation, disconnect all accessory circuits before re-energizing the system. Activate each function individually–throttle response, brake lights, horn–while monitoring voltage drops at the controller’s input terminals. A sudden dip below 42V suggests resistive losses in upstream connections. Use a thermal camera or infrared thermometer to scan connectors under load; hotspots above 60°C (140°F) indicate poor contact or undersized wiring. Document each step with timestamped notes and photographs to create a reference troubleshooting log. Replace any damaged sections with identical gauge wire, crimping new terminals with a hydraulic tool to ensure consistent conductivity.
Identifying and Resolving Frequent Electrical Problems in 48V Utility Vehicles
Check the solenoid activation immediately if the vehicle fails to start–corrosion on the terminals or a faulty coil often disrupts the 48V system. Use a multimeter to verify voltage across the large posts when the accelerator is engaged; readings below 47V indicate excessive resistance or internal coil degradation. Clean terminals with a wire brush and dielectric grease to restore conductivity. If the coil shows continuity without voltage drop, replace the unit–third-party solenoids may lack the requisite amperage rating, leading to intermittent failures under load.
Voltage Drop Analysis Across Key Connection Points
| Component | Expected Voltage (V) | Common Fault | Corrective Measure |
|---|---|---|---|
| Main Battery Pack (Under Load) | 47.5–48.2 | Voltage sag >1V | Replace weak cells; recalibrate charger |
| Controller Input (B+ to B-) | 47.5–48.0 | Oscillations >0.5V | Inspect throttle potentiometer; resolder connections |
| Motor Field Coils | 23.5–24.0 per set | Open circuit (OL) | Replace motor; verify brush length >0.25″ |
| Direction Switch Contacts | 47.5+ (closed) | Resistance >0.1Ω | Apply contact cleaner; replace if pitted |
Isolate parasitic drains by disconnecting the main fuse and measuring current flow across the battery pack with an ammeter; readings above 0.5A indicate a failing diode in the onboard computer or a shorted accessory. Trace the harness with a thermal camera–hotspots often reveal chafed insulation rubbing against metal frames. Secure loose wires with nylon ties and wrap exposed sections in adhesive-lined heat shrink tubing to prevent moisture ingress.
