Create an Arduino Circuit Diagram Step-by-Step Guide for Beginners

Begin with Fritzing for initial drafts–it simplifies component placement and wire routing while keeping connections clear. Export the layout as an SVG or PNG before refining details in KiCad or Eagle, where precision matters. Fritzing’s breadboard view helps visualize physical setup, but avoid relying on it for final documentation.

Use net labels instead of drawing every wire in complex designs. Label power rails (VCC, GND) and signal paths to reduce clutter. Group related components (e.g., sensors, resistors) to improve readability. Keep traces short and direct, especially for high-frequency or analog signals, to minimize interference.

Add decoupling capacitors (0.1µF) near power pins of ICs to stabilize voltage. Position them within 2mm of the pin for maximum effectiveness. For prototyping boards, include test points–small pads or headers–at critical nodes (e.g., clock signals, SPI lines) to simplify debugging.

Verify polarity for electrolytic capacitors and diodes; reverse installation risks failure. Use differential pairs for sensitive communication lines (e.g., I2C, UART) by routing them close together with consistent trace lengths. Ground planes should cover unused board areas to shield against noise.

Annotate every component with values, tolerances, and part numbers (e.g., “R1: 220Ω ±5%, 0805”). Include a bill of materials in a separate layer or text file. For off-board modules (Wi-Fi, GPS), mark pin headers clearly with silk-screen labels (“TX → D10”).

Export schematics in multiple formats: PDF for sharing, Gerber for fabrication, and PNG for quick reference. Validate connections by tracing each path with a multimeter before powering the board. Update documentation immediately after design changes to avoid discrepancies.

Designing a Microcontroller Schematic: Key Steps for Precision

Begin by placing your microcontroller board at the center of your layout–this is the primary coordinator of signals and power distribution. Use a rectangular symbol to represent the board’s physical shape, labeling all pins with their functions directly on the schematic. ATmega328P-based boards, for example, have VCC, GND, SCK, MISO, MOSI, and digital/analog I/O pins marked numerically.

Link power sources immediately. A regulated 5V supply should connect to VCC and AVCC through decoupling capacitors (0.1µF ceramic placed within 2mm of pins). Ground symbols must converge into a single star ground node avoiding loops; analog ground (AGND) and digital ground (GND) should merge at one point only, preferably near the voltage regulator.

Integrate pull-up or pull-down resistors where necessary. Digital inputs floating due to unconnected peripherals–buttons, encoders, or I²C devices–require 10kΩ resistors tied to VCC or GND. I²C buses need pull-ups between 1.5kΩ and 4.7kΩ on both SDA and SCL lines to maintain logic levels.

• SPI connections mandate precise pin sequencing:
• SS (slave select) must toggle prior to data transfer;
• SCK (clock) requires consistent timing–opt for 4MHz maximum with shields using SPI flash;
• MISO and MOSI traces should run parallel, spaced ≤0.5mm apart to minimize crosstalk.

Shield components–displays, sensors, actuators–often dictate secondary nets. A 16×2 LCD screen needs seven pins (RS, EN, D4-D7) wired in 4-bit mode for reduced pin usage. Ensure contrast potentiometers (10kΩ) are placed adjacent to the display’s VO pin; omit them, and characters become invisible.

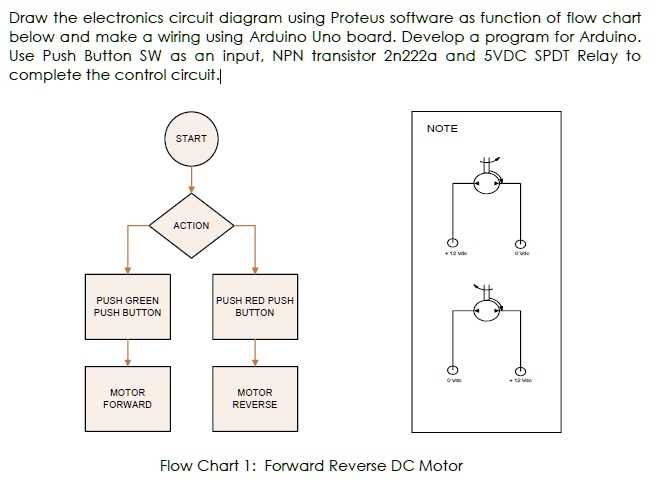

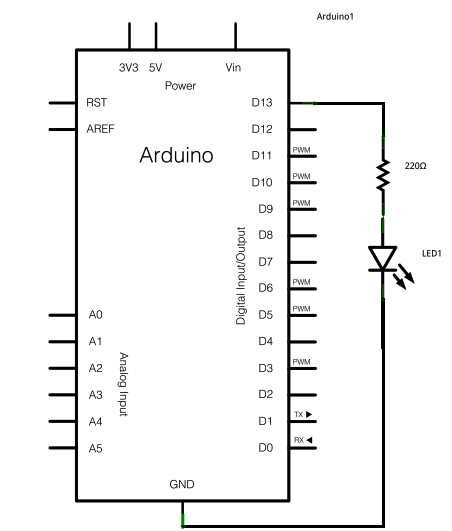

Critical signal lines benefit from RC filters. Analog sensors outputting noisy data–thermistors, potentiometers–should include a 0.1µF capacitor to GND near the microcontroller’s analog input pin. For PWM-controlled LEDs, insert a current-limiting resistor (220Ω) in series to prevent burnout; the microcontroller’s output pin sinks ≤20mA.

Error Prevention During Drafting

1. Avoid crossing power and signal lines–route horizontally and vertically only.
2. Label every net, even temporary ones, with net aliases (e.g., +5V, SIG_OUT) to prevent misconnections.
3. Verify pin compatibility; certain clones swap digital pins D7/D8 or label analog pins inconsistently (A0-A5 vs ADC0-ADC5).
4. Prototype with solderless breadboards before finalizing–trace shorts between adjacent rails are common.

Export the finished schematic in vector formats–SVG or PDF–at 600 DPI minimum for crisp printed outputs. Embed attribute metadata (component values, footprints) directly into symbol fields rather than scattered notes. Organized schematics reduce debugging time by 70% when converting designs to PCB layouts.

Selecting the Right Components for Your Microcontroller Setup

Begin with the microcontroller board’s voltage and current specifications. For most 8-bit AVR-based designs like the Uno, ensure peripherals operate within a 5V logic level and handle up to 20 mA per pin, with an absolute maximum of 200 mA total for the board. For 3.3V Cortex-M boards, select sensors, actuators, and modules that tolerate 3.3V logic–using a 5V module risks permanent damage. Verify each component’s datasheet for “absolute maximum ratings” and “recommended operating conditions” before procurement.

Prioritize power management early. A linear regulator like the AMS1117-3.3 stabilizes voltage but wastes excess energy as heat–acceptable for low-current applications but inefficient for motors or high-load setups. Switching regulators (e.g., MP1584EN) deliver 90%+ efficiency, crucial for battery-powered projects. Always cross-check the regulator’s dropout voltage; a 4.5V input won’t reliably power a 3.3V system if the dropout exceeds 1V. Include decoupling capacitors (0.1–10 μF) near each IC to filter voltage spikes.

Opt for communication protocols matching both the microcontroller’s capabilities and project constraints. I2C excels for short-range sensor networks, requiring just two wires but limited to ~3.4 Mbps. SPI offers full-duplex speeds up to 10 Mbps but demands four pins. UART is simple yet vulnerable to noise over 10+ meters. For wireless, avoid generic HC-05 Bluetooth modules with their 2.1+EDR limitation–opt for ESP32 or NRF24L01+ for 2.4 GHz robustness. Always verify protocol voltage compatibility (e.g., 3.3V UART vs. 5V UART).

Match passive components to precise tolerances. Use 1% precision resistors for voltage dividers or signal conditioning–5% carbon-film resistors drift with temperature, skewing ADC readings. For timing applications, ceramics (X5R, X7R) maintain stability across -55°C to 125°C; electrolytics leak and fail prematurely above 85°C. Choose inductor cores (ferrite vs. powdered iron) based on frequency–above 1 MHz, ferrite cores saturate, distorting signals. For PCB designs, ensure trace widths handle current (1 oz copper supports ~1 A/mm width at 25°C ambient).

Step-by-Step Guide to Sketching a Schematic with Fritzing

Install the latest stable release of Fritzing directly from their official website to avoid version mismatches that break component libraries. Download the .zip for Windows or disk image for macOS, extract it, and launch the application–no administrator rights or external dependencies are required. Skip the installer versions distributed through third-party sources as they may include outdated templates or corrupted files.

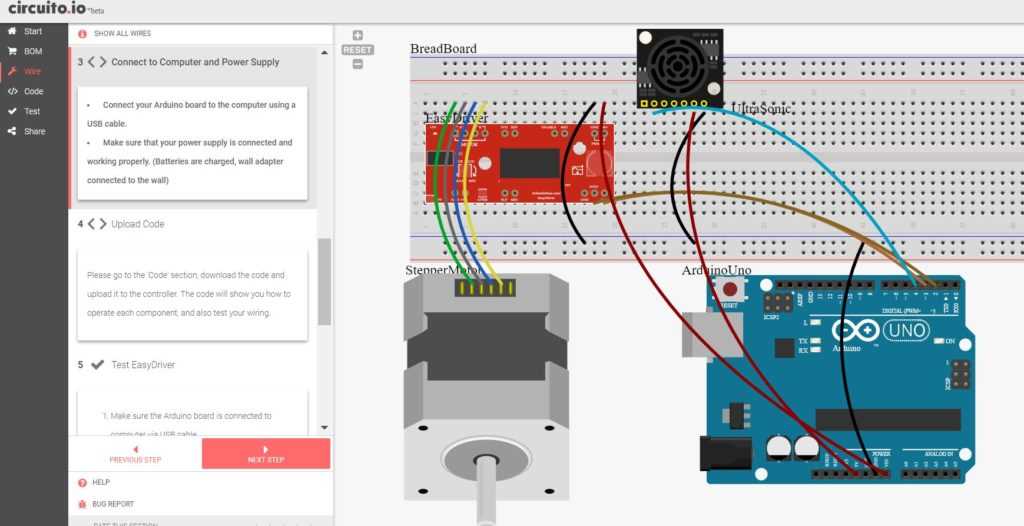

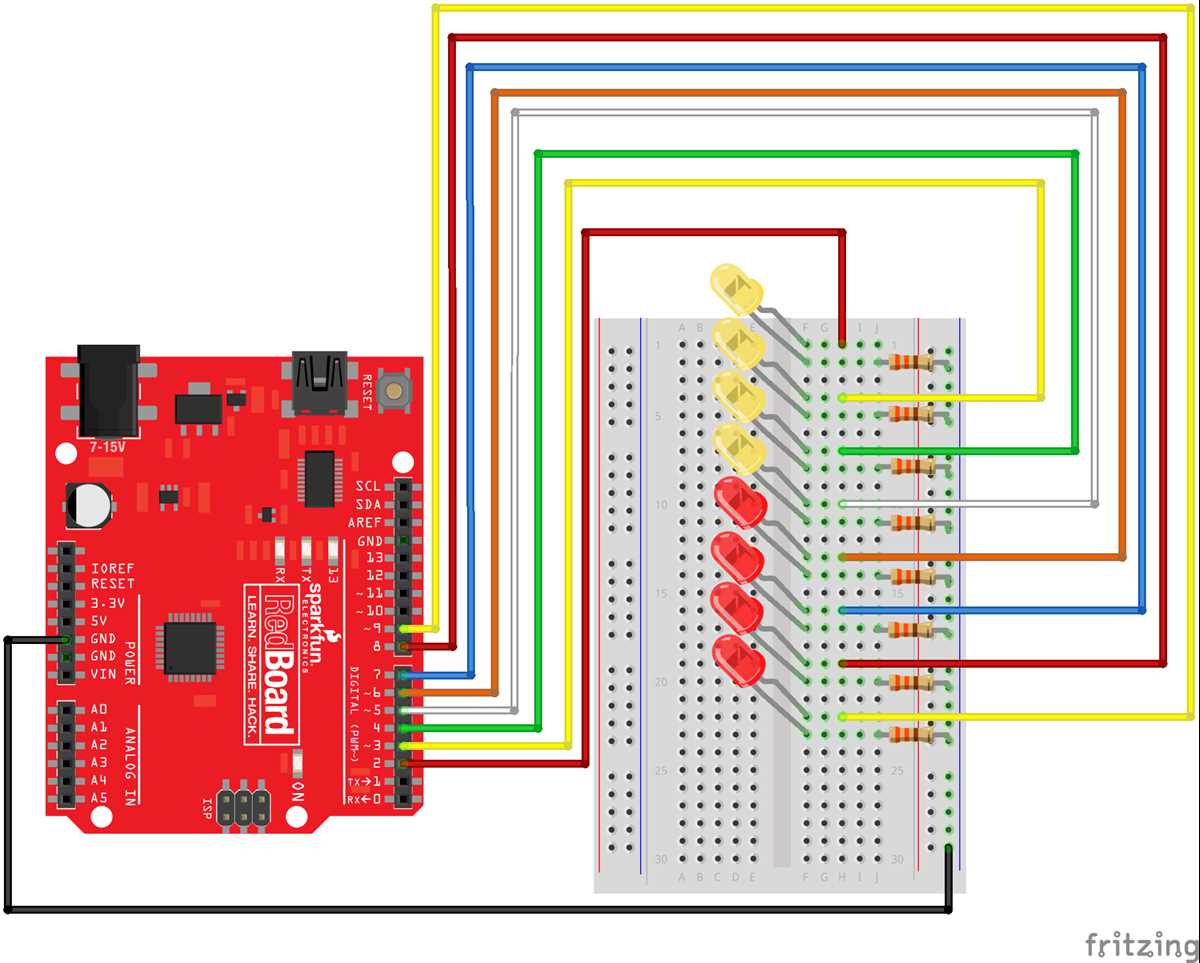

Begin by selecting the “Breadboard” view tab in the top toolbar–this simplifies placement and wiring before converting to a formal layout. Drag your microcontroller board from the “Core” parts bin onto the workspace; right-click and choose “Set as IC” if working with custom footprints. Position passive elements like resistors, capacitors, and LEDs adjacent to their functional blocks–keep traces under 10 cm for signal integrity where possible.

Switch to the “Schematic” view only after validating all connections in the breadboard mode. Enable grid snapping (View → Enable Snapping) and set a 0.1-inch grid for consistent alignment. Double-click each component label to assign designators: use R1, C3, D2 for resistors, capacitors, and diodes respectively, following IEEE 315 conventions. Route nets with Ctrl-click drag to bypass automatic junctions; delete erroneous connections with Shift-click instead of the scissors tool to preserve adjacent traces.

Export the finished schematic as SVG or PDF via File → Export → As Image. Configure DPI to 300 for print-ready resolution and enable “Monochrome” mode if submitting for fabrication. Verify netlist correctness by cross-checking against the breadboard layout–Fritzing does not perform electrical rule checks, so manually confirm no floating pins exist. Save the project file (.fzz) under a version-controlled directory to track iterative changes.

For advanced projects, create custom parts using the “Parts Editor”: import a bare PCB footprint in SVG format, define pad shapes with 1 mm clearance, and group functional elements into a single module. Save the custom part to a private parts bin (File → Save as New Part) to maintain consistency across multiple designs. Avoid uploading proprietary components to the public Fritzing library to prevent licensing conflicts.

How to Connect Sensors and Actuators to Your Microcontroller Properly

Match sensor output voltage to the board’s input tolerances–most 8-bit AVR-based boards accept 0–5V, while 3.3V logic variants (like ARM Cortex) clamp at 3.6V. Exceeding these thresholds risks permanent damage. Use voltage dividers for 5V sensors connected to 3.3V pins; calculate resistor values with R2 = R1 × (Vin/Vout – 1), where Vin is sensor voltage and Vout is target voltage.

Wire pull-up or pull-down resistors only when necessary–internal 20–50 kΩ resistors on digital pins (configured via `INPUT_PULLUP` in software) simplify button and switch connections. For analog sensors (e.g., photoresistors, thermistors), connect the wiper to an analog input pin and the outer terminals to ground and reference voltage (Vref). Keep signal traces short; long wires act as antennas, picking up noise that skews readings.

Avoid sinking more than 20 mA per pin–total board current must stay below 200 mA (check MCU datasheet). For high-power actuators (motors, solenoids, relays), use external drivers like an H-bridge (L298N) or MOSFET (IRF520). Decouple power rails near each component with a 0.1 µF ceramic capacitor between Vcc and GND to filter transient spikes.

Common Interface Methods

Interface	Voltage Range	Current Limit	Typical Use	Cable Length
Digital I/O	3.3–5V	20 mA	Buttons, LEDs	≤ 1 m
Analog Input	0–Vref (1.1V–5V)	µA range	Potentiometers, sensors	≤ 0.5 m
I²C	3.3–5V	3 mA	OLED screens, IMUs	≤ 2 m
SPI	3.3–5V	10 mA	SD cards, flash memory	≤ 3 m
UART	3.3–5V	Depends on transceiver	Serial communication	≤ 15 m (RS-232)

For I²C and SPI, use twisted pair wiring–SCL/SDA (or SCK/MOSI) on one pair, Vcc/GND on another–to reduce crosstalk. Terminate I²C buses with 4.7 kΩ pull-up resistors to Vcc; omit them for SPI. Ground shielded cables at one end only to prevent ground loops.

Isolate inductive loads (motors, relays) from logic signals with flyback diodes (1N4007) or optocouplers (PC817). For continuous rotation servos, power them from a separate 5V supply (≤ 1A per servo) and share only the ground with the microcontroller. PWM frequency for servos should stay between 30–50 Hz–higher frequencies shorten motor lifespan.

Fault Detection Tips

Measure pin voltage with a multimeter before finalizing connections–floating inputs read ~1.65V (half-rail) and indicate missing pull resistors. Check for short circuits between adjacent pins after soldering; a continuity test beeps where it shouldn’t. If an actuator fails to respond, probe its control pin–expect 0V (off) or Vcc (on) for digital signals, or a proportional voltage for PWM. For analog sensors, log raw ADC values (0–1023 for 10-bit resolution) and verify they correlate with physical changes.
