Understanding Electrical Wiring Layouts for Gas and Electric Furnaces

Begin by identifying the power entry point–typically a double-pole breaker rated for the system’s voltage. Residential units usually operate on 240V, while commercial setups may use 480V. Verify the breaker’s amperage matches the nameplate specs; undersized breakers risk tripping, while oversized ones create fire hazards. Label each wire at both ends before disconnecting anything–red for 240V hot legs, black for secondary hot legs (if present), white for neutral, and green or bare for grounding.

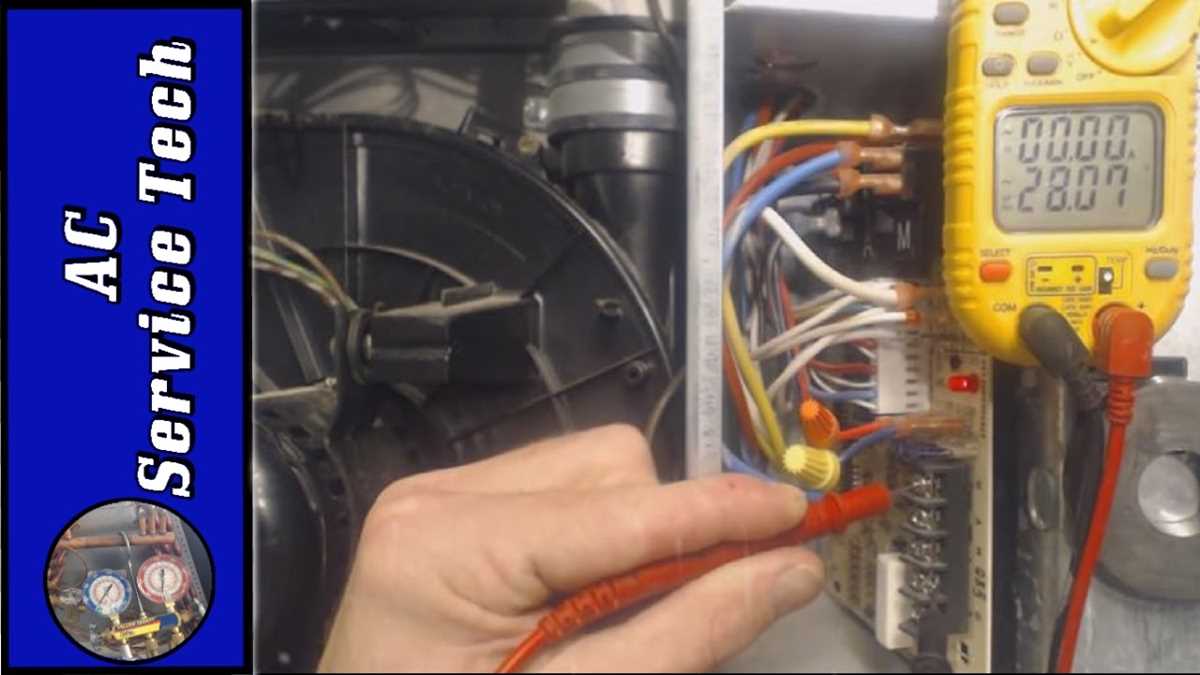

Trace the control board connections next. The transformer’s primary side hooks directly to the power feed, stepping down voltage to 24V on the secondary side for safety circuits. Test for continuity between the transformer’s output and the low-voltage terminals–any resistance over 2 ohms indicates a faulty winding. Replace the entire transformer if readings deviate; splicing or repairing windings voids UL certification.

Examine the limit switch chain–a series of normally closed contacts wired in series that cut power to gas valves or ignition systems if temperatures exceed thresholds. Use a multimeter in continuity mode to check each switch; a single failed contact breaks the entire safety circuit. High-limit switches usually trip at 200°F, rollout switches at 175°F. Never bypass these–doing so risks carbon monoxide buildup or component meltdown.

For ignition systems, direct-spark modules require clean power without voltage spikes. Locate the igniter’s anode (typically a ceramic rod) and measure resistance–values between 40-90 ohms confirm functionality. Flame sensors demand annual cleaning with fine-grit emery cloth (600+ grit); even slight corrosion reduces sensitivity, causing lockouts. Always reinstall sensors with the exact torque specs listed in the manual–over-tightening cracks porcelain insulators.

Understanding Heating Unit Schematic Connections

Begin by isolating the power source before handling any electrical components. Locate the main disconnect switch–often a circuit breaker or fuse box–and verify it’s in the off position. Use a multimeter to confirm zero voltage across terminals, preventing accidental shorts or shocks during inspection. Label each wire with masking tape or color-coded tags to track their original positions, especially for bundled cables or those terminating in modular connectors.

Trace the schematic’s high-voltage feed first, typically originating from a 240V supply for electric heaters or a transformer input for gas systems. Key components include:

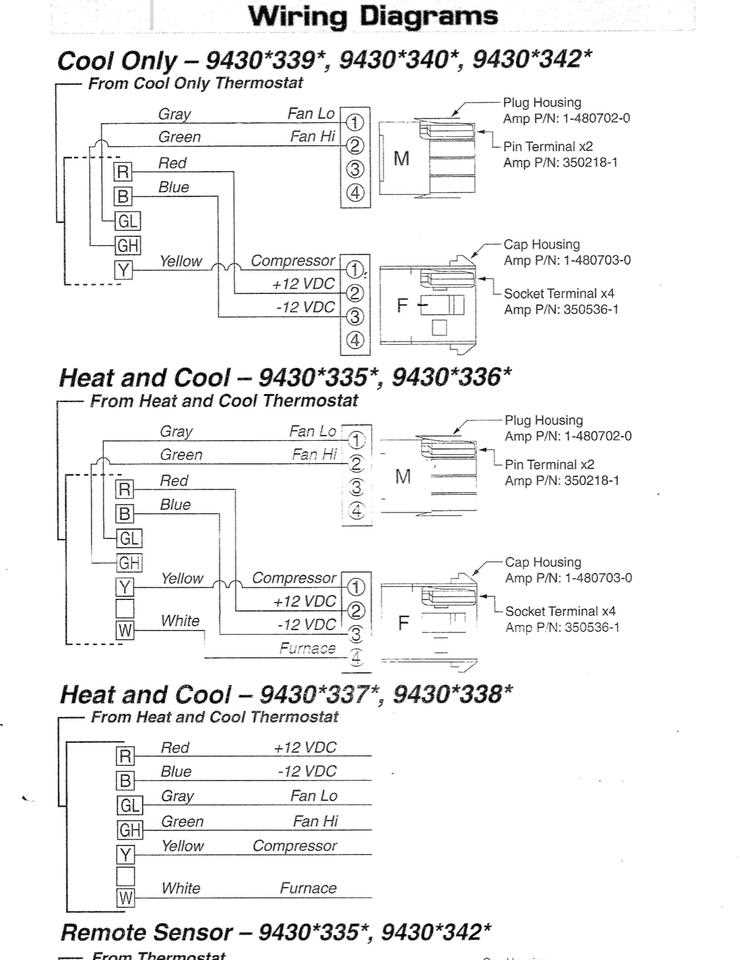

• Thermostat wiring: R (power), W (heat call), G (fan), Y (cooling, if dual-purpose), C (common for smart thermostats). Cross-referencing colors varies–white might be W for heat in one model, Y in another. Consult the manufacturer’s legend.
• Safety switches: High-limit, rollout, and pressure switches interrupt power if temperatures exceed thresholds (e.g., 200°F for limit controls). Test these with a jumper wire (briefly!) to verify continuity, but never bypass permanently.
• Motor connections: Induce-draft blowers often link to a capacitor (25–40 µF, 370V rating). Ensure the run and start wires align with the schematic; reversed polarity can burn out windings.

Check for corrosion on terminal blocks–clean with 120-grit sandpaper if oxidation is visible, then apply dielectric grease to prevent future buildup.

For gas-based systems, confirm the ignition control module receives low-voltage signals (24V) from the thermostat. Sequence matters:

1. Thermostat sends W signal → control board.
2. Board energizes draft inducer (if present) for 10–15 seconds pre-purge.
3. Igniter glows (HSI) or spark electrode fires.
4. Gas valve opens; flame rectification sensor verifies ignition.

Test flame sensors with a multimeter: 0.5–5 µA DC under flame conditions,

Document all deviations from the schematic, especially splices or aftermarket modifications like zoning dampers or smart humidifier interfaces. Use 18–22 AWG wire for low-voltage paths (thermostat circuits) and 10–14 AWG for line voltage. Secure connections with UL-listed wire nuts, tightening to 4–6 in-lbs torque to avoid stress fractures. After reassembly, perform a system test:

• Set thermostat 5°F above ambient to trigger heat call.
• Monitor start sequence with a non-contact voltage tester–listen for relay clicks, watch for LED indicators on control boards.
• Check differential pressure across heat exchangers (0.5–1.5” WC for most residential units).

Record amperage draws at components (e.g., 3–5A for blower motors) to identify inefficiencies. Replace any wire showing

Critical Elements in Heating System Electrical Schematics

Begin by identifying the thermostat connection points–typically labeled R, W, Y, G, and C–on the control board. Confirm compatibility with low-voltage (24V) or line-voltage (120V/240V) systems before tracing circuits. Forced-air units often integrate separate safety switches: rollout, pressure, and limit devices must be wired in series to interrupt power during abnormal conditions like flame failure or overheating. Label each component with its functional category (e.g., inducer motor, igniter, blower relay) to avoid miswiring during maintenance or upgrades.

Examine the high-voltage section–marked with thicker gauge wires–where the main power supply links to the blower motor, combustion fan, and primary control relay. Dual-voltage motors (120V/240V) require precise jumper configurations; verify manufacturer specifications to prevent burnout. Capacitors, usually cylindrical or oval, should be tested for capacitance (μF) and ESR values using a multimeter before assuming functionality. Replace any swollen or leaking units immediately, as compromised capacitors directly impact motor torque and efficiency.

Trace ignition sequences meticulously. Direct-spark systems rely on an ignition control module receiving signals from flame sensors and pressure differential switches. Hot-surface igniters demand 120V/240V input and often degrade after 3–5 years; inspect ceramic surfaces for cracks or carbon buildup. Pilot assemblies, if present, require stable gas flow and precise spark electrode alignment–gaps exceeding 3mm will fail to ignite consistently, causing safety lockouts.

Integrate diagnostic LEDs or error-code displays into the schematic if absent. Modern control boards embed fault indicators (e.g., blinking patterns for locked rotor, open limit, or flame loss), eliminating guesswork during troubleshooting. Ensure neutral wires (white) are isolated from ground (bare/green) throughout; mixed circuits create fire hazards or intermittent failures. Use terminal blocks rated for 600V minimum to terminate high-amperage wires–loose connections oxidize, increasing resistance and heat.

Map auxiliary devices separately. Humidifiers require 24V transformers or 120V ducts with solenoid valves wired through the thermostat’s H terminal. HRV/ERV units often share a dedicated circuit with condensate pumps–verify drain lines slope ≥1/4″ per foot to prevent standing water tripping overflow safeties. Zone controllers complicate layouts; isolate each damper actuator’s power feed and confirm end-switch alignment before closing walls.

Document wire colors against standard codes: red for 24V hot, white for common, yellow for cooling call, green for fan. Deviations exist–cross-reference with the OEM manual rather than assuming uniformity. For legacy units, hard-copy schematics degrade; create digital backups using vector-graphics software to maintain accuracy during repairs. Update labels if retrofitting smart thermostats (e.g., Ecobee, Nest) as some platforms repurpose terminals for additional sensors or C-wires, altering baseline configurations.

Connecting a Basic Heating Unit: Detailed Installation Process

Shut off power at the main breaker before handling any electrical components. Use a non-contact voltage tester to confirm the circuit is dead. Remove the access panel from the combustion chamber to expose the control board and terminals.

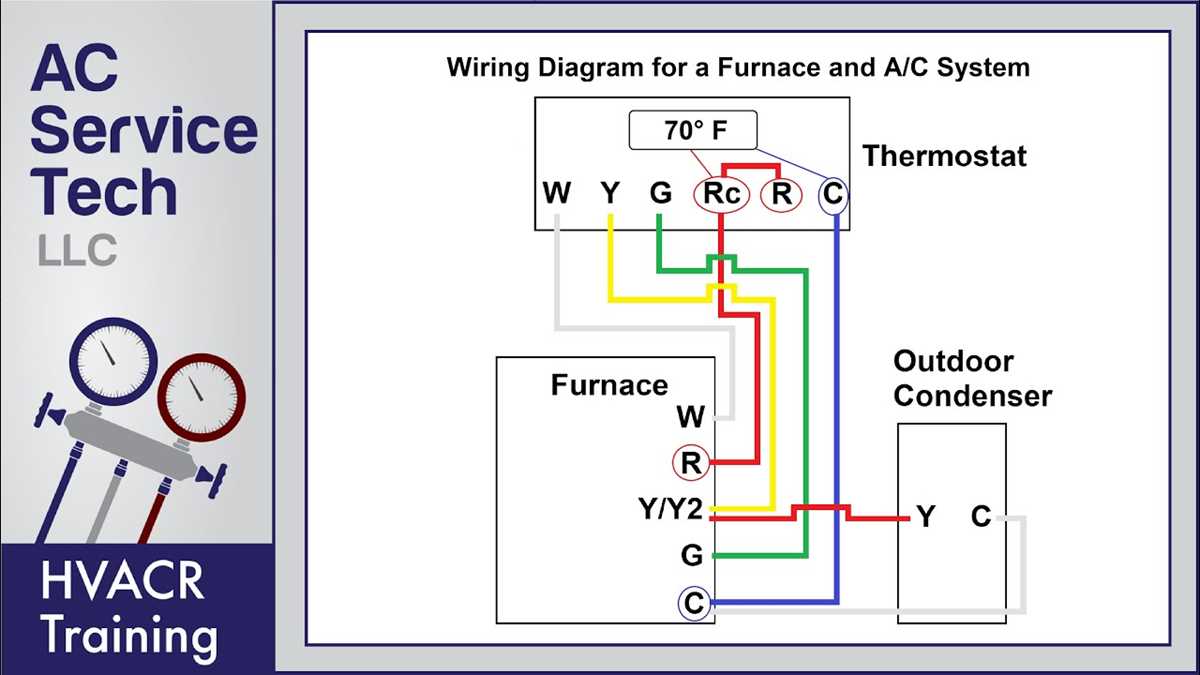

Locate the low-voltage connections–typically marked R, W, C, and G on the printed circuit board. Strip 1/4 inch of insulation from the thermostat cables. Insert the red lead into the R terminal, the white into W, and the green into G. Secure each wire with a 1/8-inch flathead screwdriver, ensuring no bare strands extend beyond the terminal.

Identify the high-voltage supply lines–usually black (L1), white (neutral), and ground. Connect L1 to the designated line terminal on the internal relay, using a wire connector if splicing is required. Fasten the neutral to the neutral bus bar inside the electrical box. Attach the ground wire to the green grounding screw on the chassis, tightening until snug.

Reinstall the access cover, ensuring all screws are tightened to prevent air leaks. Restore power at the breaker and set the thermostat to a low heat setting. Verify operation by listening for the inducer motor startup, followed by ignition spark or glow ignition. If the blower fails to engage within 90 seconds, re-check R, W, and C connections for continuity.

Test safety switches–limit control, rollout, and pressure–by simulating fault conditions. Manually depress the limit switch while observing the system response; the unit must shut down immediately. Reset the breaker and thermostat between tests to confirm automatic recovery.

Seal unused knockouts in the electrical box with approved plugs. Label all cables at both ends–supply, thermostat, and safety interlocks–for future service. Store the installation manual inside the chamber access door using a transparent sleeve to protect against heat and moisture.
