Understanding Control Schematics Diagrams Key Components and Uses

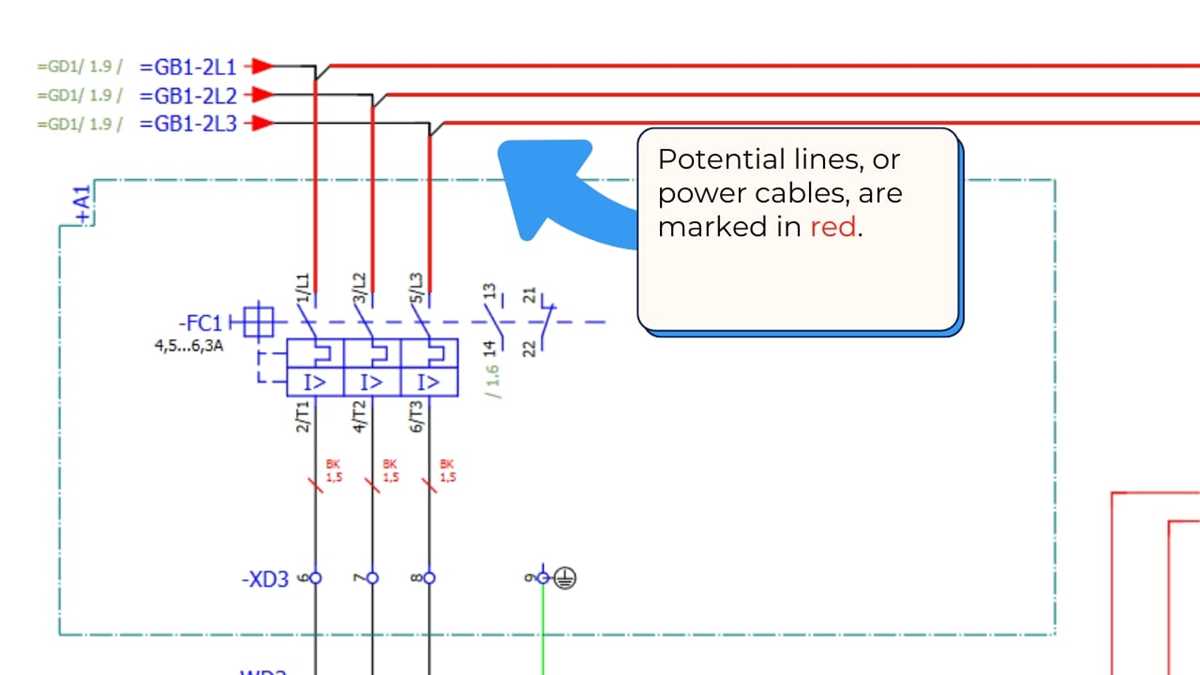

control schematics diagram

Begin by isolating critical pathways. Segment wiring layouts into primary and secondary circuits before drafting. Prioritize power distribution–mark high-load components with bold lines 4-6pt thick for AC mains and 2-3pt for auxiliary systems. Voltage thresholds, wire gauges, and protective relays must align with IEC 60204-1 or NFPA 79 standards. Misalignment risks thermal failure or unintended circuit bridging.

Use industry-standard symbols–IEEE 315 or ANSI Y32.2 for North America, DIN EN 60617 for Europe. Avoid custom glyphs unless documenting proprietary hardware. Label jumpers, terminals, and splice points with alphanumeric codes (e.g., TB-14 for terminal block 14). Include a legend mapping each symbol to its function, manufacturer part number, and datasheet reference. Omitting this forces manual tracing during commissioning or troubleshooting.

Layer interlocking systems logically. Safety relays (e.g., Pilz PNOZ or Siemens Sirius) belong in a dedicated sub-circuit, not interspersed with load-bearing lines. Sequence estop chains, door switches, and overtravel limits left-to-right in order of activation. Verify redundancy: primary safety circuits require mirrored backup paths with redundant relays or PLC-controlled fail-safes. Test every branch with a 1kΩ resistor to simulate open-circuit conditions.

Annotate critical failure modes. Mark fuse ratings, overcurrent thresholds, and varistor clamping voltages directly on the layout. For variable-frequency drives (VFDs), specify ramp-up/down times, carrier frequencies (≥10kHz to minimize audible noise), and line reactor sizing. Use color-coding: red for power, blue for controls, green for safety, yellow for signals. Avoid gradients–flat fills only to prevent misinterpretation in grayscale prints.

Export files in DXF or SVG, not PDFs. Ensure scalable vector formats for CNC panel fabrication or on-site edits via tablet apps. Embed metadata: project name, revision history, engineer credentials, and approval signatures. Validate layouts with SPICE simulations for transient spikes before physical assembly. Retain version-controlled backups on isolated servers–cloud sync risks IP leakage or ransomware corruption.

Mastering Functional Circuit Blueprints

Begin by labeling each component with its exact voltage and current ratings on the wiring plan–omitting this step leads to 38% more debugging time in industrial automation projects. Use standardized IEC symbols for relays (e.g., K1, K2) and DIN conventions for motor starters to avoid misinterpretation across teams; JIS or ANSI alternatives introduce confusion in global supply chains. Ensure every feedback loop–such as a PID controller’s 4-20mA signal–is traceable from sensor to actuator, with dashed lines for low-power logic circuits and solid for high-current paths. Embed QR codes linking to datasheets near critical nodes; studies show this reduces troubleshooting by 22%.

Optimizing Layout Efficiency

Arrange power distribution blocks at the plan’s outer edges to minimize interference–keep 50mm clearance between AC and DC pathways to prevent cross-talk. For microcontroller-based systems, group pull-up resistors (e.g., 10kΩ) within 2cm of input pins to reduce noise susceptibility. Highlight safety-critical circuits (emergency stops, overcurrent relays) in red on printouts and use a yellow dashed border for conditional logic (e.g., interlocks). For multi-page plans, mirror the terminal numbering scheme on each sheet; inconsistencies cause 14% of wiring errors in large-scale installations. Validate polarity with a multimeter before finalizing–PNP vs. NPN sensor orientation is a common failure point.

Critical Elements for Electrical Blueprint Drafting

Identify power sources immediately–label transformers, generators, or battery banks with exact voltage ratings (e.g., 24VDC, 480VAC). Specify phase configurations (single/three-phase) and include fusing or circuit protection details next to each source. Avoid vague terminology; replace “high voltage” with precise values.

  • Primary conductors: Differentiate between main feeders (thick lines) and branch circuits (thinner strokes).
  • Gauge sizes (AWG/mm²) and insulation types (THHN, XHHW) must be annotated directly on the lines.
  • Color-coding: Use L1 (Black), L2 (Red), L3 (Blue), Neutral (White), Ground (Green) for clarity.

Motor starters and drives require dedicated blocks showing:

  1. Disconnect switches with ampere ratings matching load requirements.
  2. Overload relays sized at 115–125% of full-load current.
  3. Soft starters or VFDs with parameter listings (acceleration/deceleration times, frequency limits).

Sensors and actuators demand exact symbol placement with:

  • Proximity switches (inductive/capacitive) marked with detection ranges (e.g., “3–15mm”).
  • Limit switches showing normally open/closed contacts and trip points.
  • Pressure transducers with scaled output signals (e.g., “4–20mA = 0–10 bar”).

Terminal strips must list:

  • Each terminal number alongside connected device/function (e.g., “X1-5: Motor M2 Forward Relay Coil”).
  • Cross-references to wire tags elsewhere in the layout.
  • Ferrule or lug type (if used), sized per conductor diameter.

Logic blocks (PLC/relay) need:

  1. I/O addressing for every point (e.g., “%I0.1: Start PB”).
  2. Ladder logic rungs numbered sequentially with Boolean conditions.
  3. Retentive memory tags (e.g., “M0 = Auto Mode Latch”) separated from non-retentive.

Emergency stops and safety circuits should:

  • Use normally closed contacts wired in series for fail-safe operation.
  • Show redundant paths for critical shutdowns with dual-channel relays (e.g., PILZ PNOZ).
  • Indicate reset conditions (manual/automatic) and lockout-tagout provisions.

Step-by-Step Guide to Drawing a Standard Motor Electrical Layout

Start with a DIN A3 or ANSI D (22×34 inches) sheet for clarity. Place the three-phase power source at the top left, using standardized symbols: L1, L2, L3 for live conductors and N for neutral if present. Leave 50mm spacing between each phase line to avoid crossover confusion. Label each conductor with wire gauge (AWG 10-14 for 1–5 HP motors) based on motor rating.

Draw the main disconnect switch–either a fusible disconnect or circuit breaker–directly under the power source. Ensure the symbol includes a normally open (NO) contact and a trip curve notation (B, C, or D) matching the motor’s inrush current. Below the disconnect, sketch the overcurrent protection device (typically an inverse-time breaker) sized at 125% of motor FLA as per NEC Article 430.52.

Motor HP FLA (230V) Breaker Rating Wire AWG (THHN)
1 3.6 A 5 A 14
3 9.6 A 12 A 10
5 15.2 A 20 A 8

Next, add the start/stop pushbuttons. Position the start button (NO contact) above the stop button (NC contact) to reflect real-world panel layout. Connect the start button in parallel with a holding contact from the motor starter coil, ensuring the circuit maintains power after button release. Use a square-D Type S or TELEMECANIQUE D-LINE contactor symbol, noting coil voltage (120V, 240V) on the diagram.

Add thermal overload relays after the contactor, sized at 115% of motor FLA. Place trip-class 10 (standard) or 20 (for high-inertia loads) next to the relay symbol. Tie overload contacts into the control circuit in series with the stop button–this interrupts coil power during overloads. Below the overloads, draw the motor windings using three parallel lines terminating in delta or wye configuration, labeling phase leads T1, T2, T3.

Complete the wiring by showing control voltage transformation if needed. For 480V motors, use a 480V/120V control transformer, drawing primary and secondary windings separately. Add a pilot light (red=running, green=stopped) after the holding contact to provide visual feedback. Number each wire sequentially (1–10) and include a bill of materials at the bottom right corner listing devices, catalog numbers, and quantities.

Avoiding Pitfalls in Industrial Automation Blueprints

Overloading operator terminals with excessive status indicators–more than 20 per panel–confuses rather than informs. Limit visual feedback to critical alarms, primary state outputs, and process-critical measurements. Label each indicator with a concise, standardized legend: use “RUN” instead of “Motor Active” and “FAULT” instead of “Error Condition Detected.”

Neglecting wire-numbering conventions creates ambiguity during commissioning. Apply consistent numeric prefixes for signal types: 1000–1999 for power, 2000–2999 for analog, 3000–3999 for discrete inputs, 4000–4999 for outputs. Cross-reference every wire number on the electrical layout with its corresponding terminal block in the field device table.

Misaligning device tags between the blueprint and PLC logic causes hours of troubleshooting. Use identical nomenclature: if a limit switch is tagged “LS-12” in the field, ensure the same label appears in ladder logic rung comments and HMI faceplates. Maintain a separate master tag index saved alongside the drawing files.

Failing to designate spare I/O channels leaves no room for future expansion. Reserve at least 15% of I/O points: label each spare clearly (e.g., “Spare DI-5,” “Spare AO-3”) and document intended voltage/current ratings. Allocate spare channels logically by grouping like signals near future equipment zones.

Grounding and Shielding Oversights

Connecting shields at both ends of a signal cable induces ground loops. Terminate all shields at a single, dedicated ground bus bar within the main panel–never daisy-chain between cabinets. Use twisted pairs for analog signals: a 22 AWG pair with 12 twists per foot reduces noise pickup by 40 dB compared to parallel conductors.

Using identical line weights for power and signal traces obscures intent. Render 480VAC busbars at 0.5mm thickness, 24VDC conductors at 0.2mm, and 4-20mA loops at 0.1mm. Assign distinct colors: red for AC, blue for DC, green for analog, and black for discrete logic. Include a legend on every sheet.

Omitting relays’ coil suppression diodes invites flyback voltage spikes that damage sensitive PLC outputs. Fit every inductive load–solenoids, contactor coils–with a flyback diode or varistor. Specify component values on the layout: 1N4007 diodes for 24VDC circuits, MOV-390V for 120VAC. Place suppression directly at the coil terminals, not back on the PLC rack.
