Step-by-Step Guide to Building a Functional Data Logger Circuit Design
Start with a microcontroller unit (MCU) rated for low-power operation if battery longevity is critical–STM32 ultra-low-power series or AVR ATmega models draw under 1 µA in standby. Assign analog-to-digital converter (ADC) pins directly tied to sensors; avoid shared buses that introduce noise. For temperature recording, a MAX6675 thermocouple amplifier delivers 0.25°C resolution without calibration, outperforming generic NTC thermistors by 5× in consistency.
Isolate high-impedance inputs with operational amplifiers–rail-to-rail types like MCP6002 prevent signal degradation at voltage extremes. Place decoupling capacitors (100 nF ceramic) within 5 mm of every IC’s power pin to suppress transient spikes. For current measurement, shunt resistors must sit upstream of any switching regulators to avoid ground loops; a 1 mΩ resistor paired with an INA180 instrumentation amp captures µA-level fluctuations without heating artifacts.
Store readings on EEPROM or FRAM; MB85RC1MTPNF-G-JNE1 FRAM retains data through power cycles and operates at 1 MHz write speeds–ideal for logging at 1 kHz without buffer overruns. Route I2C/SPI traces with controlled impedance (25 Ω differential) if trace length exceeds 10 cm to prevent reflections. Label every net with silk-screen markings on both sides of the board for debug efficiency during soldering and field adjustments.
For wireless transmission modules, position antennas 20 mm from ground planes and route coaxial feedlines with minimum 3 mm clearance to enclosure metal–RFM69HCW 915 MHz transceivers achieve 2 km range when properly decoupled. Include test points for every sensor input and power rail; a 10 kΩ pull-down resistor on configuration pins prevents floating states during boot. Validate the layout with oscilloscope captures of ADC readings before finalizing the PCB–ringing above 100 mV on analog inputs mandates additional filtering or trace rerouting.
Apply conformal coating to exposed traces in damp environments; AR-3311 urethane spray adds 0.02 mm insulation without altering impedances. Use TPL5110 timer IC for scheduled wake cycles to extend battery life–configurable from 1 second to 2 hours via resistor value. Document every resistor and capacitor value directly on the board with KiCad’s “Fab Layer”; color-coded silkscreen reduces misassembly errors during prototypes.

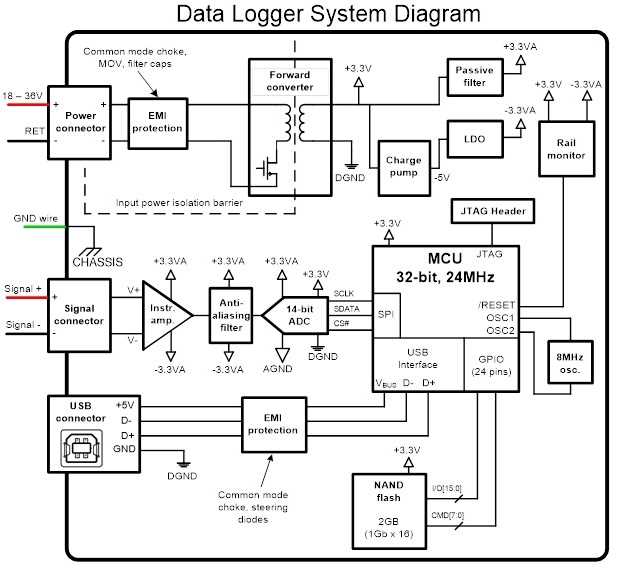

Electronic Recording Device Circuit Blueprint
Begin with a microcontroller like the STM32F405RG for 168 MHz processing and 192 KB SRAM to handle high-frequency sampling without data loss. Pair it with an external 16-bit ADC such as the ADS8688 to capture signals with ±0.003% total unadjusted error at 1 MSPS. Use isolated power supplies (e.g., TPS54336) to eliminate noise from ground loops, critical for sensor readings below 1 mV.
| Component | Model | Key Spec | Power Draw (mA) |
|---|---|---|---|
| Microcontroller | STM32F405RG | 168 MHz, 192 KB SRAM | 40 |
| ADC | ADS8688 | 8-ch, 16-bit, ±0.003% TUE | 6.5 |
| Voltage Regulator | TPS54336 | 3.3V/3A, 95% efficiency | 0.5 (quiescent) |
| Storage | W25N01GVZEIG | 1 Gb NAND, 100K P/E cycles | 20 (active) |
Route analog traces perpendicular to digital lines on a four-layer PCB (signal, ground, power, signal) to minimize crosstalk. For thermal sensors, use MAX31855 amplifiers with ±2°C accuracy; for strain gauges, HX711 24-bit ADCs with 80 Hz output rate. Add a DS3231 RTC module (±2 ppm drift) for timestamp precision. Include ferrite beads (e.g., BLM18PG121SN1L) on USB and power lines to suppress EMI above 10 MHz. For battery-powered units, implement a TPL5110 nano-power timer to wake the system at 1-second to 2-hour intervals, cutting standby current to 35 nA.
Critical Elements in Recording Device Circuit Construction
Select a microcontroller with ample flash memory (≥128KB) and low power consumption (
- Analog front-end: Choose precision ADCs (16-bit minimum, e.g., AD7799) with programmable gain amplifiers (1x–128x) to handle signals from thermocouples (+76µV/°C) to high-voltage sensors (±10V).
- Digital isolation: Incorporate ISO7762 isolators for communication lines to prevent ground loops in industrial settings. Each channel withstands 5kV RMS surge protection.
- Storage interface: Implement microSD cards (SDIO protocol) with wear leveling algorithms–raw NAND flash degrades after ~10,000 write cycles, while SD cards manage ~100,000 cycles with built-in controllers.
Power regulation demands dual-path design: harvest energy via solar panels (6V, 2W) charging a LiFePO4 battery (3.2V, 2Ah) while simultaneously powering the circuit via a buck converter (TPS62743, 95% efficiency at 100µA loads). Include a load switch (TPS22860) to cut non-essential circuits during brownouts, preserving critical timestamp records.
Sensor interfacing requires signal conditioning tailored to input ranges:
- Bridge configurations: Use INA333 instrumentation amplifiers for strain gauges (250Ω, 2mV/V excitation).
- Humidity: SHT31 (0–100%RH, ±2% accuracy) communicates via I²C, consuming 1.5µA.
- Accelerometers: ADXL362 (ultra-low noise, 3.5µg/√Hz) captures vibration data at 100Hz without aliasing.
Add ferrite beads (BLM18PG121SN1) on sensor lines to suppress EMI below 1GHz.
Communication protocols must match environmental constraints. LoRaWAN (SX1262, 868MHz) transmits 2km line-of-sight at -126dBm sensitivity, while cellular LTE-M (Quectel BG77) handles 1Mbps uploads in urban areas. For wired setups, RS-485 transceivers (SN65HVD78) tolerate ±60V common-mode noise, ideal for factory floors. Always include CRC8 checksums on packages to detect corruption before storage.
Enclosure design affects signal integrity. Use nickel-plated copper EMI shields around high-impedance nodes (>1MΩ). Ventilation holes must align with Gore-Tex membranes to prevent liquid ingress while allowing gas exchange. For submerged units, IP68-rated connectors (LEMO 1S) seal at 100m depth. Test thermal stability across -40°C to +85°C with cyclic loading–memory retention drops below -20°C if not compensated by firmware wake-up checks.

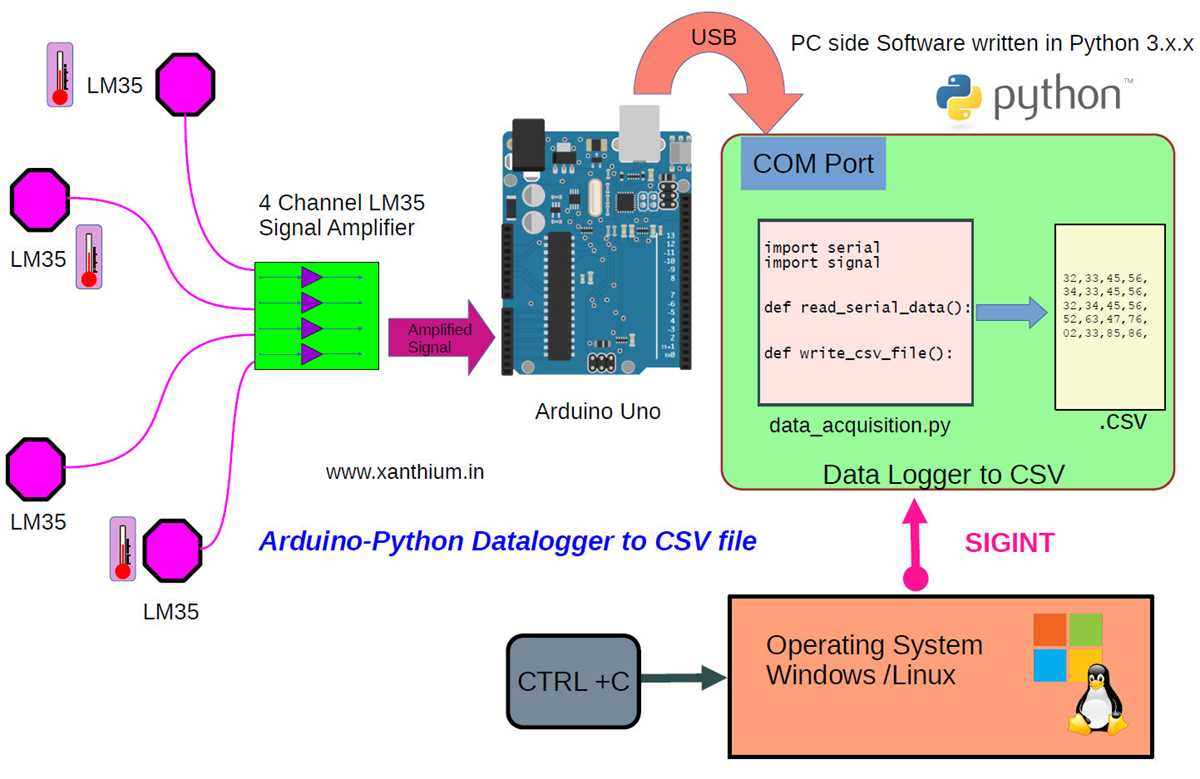

Step-by-Step Wiring for Microcontroller-Based Recording Devices
Begin by connecting the power supply directly to the microcontroller’s VCC and GND pins. Use a regulated 3.3V or 5V source, depending on the controller’s specifications–most ARM Cortex-M or AVR chips tolerate 5V, while ESP32 requires 3.3V. Add a 100nF ceramic capacitor between VCC and GND as close as possible to the microcontroller to suppress noise. For extended stability, include a 10µF electrolytic capacitor in parallel with the 100nF capacitor.
Sensor Integration
Attach analog sensors via the ADC pins, ensuring proper voltage scaling. For a 3.3V system with a 0-10V sensor, use a voltage divider with 15kΩ and 5.1kΩ resistors to limit input to 2.5V (reduce resistor values proportionally for higher currents). For digital sensors like I2C or SPI, pull-up resistors (4.7kΩ) are mandatory on SDA and SCL lines if not internally enabled. Connect DS18B20 temperature probes with a single 4.7kΩ pull-up on the data line–no additional circuitry is needed.

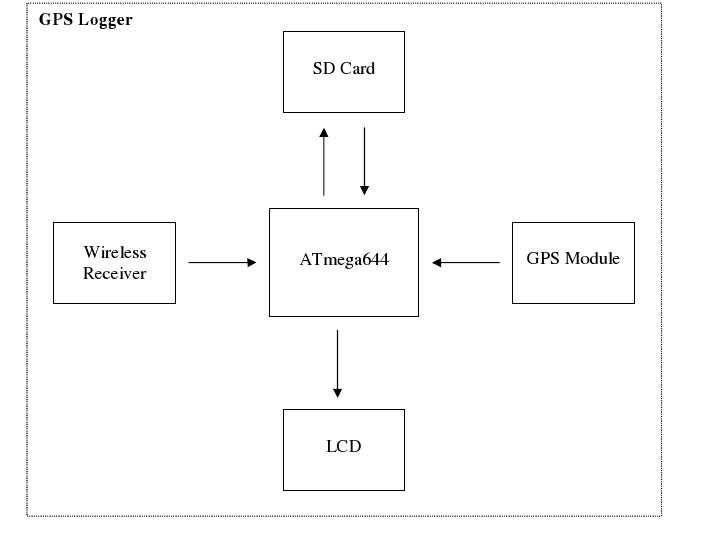

When interfacing SD cards for storage, wire the module in 4-bit mode for faster throughput. Connect MOSI, MISO, SCK, and CS to the microcontroller’s SPI bus, ensuring CS is pulled high when inactive. For real-time clock modules (e.g., DS3231), use I2C with 4.7kΩ pull-ups; address conflicts arise if multiple devices share the bus–resolve by checking datasheets for adjustable addresses or adding multiplexers.
For battery-powered units, implement a low-dropout regulator (e.g., MCP1700) to maintain stable voltage as the battery drains. A Schottky diode (e.g., 1N5817) on the input prevents reverse polarity. If using Li-ion cells, include a TP4056 charging module with a 1kΩ resistor for 1A charging current. Add a 1kΩ resistor in series with the microcontroller’s reset pin to prevent floating states during power-up.
Power and Signal Isolation
Isolate sensitive components from high-current peripherals (e.g., motors, relays) using optocouplers (e.g., PC817). For RS485 communication, use a MAX485 transceiver–tie DE high and RE low for transmit mode, and invert for receive. Ground loops introduce noise; combat this by star-grounding all GND connections at a single point near the power supply, especially if the system spans multiple PCBs. Test continuity with a multimeter before applying power.
How to Select Sensors and Interface Them with Recording Devices

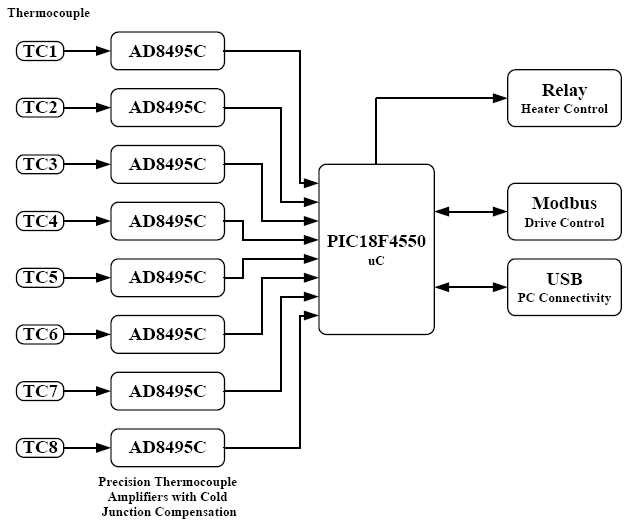

Begin by matching sensor specifications to your application’s precision and range requirements. For temperature measurements, a PT100 RTD delivers ±0.1°C accuracy over -200°C to 850°C, while a thermocouple type K spans -270°C to 1372°C with ±1.5°C tolerance–trade-offs that dictate long-term stability and cost. Verify the sensor’s output signal: analog voltage (0–5V, 0–10V), current loop (4–20mA), or digital (I²C, SPI, UART). Ensure compatibility with the recording device’s input impedance (10kΩ minimum for voltage, 250Ω for current) to prevent signal distortion.
For environmental readings, prioritize sensors with built-in compensation. A BME280 handles humidity, pressure, and temperature in a single package, correcting for non-linearity internally and outputting calibrated values via I²C at 0.1% RH accuracy. If measuring strain, opt for a Wheatstone bridge-based load cell (>0.05% full-scale error) with an instrumentation amplifier (e.g., AD8221) to reject common-mode noise (120dB CMRR). Avoid sensors requiring complex external circuitry unless absolutely necessary–simplified integration reduces failure points.
Interface protocols must align with the recording unit’s firmware capabilities. SPI supports full-duplex communication at 10Mbps but requires four wires (SCLK, MOSI, MISO, CS); I²C uses two (SDA, SCL) but is limited to 400kHz in standard mode. For long-distance transmission (up to 1000m), use RS-485 with differential signaling or a 4–20mA loop to minimize interference. When selecting multi-channel devices, confirm the recording unit’s sample rate per channel–an ADC with 16-bit resolution at 1kSPS per channel can handle eight inputs without multiplexing delays.
Power consumption dictates sensor choice in battery-operated setups. A MAX31855 thermocouple amplifier draws 150µA, while a DS18B20 digital thermometer consumes 1mA during conversion but enters a 1µA sleep mode. For wireless applications, pair sensors with low-power MCUs (STM32L0, ATmega328P) and disable unused peripherals. Use interrupt-driven sampling instead of polling to extend battery life–wake-on-event triggers reduce active time to microseconds.
Validate sensor performance under real-world conditions before deployment. Test temperature sensors in an environmental chamber for drift over time (500 hours at 85°C reveals long-term stability). For vibration monitoring, subject piezoelectric accelerometers to known frequencies (100Hz–10kHz) and verify FFT resolution. Document calibration procedures–a 5-point calibration curve for a gas sensor (e.g., MQ-135) ensures . Store raw readings alongside compensated values to diagnose errors during post-processing.
