Step-by-Step Guide to Creating Technical Schematic Diagrams

Begin by defining the core components of your layout before placing a single line. Group related elements–power sources, microcontrollers, sensors–to minimize crossing connections and reduce visual clutter. Use standardized symbols (IEC 60617 or ANSI Y32.2) for consistency, as ambiguity in notation causes errors during prototyping or testing. Label every node with unique identifiers (e.g., V_CC, GND, CLK) and include values (resistors: 10kΩ, capacitors: 100nF) directly on the graphic to eliminate reference checks.

Limit the use of diagonal lines; 90-degree angles improve readability by 40% in dense representations. For complex circuits, split the graphic into modular layers–separate sections for power distribution, signal paths, and grounding. Apply color coding to distinguish functional blocks (red for power, blue for data, green for control lines) but ensure compatibility with monochrome printing. Export in vector formats (SVG, EPS) to maintain scalability without pixelation.

Validate the accuracy by tracing each path from input to output. Simulate critical paths using tools like LTspice or KiCad’s built-in checker to catch floating nodes or shorts. Add concise annotations near critical components–their purpose, tolerances, or substitution options–without overcrowding the view. For multi-board projects, include connector pinouts and orientation markers to prevent assembly mistakes.

Choose tools based on workflow requirements: Proteus for interactive designs, Fritzing for prototyping simplicity, or Altium Designer for high-speed signal integrity. Avoid proprietary formats; use open-source alternatives like KiCad for collaboration. Compress the final file if sharing digitally, but retain a lossless version for future edits. Document revision history directly on the graphic to track changes during iterative development.

Constructing Technical Blueprints: Key Practices

Begin by selecting symbols standardized for your field–IEEE, ANSI, or ISO–each designed for clarity in electrical, mechanical, or software representations. Use solid lines for primary connections, dashed lines for secondary or auxiliary paths, and dotted lines to indicate optional components. Keep symbol spacing uniform to prevent misinterpretation; a 10mm minimum distance between unrelated elements is recommended. For microelectronics, adopt IEC 60617 symbols, while industrial automation benefits from NFPA 79 or DIN EN 60617-12.

Layering and Annotations

Organize elements across distinct layers–power, signal, and control–to avoid visual clutter. Label each component with a unique identifier (e.g., R1, L2) and include values directly on the visual (e.g., 10kΩ, 5V). Annotations should align horizontally or vertically, never diagonally, to maintain readability. For complex assemblies, add a reference table in the corner listing part numbers, manufacturers, and tolerances. Use arrowheads to denote signal direction but avoid overloading paths; a single arrow per segment suffices.

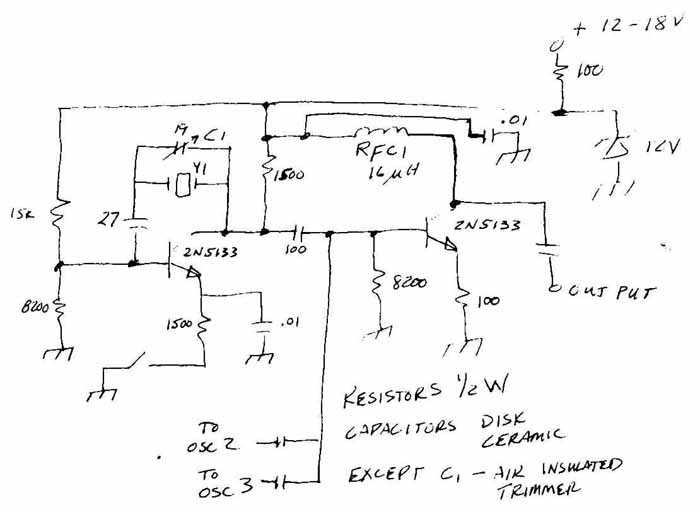

Leverage tools like KiCad, Altium, or even pencil-and-paper templates to enforce consistency. KiCad’s built-in libraries, for instance, provide pre-validated symbols for resistors, capacitors, and ICs, reducing errors. If drafting manually, use graph paper with a 5mm grid for precision. Cross-reference your blueprint with existing layouts–standard PCB traces follow 0.254mm widths for signal lines and 1.27mm for power rails. Color-code layers if printing: red for high-voltage, blue for low-voltage, and black for ground.

Validate the layout before finalizing by tracing each signal path manually. Check for ambiguous terminations (e.g., floating inputs) and ensure all components connect logically. For digital logic, verify clock cycles and propagation delays using timing diagrams as supplements. If integrating firmware, annotate the visual with register addresses or protocol specifics (SPI/I2C). Print a test iteration and annotate adjustments directly on paper–this tangible review often reveals overlooked omissions.

Choosing the Right Tools for Circuit Illustrations

For precision-based electronics work, KiCad stands out due to its open-source licensing, multi-platform support (Windows, Linux, macOS), and absence of nodal limits or paywalls. It handles library management via symbol/footprint editors, exports Gerber files directly, and integrates with FreeCAD for 3D previews. Altium Designer targets professionals needing rigid-flex PCB design, real-time collaboration via Altium 365, and native SPICE simulation, though its $3,500 annual license restricts casual users.

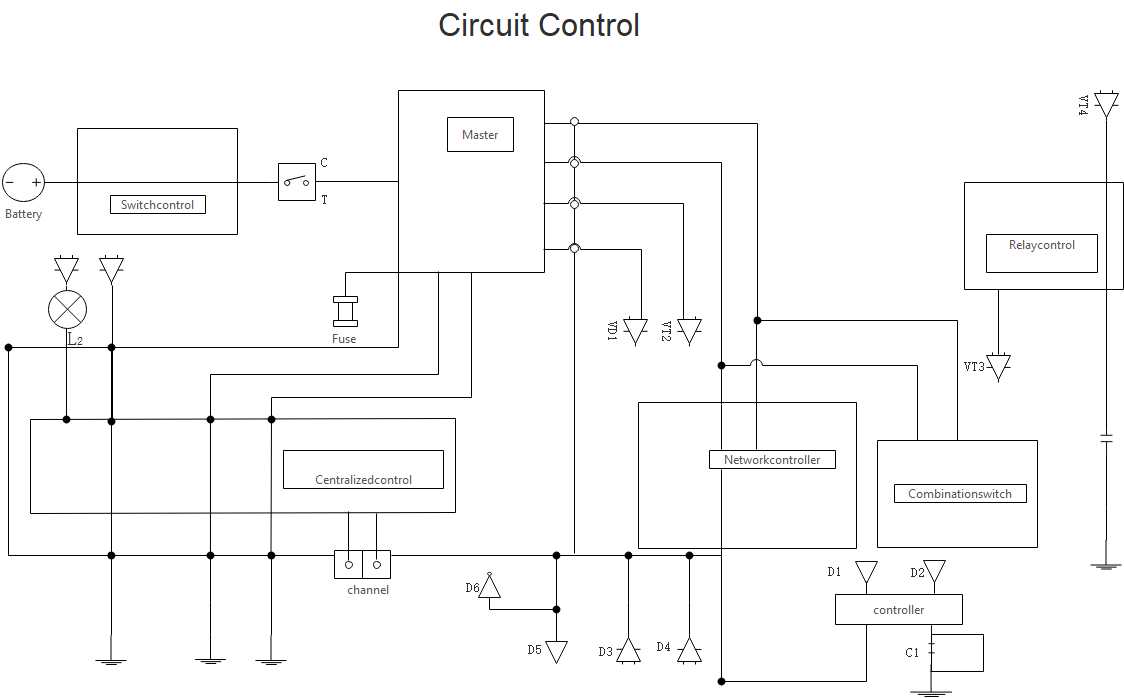

EasyEDA operates entirely in a browser with no installation required, syncing with LCSC’s component inventory for instant BOM generation, while Diagram.net (formerly draw.io) excels for block-level visuals with Excel-like keyboard shortcuts, full SVG export, and cloud integration with Google Drive/OneDrive.

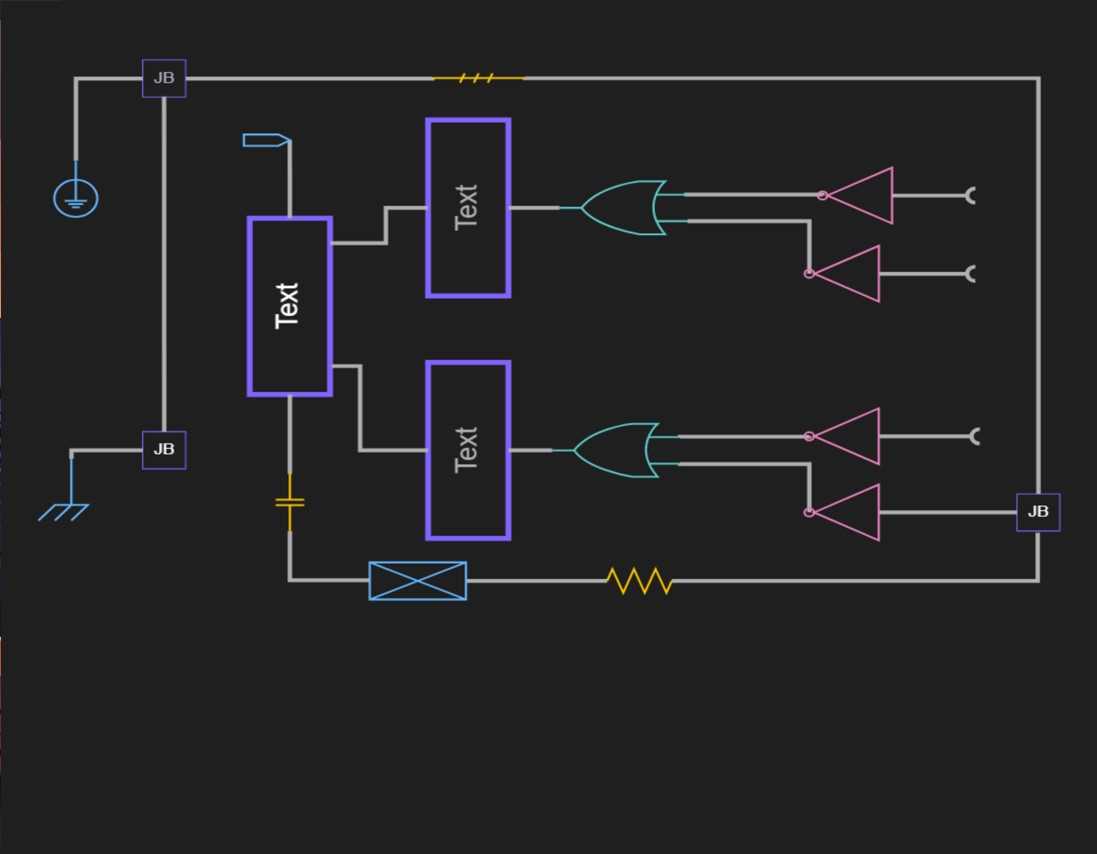

Constructing a Legible Circuit Blueprint: A Methodical Approach

Begin by segmenting the design into functional blocks. Group related components–power sources, signal paths, and control units–into isolated zones. This prevents visual clutter and clarifies signal flow. For example, place all power regulation elements (transformers, voltage regulators) in the upper-right quadrant, reserving the left side for input/output connections. Maintain a minimum 20mm spacing between blocks to accommodate labels and interconnections without overlap.

Establish Hierarchy with Signal Pathways

Prioritize primary connections first. Use horizontal and vertical traces exclusively–avoid diagonal lines to improve readability. Thicker lines (1.5–2pt) denote power rails; medium (1pt) for critical signals; thin (0.5pt) for secondary or lesser pathways. Label each trace with its voltage/current rating or signal type (e.g., “5V DC,” “PWM Out”) directly alongside, using a sans-serif font no smaller than 8pt. Anchor ground symbols centrally and duplicate them if the layout spans multiple pages to reduce cross-page tracing.

Implement consistent orientation for all symbols. ICs, transistors, and switches should face the same direction (typically left-to-right or top-to-bottom) to create a uniform visual rhythm. Rotate only when necessary to fit tight spaces, but never mirror–polarized components like diodes must remain legible without flipping. Use off-page connectors for multi-sheet designs, limiting each sheet to 10–15 components to prevent cognitive overload.

Validate the layout through a “dry run.” Trace each pathway manually with a finger to verify logical continuity. Check for unintended intersections, orphaned components, or ambiguous junctions. Tools like DRC (design rule checks) can automate this, but manual review catches context-specific errors (e.g., a capacitor connected backward despite correct DRC pass). Finally, export the final draft at 300 DPI in monochrome to ensure line weights remain crisp when printed or scaled.

Refine with Annotation and Visual Cues

Add reference designators (R1, C5) in a contrasting color (red or blue works universally) placed adjacent to–not atop–components. Include critical specs in parentheses (e.g., “R1 (1kΩ 5%)”) but avoid redundant details. For multi-layer boards, use explicit layer indicators like “[TOP]” or “[INT2]” in a small, unobtrusive font at 6pt. Reserve the bottom margin for revision history: date, author, and a one-line change summary (e.g., “v1.2: Added pull-up resistor to I2C bus”).

Critical Errors in Electrical Blueprint Creation

Avoid misaligned component labels that obscure connections. Place text horizontally or vertically near symbols–not at angles–using consistent font sizes (minimum 2mm height). Overlapping labels in dense sections force readers to guess pin assignments, increasing error rates by up to 37% in production. Reserve color coding for layers, not functional groups; use bold borders (0.5mm) or dotted outlines for differentiation instead.

Inconsistent net naming disrupts simulation and PCB layout. Follow these rules:

• Prefix power nets with V_ (e.g., V_3V3) and grounds with GND_.
• Signal nets: lowercase, underscore-separated (e.g., uart_tx).
• Never reuse names for unrelated nets; append suffixes (_1, _EN) for variants.

Schematics with ambiguous nets fail DRC checks in 42% of cases, delaying prototypes by 2–3 weeks.

Omitting decoupling capacitors near IC power pins introduces noise spikes above 200mVpp in high-speed circuits. Place 0.1μF caps within 10mm of each pin; add bulk capacitance (10μF–100μF) per voltage rail. Forgotten caps cause erratic behavior–document nominal values and package types (e.g., 0402) to prevent assembly errors.

Disorganized page hierarchy increases debugging time. Structure multi-page designs with:

1. Page 1: Power distribution, global nets, connectors.
2. Page 2+: Functional blocks (e.g., MCU, sensors), grouped by signal flow.
3. Label cross-references (e.g., R5 → Page 3) on originating symbols. Missing references waste 12+ hours per project.

Underestimating ground planes leads to EMI issues. Use separate symbols for analog (AGND) and digital (DGND) grounds; connect them at a single point near the power supply. Avoid daisy-chaining grounds–this creates 100+ pF loops, violating FCC Part 15 Class B limits. Test with a spectrum analyzer before finalizing; redesigns cost $5K–$20K in compliance testing.

How to Label Components and Connections Accurately

Use consistent naming conventions for all elements. Assign unique identifiers like R1, C2, or Q3 for passive and active parts, adhering to industry standards. Add descriptive suffixes only if necessary–e.g., R_SENSE or C_DECOUPLING–but avoid redundancy. For integrated circuits, label pins by function (VCC, GND, CLK) rather than pin number to simplify cross-referencing. Maintain a legend in the corner of the layout listing abbreviations and their full meanings.

Position labels adjacent to components without overlapping lines or other markings. For resistors, capacitors, and inductors, place text horizontally above or beside the symbol, aligned with the component’s orientation. For transistors and ICs, label pins directly near each terminal, using a small font size if space is constrained. Avoid rotated text–it slows readability. If a label must span multiple connections (e.g., a bus), use a single label with a clear arrow pointing to all relevant lines.

Component Type	Label Placement	Example
Resistor	Above or beside, horizontal	R5 (10k)
Capacitor	Above, near positive terminal	C4 (10µF)
IC Pin	Adjacent to pin, small font	SCL, SDA
Bus	Single label with arrow	DATA[7:0]

Differentiate signal types by labeling conventions. Power rails (+5V, +3.3V, GND) should stand out with bold or larger text. Low-level signals (e.g., PWM_OUT, SENSOR_IN) use regular weight. Critical nets like clocks (CLK_16MHz) or resets (RESET#) demand extra visibility–underline or use uppercase for emphasis. For differential pairs, suffix labels with _P and _N (e.g., USB_DP, USB_DN).

Include exact values or part numbers where relevant. For resistors and capacitors, append tolerance and voltage rating if non-standard–e.g., R7 (4.7kΩ ±1%, 0805) or C1 (100nF X7R, 25V). For transistors, add the part number (Q1 (2N3904)) or key specs. If the layout references external documentation, prefix labels with a document identifier (DATASHEET_A:R2).

Group related connections with a common prefix. For example, a microcontroller’s GPIO pins might use MCU_GPIO0, MCU_GPIO1, while communication lines use SPI_MOSI, SPI_MISO. Connector pins should reflect their physical numbering–e.g., J1_PIN3–and match the silkscreen on the PCB. Avoid vague labels like “Input” or “Output”; specify function (BATT_VOLTAGE_IN).

Validate labels against the bill of materials and netlist before finalizing. Check for typos, duplicate names, or mismatched case (e.g., GND vs. gnd). Use automated tools to flag orphaned labels or conflicts. For hierarchical designs, ensure labels propagate correctly between sheets–use dot notation for nested nets (e.g., POWER.SUPPLY_5V). Store the labeled layout alongside design files in a version-controlled repository to prevent discrepancies later.
