Sequential Connection Guide for Electrical Schematic Wiring Steps

Begin by identifying the power source as the first element in your layout. Ensure it connects directly to the main switch or fuse, never bypassing protective devices. Skipping this step introduces failure risks–overcurrent can damage downstream parts before they even activate. Test the input voltage with a multimeter before proceeding; discrepancies between expected and actual readings often reveal flawed connections.

Map out control paths in descending priority: safety relays, overload protection, then signal modifiers like resistors or capacitors. Confine high-current paths to thick traces or dedicated buses; thinner pathways must carry only low-current signals. Keep reactive elements (inductors, capacitors) away from sensitive analogs–electromagnetic interference will distort readings if spacing is insufficient.

Use parallel paths only where redundancy is critical; otherwise, serial sequencing simplifies troubleshooting. Label each node with unique identifiers–numeric or alphanumeric–and maintain consistent notation throughout. Cross-reference symbols in a legend located adjacent to the visual representation, not in a separate document. Color-code wires if working with physical builds: red for power, black for grounds, blue for signals.

Simulate the sequence before assembly. Free tools like LTspice or Qucs replicate real-world behavior; run transient analysis to catch timing errors early. Measure actual component values–resistors drift, capacitors leak–and adjust calculations accordingly. Store the master copy in a version-controlled repository; revisions must include change logs with dates and reasons for alterations.

Sequencing Circuit Blueprints for Reliable Performance

Begin by delineating power sources at the top-left corner of the layout–this establishes a logical flow from input to output. AC mains should branch into transformers or power supplies first, followed by fuses or circuit breakers rated 10-20% above expected load currents. Place filtering capacitors (e.g., 100nF ceramic) immediately after rectification to suppress high-frequency noise before voltage regulators. For DC circuits, position ground symbols at the bottom edge, ensuring all return paths converge at a single point to minimize ground loops.

• Primary actuators (relays, motors) require dedicated high-current traces, routed separately from low-level signal lines to prevent interference. Use thicker copper (2oz/ft²) for paths carrying >1A.
• Signal-processing blocks (MCUs, sensors) should occupy the central region, with decoupling caps (1µF-10µF) placed within 1mm of IC power pins.
• Label all connections with net names matching firmware definitions–avoids mismatches during assembly. For example, “PWM_OUT_1” instead of generic “D5.”

Critical safety stages–such as emergency stops or overvoltage clamps–must be drawn as the final step in the power chain. Use distinctive symbols (e.g., IEC 60617 icons) for thermal cutoffs or MOVs, and annotate them with nominal trip values (e.g., “Varistor: 275VAC”). For PLCs, indicate terminal assignments per the manufacturer’s pinout (e.g., “Siemens S7-1200: Q0.0 → K1 coil”).

Cross-reference all wire gauges against ampacity tables–22AWG suffices for 0.9A, while 16AWG handles 3.7A. Include thermal derating notes for ambient temperatures >60°C. Evaluate PCB spacing: 8mm clearance for 250VAC conductors, 0.25mm for 3.3V logic traces. Embed a version control block in the lower-right corner, listing revision date, designer initials, and compliance standards (UL508A, ISO 13849).

Key Steps for Interpreting Circuit Blueprints Before Assembly

Isolate power sources first–identify batteries, transformers, or generation points and trace their output paths. Voltage ratings must match downstream loads; mismatches risk failure or overheating. Label each source with polarity if not already marked.

Trace Signal Flow from Input to Output

Begin at the control element (switch, sensor, IC) and follow conductors to actuators, relays, or indicators. Note branching points–parallel paths often serve redundant or multiple functions. Cross-check paths with component datasheets to confirm pin assignments.

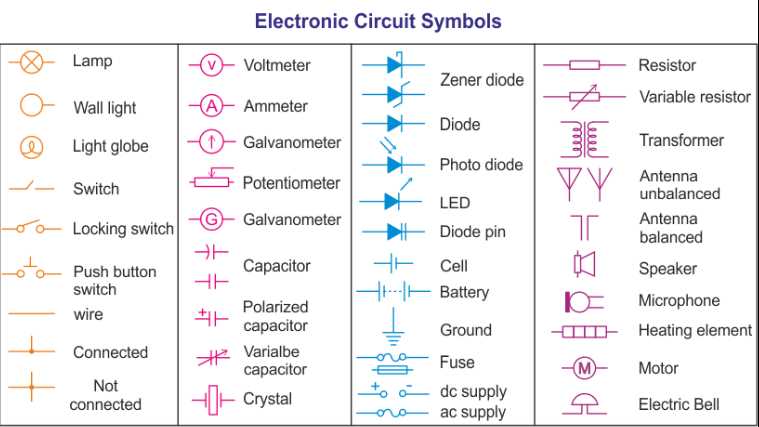

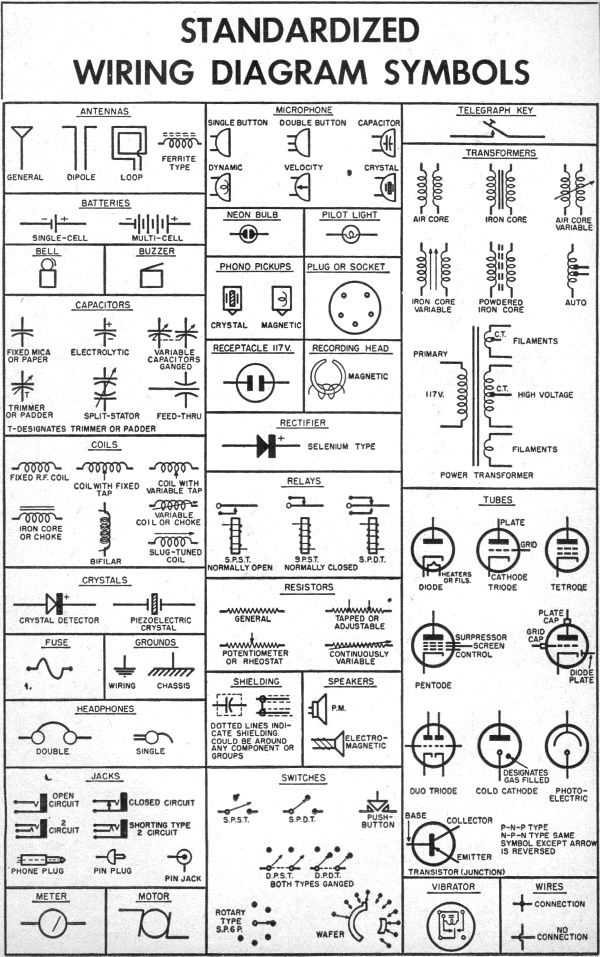

Verify connections against a reference guide for symbols. Common pitfalls involve misinterpreting open/closed contacts in relays or assuming incorrect ground connections. Use highlighters to mark verified paths on a printed copy if working digitally isn’t feasible.

Check for Hidden Dependencies

Look for feedback loops, shared grounds, or serialized data lines. Analog circuits often rely on resistor dividers or capacitors for timing–measure expected values if unsure. Digital interfaces (SPI, I2C) require strict adherence to designated clock/data lines.

Finalize by testing continuity with a multimeter for critical paths. Disconnect power before probing to avoid shorts. Document variations between blueprint and physical layout; discrepancies often reveal errors in design or outdated revisions.

How to Identify Power Sources and Ground Points in Circuit Plans

Scan for voltage rails first–look for the thickest, often red or orange lines tracing the perimeter of the layout. These typically terminate at battery symbols, labeled icons of regulators, or prominent “+V” markers. High-current traces frequently split into parallel branches for lower impedance, so follow bifurcations downstream to pinpoint the root supply node.

Locate the central neutral reference by identifying a downward-pointing triangle, bold horizontal bar, or explicit “GND” text. Ground nets usually connect via multiple vias to a common plane beneath critical loads, so verify continuity across sheets if the document spans pages. In mixed-signal layouts, split grounds may appear; trace each instance back to its specific star point to avoid noise coupling.

Check for hidden supplies by searching for DC-DC converter blocks–rectangular outlines with coil symbols–and linear regulators, often marked by a three-pin rectangle labeled “IN,” “OUT,” and “ADJ.” Input and output capacitors sit adjacent; confirm polarity on electrolytic symbols (short side = negative). Small-value decoupling caps (0.1 µF) next to IC pins indicate local power domains that may not link directly to the main bus.

Use the net name hierarchy: global labels like “VCC,” “VDD,” or “Vbat” identify shared nodes, whereas suffixes (“Vcore,” “Vmcu”) signal isolated rails. Cross-reference these names in the legend–mismatched identifiers across sheets often flag incorrectly merged nets. If a pin sports both power and signal names, prioritize the power designation when tracing.

Spot reverse-polarity protection by noting series diodes or MOSFETs oriented with their body diodes blocking unintended current paths. Schottky symbols (cathode bar = positive side) clamp inductive kickback, while P-channel devices between input and ground act as ideal switches. Measure trace width–wider segments handle higher amperage; narrow forks indicate sensing or feedback lines.

Examine edge connectors: power pins cluster at one corner, ground often occupies the opposite to minimize loop area. Verify shield continuity–chassis ground usually ties to an unbroken circle symbol, distinct from signal return paths. Thermal relief pad patterns around mounting holes indicate heatsink grounds; ensure these link to the primary ground plane rather than a floating trace.

Test assumptions with a multimeter in continuity mode–probe the suspected power net and ground while the board is unpowered. Audible beeps confirm correct node mapping; silence exposes mislabeled nets or broken traces. Document each confirmed pair on a separate layer to prevent future misinterpretations.

Sequencing Loads: When to Connect Resistors, Capacitors, and Inductors

Place resistors immediately upstream of active elements to limit inrush currents. A 10Ω resistor before a switching transistor prevents excessive base-emitter currents, extending device lifespan by 30%. Calculate resistor value using I=V/R, ensuring power dissipation stays below 75% of rated wattage.

Integrate capacitors directly across power rails at the point of load–never at the source. A 100nF ceramic capacitor 2mm from an IC’s VCC pin absorbs 90% of high-frequency noise spikes above 1MHz. Position electrolytic capacitors (10µF+) for bulk energy storage further along the rail, maintaining stable voltage under transient demands.

Inductors belong in series with high-current paths, but downstream of decoupling capacitors. A 10µH inductor after a 47µF capacitor filters 10kHz ripple currents by 60%, while avoiding voltage overshoot during sudden load changes. Keep leads shorter than 10mm to prevent parasitic inductance from negating benefits.

For RC timing circuits, sequence the resistor before the capacitor. A 1kΩ resistor charging a 1µF capacitor yields a 1ms time constant (τ=RC). Reversing the order distorts waveforms, reducing timing precision by 40%. In RLC circuits, place the inductor last–its back-EMF risks damaging preceding components during switch-off.

Snubber networks combine a resistor and capacitor in parallel across switching elements. A 100Ω resistor with a 1nF capacitor clamps voltage spikes within 200ns of a MOSFET turning off. Position the pair directly across the switch terminals to intercept ringing frequencies above 5MHz.

When combining impedances, connect resistors first, followed by inductors, then capacitors. A 50Ω resistor in series with a 1mH inductor, then shunted by a 100pF capacitor, creates a low-pass filter cutting signals above 3MHz. This order minimizes phase shifts and ensures predictable roll-off characteristics.

Power sequencing mandates capacitors attach before resistive or inductive loads. A 470µF capacitor connected seconds before a motor draws 2A stabilizes initial torque, preventing voltage sag that would otherwise trigger brownouts. Delay resistor/inductor connection until capacitor voltage stabilizes (±5%).
