Understanding FTIR Spectroscopy Schematic and Key Components Explained

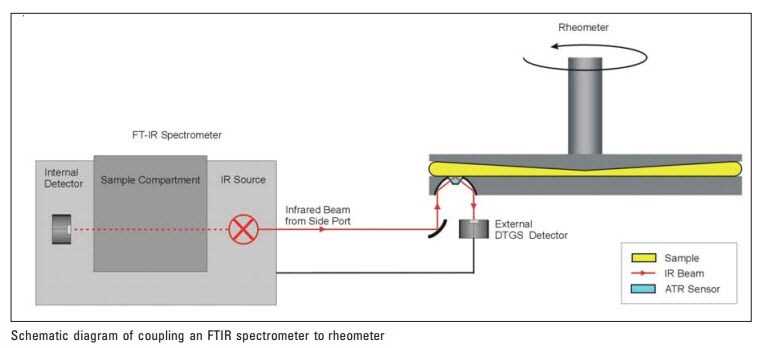

Begin by placing the mid-infrared light source at the origin of your layout–typically a globar or metal halide lamp emitting wavelengths between 2.5 µm to 25 µm. Position it to ensure maximal output stability (±0.1% drift over 1 hour), as fluctuations here propagate through the entire system. Immediately behind the source, install the aperture wheel–select 1-3 mm diameters based on sample scattering behavior. Smaller apertures (1 mm) improve stray light rejection but reduce signal-to-noise ratio (SNR) by 40%.
Route the beam through gold-coated off-axis parabolic mirrors (OAPs) at 90° angles, maintaining a f/4 focal ratio. Misalignment beyond ±0.2 mm introduces coma, degrading resolution below 4 cm⁻¹. After the sample compartment–which must include a ZnSe or KBr window with anti-reflection coating (1.5% loss max)–direct the beam to the Michelson interferometer. The movable mirror requires sub-micron step precision () and retroeffectivity >95% across the target band.
For the detector stage, use liquid nitrogen-cooled MCT (mercury cadmium telluride) for high-sensitivity work (D* > 1×10¹⁰ cm·Hz¹ᐟ²/W), though DTGS (deuterated triglycine sulfate) suffices for routine measurements (D* ≈ 5×10⁸). Ensure the J-stop diameter matches the detector’s active area ±0.3 mm to prevent vignetting–this alone can improve SNR by 25%. Finally, validate optical path lengths: source-to-sample distance = sample-to-detector distance (±2 mm). Deviations here distort absorption peak intensities by 5-8%.
Include three beam splitters in your design catalog: KBr/Ge (7800–350 cm⁻¹), CaF₂/ZnSe (6000–900 cm⁻¹), and Teflon (100–40 cm⁻¹). KBr/Ge achieves >90% efficiency but requires or it deliquesces. Always mount the beam splitter at 45° ±0.5°–angular errors shift CO₂ bands by ±1.2 cm⁻¹ and halve polystyrene film peak reproducibility.
Implement active purge systems (dry N₂ at 2–5 L/min) to suppress H₂O and CO₂ interference lines–these artifacts distort 3000–3500 cm⁻¹ (OH stretch) and 2340 cm⁻¹ (CO₂) regions. For high-resolution work (, synchronize mirror velocity (0.1–1.0 cm/s) with HeNe laser fringes (632.8 nm) to maintain 0.9999% sampling accuracy. Failure here introduces ±0.3 cm⁻¹ peak shifts in polyimide spectra.
Practical Components of an Infrared Spectroscopy Optical Layout
Begin by positioning the broadband light source–typically a ceramic glower or silicon carbide rod–at a fixed 30° angle to the optical axis to minimize back reflections while ensuring uniform beam intensity. The emitted radiation, spanning 400–8000 cm⁻¹, must pass through a collimating mirror with a focal length of 150–200 mm to achieve a parallel beam of 10–15 mm diameter. Use parabolic or off-axis ellipsoidal mirrors with >95% reflectivity in the mid-IR range; gold-coated surfaces outperform aluminum below 700 cm⁻¹ due to lower scattering losses.
Sample Introduction and Interferometric Core
For transmission measurements, mount solid samples as thin films (
Align the moving mirror assembly so its travel path remains parallel to the fixed mirror within 0.5 µm over its full 2 cm scan range. Piezoelectric actuators or voice-coil motors should achieve a constant velocity of 0.2–2 cm/s with
Place the mercury cadmium telluride (MCT) detector at the beam’s final focus, cooled to 77 K with liquid nitrogen to reduce thermal noise below 1×10⁻⁹ W/√Hz. For near-IR applications, indium gallium arsenide (InGaAs) detectors operate at room temperature but limit sensitivity to >3000 cm⁻¹. Pre-amplify the signal with a transimpedance gain of 10⁶–10⁸ V/A, filtering out high-frequency noise (>1 kHz) before digitization. The analog-to-digital converter must sample at >10 kHz (for 4 cm⁻¹ resolution) to satisfy the Nyquist criterion–undersampling folds noise into the low-frequency region, corrupting absorption bands.

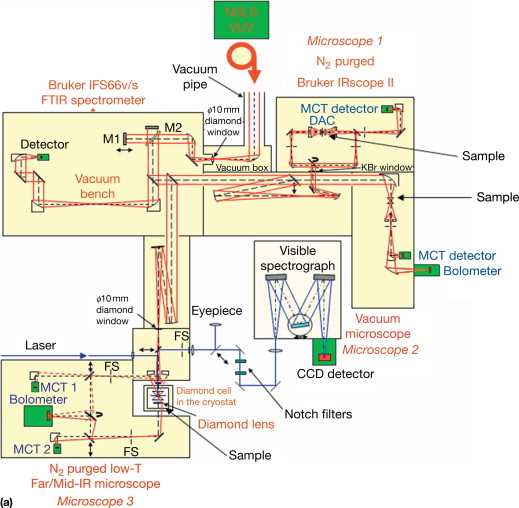

Key Components of an Infrared Spectrometer Optical Path
Position the broadband infrared source at the optical system’s entrance to ensure maximal radiant flux without saturation. Mid-infrared emitting elements–typically SiC or nichrome filaments–require stable current control (±0.1 mA) to prevent spectral drift. Mount the source behind an aspheric reflector (f/1.5) to collimate radiation efficiently, minimizing losses beyond 5 µm.
- Interferometer assembly: Align the beam splitter–ZnSe or KBr substrate at 45°–to reflect 50% and transmit 50% of incident radiation. Misalignment exceeding 0.5 arcmin degrades modulation efficiency by >15%. Introduce a compensator plate (identical material/thickness) to cancel chromatic dispersion, critical across 400–4000 cm⁻¹.
- Moving mirror: Maintain linear travel (±0.1 µm) via air-bearing or mechanical-bearing stages. Velocity jitter above 0.5% RMS introduces ghost artifacts; implement active feedback using a HeNe reference laser (632.8 nm) sampling at ≥20 kHz.
- Fixed mirror: Apply dielectric coating with
Configure the sample compartment to accommodate transmission, reflectance, or ATR modules without realignment. For transmission, use optical-grade CaF₂ or BaF₂ windows–≤0.1% absorption at 1000 cm⁻¹–with anti-reflective coatings to reduce etalon effects. In reflectance mode, employ a 90° off-axis parabolic mirror (f/2, Au-coated) to collect ≥85% of diffusely scattered radiation. ATR crystals–typically diamond, Ge, or ZnSe–require intimate contact with sample surfaces; pressures above 70 N/cm² on diamond avoid spectral distortions from refractive index gradients.
Detector Selection and Integration
Select detectors based on spectral range and SNR requirements:
- MCT (HgCdTe): Operate at liquid-nitrogen temperatures; optimize composition (e.g., x=0.7 for 700–4000 cm⁻¹) to balance detectivity (D*>1×10¹⁰ cm·Hz¹ᐟ²/W) and bandwidth. Pre-amplifiers must achieve
- DTGS: Room-temperature operation but 10× lower D*. Use KBr or CsI windows to extend response to 400 cm⁻¹; avoid exposure to humidity (>50% RH) to prevent detector degradation.
- InSb: High detectivity in the near-IR (2000–8000 cm⁻¹) but requires cryogenic cooling. Implement a cold shield with
Thermal stability (±0.05 °C) is non-negotiable; fluctuations induce baseline drift equivalent to 0.1% transmittance errors.
Optimize the optical path’s throughput by minimizing surface reflections. Use broad-band anti-reflective coatings (e.g., MgF₂ on ZnSe) to maintain >98% transmittance per surface. Clean optical components weekly with anhydrous ethanol or spectroscopic-grade isopropyl alcohol–even 1 µg/cm² of organic residue attenuates signals at 3000 cm⁻¹. For high-sensitivity applications, purge the system with dry N₂ (dew point
How to Interpret the Michelson Interferometer Layout in Optical Spectroscopy Systems
Identify the beam splitter first–typically a thin dielectric or ZnSe plate positioned at a 45° angle to the incoming light. Its role is to divide the radiation into two orthogonal paths: one reflecting toward the fixed mirror, the other transmitting toward the movable mirror. Measure the path difference introduced by the movable mirror’s displacement; this value, often calculated as δ = 2(Δx), determines the interferogram’s resolution. A 1 cm displacement yields a maximum optical path difference of 2 cm, critical for distinguishing narrow spectral features with a resolution limit of approximately 0.5 cm-1.
Critical Components and Their Alignment Impact
| Component | Optimal Positioning | Deviation Effects | Tolerance Limits |
|---|---|---|---|
| Beam splitter | 45° ± 0.1° to incoming beam | Ghost peaks, reduced contrast | ±0.3° |
| Fixed mirror | Perpendicular to reflected beam | Phase errors, spectral distortion | ±0.2° tilt |
| Movable mirror | Parallel to fixed mirror within λ/10 | Asymmetric interferogram | ±0.5 µm drift |
| Source collimation | ±1 mrad divergence | Broadened spectral lines | ±2 mrad |
Check mirror parallelism by monitoring interferogram symmetry; even minor misalignment (>>0.5 µm) introduces measurable phase errors. Use a HeNe laser reference for real-time path difference calibration–its 632.8 nm wavelength provides a precise metric for verifying mirror travel linearity. Adjust the movable mirror’s step size to match the desired spectral resolution; for 4 cm-1 resolution, ensure δ ≥ 1.25 cm.
Building an Optical Path Blueprint: A Practical Guide
Position the infrared source at a focal distance of 5–10 cm from a potassium bromide (KBr) or zinc selenide (ZnSe) beam splitter, calibrated for 50:50 split ratio at 4000–400 cm⁻¹. Mount the moving mirror on a precision linear stage with ≤1 µm step resolution; ensure its travel range exceeds 2 mm for full spectral resolution. Align both mirrors (fixed and movable) using a HeNe laser collinear with the infrared beam–deviations ≤0.1° introduce phase errors visible as sinusoidal artifacts in the interferogram. Use a liquid nitrogen-cooled mercury cadmium telluride (MCT) detector; position it at the conjugate focus of the sample compartment to minimize signal drift. Route the detector output through a pre-amplifier with 10⁶ V/A gain, followed by a 16-bit ADC sampling at ≥100 kHz to preserve interferogram fidelity.
Etch the beam path onto an optical breadboard using Dowel pins at critical nodes–source, splitter, mirrors, sample holder, detector–to maintain ≤±0.2 mm positional repeatability. Insert a 2 mm aperture at the sample focal point to reduce stray light by >90%. Validate alignment by acquiring a background interferogram: peaks should align within ±1 cm⁻¹ of known CO₂ bands (2350 cm⁻¹). If misalignment persists, adjust the fixed mirror’s pitch using a piezoelectric actuator with 0.02° resolution. Record sample interferograms with 64 scans at 1 cm⁻¹ resolution; average and apodize using Norton-Beer medium function to balance signal-to-noise ratio and spectral line width.
