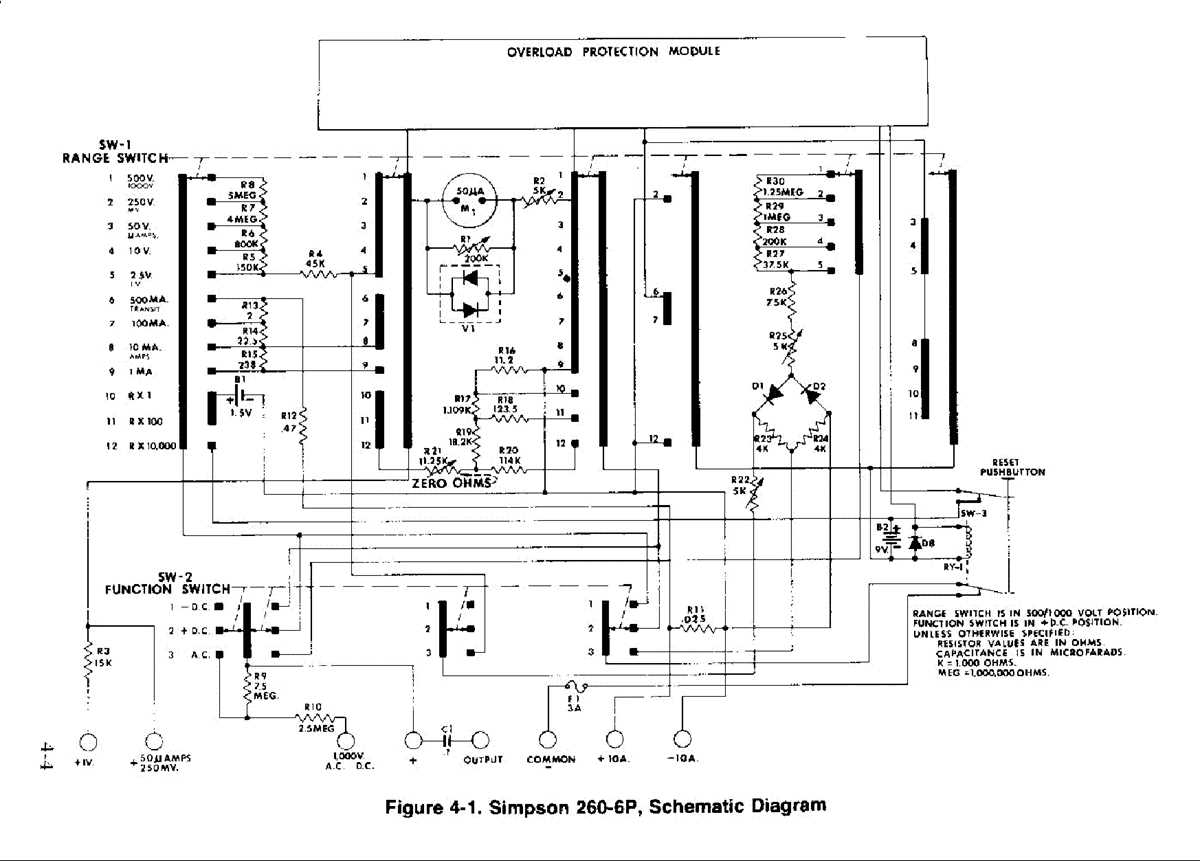

Understanding the Schematic Layout of Simpson Model 260 Multimeter Circuits
Begin by identifying the main functional blocks in the vintage meter’s layout. The printed board of this legacy measurement tool divides into three critical sections: the input conditioning network, the meter movement assembly, and the voltage/current scaling resistances. Locate the rotary switch–it routes signals through precise resistive ladders calibrated for ranges between 0.1V and 1000V DC, along with corresponding AC selections. Each position connects to a dedicated shunt or series resistor, ensuring accurate deflection across the entire scale.
The core of the design relies on a D’Arsonval movement, centrally placed with a mirrored scale for parallax-free readings. Its coil resistance typically measures ~1.4kΩ with a full-scale current rating near 50µA–values confirmed by tracing copper traces to their termination pads. The movement is protected by a silicon diode pair (1N914 or equivalent) reverse-biased under normal operation but clamping true polarity reversals exceeding ±200mV to prevent needle damage.
Verify shunt resistor values against the original calibration sheet. The 10A range uses a low-resistance manganin shunt (≈0.01Ω) directly soldered to the banana jacks, while lower current ranges employ wire-wound resistors on phenolic boards, often color-coded or laser-etched with their nominal values. A common failure point arises when oxidation increases contact resistance at the rotary switch–clean contacts with isopropyl alcohol and a fiberglass pen to restore accuracy within ±1% of specification.
AC measurements engage an internal, non-polarized selenium or germanium bridge rectifier housed in a metal can near the rear panel. Its nonlinear response demands compensation via a temperature-stable resistor network, ensuring RMS conversion linearity across 60Hz to 1kHz. For troubleshooting, disconnect the rectifier leads and measure diode forward drops; deviations beyond ±0.2V indicate degradation requiring replacement with modern Schottky equivalents retaining similar thermal coefficients.
The internal battery compartment (typically housing a single 1.5V cell) powers ohmmeter functions by energizing the circuit through a series potentiometer and fixed resistances. Zero adjustment is critical–rotate the “Zero Ohms” knob with test leads shorted to align the needle with the resistance scale start point. Open-circuit calibration verifies the battery’s health; readings beyond ±5% of the mid-scale mark (e.g., 50Ω on Rx1) suggest either weak cell voltage or contaminated pot contacts.
Understanding the Classic Analog Circuit Layout
Examine the primary voltage divider network first–its resistive ladder determines measurement ranges. The 10MΩ resistor chain sequences input scaling for DC voltage modes, with each tap feeding a selector switch. Verify continuity across solder joints on the rotary contacts; oxidation here causes erratic readings in older units.
Trace the meter movement’s parallel components: a 10kΩ zero-adjust potentiometer alongside a diode bridge (1N34A typically) protects against polarity reversal. Ensure the 1mA full-scale movement isn’t overloaded–excess current deforms the needle’s suspension spring. Test with a known 0.5V source; needle response should be linear without sticking.
Locate the AC rectification section–this uses a half-wave configuration with a 1μF capacitor smoothing the ripple. Check capacitor ESR if AC measurements drift; leaky dielectric introduces errors above 100V. The 100kΩ series resistor upstream prevents loading effects on sensitive circuits; desolder and benchmark if calibration fails.
Critical Component Replacements
Replace aged carbon composition resistors in the ohms function: a 40Ω center-scale resistor drifts ±5% over decades, skewing resistance readings. Use 1% metal film substitutes for stability. The 1.5V battery’s internal resistance rises exponentially as it discharges; swap immediately if voltage drops below 1.3V under load.
Inspect the 1kΩ resistor tied to the meter’s coil–open circuits here render the device inoperable. Use a 0.25W flame-proof resistor to match original thermal characteristics. For the 50μA shunt path, verify copper traces haven’t lifted; reflow with 63/37 solder if oxidation appears near the switch contacts.
Calibration Adjustments
Fine-tune zero adjustment with the meter isolated: power on, select the highest DC voltage range, and short the probes. If the needle doesn’t rest at 0Ω, adjust the trimmer potentiometer counterclockwise in 1/10th-turn increments. Repeat across all ranges; consistent offset indicates a worn movement or misaligned hairspring.
For ohms calibration, attach a 10kΩ precision resistor–needle should point mid-scale. If not, the 10kΩ ladder resistor requires replacement. AC calibration demands a 60Hz sine wave: inject 1V RMS, confirm needle aligns with the 1V marking. Drift suggests a faulty rectifier diode; substitute with a 1N4007 for higher reverse voltage tolerance.
Key Components in the Analog Meter Circuit for Fault Isolation
Begin by testing the rotary switch wafers for continuity using a secondary meter set to low ohms. Each position should exhibit near-zero resistance between common and its dedicated contact; deviations above 0.5Ω indicate pitted contacts or cold solder joints requiring cleaning with contact cleaner and subsequent burnishing.
Examine the meter movement coil resistance–typically 2kΩ to 5kΩ on vintage instruments–by disconnecting one lead and measuring across the terminals. Readings below 1kΩ suggest partial shorting, often caused by moisture ingress or mechanical shock; values over 10kΩ indicate open windings, necessitating coil replacement or recalibration of the shunt network.
| Component | Expected Value | Fault Indication | Remediation |
|---|---|---|---|
| Shunt resistor bank | 0.01Ω–50Ω | Over-range or zero readings | Replace with precision manganin wire resistor |
| Multiplier resistors | 50kΩ–5MΩ | Low ohms/high volts error | Substitute metal-film 1% tolerance |
| Rectifier diodes | 0.6V forward drop | AC reading distortion | Use matched germanium pair |
Inspect the battery compartment for leakage residue; corroded springs and contacts in the 1.5V and 9V circuits manifest as intermittent low-power readings. Scrub terminals with baking soda slurry and reflow solder joints with 60/40 rosin-core solder to restore proper current flow. Replace alkaline cells with zinc-carbon if voltage droop under load exceeds 0.1V.
Verify the voltage reference network by applying a stable 1V DC source to the ohms scale input; a functioning circuit should deflect the needle fully. If deflection is sluggish or erratic, suspect dried electrolytic capacitors–typically 22µF/25V–located near the meter movement. Replace with identical capacitance radial-lead units, ensuring correct polarity to prevent reverse bias damage.
How to Interpret the Vintage Meter’s Internal Wiring Plan

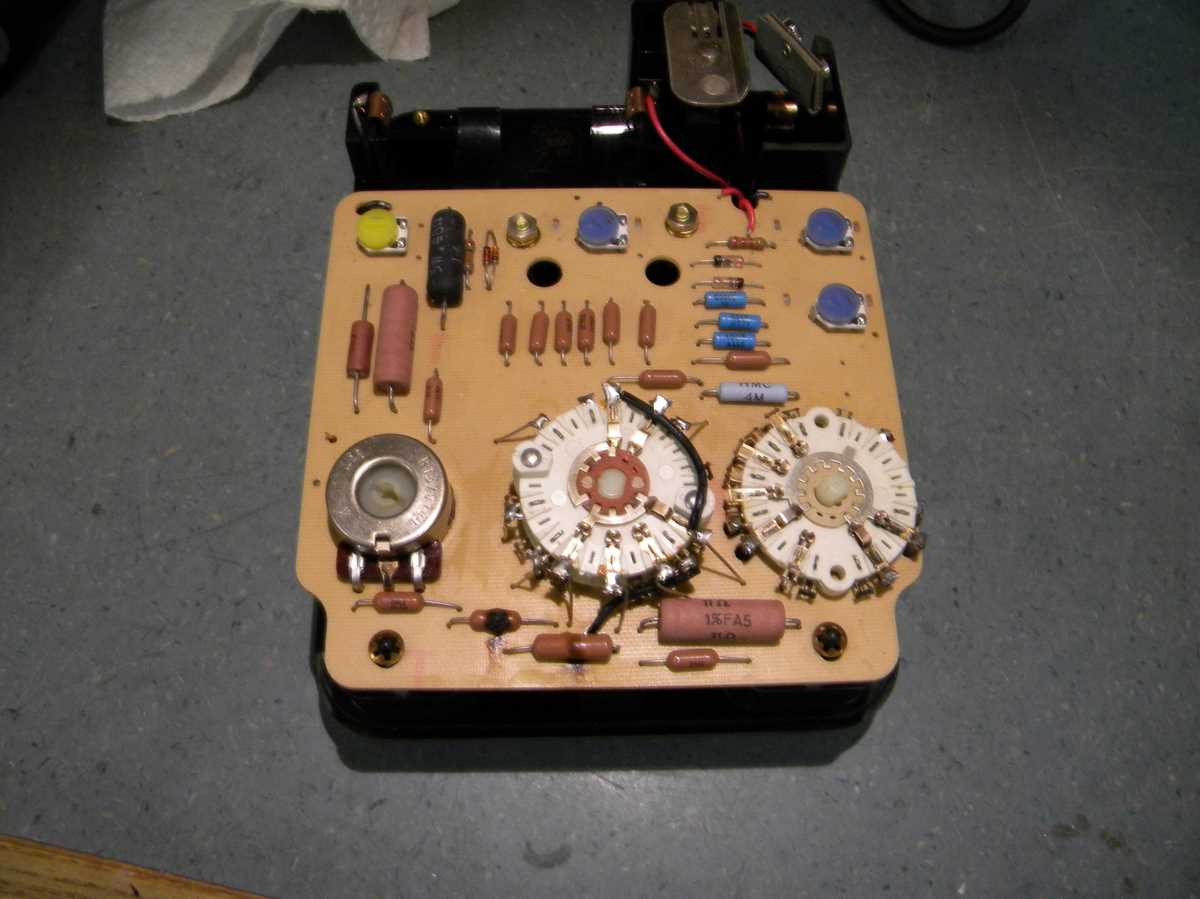

First, locate the rotary switch assembly at the bottom of the printed board. Its contacts connect to resistors varying from 10 ohms to 10 megohms–each banded segment correlates with a distinct measurement range. Trace each copper trace from the switch poles to their corresponding test jacks: black to COMMON, red to either VOLTS-OHMS or AMPS. Verify continuity with a secondary meter set to 200 ohms before proceeding.
Identify the rectifier network centered between the range resistors and meter movement. Two germanium diodes, oriented in opposing directions, form the AC voltage conversion path. The forward-biased diode conducts during the positive half-cycle, while the reverse diode protects against polarity reversal. Check diode junctions with a 10kΩ range using diode test mode–expect 0.3V forward drop.
Examine the meter movement itself. A taut-band suspension coil, rated at 50 microamperes full-scale deflection, sits behind the front panel. The coil’s terminals connect to the range-select resistors via silver-plated jumpers. Confirm coil resistance (typically 2kΩ) and ensure no solder bridges exist between adjacent pads.
Follow the high-voltage resistor chain from the VOLTS-OHMS jack. This series includes precision wirewound units in values of 1kΩ, 10kΩ, and 100kΩ. The 100:1 voltage divider network reduces high potentials to safe levels for the meter coil. Measure each resistor’s value independently; deviation over 1% warrants replacement.
Troubleshooting Common Trace Anomalies
Inspect the solder-side of the board for hairline fractures near the switching contacts. These develop from thermal cycling and interrupt signal paths. Use a wooden probe tip to gently flex each trace while observing meter deflection–unstable readings indicate a cracked path requiring reflow with 60/40 rosin-core solder.
Check the mica capacitor across the meter movement–its value (usually 0.01µF) stabilizes needle damping. A cracked mica or dried electrolyte will cause erratic needle behavior under AC measurements. Substitute a known-good film capacitor in parallel to verify fault location.
Isolate the fuse and shunt resistor assembly for current ranges. The internal 2A fuse protects against overloads, while a low-ohm manganin shunt diverts excess current from the meter coil. Bypass each component temporarily: restored needle movement confirms a faulty element needing exact-value replacement.
Document every trace path with a multicolor pen before reassembly. Color-coded notes prevent misalignment of the rotary switch wafer layers during board installation–each layer must re-engage its detents precisely, or range calibration errors will appear.
