How to Wire Garage Door Safety Sensors Step-by-Step Guide

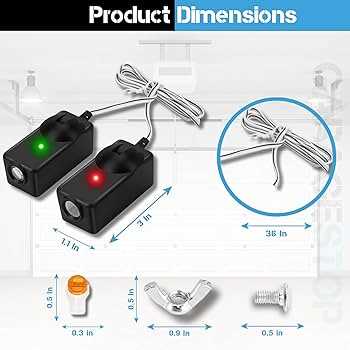

Start by identifying the two primary components: the emitter (typically mounted on one side of the track) and the receiver (positioned opposite). The emitter projects an infrared beam across the opening, while the receiver detects it. If this connection is misaligned or improperly wired, the system will fail to function–even if power is supplied correctly.

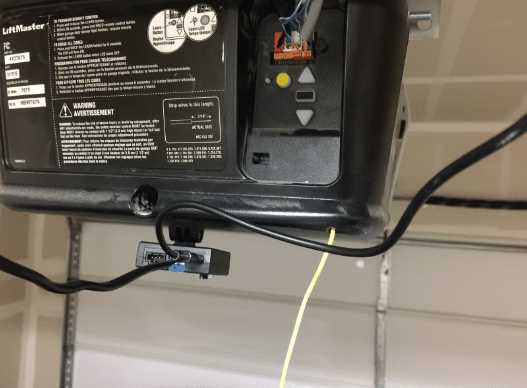

Step 1: Locate the terminal block on your automated opener’s motor unit. Most modern models have clearly labeled ports: “Sensor,” “Safety,” or “Auxiliary.” If markings are absent, consult the manufacturer’s technical manual–many brands like LiftMaster and Chamberlain follow a standardized red (power) and white (ground) wiring scheme for detectors.

Step 2: Strip ¼ inch of insulation from the wires connected to both the emitter and receiver. Twist the exposed copper ends of the matching colored wires (red-to-red, white-to-white) together, then secure each pair with a wire nut. Verify the connection by pressing the control button–if the opener lights blink or emit a single beep, the circuit is incomplete. Recheck the wiring for loose strands or incorrect pairing.

Critical Note: Low-voltage connections (usually 5-24V AC/DC) power these devices. Never splice detector wires into high-voltage lines (110V+), as this will damage the components and void warranties. Some European models use a separate transformer–ensure compatibility before energizing the system.

Troubleshooting: If the opener reverses unexpectedly or refuses to close, test the beam alignment. Hold a scrap of paper between the emitter and receiver. If the beam is unbroken, the paper should trigger an immediate response (clicking or LED activation). Misalignment often occurs due to vibrations–adjust mounting brackets until the beam path is clear.

For wired openers without pre-installed connections, run 18-22 gauge solid-core wire along the track, securing it every 4-6 feet with insulated clips. Avoid routing wires near moving parts or high-tension springs, as friction can fray insulation over time. If extending beyond 25 feet, consider a repeater kit to maintain signal integrity.

Connecting Automatic Entryway Monitors: A Step-by-Step Guide

Locate the control unit near the overhead mechanism–it’s typically mounted on the ceiling or side wall within 10 feet of the motor. Match the colored wires from the photoelectric units to the terminal labels: white to white (neutral), black to black (power), and green to ground. Use 18-gauge solid copper wire for all connections, ensuring no bends sharper than a 90-degree angle to prevent signal interference. If the system includes a battery backup, verify the voltage reads between 24-28VDC before proceeding.

Align the emitter and receiver pairs precisely, aiming for a maximum gap of 6 inches between beams. Adjust height so the infrared paths sit 4-6 inches above the floor, avoiding any obstruction from track debris. Secure each device with industrial-grade adhesive or mounting brackets–avoid screws longer than ½ inch to prevent piercing internal circuits. Test alignment by temporarily connecting power; the LED on both units should glow steady green without flickering.

Troubleshooting Common Signal Issues

If the indicator flashes red, check for condensation or dust on the lens–clean with a lint-free cloth and isopropyl alcohol. Verify wire continuity with a multimeter: resistance between terminals should not exceed 2 ohms. Loose wire nuts are a primary failure point; twist tightly and wrap with electrical tape, leaving no exposed copper. For intermittent faults, replace the wiring harness with shielded cable if interference from fluorescent lights or motors is suspected.

Many modern entryway openers integrate safety features that disable movement if the beam path is broken for more than 300 milliseconds. Disable this function temporarily during installation by holding the learn button for 10 seconds, but re-enable it before final use. For systems with rolling code encryption, ensure both remotes and receivers synchronize by pressing the sync button within 30 seconds of power restoration. Keep a spare pair of infrared devices on hand–model-specific replacements often differ in sensitivity thresholds.

Advanced Circuit Configurations

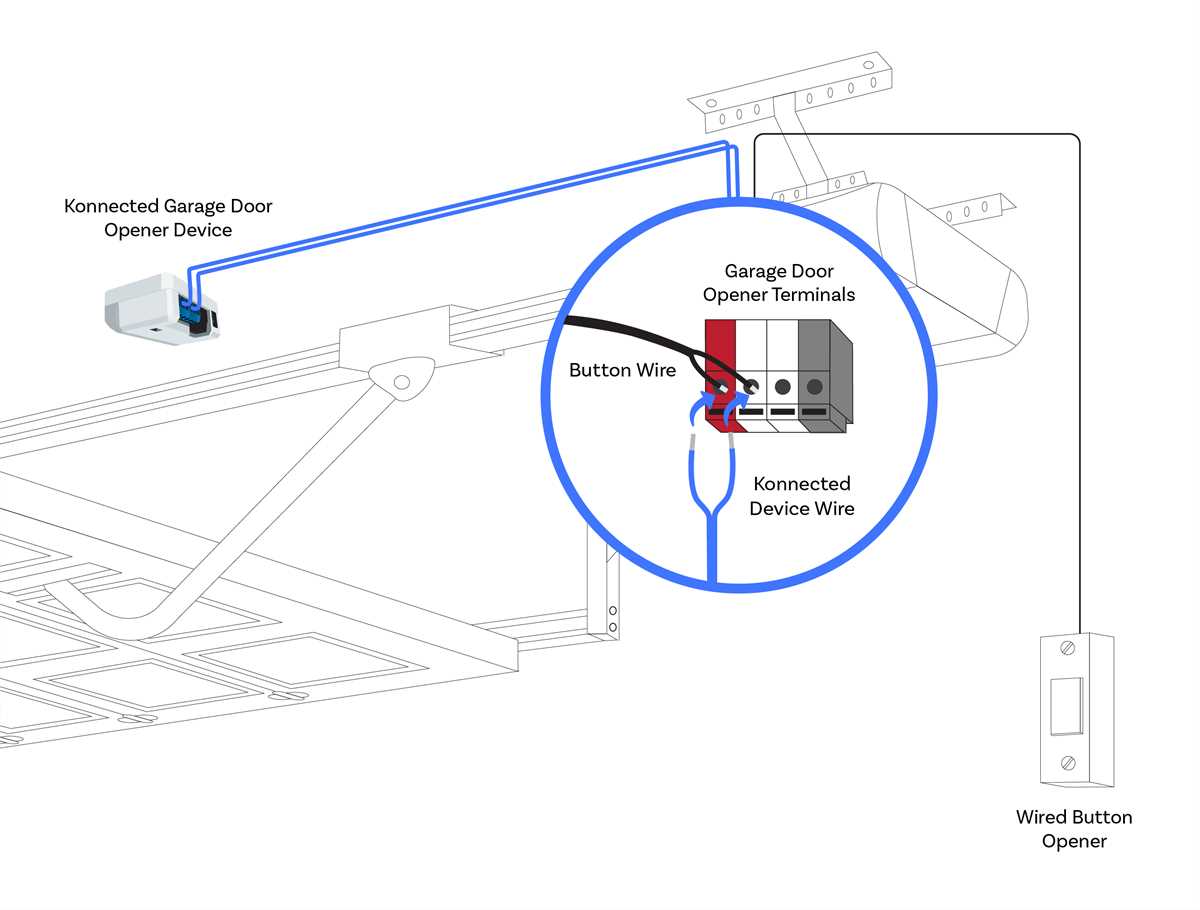

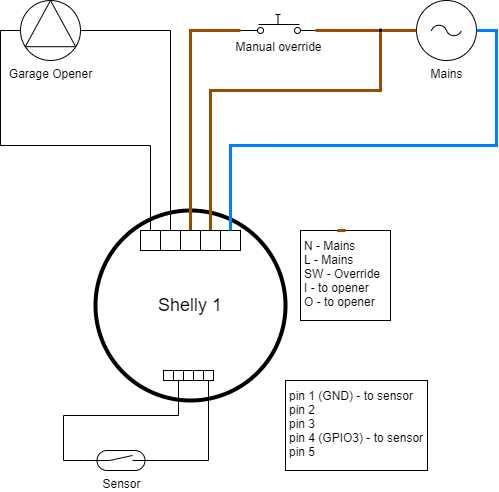

For dual-path setups, daisy-chain the emitter and receiver pairs by connecting the output of the first receiver to the input of the second. Use a jumper wire to bridge the ground terminals; this maintains a shared reference point. When upgrading to smart controls, splice the new module’s data wires directly into the opener’s logic board–match polarity strictly to avoid corrupting the firmware. Label each wire at both ends with masking tape to simplify future diagnostics.

After securing all connections, run a full cycle test with a 2×4 wooden block placed in the beam path. The mechanism must reverse immediately upon contact. If reversal occurs prematurely, reduce the opener’s close force by turning the adjustment screw ¼ turn counterclockwise. Document wire lengths and terminal positions in a schematic–store it inside the control box for reference. Regularly inspect the rubber grommets where wires enter the motor housing; cracks can admit moisture, leading to short circuits.

Key Elements in an Overhead Access Entry Detector Setup

Start by locating the photoelectric eyes–small rectangular units mounted near the base of the tracks, typically 4–6 inches above the ground. Verify their alignment: a misaligned pair often triggers false alerts. Check for a steady LED indicator on the transmitting unit; a solid light confirms proper voltage, while a blinking signal suggests interference or distance issues.

Trace the low-voltage cables–usually 2–4 thin, color-coded wires–connecting the eyes to the control module. The power supply (often 24V AC) originates from the opener’s motor, with wires terminating in a transformer or terminal block. Use a multimeter to measure voltage at the eyes: readings below 18V indicate a faulty circuit or excessive cable length. Replace damaged wires; standard 22-gauge security cable works for runs under 50 feet.

Examine the relay module–a small plastic box near the motor housing. This component interprets the eyes’ signals, cutting motor power if an obstruction is detected. Look for burnt contacts or corrosion on the relays; clean with electronic contact cleaner or replace if pitted. Bypass the relay temporarily to test the eyes separately–if the system works without it, the relay needs servicing.

Identify the safety reverse terminals on the motor unit–marked “Safety” or with icons of two arrows. These terminals bridge the eyes’ circuit. Short them momentarily with a wire to simulate a clear path; if the mechanism responds, the eyes or wiring are the issue. Inspect for loose screws or oxidized connections; a secure, corrosion-free interface prevents intermittent failures.

For passive infrared variants, note the lens orientation: the emitter must face the receiver directly across the entrance. Dust or spiderwebs on the lenses scatter the beam, causing malfunctions. Clean with a lint-free cloth; avoid solvents that could cloud the plastic. If replacing components, match the model’s specifications–voltage, beam angle, and range must align to maintain detection accuracy.

Step-by-Step Installation Guide for Optical Beam Detectors

Locate the control unit’s terminal block before proceeding–most models have labeled ports for emitter and receiver connections. Check the manual for exact pin assignments if markings are unclear. Misalignment here causes immediate failure.

Mount the infrared transmitters on opposite sides of the track, ensuring they face each other directly. Use a laser level or string line for precise alignment; a 1/8-inch deviation disrupts signal detection. Secure brackets tightly–vibration shifts position over time.

Strip 1/4 inch of insulation from each wire end, then twist strands together to prevent fraying. Insert the emitter’s positive (red) lead into the “+” terminal and the negative (black) into “-“. Repeat for the photodetector, matching polarity exactly. Reverse connections burn out components instantly.

1. Test continuity with a multimeter before powering the system. Probe the emitter’s output terminals–should read 6-12V DC, depending on the model. No voltage indicates a faulty unit or broken cable.
2. Activate the main panel and observe the LED indicators. A steady glow confirms proper operation; flickering suggests interference or loose connections.
3. Block the light path briefly–if the relay clicks and the motor pauses, calibration is correct. If unresponsive, recheck alignment and wiring polarity.

Route excess cable along the track edge, securing it with nylon ties every 12 inches. Avoid sharp bends or areas exposed to moving parts–chafing leads to short circuits. Cover with conduit if near high-traffic zones.

Set the sensitivity dial to midpoint initially. Too high triggers false positives from ambient light; too low misses obstacles. Fine-tune after a week of operation based on real-world conditions like dust or sunlight angle changes.

Troubleshooting Common Issues

• LED off, no response: Verify power supply voltage matches specifications (usually 24V AC/DC). Check fuse in the control box.
• False triggers: Clean lenses with a microfiber cloth–dirt scatters the beam. Shield units from direct sunlight with opaque tape on one side.
• Intermittent detection: Inspect wire junctions for corrosion–oxidized copper causes resistance. Re-crimp connectors with dielectric grease to prevent moisture ingress.

Final Checks Before Operation

Manually cycle the mechanism twice while observing the beam path. Ensure no objects intersect the line–even transparent plastics (like shopping bags) block infrared signals. Document resistance readings across terminals for future reference–baseline values help diagnose degradation over time.
