Understanding Wire Resistance Key Components in Circuit Diagrams
Begin by sketching a straight conductive path between two endpoints. Mark the cross-sectional area at three distinct points: one near the source, another at the midpoint, and the last close to the endpoint. For copper conductors at 20°C, use 1.68 × 10⁻⁸ Ω·m as the material’s inherent opposition value. Adjust for temperature deviations–every 10°C increase above 20°C raises this value by 0.39%.
Label every segment with precise dimensions. A 0.5mm² trace spanning 2 meters will exhibit 0.0672 Ω of total opposition. If the path bends, split it into straight sub-segments–each angled turn adds equivalent length equal to half the trace width. Avoid sharp corners; mitered bends reduce parasitic effects by 15% compared to right-angle turns.
Incorporate variable loads if the pathway includes elements like potentiometers or thermistors. A 1kΩ potentiometer set to mid-travel introduces 500 Ω in series. For thermistors, apply the Steinhart-Hart equation: 1/T = A + B·ln(R) + C·(ln(R))³, where T is in Kelvin and R is the measured opposition at temperature.
Verify calculations with a multimeter in continuity mode. Probe each marked point–the opposition between any two should match your annotated values within ±2%. If discrepancies exceed this threshold, recheck trace lengths, material properties, or temperature corrections first.
For branched pathways, apply Kirchhoff’s laws. Calculate opposition at each junction using R_total = (R₁·R₂)/(R₁ + R₂) for parallel segments. Document all nodes; a single unaccounted junction can skew results by 20-30% in complex layouts.
Understanding Electrical Pathway Behavior Through Visual Schematics
Begin by sketching the conductive route with precise geometric proportions–length-to-cross-section ratios directly influence performance. A 10-meter copper strand with a 0.5 mm² profile exhibits approximately 3.4 ohms at 20°C, while halving the diameter quadruples the opposition to current flow. Label each segment with measured values to identify bottlenecks before physical assembly.
Incorporate color-coded annotations for materials: silver (1.59×10⁻⁸ Ω·m), copper (1.68×10⁻⁸ Ω·m), aluminum (2.65×10⁻⁸ Ω·m). Use dashed lines to denote alternative alloys in comparative schematics, ensuring clear differentiation between theoretical and practical implementations.
Plot temperature dependencies alongside fixed properties–ambient shifts from 20°C to 100°C raise a standard conductive path’s opposition by ~30%. Include correction factors on the schematic margin for rapid recalibration during testing phases.
Segment the pathway into functional zones: power input, load attachment points, and return paths. Mark anticipated voltage drops at each node using Ohm’s law calculations based on expected amperage. A 5A flow through a 2-ohm route yields a 10V reduction–highlight these critical points in bold.
Overlay thermal gradients using shaded layers if operating conditions exceed 60°C. Silicone insulation degrades at 220°C; substitute with ceramic coatings for high-load scenarios. Annotate maximum permissible temperatures next to each section to prevent material stress.
Integrate dual representations: one for idealized conditions, another reflecting real-world tolerances (±5% dimensional variance, ±10% alloy impurities). Use arrow indicators to show current direction and magnitude, distinguishing transient spikes from steady-state values.
Attach a reference table listing conversion formulas (gauge-to-millimeter, resistivity-to-conductance) directly on the schematic border. A 12 AWG route measures 2.05 mm in diameter–cross-reference with standard charts to avoid miscalculations during fabrication.

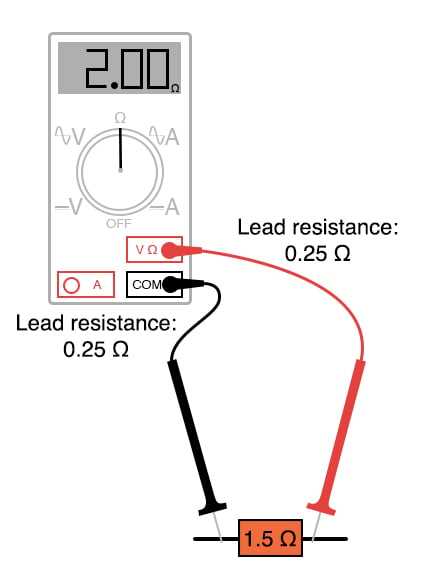

Measuring Conductor Impedance with a Multimeter
Power down the entire system before testing. Disconnect the conductor from its power source or battery to prevent false readings or damage to the meter. Ensure no current flows through the pathway–even small charges can skew results.
Set the multimeter to the ohms (Ω) function. Select the lowest range first (e.g., 200Ω) if the conductor’s expected impedance is unknown. For thicker pathways, a higher range may be needed, but always start low to avoid overloading the device.
Probe both ends of the conductor directly. Touch the meter’s leads to each terminal–avoid touching insulation or nearby components. For stranded material, compress the strands to ensure full contact. If the display shows OL (overload), switch to a higher range.
Note the reading. A direct, low-impedance pathway (e.g., copper) typically measures below 1Ω, often near 0.3–0.5Ω for short lengths. Aluminum may read slightly higher. If the value exceeds 2Ω, inspect for corrosion, loose connections, or broken strands.
Common Errors and Fixes
False high readings often stem from oxidized terminals. Clean surfaces with fine-grit sandpaper or a wire brush before retesting. For coiled or twisted pathways, straighten the section being measured to eliminate inductance effects. If the conductor spans long distances, account for impedance per meter–most copper cladding adds ~0.017Ω per meter at 20°C.
Safety Precautions
Avoid measuring live pathways. Even low-voltage systems can damage the meter or produce inaccurate results. For high-power installations (e.g., >24V), use a dedicated impedance tester instead of a multimeter, as some models lack overload protection for these conditions.
Key Elements for Accurate Electrical Path Schematic Representation
Include a battery or power source symbol at the start, marked with precise voltage values. Specify polarity (+/-) to prevent misconnections during testing or assembly. Voltage ratings should align with the conductor’s rated capacity–typically 1.5V, 5V, 12V, or 24V for low-power setups.
Use standardized conductor symbols with clear labeling: solid lines for primary paths, dashed for secondary or alternative routes. Indicate material (copper, aluminum, nichrome) and cross-sectional area in mm² directly on the line. For coiled sections, add loop count and spacing between turns.
A fixed-value load should be depicted with ohmic value, power rating, and tolerance (e.g., “100Ω 5W ±5%”). For variable loads, show adjustment range and control method (potentiometer, rheostat). Thermal dissipation requirements must be noted if the element operates near capacity.
Insert measurement points at critical junctions: before/after the conductor, across the load, and near the power source. Label each point with unique identifiers (e.g., V1, A2) and expected voltage/current ranges. Include probe type recommendations (multimeter, oscilloscope) based on signal characteristics.
Add thermal sensors if the path experiences localized heating. Position symbols near high-resistance areas or joints, specifying temperature thresholds (e.g., “Tmax = 85°C”). Link sensors to a visual indicator or shutdown mechanism in the schematic.
For AC configurations, embed frequency details near the source and any capacitors/inductors. Note harmonic distortion limits if nonlinear elements are present. DC setups require reverse-polarity protection–include a diode symbol with forward voltage drop (e.g., 0.7V for silicon).
Document ground references with distinct symbols: chassis ground (triangle), earth ground (three parallel lines), and signal ground (inverted “T”). Differentiate between floating and tied grounds, especially in mixed-signal environments. Label ground loops explicitly to avoid interference.
Incorporate connector symbols for modular sections. Specify pinout, wire gauge compatibility, and mating force requirements. For soldered joints, mark flux type and solder composition (lead-free Sn-Ag-Cu vs. Sn-Pb). Highlight vibration-prone areas with strain-relief annotations.
Determining Conductor Impedance Using Physical Properties
To compute the opposition a conductor offers to current flow, apply the formula R = ρ × L / A, where ρ (rho) is the material’s specific resistivity, L denotes the conductive path length, and A signifies its cross-sectional surface. Prioritize using consistent units: ohms (Ω) for opposition, meters (m) for length, and square meters (m²) for area.
Selecting the correct resistivity value is critical. Copper, the most common choice for conductive paths, has ρ = 1.68 × 10-8 Ω·m at 20°C. Aluminum follows with 2.82 × 10-8 Ω·m. For precise calculations, account for temperature variations–resistivity increases approximately 0.39% per °C for copper.
For irregular conductive paths, measure length along the actual route rather than straight-line distance. For bundled strands, calculate total cross-sectional surface by summing individual strand areas. Errors in these measurements compound when scaled to long conductive paths, so verify dimensions with calibrated tools before computation.
| Material | Resistivity (Ω·m at 20°C) | Temperature Coefficient (per °C) |
|---|---|---|
| Copper | 1.68 × 10-8 | 0.0039 |
| Aluminum | 2.82 × 10-8 | 0.0040 |
| Silver | 1.59 × 10-8 | 0.0038 |
| Gold | 2.44 × 10-8 | 0.0034 |
| Iron | 9.71 × 10-8 | 0.0050 |
Adjust for temperature using RT = R0 × [1 + α(T – T0)], where RT is opposition at operating temperature, R0 at reference temperature, α the temperature coefficient, and T the actual temperature. Neglecting this adjustment introduces significant errors–at 100°C, copper’s opposition rises by over 30%.
For rectangular or non-circular cross-sections, replace area calculation with the actual geometric formula. A conductive path with thickness t and width w has A = t × w. Hollow conductors require subtracting inner from outer cross-sectional surfaces. Always validate dimensions with direct measurement–manufacturer datasheets may omit tolerances.
Optimize conductive path design by balancing length reduction and cross-sectional enlargement. Doubling the diameter reduces opposition by 75% if length remains constant. However, material costs scale similarly–copper weighs 8.96 g/cm³, so large cross-sections incur exponential weight and expense. For high-current applications, consider parallel conductive paths to distribute load without excessive bulk.
