How to Wire a Manual Transfer Switch for a Backup Generator Step by Step

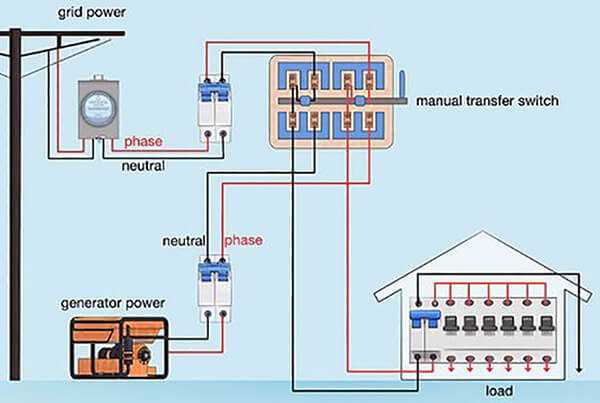

Install a double-pole, double-throw (DPDT) breaker-rated unit between the main service panel and emergency power source. This ensures seamless isolation of both live and neutral conductors during transitions, eliminating backfeeding risks. Verify the device’s amperage rating matches or exceeds the combined load of critical circuits–typically 30A for subpanels, 50A for whole-house setups.
Run #6 AWG copper conductors for 50A applications, #8 AWG for 30A. Secure connections with anti-oxidant compound on aluminum terminals if mixing metals. Route cables through rigid conduit, maintaining 12-inch clearance from combustible materials in attics or crawl spaces. Label all wires at both ends: “Main Utility,” “Backup Input,” and “Auxiliary Output.”
Connect the neutral busbar directly to the emergency source’s bonded neutral, not through the selector mechanism. Omit ground lift relays–bonding at the main panel suffices. Test under load by simulating an outage; measure voltage drop across contacts (should not exceed 3% of nominal) before restoring primary supply.
Use a 240V interlock for panels with tandem breakers. Mount the selector handle at a maximum 6-foot height for accessibility, avoiding proximity to gas meters or vent stacks. Document circuit mappings–color-code wires (e.g., red for main, black for backup) and cross-reference with a printed list of protected loads.
Electrical Relay Setup for Backup Power Integration
Install a double-throw relay rated for 200% of your panel’s maximum continuous load to prevent overheating during prolonged failover events. Use 10 AWG copper wiring for circuits under 30 amps and 6 AWG for 50-60 amp branches, ensuring all conductors terminate in anti-oxidant compound to maintain conductivity. Position the relay within 3 feet of the main service entrance to minimize voltage drop–critical for sensitive equipment like medical devices or deep-cycle battery chargers.
- Route neutral wires directly to the bonded busbar in the subpanel, avoiding shared paths with ground conductors.
- Label all wires with heat-shrink tubing (minimum 2mm diameter) printed with circuit ID and phase designation.
- Apply torque wrench settings specified by UL 489 for breaker terminals–typically 25 lb-in for 15-20 amp devices, 35 lb-in for larger units.
- Test failover sequencing with a multimeter set to continuity mode; simulate power loss by opening the main breaker and verifying relay closure within 100ms.
Load Balancing for Critical Circuits
Prioritize circuits by mapping their startup surge demands: refrigerators draw 6x running amps, well pumps 8x, while LED lighting requires only 1.2x. Allocate no more than 60% of the backup unit’s rated capacity to high-surge loads to prevent overload trips. For example, a 7500W unit can sustain 4500W of continuous surge-capable branches if balanced across L1-L2 phases with ≤15% variance.
Use a dedicated 2-pole breaker for the backup feed, sized to match the unit’s output (e.g., 30A for 7.5kW). Secure all joints with compression lugs crimped at 12,000 PSI using a hydraulic tool–avoid twist-on connectors, which may loosen under vibration. Ground the frame of the backup unit to a buried copper rod (minimum 8 feet) with a 4 AWG bare conductor, ensuring resistance below 25 ohms per NEC 250.53(A).
Selecting the Ideal Power Transition Unit for Your Backup System
Opt for an automatic standby controller rated for at least 125% of your peak load to prevent overheating during extended use. For residential setups under 7.5 kVA, a 30-amp, 120/240V panel-mounted device ensures seamless operation without voltage drop. Industrial or high-demand applications require a 60-amp or 100-amp configuration with built-in surge protection, capable of handling transient spikes up to 20,000 watts.
Prioritize units with UL 1008 certification–this guarantees compliance with rigorous safety standards for short-circuit withstand ratings. Models without this marking may fail during fault conditions, risking equipment damage or fire hazards. Verify the interrupting capacity matches your utility’s fault current; most urban grids deliver 10kA, while rural areas may only offer 5kA.
Ensure the circuitry includes a double-throw mechanism with mechanical interlocks to prevent backfeeding, which can endanger utility workers and void insurance policies. Test the durability of the operating handle–it should engage smoothly without sticking, especially in extreme temperatures. For outdoor installations, choose NEMA 3R-rated enclosures to resist moisture, dust, and corrosion from salt air or chemical exposure.
Compare the number of circuits: a 6-circuit unit suits essential loads like refrigeration, lighting, and medical devices, while a 10-circuit variant accommodates additional HVAC or workshop tools. Avoid “all-in-one” solutions for loads exceeding 15 kVA–split-bus designs reduce single points of failure and simplify troubleshooting. Check the amperage rating per circuit breaker: 15-amp breakers suffice for most appliances, but dedicated lines for compressors or welders need 20-30 amps.
For diesel or gaseous-fueled backup sources, confirm the transition unit supports neutral bonding if transferring between separately derived systems. Some models require a floating neutral to comply with NEC Article 250; failure to verify this can trip GFCI outlets or damage sensitive electronics. Consult the wiring schematic to ensure compatibility with your inverter’s grounding scheme–misconfiguration may lead to erratic performance or false overload errors.
Calculate installation costs beyond the base price: heavy-gauge copper wiring (4 AWG minimum for 30+ amps), conduit, and professional labor for final connection to your service panel can add 30-50% to the total expense. Rural off-grid setups benefit from dual-voltage units (120/240V) to support both single-phase and split-phase loads. Always pair the device with a dedicated subpanel to isolate critical circuits and avoid overloading the primary distribution board.

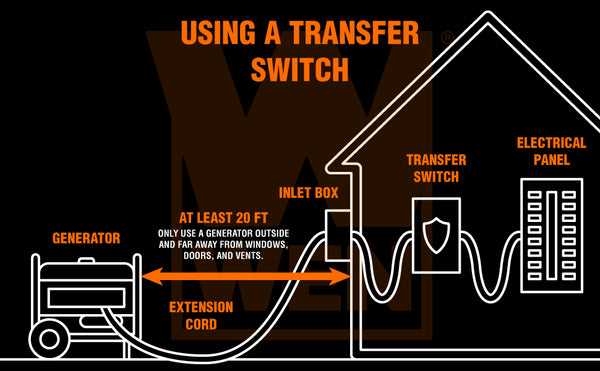

Guide to Connecting Your Backup Power Source to the Alternate Circuit Panel

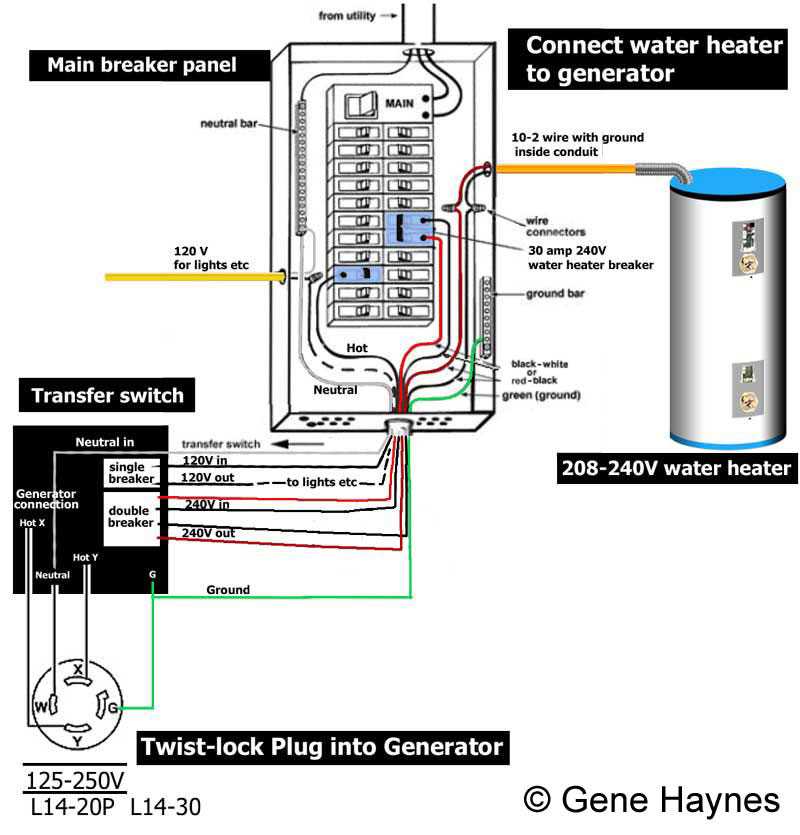

Ensure the main breaker in the service panel is switched off before initiating any work. Verify absence of voltage at the terminals using a non-contact tester to prevent accidental energization during installation. Identify the input lugs on the alternate circuit selector–typically marked L1, L2, and neutral–for secure attachment of incoming backup power cables.
Use 6 AWG copper conductors or larger, rated for the maximum output current of your backup unit, to connect the terminals. Strip 0.75 inches of insulation from each conductor end, then crimp ring terminals if required by the selector’s design. Tighten connections to 15-20 ft-lbs torque, ensuring no exposed wire extends beyond the terminal to avoid short circuits.
Locate the output terminals on the backup unit–often labeled U, V, W for three-phase models or Line 1, Line 2, and neutral for single-phase–and wire them to the corresponding input terminals on the selector. Match polarity precisely; misalignment can damage connected appliances or the backup unit itself. Ground the selector’s chassis to the service panel’s ground bus bar using a dedicated 10 AWG green or bare copper conductor.
For standalone residential setups, run a separate conduit from the backup output to the selector’s input. Use Schedule 40 PVC or metal conduit, sized to accommodate conductor fill without exceeding 40% capacity. Secure conduits at 4-5 foot intervals and within 12 inches of bends or terminations to meet NEC 352.30 requirements.
Test continuity between all connections with a multimeter set to ohms mode before restoring power. Activate the main breaker and confirm the selector transitions smoothly between grid and backup modes. If voltage fluctuations occur during transfer, revisit torque specifications on all terminals–loose connections generate heat and degrade performance.
Label all cables and terminals clearly with durable, non-fading tags specifying source (grid or backup) and destination. Include the date of installation and recommended inspection intervals (every 6 months for residential use) to maintain compliance with NFPA 70B. Store spare connectors and documentation near the unit for quick reference during maintenance.
Critical Safety Measures for Alternate Power Connection Setup
Disconnect the main breaker before initiating installation. Even traces of current in the panel can lead to fatal arcs or short circuits when handling live conductors. Verify the absence of voltage using a non-contact tester on all incoming lines and neutral terminals. This step eliminates the risk of accidental electrocution during cable routing or terminal tightening.
Use copper conductors sized for at least 125% of the continuous load rating of the secondary power source. Undersized cables overheat, compromising insulation and increasing fire hazards. Refer to Table 310.16 of the NEC for exact ampacity values based on conductor gauge and ambient temperature. For example, a 50-amp circuit requires 6 AWG copper wire in a 75°C environment.
Grounding and Bonding Requirements
Install a dedicated grounding electrode connected to the backup system’s neutral bus if operating as a separately derived system. Failure to properly bond can create dangerous potential differences between grounded surfaces during operation. The grounding conductor must match the size of the largest ungrounded conductor in the circuit, per NEC 250.122. Below is a reference for minimum grounding conductor sizes:
| Circuit Breaker Rating (A) | Minimum Grounding Conductor (AWG) |
|---|---|
| 15 | 14 |
| 20 | 12 |
| 30 | 10 |
| 50 | 8 |
| 60 | 6 |
Enclose all connections in UL-listed electrical boxes rated for the environment where installed. Outdoor setups require NEMA 3R enclosures to shield terminals from moisture, dust, and accidental contact. Use anti-oxidant compounds on aluminum connections to prevent corrosion, which increases resistance and heat buildup over time.
Label every circuit served by the backup source with indelible, high-contrast markers. Include the circuit number, load capacity, and a warning indicating it is energized by the alternate supply. This prevents misoperation during maintenance or emergencies. Store a dated, signed electrical diagram at the installation site, detailing conductor paths, breaker assignments, and load calculations.
Operational Testing Protocol
Perform a full load test before relying on the backup system. Measure voltage at the farthest outlet on every circuit to confirm proper regulation and wire integrity. Check for harmonic distortion above 3% using a true RMS meter–excessive distortion damages sensitive electronics. After testing, secure all panel covers with tamper-resistant screws to prevent unauthorized access.
