Complete Guide to Building a Grid Tie Solar Inverter Circuit

Begin by integrating a synchronous buck converter as the core of your power stage. Select a high-efficiency MOSFET (e.g., IXYS IXFN230N100 or Infineon IPW60R041C6) with a low R_DS(on) (<50 mΩ) and sufficient voltage rating (1000V+) to handle transient spikes during disconnect events. Pair it with a fast-recovery diode (STTH30R06 or equivalent) for freewheeling, ensuring reverse recovery time (t_rr) <50 ns to minimize switching losses.

Implement a current-mode PWM controller such as the Texas Instruments UCC28061 or ON Semiconductor NCP1200 for precise output regulation. Configure the feedback loop with a galvanically isolated sensing element (LEM LAH 25-NP or Allegro ACS712) for accurate phase synchronization. Use a high-precision 0.1% tolerance resistor divider (10 kΩ and 2.49 kΩ) to scale the output voltage to the controller’s 3.3V reference.

For grid compliance, incorporate a dual-pole LC filter with a cutoff frequency of 10–20 kHz. The inductance (e.g., 300 µH toroidal core with 12 AWG wire) and capacitance (470 µF/630V metallized polypropylene) must handle 1.5× the nominal RMS current to prevent saturation and thermal runaway. Add a varistor (Siemens S10K250) across the DC bus to clamp transient voltages from inductive loads or grid disturbances.

Isolate the control signals using optocouplers (Vishay SFH620A or Toshiba TLP291) with a CTR >100% and bandwidth >100 kHz to maintain stability. For ground isolation, use a transformer driver IC (Analog Devices ADuM6401 or Silicon Labs Si864x) with reinforced insulation to meet UL 1741 and IEC 62109 standards. Include a watchdog timer (MAX6725T) to disable the system within 1 ms of a fault condition.

Mount all components on a 2 oz copper PCB with 10 mm creepage distances and separate primary/secondary grounds via a slotted barrier. Use a heatsink-compound interface (Dow Corning TC-5622 or Bergquist Gap Pad VO) for the MOSFETs, sized to dissipate 25 W at 60°C ambient with a θ_JA <1°C/W.

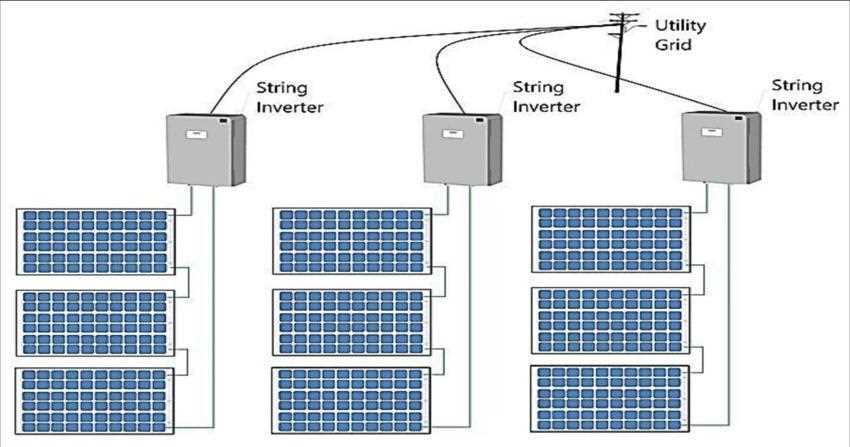

Photovoltaic Energy Conversion System Schematics

Begin with a full-bridge configuration using four IGBTs (e.g., Infineon IKW40N120T2) for the DC-to-AC conversion stage. Connect the PV array’s output to a high-voltage DC bus (400–800V) via a boost converter using a dedicated MPPT IC like TI’s UCC2809-2. Ensure the bus capacitor (film type, 100µF/1000V) has low ESR to handle 20kHz switching without overheating. Isolate gate drivers (e.g., Avago ACPL-332J) from the MCU to prevent ground loops during transient events.

For synchronization, sample the utility waveform (230V/50Hz or 120V/60Hz) via a precision voltage transformer (e.g., Murata 78250MC) and feed the signal into a PLL (ADI’s ADF4106). Configure the MCU (STM32F334) to adjust the IGBTs’ PWM at 16kHz, aligning output current phase with the utility to avoid reactive penalties. Include a 12-bit DAC (MCP4725) to fine-tune the modulation index (0.8–0.95) based on real-time PV irradiance data.

Protection and Compliance Measures

Integrate an isolation relay (TE Connectivity KILOVAC LEV100) between the conversion stage and utility meter, activated only after confirming anti-islanding (frequency/voltage drift method per IEEE 1547). Use a Hall-effect current sensor (LEM LTSR 25-NP) to monitor output (5A–20A range) and trigger shutdown if THD exceeds 5%. Add snubber circuits (RC, 10Ω/0.1µF) across IGBTs to suppress voltage spikes during switching–critical for long-term reliability in high-insolation regions.

For EMI compliance, place ferrite beads (Fair-Rite 2643002402) on all signal lines and use shielded twisted pair for sensor connections to the MCU. Ground the heat sink (CPU-grade aluminium, 5°C/W) separately from the PCB to avoid common-mode noise coupling into the utility. Include a watchdog timer (STM6731) to reset the system if firmware hangs–non-negotiable for unattended operation.

Test the system with a resistive load bank (e.g., Chroma 63204) in 10% increments up to 120% rated capacity to verify derating behavior under overcurrent conditions. Log data via an isolated UART (MAX3232) to external storage for performance analysis, focusing on efficiency curves at 25%, 50%, 75%, and 100% load. Replace electrolytic capacitors every 3–5 years–film types last longer but cost 3x more.

For certification (UL 1741, VDE-AR-N 4105), submit schematics showing galvanic isolation between DC and AC sides, plus surge protection (MOV, Littelfuse V25S40P) on utility inputs. Avoid cheap MOSFETs–they lack body diodes for current freewheeling during dead-time. Use Kicad or Altium for PCB design; route high-current paths (6A+) with 2oz copper and thermal vias to prevent hotspots.

Core Elements in a Photovoltaic Power Synchronization Schematic

Begin with a high-efficiency DC-DC boost converter–critical for matching panel output to system voltage. Use a synchronous rectification topology (e.g., MPPT with interleaved boost) to minimize loss; target &geq;98% conversion efficiency at 24V input and 400V output. Avoid low-side MOSFETs with R_DS(on) > 5mΩ–thermal dissipation will degrade performance under 1kW loads.

Safety Isolation Components

• Opto-isolators (e.g., HCPL-316J) for gate drive signals–galvanic isolation rated &geq;5kV is mandatory for PV arrays exceeding 20 panels in series.
• Y-capacitors (47nF/250VAC) across line-neutral; place within 5mm of AC terminals to attenuate EMI spikes >15MHz.
• Inrush current limiter (NTC thermistor) sized for 10A cold-state resistance; bypass with relay after 1s to reduce steady-state loss.

For AC synchronization, deploy a phase-locked loop (PLL) with &leq;1° steady-state error. Use a zero-crossing detection comparator (TL3116) and low-pass filter (τ=2ms) to reject grid harmonics >5th order. Avoid PLLs with bandwidth >50Hz–false triggers occur under weak AC conditions. Sample AC voltage at 20kHz; oversampling beyond 50kHz increases CPU load without improving accuracy.

Select DC link capacitors based on ripple current tolerance: film capacitors (e.g., MKP X2 type) outperform electrolytic for longevity, but require 3x the volume. Size for 5% ripple at full load; undersized caps cause 120Hz voltage swing >30Vpp, stressing IGBT/MOSFET junctions. Parallel at least two units to distribute ESR losses–single-cap failure shuts down the system.

1. Gate drivers must sink/source ≥2A peak current for IGBTs rated 600V/50A; insufficient drive causes slow switching and >5% efficiency drop.
2. Snubber circuits across semiconductor switches: RCD (10Ω/2W, 2.2nF/1kV) for hard-switching topologies; omit for soft-switching.
3. Current sensors (Hall-effect, e.g., LEM LA 25-NP) placed on AC lines–measure differential current (

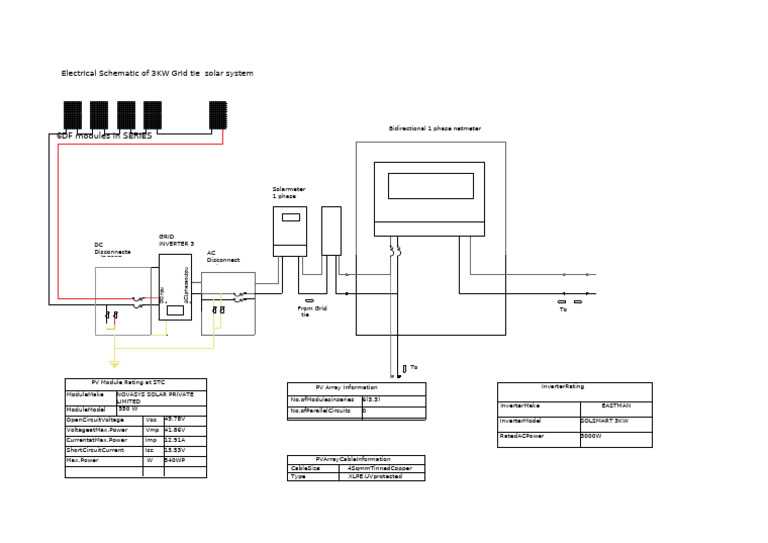

Connecting a Basic Photovoltaic Synchronization Unit: Wiring Sequence

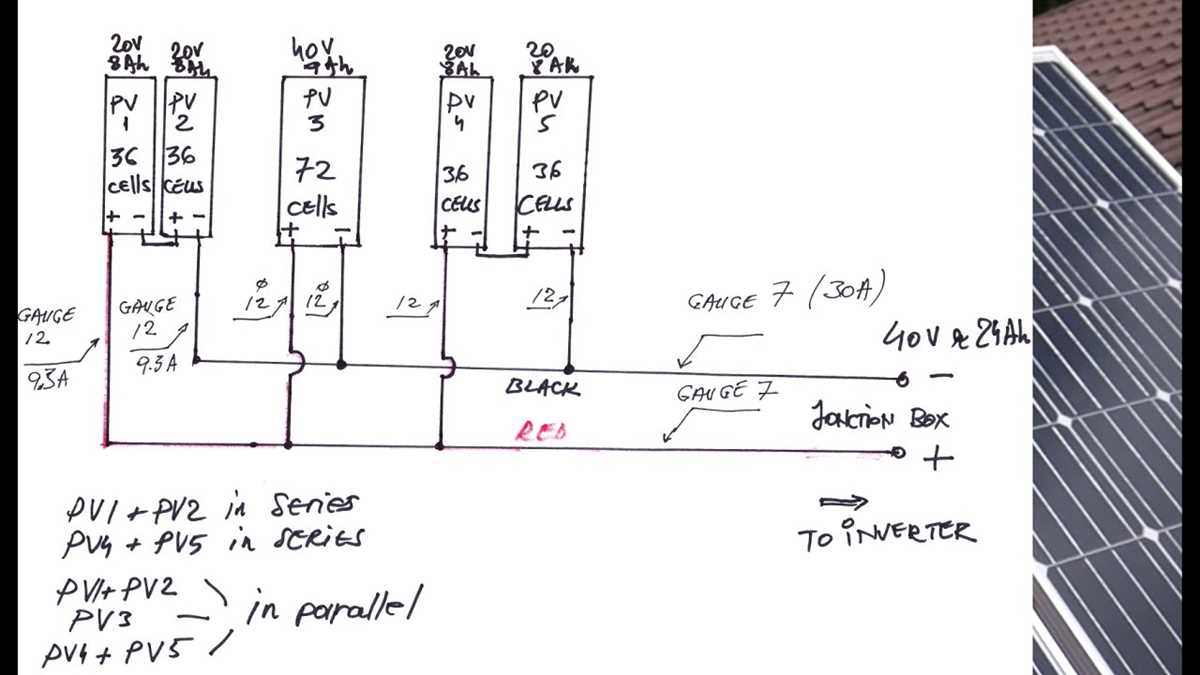

Begin by securing a 40A DC disconnect switch between the energy panel and the conversion device to isolate high-voltage input during maintenance. Attach the positive lead from the panel array to the switch’s upper terminal, ensuring torque specification of 2.5 Nm for copper lugs; improper tightness introduces resistive losses up to 3% system efficiency drop.

Route the negative conductor directly to the MPPT charge regulator’s input, bypassing the disconnect switch–this prevents ground loop formation that degrades performance. Use 8 AWG tinned copper wire for runs under 10 meters; switch to 6 AWG for longer distances to limit voltage sag exceeding 0.5V at full load.

Connect the regulated output from the charge controller to a 300V DC bus capacitor bank rated for 450V surge to smooth current ripple below 5%. Orient film capacitors with + terminals adjacent to reduce inductance paths; failures here generate high-frequency harmonics detectable by utility meters as false tampering events.

Solder H-bridge MOSFETs (IRFP460 recommended) onto a copper-clad FR4 board at minimum 2 oz/ft² thickness to dissipate 15W thermal losses without heatsinks required up to 40°C ambient. Gate drivers (UCC27424) should be mounted within 3 cm of MOSFETs to prevent signal skew exceeding 20 ns, which causes shoot-through currents.

Wire a line-frequency transformer with 1:1 turns ratio to isolate the system from mains; use 0.7 mm lamination thickness to limit core losses to 2% at 50Hz. Primary winding taps must match local nominal voltage ±2% to avoid reactive power penalties on the interconnect agreement.

Terminate neutral and live conductors to a dual-pole 20A breaker using stranded wire with THHN insulation for flexibility in tight enclosures. Torque terminal screws to 1.8 Nm to prevent loosening from vibration; periodic checks every 1,000 operating hours reduce arc fault risks.

Install a bidirectional energy meter with RS-485 output sampling at 1 kHz to track power factor deviations; utilities penalize readings below 0.92 lagging. Ground the meter chassis to the service panel’s ground bus with 6 AWG bare copper, bonding all enclosure surfaces to limit potential rise above 50V during fault conditions.

Voltage and Current Sensing in Network-Connected Power Converter Architecture

Implement Hall-effect sensors for galvanically isolated current measurement, ensuring 0.5% accuracy at nominal load while maintaining a bandwidth exceeding 100 kHz. Bypass traditional shunt resistors to eliminate parasitic inductance, which degrades phase margin in feedback loops. Opt for Allegro ACS730 or Texas Instruments TMCS1100 for integrated amplifiers, reducing component count by 40% compared to discrete solutions.

For AC voltage detection, use a precision resistor divider with a temperature coefficient below 25 ppm/°C, paired with an operational amplifier in noninverting configuration. Configure the divider to scale 325V peak input to 3.3V, matching ADC reference voltage. Insert a low-leakage diode after the divider to protect against negative transients during fault conditions.

Select delta-sigma ADCs with synchronous sampling for simultaneous voltage and current acquisition. Prioritize 16-bit resolution at 500 ksps or higher to capture harmonics up to the 15th order, essential for anti-islanding compliance. Isolate ADC digital outputs using digital isolators with propagation delays under 20 ns to prevent timing skew between measurements.

Calibrate sensors at three temperatures (0°C, 25°C, 70°C) to compensate for drift. Store calibration coefficients in nonvolatile memory and apply them in firmware using polynomial correction. A third-order polynomial reduces error to ±0.2% across the entire operating range, surpassing linear compensation methods.

Signal Conditioning for High-Frequency Measurement

Apply a 4th-order Bessel filter before ADC input to attenuate switching noise by -60 dB at 50 kHz. Unlike Butterworth or Chebyshev filters, Bessel preserves group delay, preventing phase distortion in instantaneous power calculations. Calculate filter components using:

R₁ = R₂ = 10 kΩ, C₁ = 470 pF, C₂ = 330 pF

for a cutoff frequency of 20 kHz, ensuring anti-aliasing while maintaining signal integrity.

Differential signaling between the sensor and controller reduces common-mode interference by 35 dB. Use twisted-pair cables with a characteristic impedance of 100 Ω and terminate with a series resistor at the receiver end. Route traces on the PCB with 3H spacing from high-current paths to avoid inductive coupling.

Implement firmware-based oversampling by acquiring 10 samples per switching cycle and computing a moving average. This technique reduces quantization noise by -10 dB, equivalent to adding 1.5 effective bits of resolution to the ADC. Combine with IIR notch filtering at 50 Hz and 100 Hz to eliminate grid-induced distortion.

Validate sensor placement by performing a load step test. A 50% to 100% load transition should exhibit less than 5% overshoot and settle within 1 ms. Failure to meet this criterion indicates improper grounding or inadequate decoupling; verify star-point topology and place 100 nF ceramic capacitors within 10 mm of sensor power pins.

Fault Detection and Hardware Redundancy

Integrate dual independent measurement paths for critical parameters. Compare results in real-time and trigger a hardware shutdown if discrepancies exceed 3%. Use a window comparator with hysteresis for DC bus voltage monitoring; set thresholds at 85% and 115% of nominal, with 2% hysteresis to prevent chatter during transient conditions.

For residual current detection, employ a toroidal fluxgate sensor with
