Complete Chevrolet HEI Distributor Wiring Guide with Color Codes and Connections

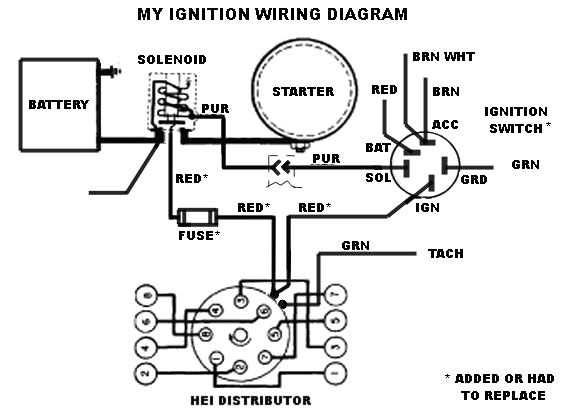

Begin by locating the ignition module on the distributor housing–critical for GM’s electronic spark control systems. Connect the primary lead from the coil to the “BATT” terminal on the module, ensuring a secure 12-volt input from the ignition switch. Use 14-gauge wire for minimal voltage drop; anything thinner risks misfires under load.

For the tachometer signal, tap the “TACH” terminal on the module with a dedicated wire routed directly to the instrument cluster. Avoid splicing into existing harnesses–stray capacitance can disrupt readings. If retrofitting to older models, bypass the factory resistor with a 1N4007 diode to prevent back-feeding into the ignition circuit.

Grounding is non-negotiable: attach the module’s “C” terminal to a clean, bare-metal engine surface using a 12-gauge wire no longer than 18 inches. Corroded or extended grounds introduce false triggering. Verify connections with a multimeter–resistance between terminals should never exceed 0.5 ohms.

For vehicles with aftermarket ECUs, isolate the ignition signal wire from sensor returns. A 0.1μF capacitor across the coil’s “+” and “-“ terminals suppresses high-frequency noise, preventing erratic RPM readings. If hesitating at startup, inspect the pickup coil air gap–adjust to 0.008–0.012 inches using a brass feeler gauge.

Replace factory connectors every 50,000 miles. GM’s original terminals degrade under heat cycles, increasing contact resistance. Use gold-plated spade connectors for critical links; tin-plated variants corrode within 24 months in humid climates.

Electronic Ignition Conversion for GM Engines: Step-by-Step Implementation

Start by disconnecting the battery negative terminal to prevent accidental shorts. Locate the original points-type ignition coil and distributor–these will be replaced. Remove the coil mounting bracket and distributor cap, then lift out the rotor. Keep the old components as backups.

Install the new electronic module on the distributor shaft. Ensure the pickup coil aligns properly with the reluctor wheel; misalignment causes erratic spark timing. Secure the module with the provided screws–tighten to 8-12 inch-pounds. Apply dielectric grease to the module terminals to prevent corrosion.

Attach the new ignition coil in place–most aftermarket setups use a high-output coil with 0.7-1.0 ohm primary resistance. Mount it away from exhaust manifolds to avoid heat soak. Connect the coil’s positive terminal to a switched 12V source (ignition switch or fuse box) via 16-gauge wire. Ground the negative terminal directly to the engine block using a dedicated 12-gauge wire.

The distributor’s signal wire (small gauge, typically purple) must connect to the ignition module’s “S” terminal. Route this wire away from high-voltage cables or alternators to avoid interference. For tachometer signals, splice into this wire–use a resistor (1K ohm) if the gauge reads erratically.

Verify vacuum advance function before finalizing connections. With the engine off, rotate the distributor housing–vacuum advance should move freely. Connect the vacuum line to the ported fitting on the carburetor or intake manifold. Avoid full-time manifold vacuum, as it reduces advance under load.

Component	Wire Gauge	Color Code (OEM)	Termination Point
Coil Positive	16 AWG	Pink	Ignition switch or fuse #5 (10A)
Coil Negative	12 AWG	Black	Engine block (direct bolt)
Module Signal	18-20 AWG	Purple/White stripe	Tachometer (if equipped)
Battery Feed	12 AWG	Red	Starter solenoid or battery terminal

Test the system before closing the hood. Reconnect the battery, then crank the engine while monitoring spark output. A healthy setup produces a strong, steady spark (blue-white) at all RPMs. Weak or yellow sparks indicate a faulty module, poor ground, or incorrect coil selection. Adjust timing to 8-10 degrees initial advance at idle (800-900 RPM), then recheck under load.

For fuel-injected models, bypass the original resistor wire–these systems require full 12V to the coil. Use a relay if voltage drops below 11.5V during cranking. On big-block engines (396-454), add a 1.0 ohm ballast resistor if the module runs hot. Always route wires through grommets and secure with zip ties every 6 inches to prevent chafing.

Troubleshooting Quick Reference

No spark? Check module ground first–most failures trace back to paint or rust at the mounting surface. Mis-fires at high RPM signal a weak coil or insufficient voltage; upgrade to a coil with 0.6-0.8 ohm resistance. Erratic timing often stems from a dirty reluctor wheel–clean with brake cleaner and fine steel wool. If the engine dies under load, suspect the vacuum advance diaphragm–test with a hand pump or replace.

Mapping Critical Parts in a GM High-Energy Ignition Assembly Schematic

Locate the ignition control module first–it sits adjacent to the coil tower in most General Motors V8 setups. This black box contains four pins on the circuit board: BAT, SW, TACH, and GND. Verify connectivity by checking for a steady 12V signal at the BAT terminal with the ignition on; fluctuations indicate a corroded harness clip or compromised fuse link. Replace any degraded connectors immediately–resistance above 0.5 ohms disrupts spark timing.

The coil assembly, positioned atop the distributor cap, must maintain consistent voltage retention. Test the primary winding with a multimeter set to 200 ohms; readings outside 0.4-0.6 ohms suggest internal shorting. Secondary windings should register between 6,000-12,000 ohms–any lower demands immediate replacement to prevent misfires. Note that aftermarket coils often lack the thermal insulation of OEM units, leading to premature failure under sustained high RPM.

• Pickup coil (magnetic sensor): Situated beneath the rotor, this generates the signal for spark synchronization. A weak output (below 0.2V AC at cranking) necessitates recalibration or replacement. Verify air gap between the reluctor and sensor–ideal spacing is 0.008-0.012 inches; wider gaps cause delayed firing.
• Rotor: Inspect for carbon tracks or cracked segments. Even minor erosion redirects voltage, causing cylinder dropout. Rotate the shaft manually to confirm smooth operation–binding indicates worn bushings or debris.
• Cap contacts: Center terminal must show no pitting. Outer posts should be free of oxidation; use dielectric grease to seal connections against moisture ingress. Replace caps with visible casting flaws–microfractures induce crossfire.

Ground paths demand scrutiny. The module relies on a dedicated chassis return; trace this wire to its termination point using a continuity tester. Poor grounding manifests as erratic tachometer readings or intermittent stalling. Solder and heat-shrink all splices–crimped connections corrode over time, especially in humid climates. For vehicles with ECU integration, ensure the tachometer output wire (if present) isn’t routed near high-current cables to avoid signal interference.

Adjust advance mechanisms systematically. Mechanical weights should move freely without binding–apply lithium grease to pivot points. Vacuum advance diaphragms must hold 20 inches of mercury without leakage; test with a hand pump. Misadjusted advance curves cause pinging at mid-range RPM. For electronic timing control, refer to the ECU’s pinout–some aftermarket modules override factory settings, requiring recalibration via a timing light.

Final validation involves a road test. Monitor spark plugs after 20 miles: dark gray deposits indicate proper operation, while white or black residues signal lean/rich mixtures, often tied to faulty module grounding or compromised coil output. Replace all components exhibiting heat discoloration–enamel cracking on wires or brittle insulation spells imminent failure. Keep a replacement module on hand; identical part numbers ensure consistent performance across rebuilds.

Step-by-Step Connection Guide for GM High-Energy Ignition Systems

Disconnect the battery’s negative terminal before handling any electrical connectors to prevent short circuits or accidental sparks. Remove the distributor cap and rotor to access the coil and module terminals–this ensures unobstructed work space and eliminatesdistortion risks during testing.

Locate the four-prong ignition control module: two smaller posts for the pickup coil and two larger ones for power and ground. Use a multimeter set to 20VDC to verify 12V at the battery-supplied post (typically marked “BAT” or “+”) while the ignition is on–this confirms uninterrupted charging circuit integrity. If voltage drops below 11.5V, inspect the wire gauge (minimum 16 AWG for OEM harnesses) and fuse rating (20A standard for most GM small-blocks).

Attach the ballast resistor bypass wire (if equipped) directly to the coil’s positive terminal, ensuring it’s routed away from exhaust manifolds to prevent heat-induced resistance buildup. For aftermarket coils, verify the correct primary resistance (0.7–1.5 ohms for 12V systems) with a digital ohmmeter–deviations beyond ±0.3 ohms indicate internal shorts or open circuits requiring coil replacement.

Connect the tachometer lead to the distributor’s “TACH” terminal, using a 1,000-ohm resistor in series for analog gauges to prevent signal noise. For ECU-controlled setups, splice the reference wire (white with black stripe in GM color-coding) into the harness with a soldered joint, then seal with heat-shrink tubing–crimp connectors introduce resistance and corrosion over time.

Ground the ignition module via the mounting screws into bare metal, scraping off any paint or phosphate coating at the contact points. For aluminum intake manifolds, use a dedicated grounding strap (minimum 12 AWG) routed to the engine block to avoid voltage drop issues during cranking. Test ground continuity with the multimeter set to ohms (reading below 0.5 ohms indicates a proper bond).

Reinstall the rotor and cap, ensuring the rotor aligns with the No. 1 cylinder terminal at top dead center (compression stroke). Crank the engine while monitoring spark output via a calibrated spark tester–consistent blue-white sparks confirm proper Ignition timing advance (initial 8–10 degrees BTDC for most GM V8s). If misfires persist, check distributor shaft wear (endplay exceeding 0.005 inches necessitates shaft replacement) and reluctor air gap (0.008–0.012 inches critical for signal accuracy).
