How to Wire Honeywell WiFi Smart Thermostat Step-by-Step Guide

Before starting, identify the C-wire (common) terminal on your HVAC system–this is critical for stable power delivery. If missing, use an adapter kit or repurpose the G-wire (fan) with a transformation module to avoid erratic behavior. Verify compatibility by checking your system’s voltage: 24V AC is standard; anything else requires a professional inspection.

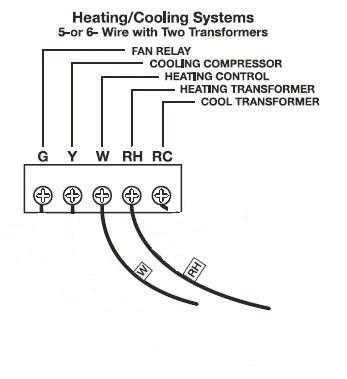

Label every wire with masking tape before disconnecting the old unit. Crossed connections–especially between Rc (cooling) and Rh (heating)–can damage components. For dual-transformer setups, bridge Rc and Rh unless the system explicitly prohibits it (consult documentation). Color codes vary: never assume red = power without confirmation–older installations may use unconventional schemes.

Attach wires to the new device using a screwdriver with torque control to prevent loosening. Tighten terminals to 0.5 Nm–over-tightening strips threads, under-tightening causes arcing. If the system includes a humidifier or dehumidifier, map its wires to HUM or DEHUM terminals separately; mixing them with standard heating/cooling circuits disrupts calibration.

After securing connections, power on the HVAC system and test each mode (heat, cool, fan) for 5–10 minutes. Listen for unusual noises–rattling may indicate a loose wire or transformer overload. If the display flickers or the device reboots, check for voltage drops using a multimeter: 22–26V AC at the device’s terminals is ideal. Voltages below 19V signal a wiring error or failing transformer.

For systems with external sensors or zoning, ensure zone controllers are wired in parallel, not series, to avoid voltage division. If integrating with a low-voltage relay, confirm the relay’s coil rating matches the thermostat’s output (typically 0.5A or 1A). Misalignment here can burn out the relay or trigger false trips.

Connecting Your Climate Control Device: Step-by-Step Electrical Guide

Before handling any wires, turn off the power at the circuit breaker for both heating and cooling systems. Use a non-contact voltage tester on each terminal to confirm no current remains–skipping this step risks electrical shock or damaging components. Label each existing wire with masking tape to match the terminal letters on the original panel (e.g., R, C, W, Y, G). Count the wires: a minimum of five (for power, cooling, heating, fan, and common) ensures full functionality.

Use a wire gauge of 18-22 AWG for all connections–thicker wires won’t fit the terminal blocks, while thinner wires may overheat. Strip 1/4 inch of insulation from each wire end; exposing more can cause short circuits when terminals are tightened. Insert each wire firmly into the corresponding slot on the new control panel, pressing down the lever or screwing the clamp until it clicks or resists further turning. Tug gently to verify security–loose connections lead to intermittent operation.

• R (Power): Connects to the transformer’s 24V supply–red wire is standard.
• C (Common): Essential for constant power; often blue or black, but confirm with your system’s manual.
• W (Heat): White wire for heating calls; connects to gas valves or heat pumps.
• Y (Cool): Yellow wire triggers the air conditioner or heat pump cooling mode.
• G (Fan):
• Green wire controls the blower independently–critical for fan-only modes.
• O/B (Heat Pump): Orange or dark blue for reversing valves–common in dual-fuel systems.
• E (Emergency Heat): Pink or brown, bypasses the heat pump under 35°F conditions.

For two-stage systems, additional terminals may include W2 (second-stage heat) and Y2 (second-stage cooling). Match these to thicker wires (often brown or light blue) from the furnace or outdoor unit. If your system lacks a C-wire, use the included power adapter kit: connect the adapter’s red wire to the R terminal and its blue wire to the C slot on the control panel, then run the adapter’s plug to a nearby electrical outlet.

After securing all wires, remount the control panel onto its baseplate. Restore power at the circuit breaker and follow the device’s startup sequence on the display. Verify operation by:

1. Setting the temperature above room level–heating should activate within 30 seconds.
2. Lowering the setpoint–cooling should engage with similar timing.
3. Manually selecting “Fan On”–the blower should run continuously without temperature adjustments.

If any function fails, recheck wire labels against terminals; mismatches cause erratic behavior or error codes.

Common troubleshooting tips:

• No Power: Confirm C-wire installation and tightness; test transformer output (should be 24VAC between R and C).
• Heating/Cooling Won’t Start: Verify W (heat) or Y (cool) wires are connected–test continuity with a multimeter.
• Short Cycling: Check for crossed wires (e.g., R touching C) or stripped insulation contacting metal.
• Error Codes (e.g., E3, E7): Consult the installation guide–often indicates incorrect jumper settings for heat pumps or missing common wire.

For advanced setups like Z-wave or dual-fuel systems, refer to the supplementary wiring schematics included with the control unit–these expand on standard diagrams with relays and external sensors.

Matching Control Unit Terminals to HVAC Systems

Locate the labeled ports on your climate controller’s backplate: *Rc* (cooling power), *Rh* (heating power), *C* (common ground), *W* (heat relay), *Y* (cool/compressor relay), *G* (fan), and *O/B* (heat pump reversing valve). Older forced-air furnaces typically lack a *C* terminal–use a 24V transformer’s common wire instead. Multi-stage units may show *W2*, *Y2* for secondary stages; confirm compatibility with your equipment manual before connecting. Low-voltage wiring (18-22 AWG) is standard; verify insulation integrity to prevent short circuits.

Cross-Referencing Terminals with Equipment Type

Gas or oil furnaces connect *W* to the heat call terminal–ensure the control board supports *Rh* if separating heating/cooling power. Heat pumps require *O/B* for valve switching; set the installer setting to specify *O* (cooling) or *B* (heating) based on regional climate norms. Split systems with dual-fuel setups link *Y* to the compressor and *W* to auxiliary heat–verify staging delays align with outdoor reset curves. Label each conductor at both ends to simplify future servicing.

Step-by-Step Guide to Removing an Old Climate Control Unit Before Installing a Replacement

Turn off the power to your heating and cooling system at the circuit breaker. Verify the system is inactive by adjusting the old control panel to call for heat or cooling–if nothing happens, proceed. Failure to cut power risks electrical shock or damage to components.

Remove the faceplate of the existing unit by gently pulling it away from the wall. Some models snap off; others may require unscrewing a retaining clip. Check for hidden screws behind the plate or beneath a decorative cover. Set the faceplate aside along with any mounting screws.

Take a clear photograph of the existing wire connections at the backplate. Label each wire with masking tape or a marker, noting its terminal (e.g., “R,” “W,” “G,” “C”). Documentation prevents confusion when reconnecting wires to the new device, especially if colors don’t match standard conventions.

Loosen each terminal screw with a small screwdriver, then carefully pull the wire free. For push-in connectors, insert a small flathead into the release slot while gently tugging the wire. Avoid twisting wires as this can weaken the copper strands. Place wires aside, ensuring they don’t fall back into the wall cavity.

Inspect the backplate and surrounding area for signs of corrosion, dust accumulation, or insect activity. Clean the mounting surface with a dry cloth or a soft brush. If the backplate shows damage or rust, remove it by unscrewing the mounting screws; mark its position on the wall for precise realignment of the replacement.

Check the exposed wiring for frayed insulation, brittle casing, or discoloration indicating overheating. If wires appear compromised, trim the damaged section and strip 1/4 inch of insulation from the end using wire strippers. Replace any degraded wire with the same gauge (typically 18-22 AWG) before connecting to the new control system.

Final Safety Checks Before Proceeding

Ensure all wires are properly seated in their new terminals, with no exposed copper visible outside the connector. Confirm the circuit breaker remains off until the replacement device is fully installed. Restore power only after double-checking all steps, including verifying the new unit’s display powers on without issues.

Aligning Standard Cable Hues with Climate Control Interface Terminals

Connect the common wire–typically blue or black–to the C terminal on the device backplate. Brown or purple wires may also serve as alternates in older HVAC setups; verify with a multimeter to confirm correct voltage (24VAC between R and C). If no dedicated common conductor exists, repurpose an unused wire or install an isolation relay to prevent equipment damage.

• Red (R/Rc/Rh) → Power supply, always connected to a 24VAC source.
• White → Heating stage (W/W1).
• Green → Fan control (G).
• Yellow → Cooling stage (Y/Y1).
• Orange/light blue → Reversing valve (O/B), depending on heat pump configuration.

For dual-transformer systems, separate Rc (cooling) and Rh (heating) terminals must remain isolated unless bridged by a jumper included with the device–remove this jumper if both power sources share a common ground. Check for voltage drops exceeding 0.5V between any terminal and C; high resistance indicates corroded contacts or undersized wire (minimum 18 AWG recommended). Label all conductors at the source before disconnecting to avoid miswiring during reinstallation.
