Complete TRS Jack Wiring Guide for Audio and Instrument Cables

Start by securing the correct cable gauge–24 AWG for balanced signals, 22 AWG if shielding is minimal. Copper-stranded cores reduce interference; avoid solid-core wires in mobile setups. For mono configurations, connect the tip to the hot signal and the sleeve to ground. Balanced stereo requires an additional ring: tip (left channel hot), ring (right channel hot), sleeve (ground). Test continuity with a multimeter before soldering; resistance above 1 ohm indicates a faulty connection.

Oxide buildup on connectors creates signal degradation. Clean contacts with isopropyl alcohol (90%+ concentration) and a lint-free cloth. For solder joints, use rosin-core flux–never acidic flux, which corrodes over time. Heat the connection point evenly; overheating melts insulation and weakens the wire. Apply heat-shrink tubing post-soldering to prevent short circuits. Polyolefin tubing resists abrasion better than PVC.

Shielded cables prevent RF interference. Wrap the shield around the signal wires once, then terminate it to the sleeve. Leave no loose strands; they act as antennas. Ground loops occur when shields connect at both ends–lift the ground at one end if hum persists. For DIY projects, pre-tinned connectors save time; avoid cheap nickel-plated parts, which oxidize faster than gold-plated.

Stereo unbalanced setups need precise polarity. Reverse wiring causes phase cancellation, muddying the signal. Use colored wires for clarity: red (hot), black (ground), white or blue (secondary hot). For microphones, add an inline resistor (1k–10k ohm) to prevent phantom power damage to passive equipment. Always verify pinouts with the device’s manual–some manufacturers reverse tip and ring assignments.

Temporary connections benefit from screw terminals. They allow quick adjustments without solder, but oxidize faster. For permanent setups, soldered joints last decades if done correctly. Avoid twist-and-tape methods; they fail under vibration. When troubleshooting, check for cold solder joints with a magnifying glass–uneven surfaces indicate poor adhesion. Replace damaged cables immediately; intermittent faults waste hours diagnosing.

Understanding Audio Connector Circuit Layouts

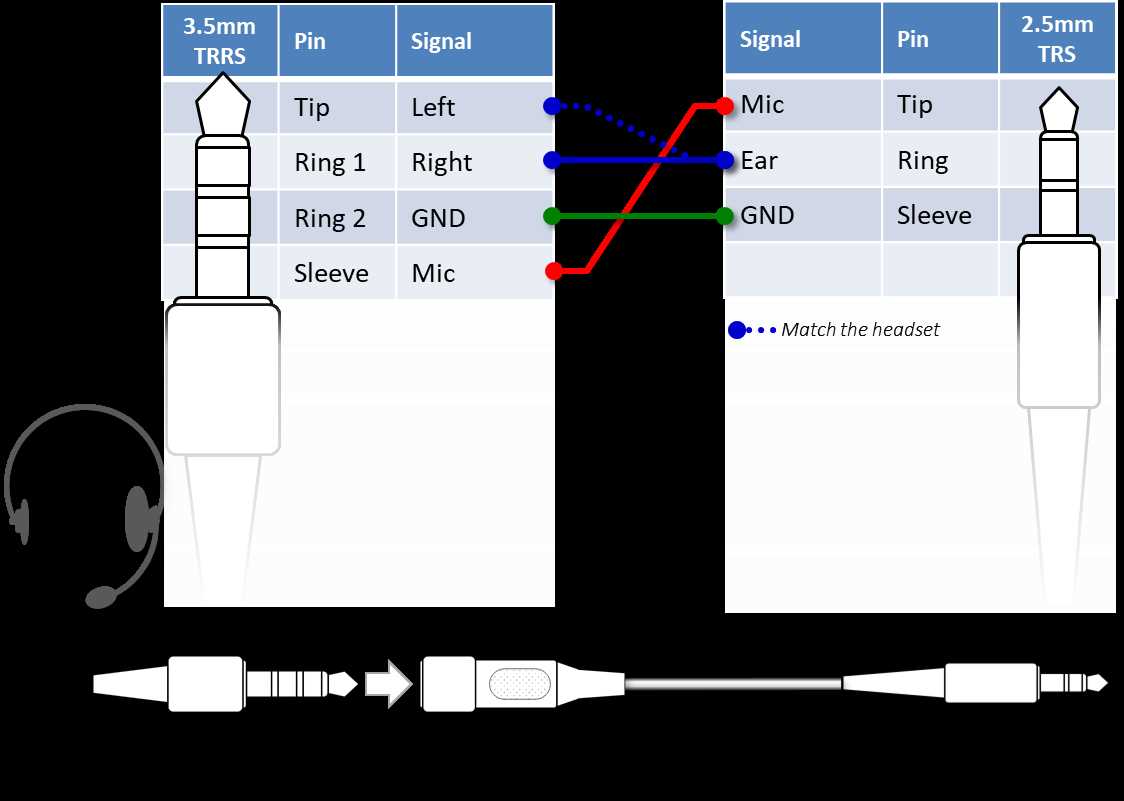

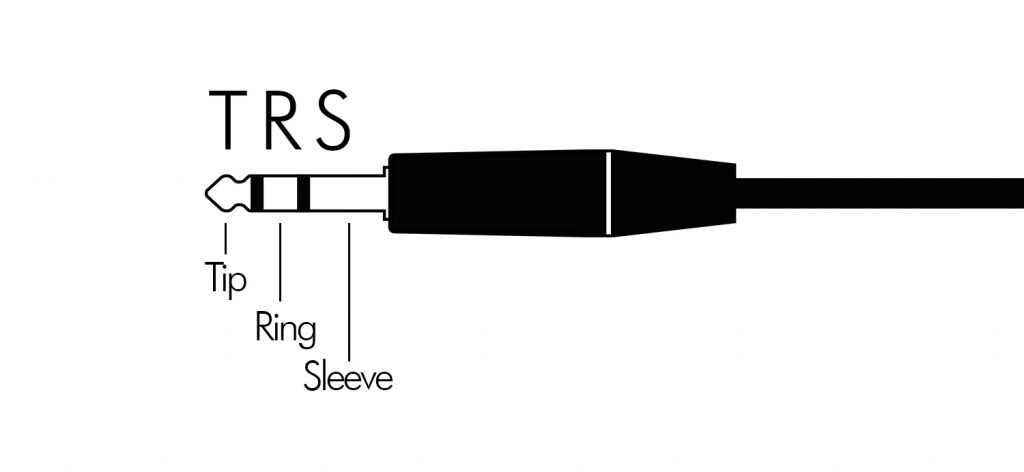

Use a multimeter to verify ground continuity before soldering any connections–this prevents signal interference and ensures clean audio transmission. The tip of a standard three-conductor plug carries the left channel signal, while the ring transmits the right channel; miswiring these can cause phase cancellation or mono output.

For balanced signals, connect the positive lead to the tip, the negative to the ring, and shield the sleeve to ground. Unbalanced setups require bridging the ring and sleeve to ground, leaving only the tip active–this setup suits consumer devices like guitars or headphones with passive electronics.

Solder joints must be smooth and free of excess flux residue; apply heat evenly to avoid cold joints that introduce noise. Use 24-gauge shielded cable for signal lines and 18-gauge for power where applicable–thicker wire reduces resistance in high-current applications like amplifier outputs.

Common Wiring Configurations

Stereo headphones use a three-pole layout: tip (left), ring (right), sleeve (ground). Microphones with a single conductor pair them with an XLR adapter, routing the hot wire to pin 2 and cold to pin 3, with the sleeve grounded at pin 1.

Effects pedals often shift between mono and stereo modes; check the device’s manual for pin assignments–some reverse the ring and sleeve for send/return loops. Instrument cables should always terminate the sleeve with a braided shield tied to the chassis ground to reject RF interference.

Patch panels demand consistent labeling: use color-coded heat shrink tubing to mark channels–red for left, white for right, black for common ground. Test each circuit with an audio signal generator at -10dBV for line-level devices and -50dBV for microphones; clipping at high impedance indicates incorrect load matching.

For power-over-connector applications, inject DC voltage through a dedicated pin while isolating it from audio lines with a capacitor–100µF electrolytic on the supply side blocks AC while allowing steady current to pass. Keep wire runs under 3 meters for line-level signals to avoid high-frequency roll-off; longer cables require active buffering.

Understanding Audio Connector Pinout for Mono and Stereo Signals

Always verify the sleeve (ground) connection first–this prevents short circuits and ensures signal integrity. For balanced mono setups, the tip (hot) carries the primary signal, while the ring (cold) handles the inverted phase, canceling noise over long cables. Standard unbalanced mono configurations use the tip for signal and ring as ground, but miswiring here causes signal loss or hum.

Pinout Variations by Signal Type

• Balanced Mono: Tip (+), Ring (-), Sleeve (ground). Critical for XLR adapters–ensure polarity matches to avoid phase cancellation.

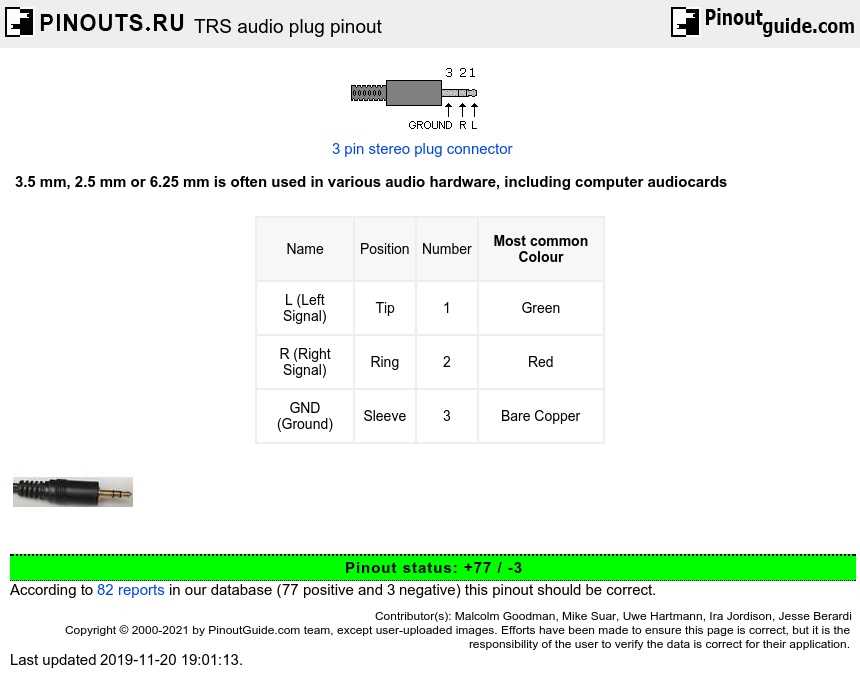

• Unbalanced Stereo: Tip (left channel), Ring (right channel), Sleeve (common ground). Swap tip and ring to reverse stereo channels.
• Unbalanced Mono: Tip (signal), Ring (floating or tied to ground), Sleeve (ground). Connecting ring to ground reduces interference in short runs.

For hardware compatibility, reference the following impedance ranges: balanced mono expects 600Ω termination, while unbalanced stereo typically handles 10kΩ inputs. Never assume pinouts–test with a multimeter before soldering. A swapped ground and signal can damage equipment or create ground loops. For improvised setups, use color-coded cables (red/white for stereo, blue/black for balanced) to avoid confusion.

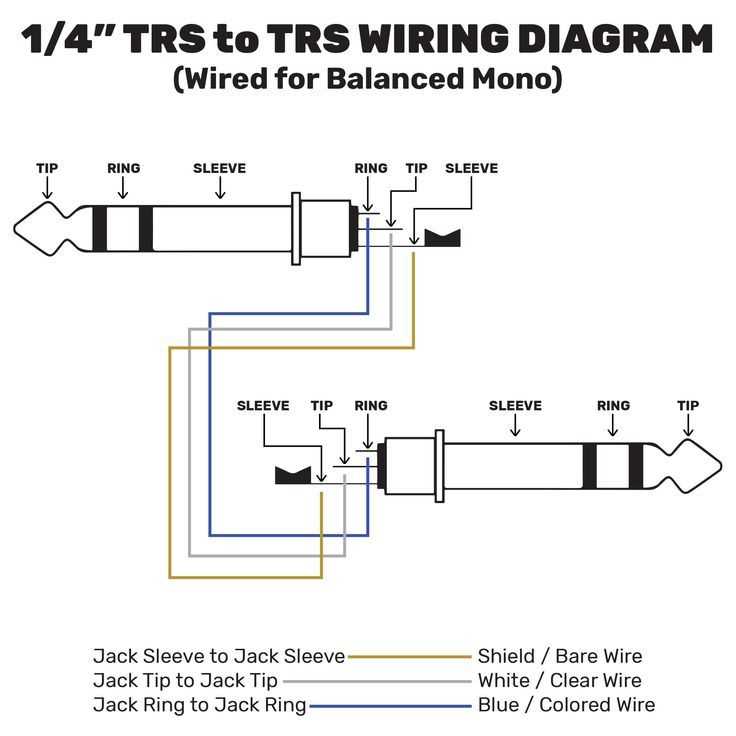

How to Assemble a Balanced Audio Connector from Scratch

Strip the outer insulation of a shielded twin-conductor cable 12–15 mm back, exposing the ground braid, positive conductor (tip), and negative conductor (ring). Twist the braid into a tight strand to prevent stray strands from crossing the audio paths. Tin each strand with a 20 W soldering iron using rosin-core solder, ensuring solder flows evenly without bridging.

Slide a 6.35 mm tip-ring-sleeve plug housing onto the cable before soldering–once connected, the housing locks in place irreversibly. Attach the braid to the sleeve terminal first, applying heat until solder wicks fully into the terminal groove. Connect the positive conductor to the tip terminal and the negative conductor to the ring terminal, maintaining consistency across all cables for uniform polarity. Check continuity with a multimeter; resistance between tip and ring should match the cable’s wire gauge (typically <0.5 Ω for 24 AWG), while insulation resistance between conductors and braid must exceed 1 MΩ.

After cooling, snap the housing closed and stress-test the connection by bending the cable 90° at the entry point twenty times–no signal interruption should occur. For commercial-grade reliability, apply a thin bead of low-viscosity epoxy inside the housing before final closure to prevent solder joints from fatiguing under tension.

Common Errors in Audio Plug Soldering and How to Prevent Them

Using excessive heat is the fastest way to ruin a connector. Most 3.5mm and ¼-inch plugs have plastic insulation that melts at temperatures above 300°C. Keep your soldering iron at 280–320°C, and apply heat for no longer than 3 seconds per joint. Pre-tin both the wire and the terminal before joining–the bond forms almost instantly, minimizing heat exposure. If the insulation starts shrinking or discoloring, stop immediately and let the components cool before continuing.

Misaligning signal and ground wires compromises shielding. The ground sleeve must always connect to the outer barrel, while the tip and ring carry the left and right signals (or hot and return in balanced setups). Use colored heat-shrink tubing or a marker to label wires before stripping–red for hot, white for cold, black for ground. Cross-check against a pinout reference if the manual is unclear, and test continuity with a multimeter before finalizing the assembly.

Skipping strain relief leads to broken connections within weeks. The solder joint alone cannot withstand pulling forces–anchor the cable to the plug’s body using the built-in clamp or a zip-tie around the entry point. Strip enough insulation to expose 5–7mm of wire, but leave 2–3mm of the outer jacket under the clamp. For braided shields, twist the strands tightly and tin the end to prevent fraying before attaching to the ground terminal.

Poor Solder Joints: Causes and Fixes

Cold solder joints–dull, grainy, or cracked–result from insufficient heat or dirty surfaces. Clean terminals with isopropyl alcohol and a fine abrasive (like emery paper) before soldering. Apply flux if the surface oxidizes quickly. A proper joint should be shiny, concave, and fully wetted around the wire. If reheating doesn’t improve it, desolder completely, clean the area, and start over. Using lead-free solder? Increase the temperature by 20–30°C to compensate for its higher melting point.

Bridging adjacent terminals with excess solder shorts the circuit. Work under magnification if the terminals are close together. Apply solder sparingly–just enough to fill the terminal hole without overflowing. For small plugs (e.g., TS connectors), use a 1mm chisel tip instead of a conical one for better precision. Test for shorts with a multimeter in continuity mode before enclosing the plug.

Improper wire stripping leaves strands exposed, risking shorts or weak connections. Strip insulation precisely–no more than 5mm–to avoid bare wires touching adjacent terminals. For shielded cables, unbraid only what’s necessary, fold back the excess neatly, and solder it to the ground terminal. Use a dedicated wire stripper with notched blades sized for the cable gauge (typically 22–24 AWG for audio). Avoid utility knives or scissors, which nick copper strands and weaken the wire.

Ignoring polarity in balanced connections reverses phase, canceling audio. The tip always carries the positive (hot) signal in a balanced setup, while the ring carries the negative (cold). Label wires during disassembly, especially when repairing vintage gear where color-coding isn’t standardized. For XLR adapters, verify pin 2 (hot) aligns with the tip–mistakes here are common and hard to diagnose later. Double-check with a phase meter if the audio sounds thin or hollow.
