Mastering the Basics A Guide to Reading and Teaching Schematic Diagrams

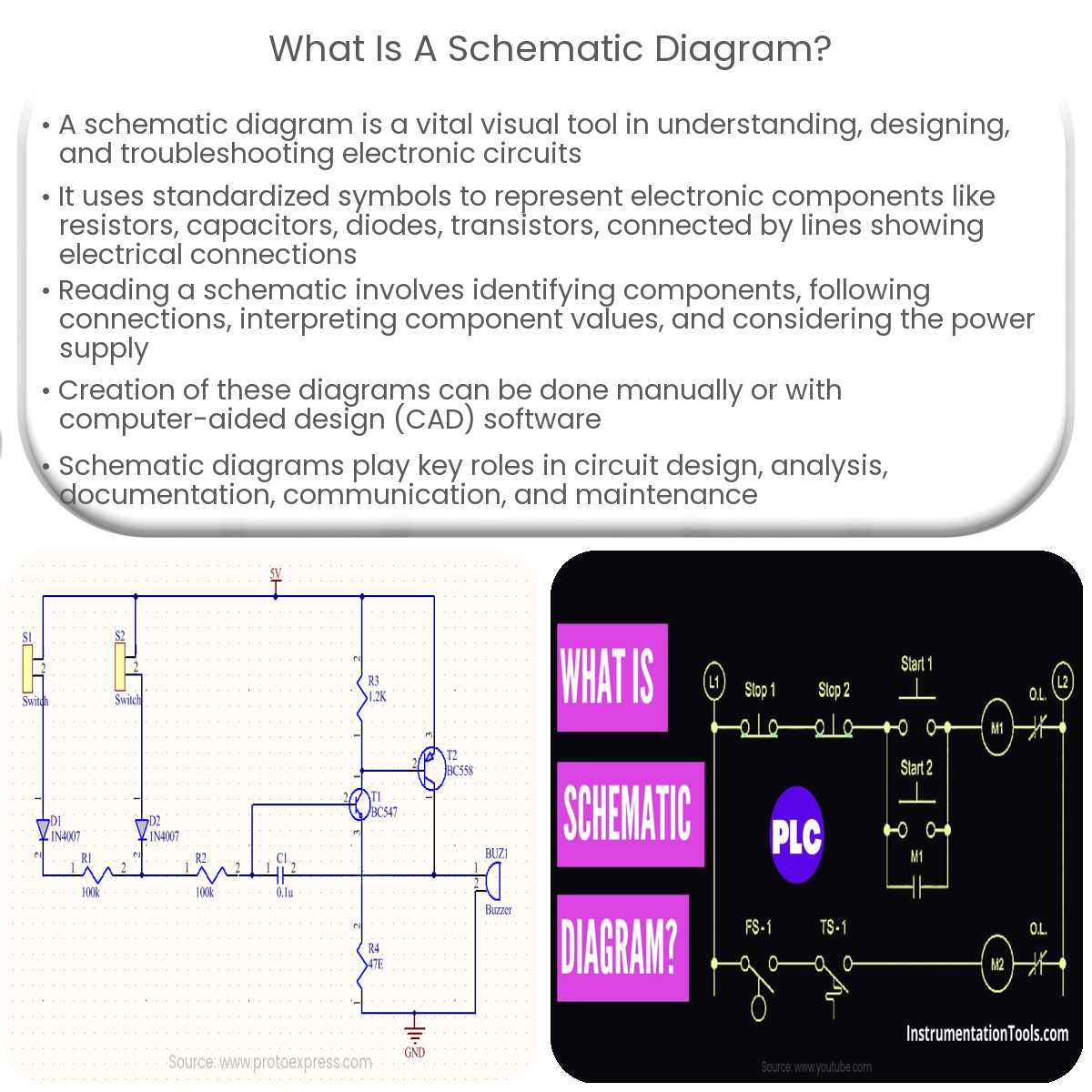

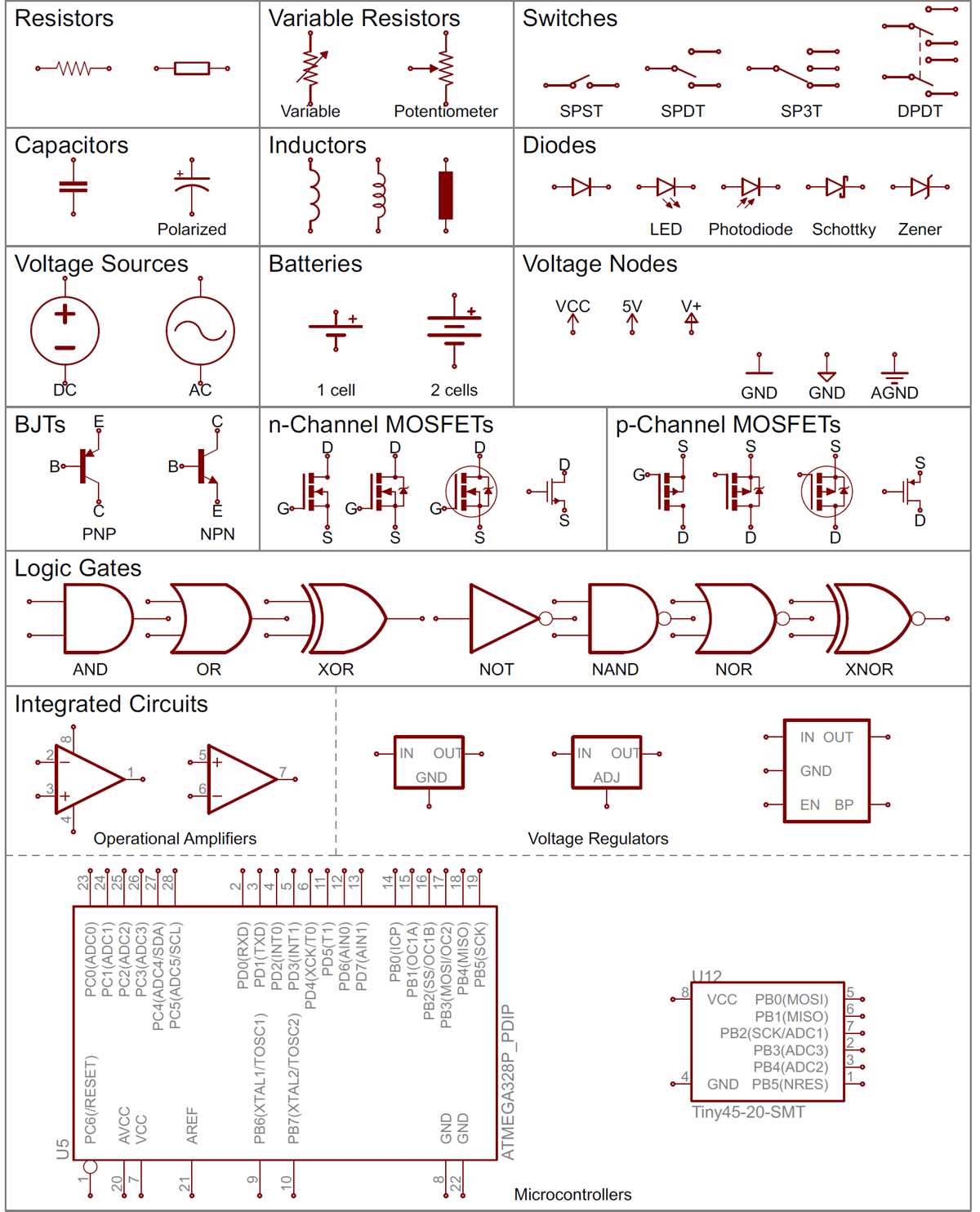

Start by identifying the core components: resistors, capacitors, transistors, and connections. Assign each a universally recognized symbol from standardized libraries like IEEE or IEC. Place all elements on a grid with consistent spacing–2.5mm between minor lines, 10mm for major divisions–ensuring clarity at first glance. Label every part with concise, descriptive text near the symbol, avoiding overlaps with other lines or graphics.

Group related elements into functional blocks–power supply, signal processing, output stage. Draw a dashed or lightly shaded rectangle around each block to visually separate sections without clutter. Connect components with straight lines, using vertical and horizontal routes exclusively; avoid diagonal paths unless absolutely necessary for spatial efficiency. Keep traces at least 1mm apart to prevent misinterpretation.

Use arrows to indicate signal flow direction, especially in complex multistage designs. Mark power lines with thick traces–twice the width of signal lines–to distinguish them instantly. Ground symbols should point downward, power symbols upward, maintaining consistency across the entire visual. Include a key or legend for non-standard symbols or custom annotations.

Test readability by viewing the graphic at 50% scale; all symbols and text must remain legible. Convert color-coded elements to grayscale–critical for monochrome reproduction–and verify contrast ratios exceed 70% between foreground and background. Export the final version in vector format (SVG, EPS) to preserve scalability for documentation, presentations, or manual fabrication.

Breaking Down Circuit Illustrations for Clear Communication

Start by labeling every symbol with its functional role–resistors as current limiters, capacitors as energy stores, transistors as switches or amplifiers. Group related components into functional blocks (e.g., power supply, signal processing) and draw thin dashed lines around each, adding a one-line descriptor at the top. Use consistent line weights: thick for power rails (red for positive, blue for ground), medium for signal paths, and thin for auxiliary connections like control wires. Color-code where helpful–green for input, purple for output– but ensure contrast remains readable on grayscale prints. Include reference designators (R1, C2) next to each part, matching them to a separate bill of materials.

Simplifying Complexity with Layered Detail

For dense visuals, split into multiple sheets: Sheet 1 for the main overview with only connector points labeled, Sheet 2 detailing each sub-circuit with pinouts and waveforms. Replace abstract ground symbols with explicit return paths to avoid hidden dependencies. Add brief in-line annotations (e.g., “Vcc regulated via LDO”) placed near components, not crowded at the edges. For teaching, overlay a translucent callout showing expected voltage levels or signal shapes at key nodes. When presenting, walk through the flow step-by-step: trace power, then signal, then control logic.

Pinpointing Core Elements in Circuit Blueprints

Begin by isolating power sources–batteries, voltage regulators, or AC inputs–marked with clear labels like VCC, GND, or +5V. These define reference points for voltage levels; mismatches here propagate errors across the entire layout. Check for standard values (e.g., 3.3V, 12V) and verify polarity symbols (+/- or bar notation for ground).

Trace signal paths next. Look for thin lines connecting components, often annotated with net names (CLK, DATA, RESET) or pin numbers. High-frequency paths require wider spacing or shielding; identify these by proximity to oscillators or labeled impedances. Disregard generic labels like Net1–prioritize functional identifiers.

Identify active components first: microcontrollers (μC), transistors (BJT/FET), and ICs. Note package types (e.g., DIP, QFN) and pin configurations–many failures stem from swapped pins. Annotate enable pins (e.g., OE, CE) and decoupling capacitors (typically 0.1μF) placed near IC power pins to filter noise. Missing these risks transient instability.

Passive elements demand context: resistors, capacitors, and inductors. Resistors (R1, 1kΩ) limit current; caps (C5, 100nF) stabilize voltage or block DC. Inductors (L1, 10μH) manage noise in switch-mode supplies. Cross-reference values with datasheets–schematics often omit tolerances (±5%, ±10%).

Critical Annotations to Watch For

• Footprints: SOT-23, TO-220–confirm physical compatibility with PCB libraries.
• Test points: Circular pads labeled TP1, VSENSE–these simplify debugging.
• Thermal pads: Exposed pads under ICs (e.g., MQFP) require vias for heat dissipation.
• Pull-ups/downs: Resistors to VCC or GND (e.g., 4.7kΩ for I²C lines).

Conclude with connector mappings. Arrows, dots, or labeled pins (TX, RX, USB_D+) indicate I/O directions or mating rules. Verify pinouts–USB Type-C, for example, uses CC1/CC2 for orientation detection. Ignoring this risks reversed connections or short circuits.

Step-by-Step Process to Simplify Complex Technical Blueprints

Begin by isolating core functional blocks–group interconnected components serving a single purpose (e.g., power regulation, signal amplification). Use color-coding to visually separate these clusters: assign warm tones (reds, oranges) for high-voltage areas, cool tones (blues, greens) for logic circuits, and neutrals (grays) for grounding elements. Tools like KiCad or Altium allow layer-specific overrides; disable non-essential layers (silk screen, mechanical) first to reduce visual noise. Validate each block’s boundaries by tracing signal paths from input to output–any crossover indicates poor segmentation.

Refine with Hierarchical Layering

Deconstruct multi-stage systems into parent-child relationships. A microcontroller module, for instance, might divide into clock circuitry, memory interfaces, and I/O pins. Create separate sub-documents for each child component, linked via hypertext in vector-based editors (Inkscape, Adobe Illustrator) or schematic capture software. Use varying line weights to denote hierarchy: 0.5pt for primary connections, 0.25pt for secondary feedback loops. Annotate each sub-component with its role (e.g., “PLL – 16MHz clock source”) and hide redundant labels in the master view. For analog designs, prioritize spatial grouping–keep decoupling capacitors within 1mm of IC power pins to preserve circuit intent.

Apply Boolean logic rules to merge redundant nodes. Replace parallel resistor arrays with a single equivalent value (R = (R1 * R2)/(R1 + R2)), and consolidate identical transistors into a single symbol with a multiplicity attribute (e.g., “×4”). Use net aliases to avoid sprawling lines–label a “VCC_3V3” net once, then reference it at all connection points. Test the simplified version by reconstructing half the original connections; if functionality holds, proceed to strip 30-50% remaining elements. Final step: export as a vector graphic (SVG/PDF) and verify readability at 200% zoom–overlapping symbols or illegible text signals incomplete simplification.

Choosing the Right Tools for Drawing and Labeling Circuit Representations

Begin with KiCad for open-source reliability–it handles multi-layer boards up to 32 copper layers, supports custom footprints, and exports Gerber files without watermarks. Paid alternatives like Altium Designer ($3,995/year) offer native 3D visualization and rule-checking for differential pairs, but restrict collaboration unless team licenses are purchased. For quick, disposable layouts, EasyEDA (now LCEDA) runs in-browser with no installation, though its free tier limits project visibility to public repositories.

Prioritize file compatibility and output precision

• DXF/SVG export: Ensure the tool preserves line weights and layer assignments when sharing with mechanical teams–DipTrace and OrCAD maintain vector accuracy better than Fritzing, which rasterizes labels.
• Netlist generation: Use Eagle for SPICE-compatible netlists (supports subcircuits), or PADS for enterprise-level impedance calculations.
• Avoid: Generic vector editors (Inkscape, CorelDRAW) for complex hierarchies–they lack automated DRC checks and component libraries.

For hand-drawn drafts, combine Rotring Rapidograph 0.25mm pens with Bishop Graphics tape (0.5mm/1mm) on Clearprint 1000H vellum–this pairing resists ink bleed and scans at 600 DPI without moiré. Digital tablets like Wacom Intuos Pro (pressure sensitivity ≥8,192 levels) outperform Apple Pencil on PDF markup due to native .sch format support, though Microsoft Surface Slim Pen 2 suffices for single-line annotations. Store templates in IEC 60617 or ANSI Y32 standard libraries to avoid redrawing ground symbols or resistor notations.

Common Mistakes to Avoid When Presenting Circuit Visuals

Avoid overloading a single chart with unrelated sub-systems. Group components by function: power regulation (

Signals Left Unconnected or Misrouted

Error Type	Impact	Corrective Action
Floating inputs (CMOS gates)	Random toggling, 1–2 μA extra current draw	Pull-up/pull-down 10 kΩ resistors
Unterminated transmission lines (>10 MHz)	Overshoot ±0.5 V, EMI spikes	Series 50 Ω resistors at driver end
Ground loops across sheets	Offset errors up to 50 mV	Single-point GND tree, star topology

Align connectors left-to-right following signal flow; rotating them for neatness creates traces that zigzag for inches instead of millimeters. Disregarding decoupling caps–place 0.1 μF X7R ceramic ≤2 mm from each IC pin–will manifest as sporadic firmware resets or DDR initialization failures.
