Complete Instant Pot Circuit Diagram Guide for Repairs and Modifications
Begin troubleshooting by locating the pressure regulator valve sensor–typically connected via a thin wire to the main board. This component monitors internal pressure levels and signals the control unit to maintain safe operating conditions. If the appliance fails to start or shuts off unexpectedly, inspect this sensor for corrosion or loose connections, as even minor resistance can disrupt the entire heating cycle.
The power input module (often labeled “AC IN” or “VCC”) converts household voltage into regulated DC power for internal electronics. Check the fuse on this module first–replace it only with the exact specified amperage (commonly 10A-15A). Bypassing or using an incorrect fuse risks overheating the silicone-coated wires and damaging the printed circuit paths.
Trace the thermal cutoff switch, usually mounted near the bottom heating element. This safety mechanism halts current if temperatures exceed 200°C. A faulty switch may cause intermittent operation; test continuity with a multimeter while the device is cold–any resistance indicates failure. Ensure the switch’s bimetallic strip hasn’t warped from prolonged exposure to moisture.
For precise component identification, refer to the schematic legend found under the base plate. Each resistor is marked with a value in ohms (e.g., 4.7kΩ) and a tolerance band–replace only with matching specifications to avoid voltage mismatches. Capacitors near the microcontroller store charge for timing functions; bulging or leaking electrolytes require immediate replacement to prevent board corrosion.
When soldering, use lead-free solder with a 60/40 tin-to-lead ratio for clean joints. Reheat existing connections at 350°C for no longer than 3 seconds to avoid lifting traces. Label disconnected wires with tape before disassembly–many models use identical connectors for different circuits, and misplacement can trigger short circuits on reassembly.
Always discharge capacitors before handling the board–use a 10kΩ resistor across terminals for 30 seconds. High-voltage capacitors (rated 250V or above) retain charge even when unplugged and can deliver fatal shocks. Store small components in antistatic bags to prevent ESD damage to CMOS chips.
For firmware-related issues, check the EEPROM chip (usually a 8-pin SOIC). Corrupted data here causes preset failures; reflashing requires the exact model-specific binary file and a USB-to-I2C programmer. Avoid generic firmware–mismatched versions often disable safety overrides, making overheating more likely.

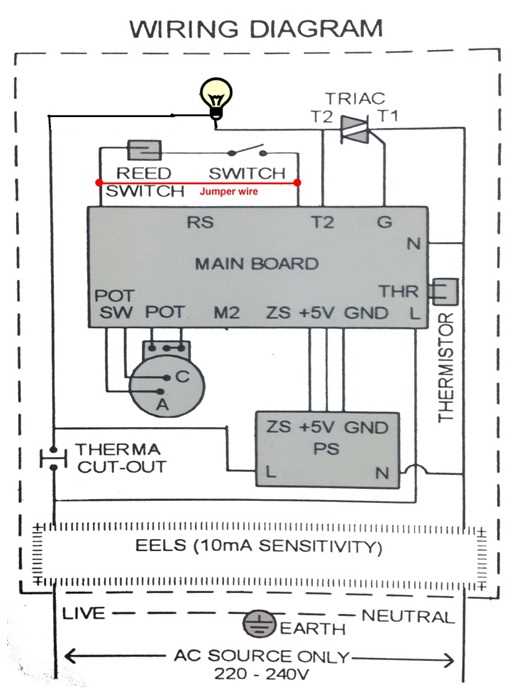

Understanding the Multi-Cooker Electrical Schematic

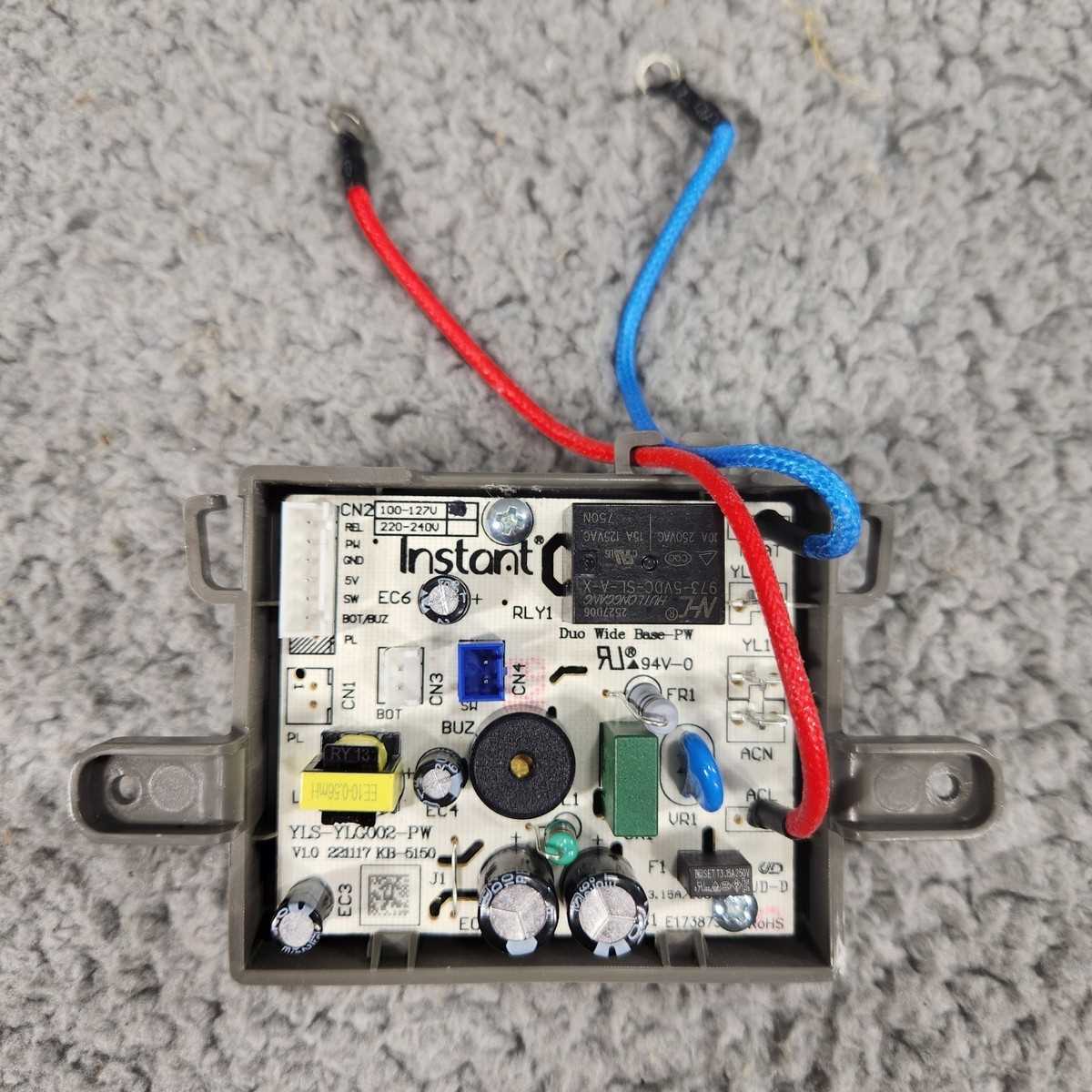

Begin by locating the main control board–typically a green or blue PCB beneath the front panel. Identify key components: power input (120V/220V AC), transformer (steps down voltage to 5V/12V DC), microcontroller (STM32 or PIC series), and relay switches (control heating elements). Use a multimeter to verify voltage points: probe the transformer output (should read ~5V) and relay coils (should switch between 0V and 12V during operation). Label each connection with masking tape to avoid confusion during reassembly.
Trace the thermal fuse (rated ~250°C) and pressure sensor (analog/digital output) using the following reference values:
| Component | Expected Resistance/Reading | Failure Indication |
|---|---|---|
| Thermal fuse | 0Ω (closed circuit) | >1Ω or open circuit |
| Pressure sensor | 1.5V–3.3V (varies with pressure) | 0V or >4.5V |
| Heating element | 20Ω–50Ω | Short (100Ω) |
Examine solder joints on the relay switches–frequent cycling can cause cracks. Apply fresh solder to suspect joints; flux core rosin is advised for high-current traces. For safety, disconnect the appliance from power before probing, and use an isolation transformer if testing live circuits. Replace capacitors (marked 47µF–220µF, 25V) if bulging or leaking, as degraded components disrupt timing cycles.
Log error codes from the microcontroller’s serial output (if accessible) via UART pins (baud rate: 9600). Common codes: *E1* (overheat), *E2* (sensor fault), *E3* (relay stuck). Flash updated firmware only after verifying checksums–older models (pre-2018) may brick if incompatible firmware is loaded. Store schematics as PDF backups; OEM manuals often omit revisions post-2020, so cross-reference with third-party teardowns (e.g., EEVblog #1287, YouTube timestamps 8:42–11:15 for PCB layout details).
How to Identify Critical Parts on a Multi-Cooker Control Board
Start by unplugging the appliance and removing the bottom cover–typically secured with screws or plastic clips. A flashlight helps illuminate dense areas, especially beneath wiring harnesses. The power inlet module, recognizable by its dual thick wires (L/N) and grounding prong, sits near the rear edge. Verify its terminals aren’t corroded or loose; oxidation here disrupts voltage delivery.
Locate the main microcontroller–often a square or rectangular chip (e.g., STM32 or ATmega) with 40+ pins–positioned centrally. Check for scorch marks around it, indicating overheating. Adjacent capacitors (cylindrical, aluminum or ceramic) filter voltage; bulging tops signal failure. Replace any capacitor exceeding ±20% of its rated capacitance (use a multimeter in farad mode).
Trace the heating element relay–a small black box with 4–8 terminals–mounted near the side. Listen for a faint click when powering the unit; absence suggests a dead relay coil. Test continuity across its contacts (NO/NC) while toggling cook settings. The triac (TO-220 package) adjacent controls current to the heating coil; probe its MT1/MT2 terminals for resistance (~50–500 Ω).
Sensor and Feedback Components
- Thermistor: A glass-encased probe (NTC, ~10kΩ at 25°C) near the inner pot’s base. Check resistance across its leads at room temp–drastic deviation means replacement.
- Pressure switch: A circular diaphragm with 3 wires (near the lid lock). Test for short circuits (0Ω) when sealing; infinite resistance indicates a faulty switch.
- User interface ribbon cable: Flat, fragile connector linking buttons/display. Reseat or clean with isopropyl alcohol if inputs register intermittently.
Isolate the voltage regulator (7805 or AMS1117) by its 3-legged TO-220 form factor. Measure input (12–19V DC) and output (5V DC) against ground; erratic readings point to instability. The backup battery (coin cell or supercapacitor) retains clock settings–locate near the MCU reset pin (marked ‘RST’), often unpopulated in newer models.
Examine the buzzer (piezoelectric disc, 8–15mm diameter). Apply 3V DC directly; silence confirms a dead component. The lid lock solenoid (rectangular block, coiled wire) locks during pressure cycles–probe its coil resistance (~100–300 Ω) for opens. Discoloration on the PCB around these parts suggests excess heat; reflow solder joints if cracked.
Safety Checks Before Reassembly
- Inspect all fuse holders (glass or blade-type). Replace fuses exceeding 125% of their rating (e.g., 10A → max 12.5A).
- Verify insulation on wires near high-voltage areas (e.g., transformer secondary windings). Use heat-shrink tubing if jacket damage is visible.
- Recheck polarity on polarized components (e.g., diodes, electrolytic caps). Incorrect orientation risks catastrophic failure.
Reattach the cover only after confirming zero continuity between chassis and live components (multimeter in continuity mode). Test with a GFCI outlet during initial power-up to catch ground faults. Store schematics for specific models (e.g., DUO/Ultra) by searching fw update files–often include PCB overlays.
Step-by-Step Guide to Testing Multi-Cooker Heating Coil Resistance
Unplug the appliance and ensure the base is completely cool before proceeding. Remove the bottom cover by locating the screws–typically four to six–secured with Phillips-head fasteners. Keep track of each screw’s position, as lengths may vary. A magnetic tray or labeled container prevents misplacement.
Identify the heating element terminals; they’re usually marked or connected via thick insulated wires. Disconnect the wires using needle-nose pliers by gently squeezing the terminal clips–avoid tugging, as this can damage the connectors. If corrosion is present, clean the contacts with fine-grit sandpaper or a dedicated electrical contact cleaner.
Set your multimeter to the 200-ohm resistance range. Touch the meter probes to each other and note the reading–this confirms the device is functioning. Place one probe on each terminal of the heating coil. A healthy element typically measures between 20 and 50 ohms. Readings outside this range (zero, infinite, or excessively high) indicate a fault, requiring replacement.
Test for grounding by switching the multimeter to continuity mode. Touch one probe to a terminal and the other to the metal base or a known ground point. A beep or reading near zero signals a dangerous short. No reading means the element is properly insulated. Repeat this check on the second terminal.
Reassemble the unit only after confirming all tests pass. Align the cover carefully, ensuring no wires are pinched. Tighten screws in a diagonal pattern to distribute pressure evenly–over-tightening can crack the plastic housing. Reconnect power and perform a test cycle without food to verify operation.
If resistance readings are abnormal, source a replacement element matching the model’s specifications. Disconnect the wiring harness entirely before removing the faulty coil. Most assemblies are secured with screws or spring clips; use a non-conductive tool to pry them loose. Install the new part by reversing the removal steps, ensuring all connections are snug and insulated.
