How to Wire an Automatic Star Delta Starter Step-by-Step Guide

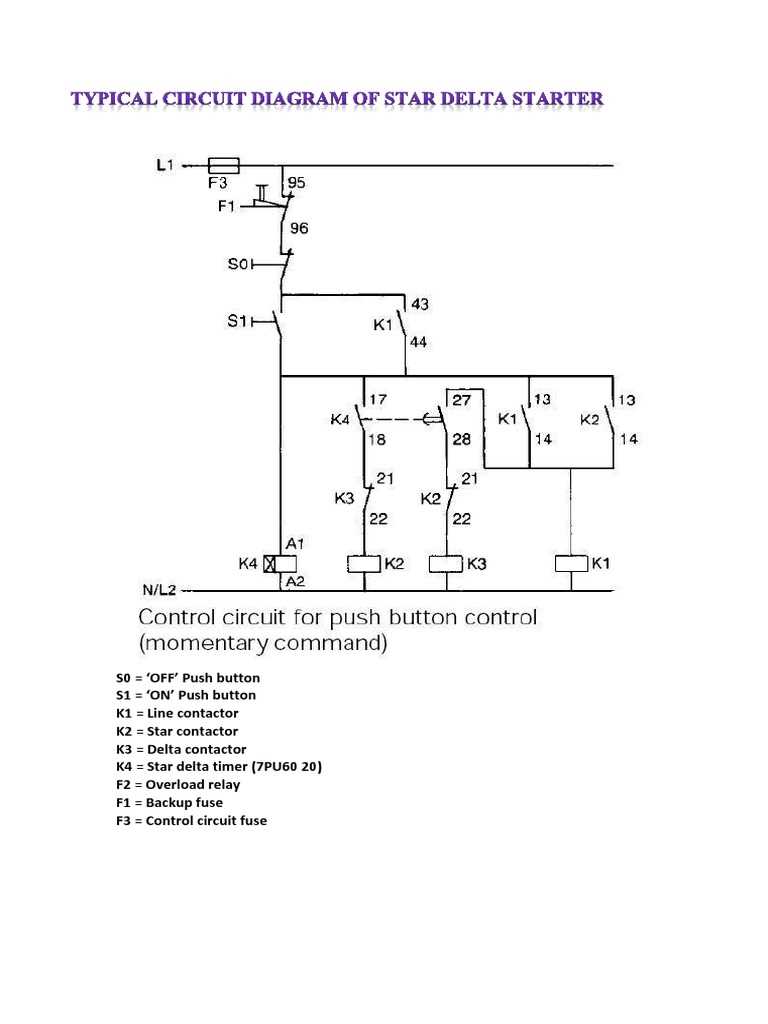

star delta automatic starter wiring diagram

For reliable motor activation, implement a delay relay set between 3–5 seconds during the initial phase to prevent premature torque overload. Use a 24V AC coil contactor for control circuits to reduce interference in industrial environments–110V or 230V coils often introduce unnecessary noise. Position the thermal overload relay upstream of the transition switch to ensure consistent protection before load shifting occurs.

Wire the main contacts of the sequence switch in a closed triangle configuration to handle 58% of full line current during transient state. Choose relay contacts rated for at least 10A–cheaper 6A units fail within 18 months under typical duty cycles. Include snap-action auxiliary contacts on the transition device to eliminate arcing during phase crossover.

Power the timer module directly from the control transformer secondary to maintain voltage stability–avoid tapping directly across motor phases as fluctuations during shift phases cause false resets. Always ground the motor frame at two points 180° apart using copper straps (minimum 16mm² cross-section) to prevent stray circulating currents during asynchronous transition moments.

Test the circuit under 75% nominal voltage before full startup–identical results across three consecutive cycles confirm proper contact synchronization. Replace capacitors in soft-start auxiliary windings every 3 years regardless of visible swelling–dielectric degradation precedes visual failure symptoms.

How to Wire a Three-Phase Switching Control Circuit Efficiently

Connect the phase lines directly to the main contactor’s terminals L1, L2, and L3 using 6 mm² copper cables for motors up to 15 kW. Ensure the protective relay is wired in series before the first contactor to prevent false trips during transient currents. Use a separate neutral wire if the control circuit requires 230V, but omit it for 400V setups to reduce complexity.

Place the timer module between the initial and transition relays with a 5–7 second delay to allow smooth winding phase changes. The timer’s coil should be energized by the first relay’s auxiliary contact, not the main circuit, to avoid premature switching due to voltage drops. Verify the timer’s settings with a multimeter before finalizing connections.

  • Initial relay coil: Connect to R-phase via a start pushbutton.
  • Transition relay coil: Wire to the timer’s output terminal.
  • Final relay coil: Link to the initial relay’s auxiliary NO contact.

Use 2.5 mm² cables for control circuits and label each wire at both ends with heat-shrink tubing. Avoid daisy-chaining auxiliary contacts–run separate wires from each relay to the control panel to minimize voltage loss. Test each relay’s operation individually with a 24V test supply before integrating them into the main circuit.

Ground all metal components–enclosure, relays, and motor frame–using a 10 mm² green/yellow cable. The grounding busbar must be bonded to the main earth terminal with ≤0.5 Ω resistance. Failure to adhere to this increases fault risks during transient states, especially in high-inertia loads.

  1. Measure line voltages at the motor terminals before energizing.
  2. Start the motor in initial configuration via pushbutton.
  3. Monitor current draw during transition using a clamp meter.
  4. Ensure final configuration engages within 8 seconds.
  5. Stop the motor and verify all relays reset to open state.

For motors above 22 kW, add a separate overload relay in the transition path to handle peak currents during switching. Position the relay between the transition and final contactors, calibrated to 110% of the motor’s rated FLC. Use silver-plated contacts on all relays to prevent pitting from arcing during frequent starts.

Seal all terminal blocks with IP65-rated gland fittings if the installation is outdoors or in humid environments. Route cables through conduits with a minimum 25 mm diameter to prevent chafing. Document the setup with a hand-drawn schematic noting cable gauges, relay models, and timer settings–store this inside the control panel for future troubleshooting.

Key Parts for Three-Phase Motor Transition Switch Assembly

Select a contactor trio with matching current ratings–overdimensioning by 20-30% prevents coil burn and contact welding. A 15 kW motor demands 32 A units, while 22 kW requires 45 A variants. Check manufacturer curves for derating at 40°C ambient.

Use thermal overload relays calibrated to the motor’s full-load amperage. Siemens 3UA series or Schneider TeSys LR2D provide adjustable trip classes (CLASS 10 for standard loads, CLASS 20 for heavy inertia). Mount relays directly under the start sequence contactor to shorten lead length–excess copper increases voltage drop.

Install time-delay relays with a 5-10 second range; Omron H3Y or ABB CT-MFD cover most industrial cycles. Factory-set delays risk premature transition or prolonged current surges–field-adjustable dials avoid calibration errors. Specify 24 VDC or 230 VAC coils to match existing control circuits.

  • Control transformer (40 VA, 400:24 V) to isolate auxiliary circuits
  • Main circuit breaker (magnetic trip, 1.1× motor FLA)
  • Auxiliary contact blocks (2 NO/2 NC per contactor)
  • Copper busbars or 4 mm² flexible cable for inter-contactor links
  • Pushbuttons (momentary, IP65, 22 mm diameter)

Cable lugs must be crimped with a hydraulic tool–compression die sets (Ermeto or Klauke) ensure full conductor cross-section without voids. Tin-plated copper lugs resist corrosion better than bare brass in high-humidity environments. Torque values matter: 10 mm² lugs require 12 Nm, 25 mm² needs 25 Nm.

Label every terminal with heat-shrink markers (Brady BMP or Dymo Rhino) indicating sequence position. Color-code conductors: brown/blue for phase inputs, yellow-green for ground, black for transition path. Include spare 1 mm² wire for auxiliary circuits–reserve 10% of total length for rework.

Cabinet and Safety Hardware

  1. NEMA 4 or IP66 enclosure, minimum 600×600 mm for 30 kW setups
  2. DIN rail, 35 mm wide, snap-mounted top and bottom
  3. Cable glands (PG16 for 6 mm², PG29 for 35 mm²)
  4. Emergency stop (Category 3, latching, red/yellow)
  5. Surge arrestor (Class II, 275 V) for sensitive relay coils

Verify component compatibility before procurement–mixing brands often creates mismatched mounting holes or incompatible auxiliary voltages. Keep spares: one contactor coil, two thermal relay heaters, five time-delay contacts. Document exact part numbers on a waterproof placard inside the cabinet door.

Direct Connections for Primary Power Path

Connect the incoming three-phase supply terminals (L1, L2, L3) directly to the upper contacts of the main contactor using 6 mm² copper cables rated for 110% of the motor’s full-load current. Ensure each cable is secured with appropriate lugs and tightened to 12–15 Nm torque to prevent overheating at connection points.

Route the output from the main contactor’s lower contacts to the overload relay’s input side. Use identical cable specifications as the input, maintaining consistent cross-sectional area to avoid voltage drops. Label each conductor at both ends to simplify troubleshooting.

Interlocking Path Setup

Attach the auxiliary contacts of the main switchgear to the control circuit’s starting sequence. Use 1.5 mm² flexible cables for these connections, ensuring they are insulated and separated from high-current paths to prevent interference. Verify the normally open (NO) and normally closed (NC) states match the schematic.

Link the motor’s primary windings to the transition switch’s corresponding terminals. For a 400V system, distribute phases evenly: U1 to terminal 1, V1 to terminal 2, W1 to terminal 3. Apply crimp connectors on stranded wires to prevent fraying and ensure gas-tight joints.

Test continuity between the main contactor and motor terminals before energizing. Use a multimeter set to ohms mode to confirm zero resistance across each phase path. If readings exceed 0.5 ohms, recheck connections for loose terminals or oxidized surfaces.

Final Validation Checks

Verify all fasteners on busbars and terminal blocks are torqued to manufacturer specifications. For M8 bolts, use 25 Nm; for M10, apply 40 Nm. Inadequate torque leads to hotspots and potential equipment failure.

Insulate exposed conductive parts with heat-shrink tubing or self-fusing tape, especially at junctions where cables split. Cover all connections with transparent sleeves to allow visual inspection during maintenance without dismantling covers.

Control Circuit Assembly for Time Relays and Electromagnetic Switches

Connect the timing device’s coil terminals (A1, A2) directly to the auxiliary NO contact of the main switching unit (KM1) to ensure synchronized activation. Use 1mm² flexible copper wire for coil circuits to handle inrush currents without voltage drops. For industrial applications above 10kW, add a 24V DC power supply to the relay coils to eliminate AC hum and contact chatter.

Configure the time delay by wiring the relay’s NC contact in parallel with the start pushbutton, creating a self-holding loop. Set the delay interval via potentiometer R1–typically 2–5 seconds for 4-pole motors up to 30HP–calculated as T=RC where R is the adjustable resistor (0–100kΩ) and C is the internal capacitor (10–100µF). For precision, use a digital solid-state timer with ±0.1s accuracy instead of pneumatic types.

Insert a thermal overload protector (KH) in series with the main coil circuit, selecting a class 10 trip unit for motors with frequent starts. Size the heater elements based on motor FLA: 0.9×FLA for ambient temperatures ≤40°C, increasing to 1.1×FLA for environments up to 50°C. Bypass the time relay during manual override by placing a SPST switch across its NC terminals.

Route the control circuit through a 4-pole isolation device rated 2×motor FLA to ensure safe maintenance. For dual-voltage motors (230/460V), wire the timer contacts to accommodate both configurations–use a DPDT switch to toggle between voltage-specific coil excitations. Connect the common timer output to KM3’s coil via a 2A fuse to protect against coil shorts.

Common Timer Wiring Configurations

Relay Type Wire Gauge Timer Setting Range Coil Voltage Typical Load
Analog Pneumatic 1.5mm² 0.2–180s 110/220V AC ≤15HP
Digital Solid-State 1.0mm² 0.1–999s 24V DC ≤50HP
Hybrid RC 2.5mm² 0.5–60s 480V AC ≥60HP

Secure all interconnecting conductors in non-metallic conduit for circuits exceeding 50V AC, complying with NEC Article 352. Use yellow coded wires for timer outputs and blue for feedback signals to standardize troubleshooting. For humidity levels above 85% RH, apply a conformal coating to relay contacts to prevent oxidation and false tripping.

Integrate a phase failure monitor (KF) between the relay and main switching device, setting it to trip if voltage asymmetry exceeds 10%. Wire the monitor’s output to interrupt the timer circuit via a NC contact to prevent incomplete transitions. For three-wire remote start/stop stations, connect the stop button in series with the monitor’s NC terminals to ensure fail-safe operation.

Install snubber circuits (0.1µF+100Ω) across relay contacts handling inductive loads to suppress voltage spikes exceeding 1kV. For DC-operated timers, include a flyback diode (1N4007) reverse-biased across the coil to absorb EMF surges. Test relay pull-in times using a dual-channel oscilloscope, adjusting spring tension if contact bounce exceeds 10ms.

Diagnostic Checklist

Verify timing accuracy with a stopwatch, ensuring repeatability within ±5%. Measure coil resistance–typically 150–300Ω for 220V AC relays–to detect shorted turns. Check contact gap clearance (0.3–0.5mm) with a feeler gauge to confirm proper arc suppression. For high-inertia loads, increase the delay interval by 30% to account for extended acceleration periods.
