Complete Guide to Wiring a Motorhome Battery System with Diagrams

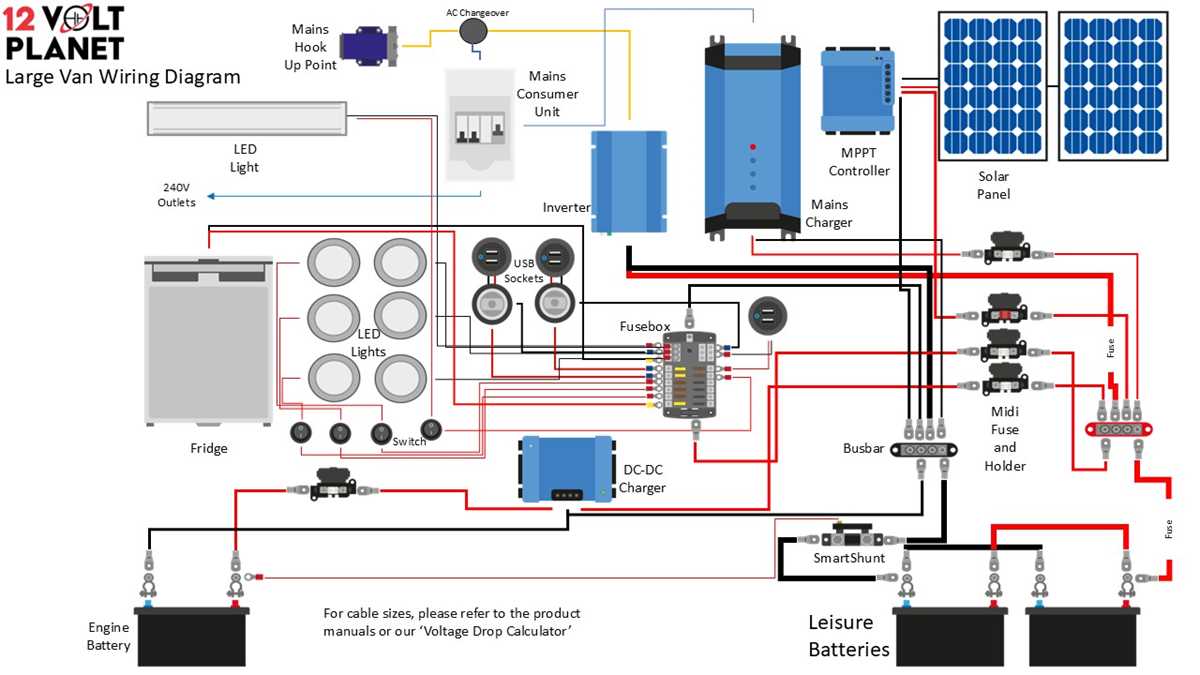

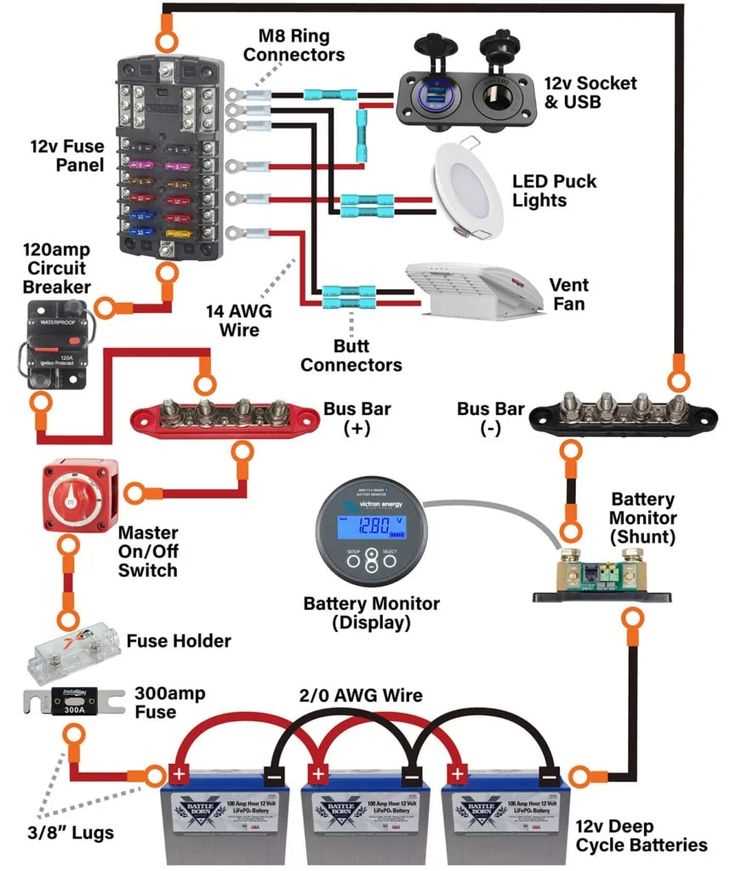

Start with a dual-bus configuration to separate high-drain devices from sensitive electronics. Use 4 AWG cables for the main power feed from the storage unit to the distribution panel–any thinner gauge risks voltage drop under load. Install a fuse or circuit breaker within 7 inches of the positive terminal to meet ABYC and ISO standards. For lithium iron phosphate units, incorporate a battery management system (BMS) with active balancing to prevent overcharging during multistage charging cycles.
Ground all negative conductors to a single central bus bar, bonded directly to the chassis using 2 AWG copper wire. Avoid daisy-chaining grounds; this creates resistance loops that corrode connections over time. For lead-acid setups, ventilate the compartment with a forced-air system rated for 1 CFM per 100 amp-hours of capacity to disperse hydrogen gas buildup. Solar panels should feed into a MPPT charge controller with a 120V max input and temperature compensation to optimize energy harvest in low-light conditions.
Use tinned marine-grade wire for all outdoor connections–untreated copper oxidizes rapidly in humid environments. Route cables through conduit or split loom tubing to protect against abrasion and UV degradation. Label every connection with heat-shrink tubing printed with circuit identifiers; handwritten tags smudge and peel within months. Test voltage drops with a digital load tester before finalizing connections–aim for less than 0.2V loss between the storage unit and any 12V outlet under full load.
Autonomous Vehicle Power Connection Guide
Install a 100A marine-grade circuit breaker between the house power source and the distribution panel to prevent overloads. Use 2/0 AWG tinned copper cables for the main supply lines–these handle 150A continuous current with minimal voltage drop, critical for long routes where charging access is limited. Ground the negative terminal directly to the chassis with an 8 AWG bare wire, ensuring a clean path to earth; avoid daisy-chaining grounds to prevent interference with sensitive electronics like inverters or solar controllers.
Isolation & Charging Strategies

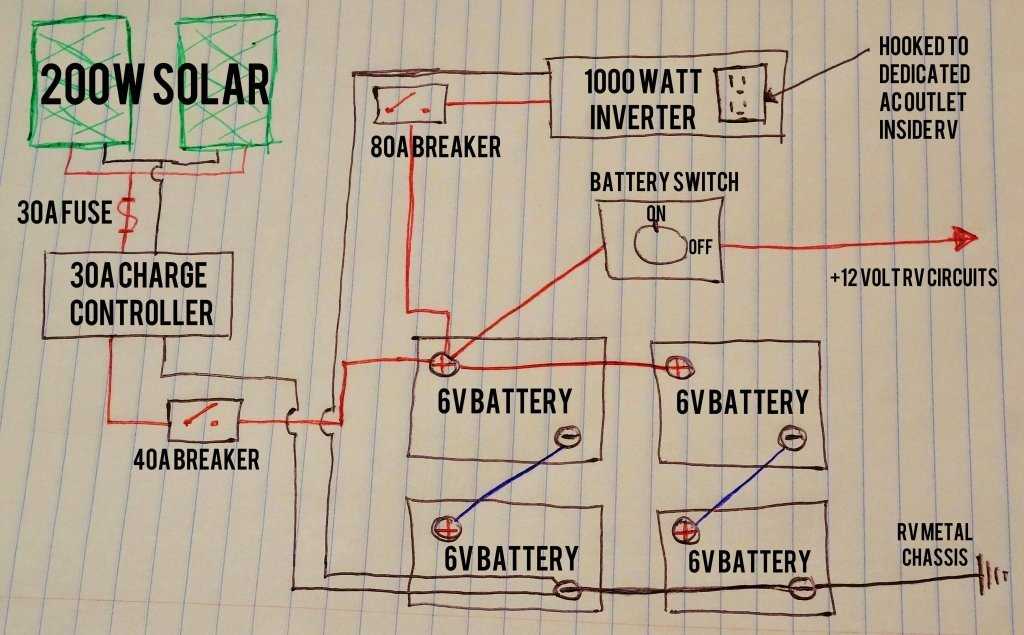

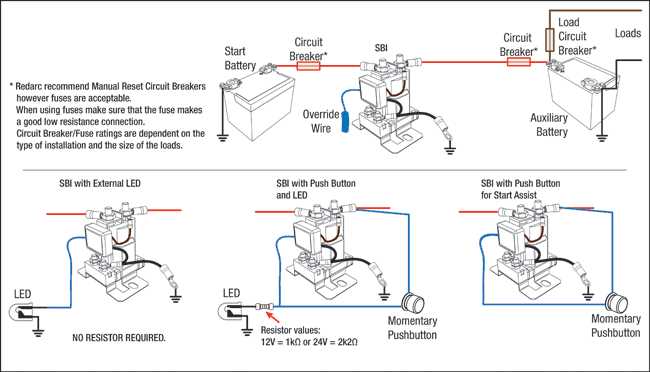

Separate the starter and auxiliary power banks with a 30A isolator relay to prevent deep-cycle drain during engine cranks. For lithium-based storage, integrate a dedicated 40A charger with temperature compensation, as these units regulate charging profiles to extend lifespan–critical in extreme climates. Solar panels should connect via an MPPT controller set to 14.6V bulk charge for flooded cells or 14.2V for AGM to optimize absorption without risking overcharge.
Choosing the Optimal Power Storage for Your Travel Rig
Lithium iron phosphate (LiFePO4) units outperform traditional lead-acid options in nearly every metric for recreational vehicles. With 90-98% efficiency versus 70-85% for absorbed glass mat (AGM) variants, LiFePO4 loses less energy as heat during charge cycles. Their weight advantage–often 60-70% lighter than comparable lead-acid setups–directly translates to improved fuel economy and higher permissible payloads. Depth of discharge (DoD) reaches 80-100% without shortening lifespan, whereas lead-acid systems degrade measurably beyond 50% DoD. For full-time travelers, the 3,000-5,000 cycle life (versus 500-1,200 for AGM) ensures a decade or more of service before replacement becomes necessary.
Gel-type accumulators remain viable only for budget-conscious applications with minimal power demands. Their self-discharge rate of 1-3% per month outperforms flooded cells (3-5% monthly), but the 20-30% higher upfront cost compared to standard wet lead-acid rarely justifies the marginal improvements. Gel units require precise voltage regulation–overcharging by as little as 0.2V can permanently damage the electrolyte, reducing usable capacity by 15-25%. Temperature sensitivity compounds this issue: capacity drops by 40-60% at -10°C (14°F), rendering them impractical for cold-weather excursions without auxiliary climate control systems.
Flooded lead-acid configurations demand meticulous maintenance for reliable operation. Weekly specific gravity checks using a hydrometer identify sulfation onset before irreversible damage occurs–a process that consumes 20-30 minutes per inspection. Water consumption averages 1-2 quarts annually for a typical six-cell setup, though this varies widely with charge/discharge cycles and ambient temperatures. Ventilation requirements add structural limitations: enclosed compartments must incorporate 1 cm² of vent area per amp-hour of capacity to prevent hydrogen buildup. For off-grid users, equalization charges (conducted every 30-60 days) restore lost capacity but require disconnecting all DC loads and 5-7 hours of unattended monitoring.
Key Performance Metrics by Storage Technology
| Specification | LiFePO4 | AGM | Gel | Flooded Lead-Acid |
|---|---|---|---|---|
| Energy Density (Wh/kg) | 120-160 | 35-50 | 30-40 | 25-40 |
| Round-trip Efficiency | 92-98% | 80-90% | 75-85% | 70-85% |
| Voltage Sag Under Load (1C) | 0.02-0.05V | 0.2-0.3V | 0.15-0.25V | 0.3-0.5V |
| Calendar Life (Years) | 10-15 | 4-7 | 5-8 | 3-5 |
| Operating Temperature Range (°C) | -20 to 60 | -15 to 50 | -20 to 40 | -15 to 50 |
Critical Installation Considerations
Parallel configurations necessitate identical chemistry, capacity (within 5%), and age–mixing even slightly mismatched units accelerates uneven wear patterns. For LiFePO4 arrays, a battery management system (BMS) with active cell balancing prevents individual cell voltages from diverging beyond 0.03V, which otherwise reduces usable capacity by 3-7% annually. Thermal runaway risks in lithium chemistries mandate 5 mm clearance from adjacent components for airflow, while lead-acid alternatives require 20-30 mm spacing to offset heat buildup during charge cycles. Corrosion-resistant terminals (tinned copper or silver-plated) reduce voltage drop across connections–typical losses of 0.1-0.3V per connection can cascade to 3-5% total system inefficiency in extensive DC networks.
Cold-weather performance gaps become pronounced below 0°C (32°F): LiFePO4 retains 70-80% capacity, AGM drops to 50-60%, while flooded lead-acid plummets to 25-35% of rated capacity. External heating pads or phase-change insulation jackets add 15-25% to system weight but extend usable temperature ranges by 15-20°C. For users in temperate climates, lithium’s superior thermal stability eliminates the need for specialized cold-weather adaptations, directly translating to lower accessory costs and simpler system architecture. Conversely, lead-based options mandate thermal compensation charging algorithms, which introduce complexity and potential failure points absent in lithium setups.
Step-by-Step Guide to Linking Energy Cells in Parallel Configuration
First, verify all power sources share identical voltage ratings–mixing 6V and 12V units will disrupt performance. Select thick cables with at least 2 AWG gauge for 100Ah units, scaling down 1 gauge per 50Ah increase to minimize resistance losses. Clean terminal connectors with a wire brush and apply corrosion inhibitor before securing connections.
Arrange the storage units side by side to equalize cable lengths between positive and negative poles. Use a multimeter to confirm zero voltage difference between parallel-linked terminals before final attachment; discrepancies above 0.1V indicate potential imbalances requiring inspection. Cut cables to exact lengths–excess slack increases resistance, while tension risks loosening connections over time.
Key Tools and Materials
- Insulated crimping tool for terminal lugs
- Heat-shrink tubing (2:1 ratio) for sealing joins
- Battery hydrometer (for flooded-cell types)
- 10mm wrench set for secure terminal tightening
- Current-limited fuse (150% of system’s continuous load)
Attach the primary positive cable to the first unit’s positive pole, then daisy-chain matching positive cables to each subsequent cell. Repeat for negative poles, ensuring polarity consistency–reversed connections will create hazardous short circuits. Secure all joins with torque-specific tightening (10-12 Nm for lead-acid) to prevent overheating at loose connections. For lithium systems, integrate a battery management system (BMS) to prevent overcharging between parallel branches.
After assembly, load-test the configuration with a 30A draw for 30 minutes, monitoring temperature at terminals and cables. Any rise above 40°C indicates undersized cables or poor joins–reassess before full deployment. Label all cables and create a schematic for future diagnostics, noting unit ages (parallel systems degrade uniformly, so mismatched ages reduce lifespan). Store spare equalization cables for quick replacements during maintenance.

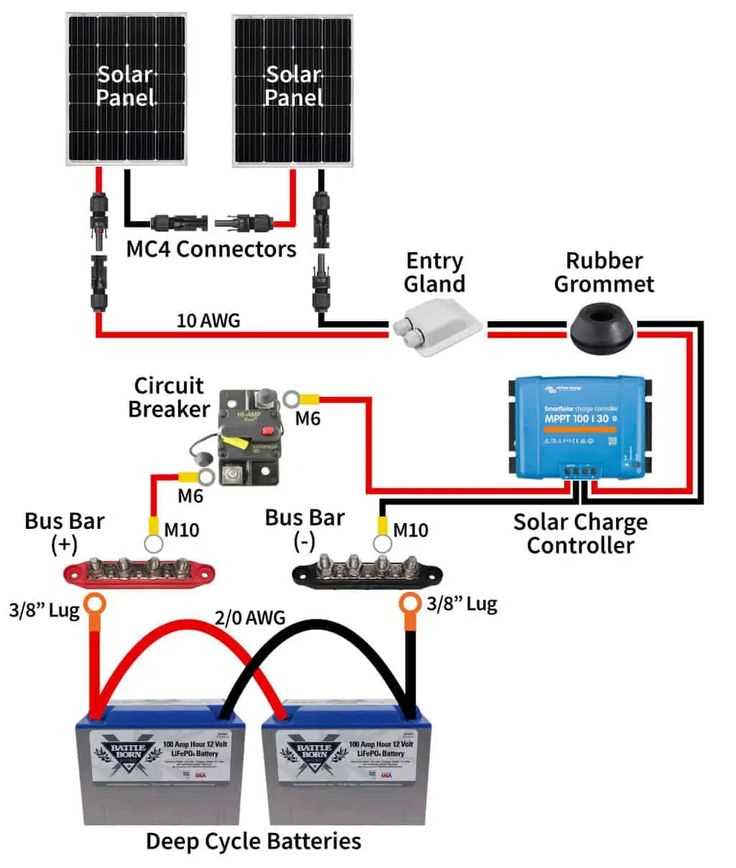

Connecting Solar Arrays to Your RV Power Storage
Mount charge controllers at least 1.5 meters from the auxiliary units to prevent interference from electromagnetic noise. Victron SmartSolar MPPT models 100/30 or 150/70 handle 12V/24V systems up to 2000W; Renogy Rover 40A accommodates 520W max. Use 6AWG tinned copper cables for runs under 3 meters, 4AWG for longer distances–voltage drop should not exceed 2%. Secure connections with MC4 crimp connectors rated for 30A continuous, ensuring dielectric grease is applied to combat corrosion in humid environments.
- SunPower E-Flex 110W panels deliver 21.8% efficiency; these require sturdy Z-brackets mounted at a 30-40° angle facing south in northern latitudes.
- Morningstar ProStar 30M controllers feature PV array short-circuit protection, eliminating the need for external fuses on the panel side.
- For systems exceeding 400W, install a combiner box with individual 15A breakers for each module to simplify troubleshooting.
Overcurrent protection is non-negotiable: place a 40A ANL fuse or circuit breaker within 18 inches of the storage bank’s positive terminal. Lithium iron phosphate units like Battle Born 100Ah need a 60A fuse; absorbed glass mat variants use 30A. Avoid parallel strings exceeding 1000W without a combiner–this risks imbalanced charging. Test open-circuit voltage of each panel before connecting; mismatch greater than 0.5V across strings reduces efficiency by up to 15%.
- Select a controller with temperature compensation–ambient temperature derating starts at 25°C; every 10°C rise reduces charging current by 3%.
- Tinned copper busbars (minimum 8AWG) reduce resistance in high-current junctions; avoid aluminum for outdoor use.
- Program charge settings to 14.4V for flooded lead-acid, 14.6V for AGM, 14.2V for lithium–float voltages should be 13.6V, 13.8V, and 13.5V respectively.
- Integrate a 50A relay between the solar array and load distribution for emergency disconnects.
Grounding requires a dedicated 4AWG bare copper wire bonded to the RV chassis, terminating at a minimum 8mm diameter copper rod driven 2.4 meters into damp soil. Isolate the negative busbar from chassis ground in lithium systems to prevent galvanic corrosion. Schottky diodes (e.g., 30A 45V) prevent reverse current at night but introduce a 0.5V drop–account for this in low-light conditions. Verify all terminations with a digital multimeter set to DC voltage; target resistance should be below 0.1Ω between any two points in the circuit.
