Complete NEMA 10-30 Wiring Guide with Step-by-Step Diagrams and Safety Tips
Start by identifying the three key conductors: the hot wires (red and black), the neutral (white), and the ground (green or bare). The 250V, 30-amp configuration requires strict adherence to color-coding and terminal placement to prevent hazards. Verify the breaker matches the circuit’s rating–using a 50-amp breaker for a 30-amp circuit violates safety standards and risks overheating.
Strip the insulation on each conductor precisely to expose 3/4 inch of copper. Loose connections cause arcing, while excessive exposed wire increases short-circuit risks. Twist the strands of stranded wire tightly before securing them under terminal screws. Torque each screw to 12–15 inch-pounds–over-tightening can strip threads, and under-tightening leads to high-resistance failures.
Before energizing, test continuity between the hot terminals and ground using a multimeter. Readings should show open circuit (OL) for safety. Cross-check the neutral-to-ground connection–legitimate readings here indicate a dangerous hot-neutral swap. If voltage between hots exceeds 250V±5%, inspect the panel for incorrect breaker sizing or damaged lines.
Seal unused knockout holes in the outlet box with listed fill plugs to prevent debris or pests from compromising the enclosure. Label the circuit at the breaker and outlet with the date and installer’s initials–this documents compliance and aids future maintenance. Revisit connections annually; corrosion or thermal discoloration signals imminent failure requiring immediate replacement.
For dual-voltage devices, confirm the appliance’s manual specifies 240V-only operation or includes a proper switching mechanism. Plugging a 120V device into this outlet guarantees catastrophic failure. Use only UL-listed 30A cords–cheap knockoffs lack proper strain relief and insulation ratings, risking electrical fires.
Connecting a 240V 30A Plug: Step-by-Step Installation
Identify the terminal screws before handling the plug. This configuration uses two hot wires (black and red), a neutral (white), and a grounding conductor (green or bare). Label each wire with tape if reusing an old cable to avoid misconnections. Strip ⅝ inch of insulation from each conductor–excessive stripping weakens the connection, while too little prevents proper clamping.
- Attach the white neutral wire to the L-shaped terminal.
- Secure the black and red hot wires to the straight terminals (polarity doesn’t matter).
- Fast the green grounding wire to the U-shaped screw.
Tighten each screw until snug–over-torquing can strip the threads. Verify no frayed strands touch adjacent terminals by tugging gently on each wire. For reversed polarity checks, use a multimeter: 240V between hot terminals; 120V between either hot and neutral.
If replacing an outdated two-prong outlet, confirm the circuit’s amperage matches the plug’s rating. A 20A breaker with a 30A plug creates a fire hazard. Replace the breaker if necessary–never bypass this step. For dryer installations, ensure the appliance’s internal wiring aligns with this setup; consult the manual for deviations like dedicated ground requirements.
After securing the plug, test under load. Run the dryer or heater for five minutes, then touch the plug body–warmth is normal, but excessive heat indicates loose connections or undersized wire gauge. If sparks appear during connection, stop immediately and recheck each step for errors. Keep the area dry; moisture conducts current unpredictably.

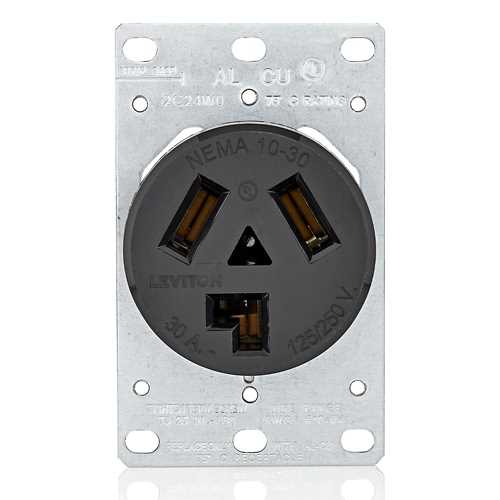

Recognizing Terminals on 240V 30A Connectors and Outlets
Examine the plug and receptacle for engraved or molded markings to locate terminals quickly. The standard configuration includes two hot wires (X and Y), one neutral (W), and a ground slot–though older models may omit grounding. Terminal X typically aligns with the wider blade or slot, while Y sits opposite; neutral occupies the L-shaped opening, and grounding (if present) uses a D-shaped slot. Verify these labels against a multimeter set to continuity mode–the X and Y terminals should show ~240V between them, while each hot-to-neutral reading should measure ~120V.
| Terminal | Blade/Shape | Color Code | Voltage (Hot-Neutral) |
|---|---|---|---|
| X | Wider straight blade | Black or Red | 120V |
| Y | Narrower straight blade | Red or Black | 120V |
| W | L-shaped blade | White | 0V (reference) |
| Ground | D-shaped or round pin | Green or bare | – |
Rotate the connector counterclockwise to reveal screw terminals if markings are worn–this action loosens internal clamps without disassembly. Label each wire before detachment: black or red wires connect to X/Y screws, white to neutral, and green/bare to grounding (often a green hexagonal screw). For receptacles, probe from the front side–X/Y slots are horizontal top positions, neutral occupies the lower-left L-slot, and grounding sits at the bottom D-slot in grounded variants.
Replace any connector showing cracks, discoloration, or loose blades–arcing damage appears as charred plastic or pitted metal. Match replacement parts precisely: 30A devices demand 10-gauge wire (minimum); never downsize wiring gauge. When reassembling, torque terminal screws to 12 in-lbs–overtightening strips threads, while undertightening risks loose connections and overheating.
Step-by-Step Installation Guide for 30-Amp 3-Prong Plugs
Disconnect power at the circuit breaker before handling any terminals. Use a voltage tester to confirm the outlet is dead–probe both hot slots (X and Y) and the neutral (W) to ground (if present). A live reading above 0V means incomplete shutdown.
Preparing the Cable
- Strip 0.75 inches of jacket from the 10-gauge cord, exposing three conductors: black (X), red (Y), white (W).
- Trim insulation to 0.5 inches on each wire; twist strands clockwise to prevent fraying.
- Slide a ½-inch length of heat-shrink tubing over each wire before crimping for strain relief.
Attach terminals in this order: insert black wire into the brass L-shaped post (X), red into the brass straight post (Y), white into the silver screw (W). Tighten with a torque screwdriver–12 in-lbs for stranded, 15 in-lbs for solid core. Tug each wire with 5 lbs of force to verify crimp. Replace the plug cover, aligning the keyway notch, and torque cover screws to 8 in-lbs.
Final Checks
- Restore power and measure voltage: X-Y should read 240V, X-W and Y-W 120V.
- Test ground continuity (if adapter used) with a multimeter–resistance must be under 1Ω to the chassis.
- Secure cord strain relief by squeezing clamps until the jacket deforms slightly but doesn’t cut.
Color Coding Standards for 30-Amp, 125/250V Plug Configurations
Use black for the hot (L1), red for the second hot (L2), white for the neutral, and bare or green for the safety ground. This follows the NEC Article 200 for 125/250V split-phase systems and ensures compliance with UL 67 and UL 854 standards. Deviations–such as substituting orange for red–are permitted only if documented in the installation manual and labeled at both ends of the conductor.
Exceptions and Regional Variations
In Canada (CSA C22.2 No. 42), blue may replace red for L2 in older installations, while Mexico (NOM-001-SEDE) allows brown for L1 and gray for neutral in industrial setups. Verify local amendments before finalizing connections–miswiring voids certification and introduces fire risks per NFPA 70E, Section 110.4(C).
Safety Precautions When Handling 240-Volt Plug Configurations
Shut off the circuit breaker at the main panel before touching any terminals. A 30-amp, 120/240-volt outlet delivers enough current to stop the heart–use a non-contact voltage tester to confirm power is completely disconnected. Even residual capacitance in connected appliances can store lethal voltage, so wait at least two minutes after switching off before proceeding.
Wear insulated gloves rated for 600 volts when handling live or potentially live components. Standard work gloves offer no protection against electrical shock. Pair them with safety goggles to shield against accidental arc flashes, which can exceed 5,000°F in less than a millisecond. Cotton or flame-resistant clothing reduces burns from sparks or molten metal.
Check for physical damage before installation: cracked casings, discolored terminals, or melted insulation indicate overheating, often caused by loose connections or overloaded circuits. A single nick in wire insulation can expose bare copper, creating a short circuit when energized. Replace any compromised components rather than attempting repairs with electrical tape or splices.
Use copper conductors sized for 30 amps–minimum 10 AWG for the hot leads and neutral, 8 AWG for the ground. Aluminum wiring requires specialized terminals and antioxidant paste to prevent oxidation and thermal creep, which degrades connections over time. Torque all terminal screws to manufacturer specifications–typically 15-20 in-lbs–to eliminate high-resistance points that generate heat.
Grounding Integrity
Verify the grounding path with a multimeter: measure between each hot terminal and ground; readings should match the hot-to-neutral voltage (120V). If voltage differs by more than 3V, the ground is compromised, risking equipment damage or shock. Never substitute the neutral for ground–this bypasses safety mechanisms in modern appliances, including metal chassis and surge protectors.
Ensure the outlet enclosure is securely mounted to a grounded metal box, not just drywall or plastic. Metal boxes must bond to the grounding conductor; plastic boxes require a separate ground pigtail connected to the device. Loose boxes allow vibration from appliances to weaken connections, increasing fire risk. Snug all mounting screws to a torque of 12 in-lbs to prevent movement.
After installation, test the outlet with a 30-amp load (e.g., a space heater) for one hour. Monitor for warmth at the plug and receptacle–any heat indicates a poor connection. If the device trips the breaker, the circuit is undersized or the outlet has internal faults. Discard and replace any outlet that fails this test; resets or repairs are not reliable for high-amperage applications.
