How to Wire Nissan 4 Pin Mass Air Flow Sensor Step by Step Guide
Start by locating the signal output line–typically the third terminal from the left on most Japanese-engineered powertrain modules. This wire carries a fluctuating voltage between 0.5V and 4.9V proportional to intake density. Identify it with a multimeter set to DC voltage; probe against chassis ground while the ignition is on (engine off). If readings deviate beyond ±0.2V from the expected range, inspect for corrosion at the connector or damaged insulation along the harness length.
The first terminal usually supplies 12V constant power from the main relay–verify this with a test light or scope. Voltage drop under load (below 11.8V) indicates either a failing relay, frayed wire, or resistance at the joint. Splice integrity matters: solder connections, not crimps, prevent intermittent failures that mimic airflow errors.
Ground references come via the second and fourth terminals. The second is engine block ground, often sharing a stud with other sensors. Clean the mounting surface if readings show more than 50mV drop from battery negative. The fourth terminal, if present, acts as a dedicated return path–ensure continuity to the control module’s grounding plane. Swap testing isn’t reliable here; instead, measure resistance across both paths while wiggling the harness to catch hidden breaks.

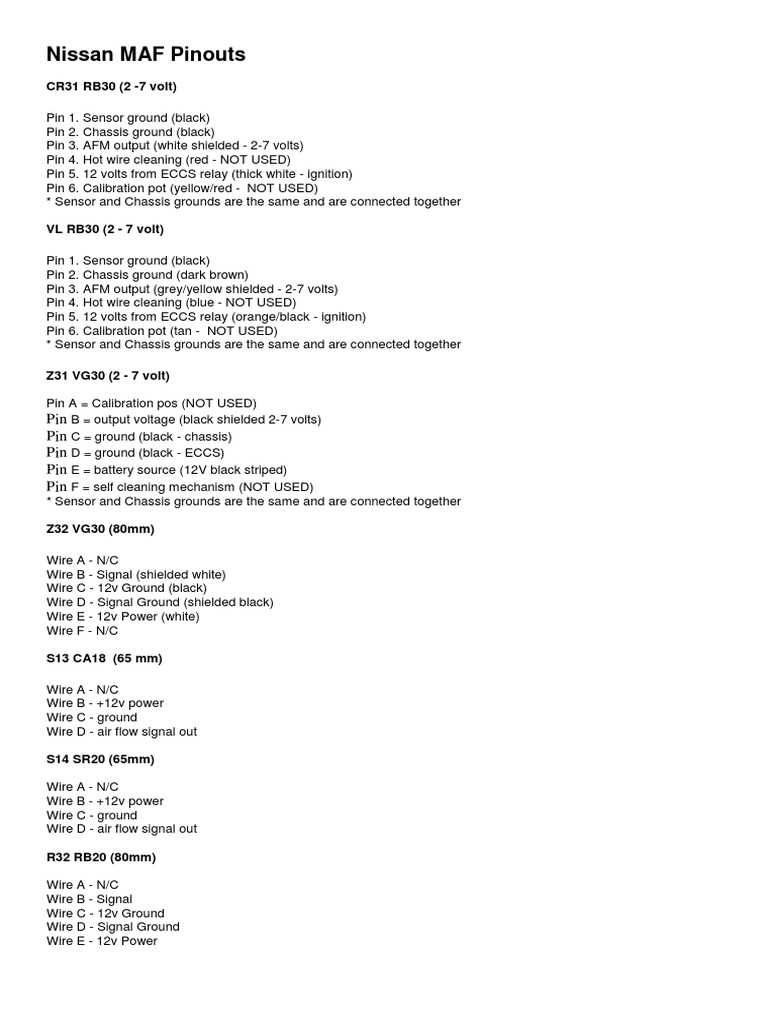

For pin identification across models, cross-reference engine codes: VQ35DE uses white/red for signal, KA24DE uses blue/red. Incorrect polarity burns the sensing element permanently–always confirm with a factory service manual schematic before any intervention. Aftermarket connectors often reverse terminal order; double-check by tracing wires back to the harness clamp.
Understanding Connector Schematics for MAF Units in Late-Model Engines
For 4-terminal MAF connectors, identify the power feed by locating the wire that traces back to the engine control module’s ignition-controlled output–typically a solid red or orange conductor. Use a multimeter set to 12V DC range to confirm voltage presence when the ignition is turned to the “ON” position, ensuring a reading between 11.5V and 14.2V. Failure to register voltage here indicates either a blown fuse (check the under-hood fuse box for label “MAF” or “IGN”) or a break in the harness between the module and the connector.
Ground verification requires probing the black or brown lead with the multimeter’s negative probe attached to a known chassis ground–ideally a bolt on the intake manifold or cylinder head. A resistance reading below 0.5 ohms confirms a clean return path; readings above 2 ohms suggest corrosion at the connector interface or within the harness braid. Clean terminals with a micro-abrasive brush and apply dielectric grease to prevent future oxidation.
The signal lines–usually white and green–operate at low voltage (0.5–4.5V) and vary with throttle position. Connect the multimeter in DC voltage mode, back-probe these terminals with the engine idling, then slowly open the throttle. Voltage should rise smoothly without spikes; erratic readings point to a dirty sensing element or damaged wire insulation causing intermittent shorting. Use shielded test leads during diagnosis to minimize signal interference from adjacent circuits.
Harness continuity checks demand a breakout box or back-probing pins while the connector remains installed. Disconnect the battery negative terminal before separating the connector halves to avoid triggering diagnostic trouble codes. With the ignition off, measure resistance between each terminal and its corresponding ECM pin–values should be below 1 ohm for intact circuits, over 100 kilo-ohms for breaks.
| Terminal Function | Typical Wire Color | Expected Voltage (Idle) | Expected Resistance |
|---|---|---|---|
| Power Supply | Red/Orange | 11.5–14.2V | <0.5Ω |
| Ground | Black/Brown | 0V | <2Ω |
| Signal 1 | White | 0.8–1.2V | Continuous |
| Signal 2 | Green | 1.5–3.0V | Continuous |
For spliced repairs, use heat-shrink adhesive-lined tubing over each joint to prevent moisture ingress–standard electrical tape degrades within 12–18 months. Crimp connections with a ratcheting crimper to ensure uniform pressure; soldering is not recommended due to potential wire fatigue under vibration. Route repaired sections away from sharp edges or moving components, securing with nylon harness ties at 6-inch intervals.
If replacing the entire unit, ensure the new assembly matches the original equipment part number–aftermarket variants often reverse signal wire connections despite similar physical fit. Transfer the connector housing from the old unit to maintain proper terminal alignment; failure to do so risks poor contact or swapped outputs leading to fuel trim errors. After installation, clear all stored codes with a scan tool and perform a drive cycle to verify normal operation before finalizing the repair.

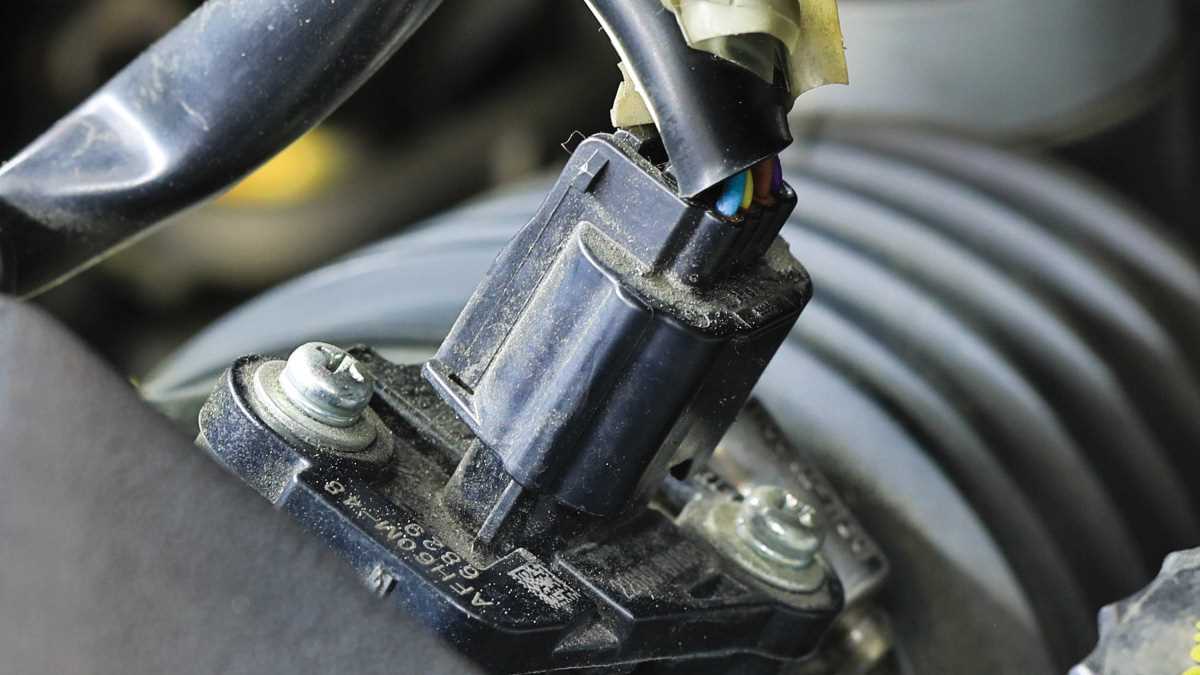

Finding the 4-Terminal Metering Device Connector Contacts
Begin by identifying the component housing, typically situated between the engine intake and air cleaner box. On most models, this unit has a rectangular shape with a cylindrical projection. Trace the bundled cables back to the plug–look for a compact, four-slot attachment point.
To confirm the correct connector:
- Locate the ozone cleaner housing near the throttle body.
- Follow the airflow tubing until you encounter the sensor assembly.
- The wires will lead to a distinct four-prong socket.
Each terminal corresponds to a specific function within the control module. The uppermost contact usually delivers reference voltage, while adjacent slots handle frequency output and ground paths. The bottom slot often interfaces with intake temperature readings.
Use a multimeter set to DC voltage to verify connections while the ignition is on (engine off). Probe each slot against chassis ground–expected readings range between 0.5V and 5V depending on the circuit. If values deviate significantly, inspect harness integrity and connection continuity.
Before probing, ensure:
- The ignition key is turned to the ON position.
- The ECU has not entered diagnostic mode (consult service manual for conditions).
- No accessories are drawing power that could alter readings.
Misalignment during reconnection can damage sensitive electronics. Match each plug segment to its corresponding housing slot–most designs include an asymmetrical notch to prevent incorrect insertion. Apply light pressure until a distinct click confirms secure attachment.
For troubleshooting, note that terminal A (typically marked on schematics) often serves as the power input, while B, C, and D handle signal processing, reference output, and ground respectively. Cross-reference factory documentation for exact labeling variations across different engine configurations.
Decoding Connector Colors and Roles in Vehicle Air Measurement Units
Start by locating the four-wire connector on the meter–common configurations use a distinct color scheme for quick troubleshooting. The first wire, typically white or yellow, delivers a 12V power supply from the main relay, essential for initializing readings. Verify this line with a multimeter; voltage should match battery levels (±0.5V) when the ignition is active. A drop below 10.5V suggests relay failure or corroded junction points.
- Green/blue stripe – Ground reference. Securely connects to the chassis or engine block; resistance should measure near 0 ohms. High readings indicate oxidized terminals or broken strands.
- Black/red outline – Signal output. Voltage ranges from 0.5V to 4.5V, scaling with intake volume. Use an oscilloscope to confirm a smooth, noise-free waveform; erratic spikes signal contamination or sensor damage.
- Solid brown or gray – Analog signal return (5V reference). Check for consistent 5V supply from the ECU; deviations point to faulty module or wiring shorts.
Test each circuit with the connector attached first–back-probing avoids damage to fragile pins. Probe the signal return while revving the engine; voltage should rise linearly. Flatline responses confirm sensor failure, while erratic jumps suggest intermittent shorts. Always cross-reference with a factory service manual; some models invert color assignments for regional builds.
Clean connections with contact cleaner before reassembly–oxidation is a leading cause of erroneous readings. Avoid twisting or pulling wires during repairs; these harnesses use thin-gauge copper prone to internal fractures. For persistent issues, swap a known-good unit first; aftermarket replacements often alter color codes without documentation.
Step-by-Step Guide to Testing MAF Component Signals with a Multimeter
Set your multimeter to DC voltage in the 20V range. Connect the black probe to a clean ground point on the engine block–avoid painted or coated surfaces. Attach the red probe to the signal terminal (typically the third wire from the left in most connector layouts). With the ignition on but the engine off, readings should stabilize between 0.5V and 1.2V. Voltages outside this range indicate contamination or circuitry degradation.
Checking Ground and Reference Voltages
Identify the power supply line–usually 12V straight from the battery, visible on connector pins marked in schematics as B+. Verify this voltage by probing while the ignition is active. Next, locate the reference line, typically 5V, sourced from the engine control module. Both voltages must match factory specifications (±0.2V) to ensure accurate readings. Deviations suggest wiring faults or ECM malfunctions.
Start the engine and let it idle. Observe voltage shifts on the signal line as RPMs increase. A functional unit will show gradual rises–approximately 1.5V at 2,000 RPM and up to 3.5V at 4,000 RPM. Sudden spikes or flatlining signals confirm debris accumulation on the sensing element or broken connections. Cleaning with CRC-approved cleaner may restore operation; if not, replacement is necessary.
Switch the multimeter to resistance mode (200Ω range) to test internal continuity. Disconnect the harness and probe the terminals directly. Resistance values should fall between 0.5Ω and 1.5Ω across the sensing element. Readings at 0Ω indicate shorts, while infinite resistance points to open circuits–both require component replacement.
For advanced diagnostics, back-probe the connector while reving the engine. Monitor voltage fluctuations alongside live data via OBD-II scanners. Cross-reference readings with known-good waveforms; inconsistencies between analog signals and digital outputs reveal intermittent faults undetectable through basic resistance or voltage checks.
