Complete 2001 BMW 325i Radio Wiring Diagram and Installation Guide
Start by locating the C1 connector behind the dashboard’s lower trim panel–it’s the 20-pin cluster on the left side, carrying signals from the amplifier to the head unit. Pin 8 (violet/white stripe) delivers the constant 12V feed directly from the battery, while pin 15 (brown/red stripe) provides switched power via the ignition switch. Disconnect the negative terminal before probing–this prevents shorting the ground bus traced back to the chassis mount near the firewall.
Identify the antenna control module secured behind the glove box–its wiring harness splits into two sub-looms: one runs to the roof-mounted mast (shielded coax, usually gray), the other branches to the amplifier (six-pin connector). The blue/white stripe wire on pin 3 sends the antenna trigger signal; splice it to the theft-deterrent interface if retrofitting an aftermarket system to maintain factory security.

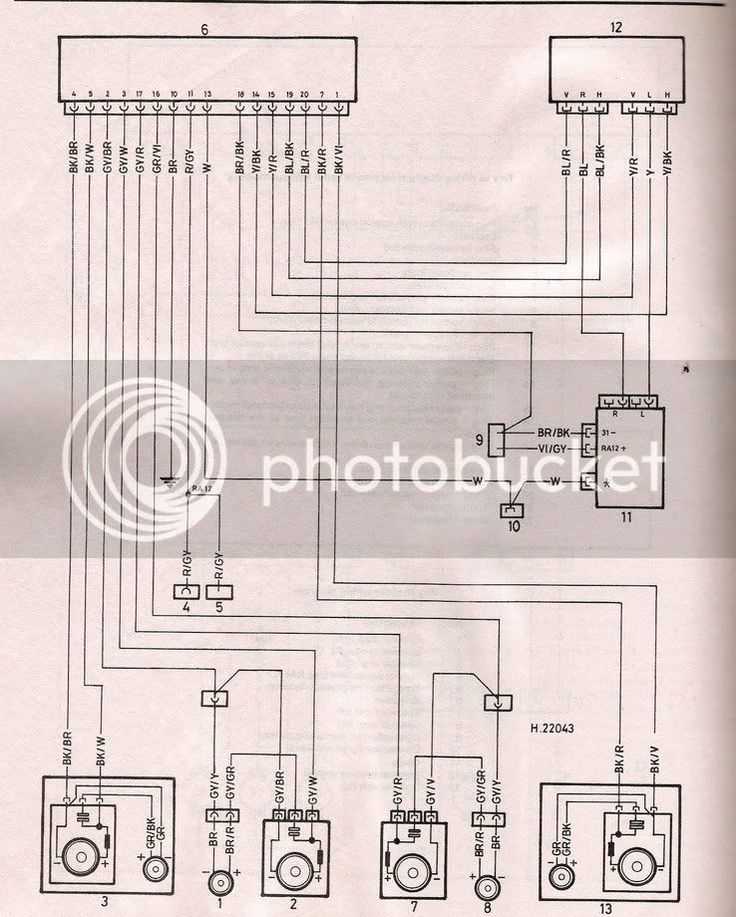

Trace the speaker outputs from the amplifier’s C2 connector: front left (+) is pin 1 (gray/red), front right (+) pin 2 (gray/black), rear left (+) pin 5 (white/black), and rear right (+) pin 6 (white/red). Ground returns are bundled on pins 3, 4, 7, and 8–use a multimeter to verify continuous 4-8 ohms resistance before installing replacements.
Check the fiber-optic ring tapped from the trunk-mounted CD changer–its orange LED should blink steadily when active. If diagnostics reveal static, replace the MOST bus terminator (part 65.82-3780509), located behind the left rear wheel well cover. Handle the optical cable with care–scratches or sharp bends disrupt audio transmission.
For manual retrofits, splice the CAN bus wires (yellow and green, twisted pair) at the OBD-II port–these carry steering wheel controls and telemetry to the head unit. Use a 50-ohm coaxial crimp for the antenna lead, not solder; solder joints can degrade signal integrity over time. Verify all splices with a non-contact voltage tester before reassembling interior trim.
Vehicle Audio System Connection Blueprint for E46 Sedan
Locate pin 11 on the aftermarket head unit harness–this carries the constant 12V supply. Splice it directly to the blue-white stripped lead from the OEM connector behind the climate control module using a 16-gauge crimp splice and heat-shrink tubing. Verify voltage with a multimeter before connection; fluctuations above 13.8V indicate a faulty alternator diode trio.
| OEM Harness Color | Pin | Function | Wire Gauge |
|---|---|---|---|
| Yellow/Red stripe | A4 | Switched ignition | 18 |
| Brown/Blue stripe | A7 | Ground | 14 |
| Green/Violet stripe | A8 | Front left speaker (+) | 20 |
| Violet/White stripe | A9 | Front left speaker (–) | 20 |
Daisy-chain the antenna amplifier’s power lead to the red-white 10A fuse tap located in the passenger-side kick panel. Remove the fuse box cover by prying the three plastic clips along the bottom edge–no screws secure it. Route the lead through the existing grommet above the pedals, ensuring a 90-degree bend to prevent chafing against the brake master cylinder reservoir.
Test speaker polarity before finalizing connections: Momentarily apply a 9V battery to each pair–positive to positive should produce an audible thump. If reversed, swap leads at the source. Confirm CAN-BUS compatibility by checking for retained preset stations after ignition cycles; persistent loss indicates a missing K-BUS bridge, requiring a 220-ohm, ¼-watt resistor between pin A6 (purple) and ground.
Matching Factory Plugs to Aftermarket Head Unit Adapters
Start by locating the OEM harness behind the existing stereo unit–it consists of two primary plugs: a 16-pin rectangular connector for power and speaker outputs, and an 8-pin round plug for audio signal and illumination control. Avoid cutting these connectors; instead, procure a vehicle-specific adapter cable that retains all factory connections while providing standard ISO or bare wire leads for the new hardware. International standards designate the rectangular plug as ISO-10487-A and the round plug as ISO-10487-B, though some models use proprietary pinouts.
Verify the adapter’s pin assignments against the OEM schematic: the rectangular plug typically carries constant 12V at pin 3, switched ignition at pin 4, ground at pin 5, and antenna trigger at pin 7. Speaker wires follow an alternating +/- pattern beginning at pin 1 for front left (+) and continuing through pin 10 for rear right (-). The round plug’s pin 1 usually mates to the vehicle’s illumination dimmer circuit, while pins 3–6 handle audio inputs if equipped with a factory amplifier or CD changer interface.
Use a multimeter to confirm live circuits before connecting the aftermarket interface. Set the meter to DC voltage and probe the rectangular plug’s ignition wire–it should read 0V with the key off and 12–14V when the ignition is on. If this wire remains hot, it indicates a constant power source mislabeled by the adapter manufacturer; swap to the correct ignition-switched lead to prevent battery drain. Similarly, check the ground wire for continuity to chassis; less than 0.5 ohms ensures proper signal return.
Select an adapter that includes a bypass circuit for the vehicle’s external amplifier if the new head unit lacks preamp outputs. Most factory systems integrate an amplifier beneath the driver’s seat or behind the glovebox, triggered by a dedicated lead on the round plug. A direct-fit adapter should reroute this signal to dummy loads or provide RCA outputs, depending on whether the replacement hardware supports external amplification.
For vehicles with a factory navigation or satellite tuner, the round plug may include CAN bus data lines. These require termination resistors or a CAN bus emulator to prevent error messages on the instrument cluster. Aftermarket adapters often label these wires in yellow and orange; consult the installation manual for resistor values (typically 120 ohms) or emulator compatibility.
Label each wire with masking tape before finalizing connections to the new stereo. Note discrepancies between the adapter’s color coding and the aftermarket harness–common mismatches involve the reverse trigger and parking brake wires, which some manufacturers transpose. Cross-reference the new unit’s manual: standard ISO colors (e.g., yellow for constant power, red for switched) may differ from the adapter’s palette.
Secure connections with solder and heat-shrink tubing or crimp connectors rated for automotive use. Avoid electrical tape alone–it degrades under heat and vibration, risking shorts. If the adapter includes an antenna power booster (pin 6 on the rectangular plug), ensure the new head unit’s antenna input matches the required impedance (usually 50 ohms) to prevent signal loss or damage to the tuner module.
Test all functions before reassembling the dash: power on/off cycles, illumination dimming, speaker outputs, and steering wheel controls if retained via an external interface module. If the new unit displays “no signal” on satellite or HD channels, verify the antenna plug’s compatibility–some aftermarket radios require an adapter for the vehicle’s roof-mounted diversity antenna system, which splits signals to the factory amplifier.
Step-by-Step Wire Color Coding and Pinout for OEM Head Unit Extraction
Disconnect the negative battery terminal first to prevent short circuits. Locate the climate control unit beneath the stereo–remove its screws (typically Torx T20) to expose the mounting frame. The head unit’s rear harness uses a 20-pin ISO connector split into two sections: the upper 8-pin block handles power, illumination, and antenna triggers, while the lower 12-pin block carries speaker outputs. Identify wires by color: constant 12V (red), accessory/switched 12V (yellow), ground (brown), and illumination (orange/violet stripe). Antenna power (blue) occupies pin 4 in the upper block–damage here disables automatic antenna retraction. Speaker wires follow a strict pattern: front-left positive (white/blue), front-left negative (white/brown), front-right positive (gray/red), front-right negative (gray/brown), rear-left positive (green/white), rear-left negative (green/brown), rear-right positive (violet/white), and rear-right negative (violet/brown).
Release the head unit by inserting two factory removal keys or straightened paperclips into the slots on either side–push inward while pulling the unit forward. Tilt the stereo downward to access the back panel, but avoid forcing it to prevent breaking the plastic clips. If the connector resists, check for a hidden latch at the top–press it downward before attempting removal again. When reconnecting aftermarket components, match impedance: the factory system runs 4Ω speakers, while aftermarket units may require 2Ω loads. Use a digital multimeter set to 20V DC to verify voltage before attaching new harnesses–red probe to the positive wire, black probe to ground. False positives occur if testing through connectors; pierce wires instead or use a breakout box for accurate readings.
Reassembly requires aligning the climate control mounting tabs before securing screws. Test all functions–verify dimmer control, hazard flasher integration, and chime module operability. If static persists, inspect ground connections at the transmission tunnel or behind the glovebox; sand paint off mounting points until bare metal is exposed. For retained accessory power issues, confirm the red wire has continuity to the fuse box (fuse #30, 10A). Speaker pops during start-up indicate improper grounding–add a secondary ground wire from the stereo chassis to the nearest vehicle ground point.
