How to Build an Oscillator Circuit Step-by-Step Guide with Schematics

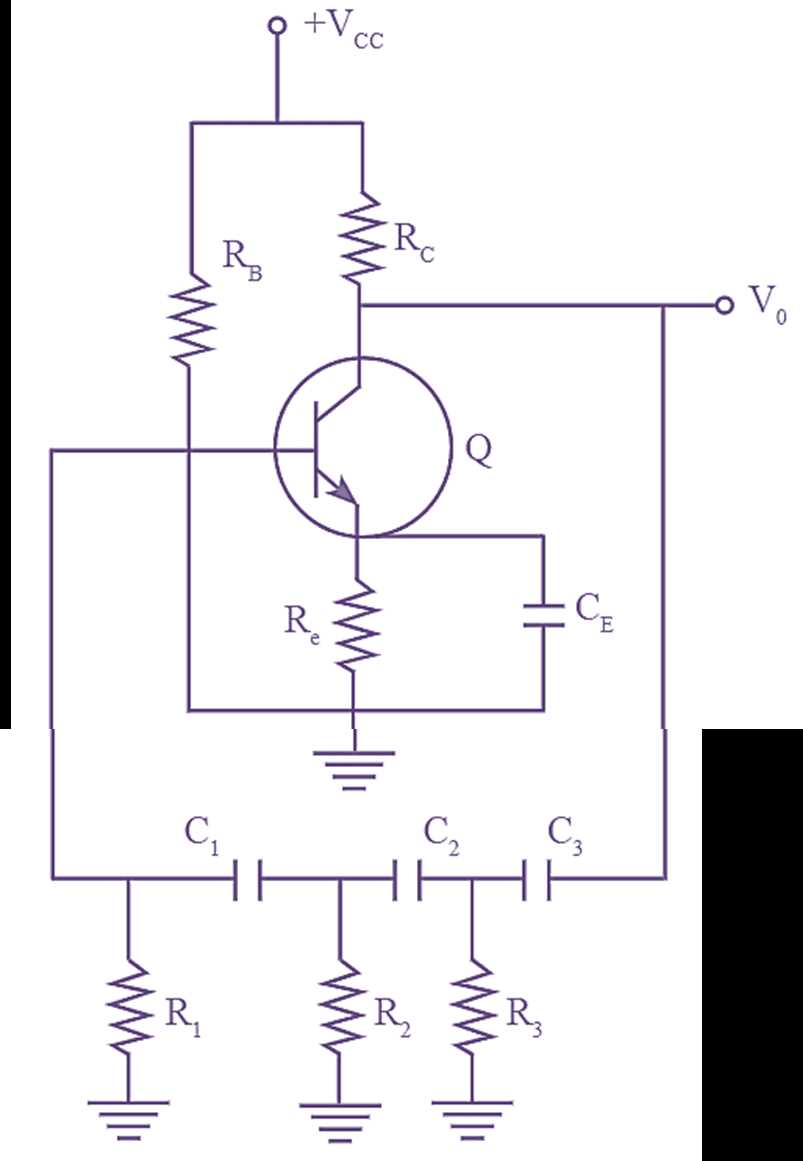

Design frequency synthesizers with a Colpitts arrangement when space is limited. Use a single bipolar transistor (e.g., 2N3904), two capacitors (C₁ = 100 pF, C₂ = 470 pF), and a single inductor (L = 1 mH) for a 1 MHz output. Bias the base via a 10 kΩ resistor to VCC and ground the emitter through a 1 kΩ resistor. Keep feedback ratios below 5:1 to prevent parasitic oscillations. Test stability by loading the output with a 50 Ω resistor; drift should not exceed 2% over 10 minutes.
Replace discrete components with a tapped-piezo resonator for sub-100 kHz applications requiring ±20 ppm accuracy. Connect a 32.768 kHz tuning fork crystal directly across an inverting Schmitt gate (74HC14) with 1 MΩ feedback resistor and 22 pF loading capacitors. Drive duty cycle to 45–55% by adjusting gate hysteresis via a 47 kΩ series resistor. Measure peak-to-peak voltage at the gate output node; it must remain within 70% of VCC to avoid harmonic distortion.
For wideband tunability, deploy a varactor-tuned LC network. Pair a 1SV149 varactor diode with a 22 nH inductor and permit 5–25 V reverse bias control. Use a dual MOSFET pair (IRF510) in differential configuration to isolate control voltage from the resonant loop. Include a ferrite bead in series with the control trace to suppress RF leakage above 50 MHz. Expect tuning range of 3:1 while maintaining phase noise below -120 dBc/Hz at 10 kHz offset.
Reduce power consumption by employing a relaxation oscillator built around a single op-amp (LM358) and timing capacitor. Choose R = 100 kΩ and C = 10 nF for 1 kHz output at 3 V supply. Add a Schottky clamp diode across the timing capacitor to prevent saturation recovery delays. Verify monotonic charging curves with an oscilloscope; any deviation greater than 5% indicates op-amp slew rate limitations.
In harsh thermal environments, implement a Wien bridge network. Use precision resistors (0.1% tolerance) and NPO capacitors for the RC branches. Set Rf/Rg ratio to 2:1 for unity-gain stability. Apply thermal stabilization by placing a 10 kΩ NTC thermistor in series with Rg. Log temperature drift over -40°C to +85°C; total output variation must not exceed ±300 ppm.
Avoid ground loops by isolating the signal return path with a ground-plane split. Route the return under the resonant coil and keep it at least 1 mm away from digital ground pours. Verify ground impedance at 10 MHz; measured impedance between any two ground points must stay below 0.1 Ω. If impedance rises, insert a 10 µF tantalum capacitor between ground planes near the signal source.
Building Stable Signal Generators: Key Wiring Practices
Start with a Colpitts configuration for frequencies under 1 MHz–pair a 10 nF capacitor between the base and emitter of a 2N3904 transistor with a 220 pF feedback capacitor to ground. Ensure the inductor’s Q-factor exceeds 50; a ferrite core (e.g., FT37-43) with 10 turns achieves this. Bias the transistor with a 10 kΩ resistor from collector to VCC (5V) and a 4.7 kΩ resistor from base to ground, stabilizing the operating point to avoid waveform distortion. Add a 100 Ω series resistor before the output to isolate load variations and prevent frequency drift. For temperature stability, use polyester or NP0 ceramic capacitors–X7R dielectrics introduce unacceptable drift above 20°C.
Component Selection for Predictable Performance
Replace generic resistors with 1% metal-film types (e.g., Vishay MCT series) to minimize noise; carbon-film variants add 1–2 dB of phase noise. Match the inductor’s self-resonant frequency (SRF) to the target band–SRF should be at least 3× the operating frequency to avoid parasitic effects. For variable tuning, swap fixed capacitors for a trimmer (e.g., Murata TZ03 series) with a 5:1 tuning ratio; this allows fine adjustments without retuning the entire network. Test stability by loading the output with a 10 kΩ resistor–deviation greater than ±2% indicates inadequate decoupling; add a 10 µF tantalum capacitor at the power input to suppress ripple.
Selecting Parts for Reliable Timing-Based Signal Generators
Prioritize resistors with 1% tolerance or better to minimize frequency drift. Carbon film types introduce noise and temperature-dependent resistance shifts–use metal film variants rated for low thermal coefficients (under 50 ppm/°C). Values between 10 kΩ and 1 MΩ avoid excessive current draw while maintaining stable charging characteristics. Pairing mismatched resistor values accelerates phase shift instability; keep ratios within 1:5 for symmetrical waveforms.
Film capacitors outperform ceramic or electrolytic options for consistent timing. Choose polyester, polypropylene, or polystyrene dielectrics with tight tolerances (±2% or less). Avoid X7R or Y5V ceramics–their capacitance fluctuates dramatically with voltage and temperature, skewing frequency. For frequencies below 100 kHz, target values between 1 nF and 10 μF to balance size and stability. Larger values reduce sensitivity to stray capacitance but increase recovery time between pulses.
Thermal and Noise Considerations
Mount critical components away from heat sources like voltage regulators or power transistors. A 10°C rise can shift frequency by 0.5% in poorly chosen parts. Ground reference points should be star-connected to a low-impedance plane to suppress phase noise. Bypass high-frequency noise with a 0.1 μF ceramic capacitor directly between the op-amp’s power pins; omit this and risk spurious oscillations at 10 MHz or higher.
Op-amps with slew rates above 5 V/μs prevent edge distortion in square-wave outputs. Rail-to-rail input/output types eliminate crossover clipping but may introduce higher input bias currents. For low-power setups, select devices with supply currents under 1 mA, like the MCP6002 or TLC272. Avoid “jellybean” 741 variants–their poor slew rate and high offset voltages destabilize timing.
Stray capacitance from breadboards or long traces adds parasitic elements, altering expected behavior. Keep connecting leads under 5 cm; longer runs introduce inductance, turning intended RC networks into unintended RLC tanks. For through-hole builds, trim lead lengths flush to the board to minimize inductance. Surface-mount parts reduce parasitics but demand careful layout–cluster timing components near the op-amp to shorten high-impedance paths.
Calibration and Testing Techniques
After assembly, measure actual component values with a precision LCR meter. Initial calculations assume nominal values, but real parts deviate–account for ±2% across all resistors and capacitors. Use a 4-digit frequency counter for calibration; adjust one resistor while monitoring duty cycle until reaching the target period. For temperature compensation, replace a single resistor with a series combination of metal film and NTC thermistor to counteract capacitance shifts.
Step-by-Step Wired Feedback Loop on a Breadboard
Begin by placing an NPN transistor (2N3904) centrally on the board, ensuring its emitter, base, and collector leads align vertically for clarity. Connect the emitter directly to ground via a wire. For the feedback coil, use two inductors–one 100µH between the base and ground, and a second 100µH tapped 1/3 from the collector side–joined at a common point to form the split winding. Attach a 10nF capacitor between this tap and ground to set frequency alongside the inductors.
Critical Connections and Values
| Component | Value | Breadboard Row |
|---|---|---|
| Transistor (2N3904) | NPN | D5 (collector), D6 (base), D7 (emitter) |
| Inductor (L1, base side) | 100µH | A1 to ground |
| Inductor (L2, collector side) | 100µH | Tap at B3, full coil from B1 to B5 |
| Capacitor (C1) | 10nF | B3 to ground |
| Resistor (R1) | 47kΩ | Positive rail to B6 |
Apply power last: link a 9V battery’s positive terminal to the rail, then add a 47kΩ resistor from the rail to the transistor’s base to bias it. Verify oscillation by probing the tap point (B3) with an oscilloscope; expect a sine wave peaking at ~1MHz with 2-3V amplitude. If no signal appears, swap the inductor leads on the collector side or adjust the tap position by one breadboard hole–small shifts drastically alter feedback strength. Avoid long wires near the coils to prevent parasitic coupling.
Avoiding Pitfalls in Crystal-Based Frequency Generators: Key Errors and Solutions
Incorrect load capacitance selection ranks as the most frequent failure point. Choose capacitors matching the quartz element’s specified CL–typically 8–30 pF–measuring stray board capacitance first. A 20 pF crystal paired with 15 pF external caps and 3 pF parasitic capacitance achieves resonance; deviating even ±5 pF can prevent startup or shift output frequency by 50 ppm. Verify capacitance with a calibrated meter before soldering.
Parasitic inductance from long traces or inadequate grounding creates unintended phase shifts, introducing jitter or halting oscillation. Route the feedback path as short as possible, ideally under 10 mm; ground planes should directly connect to the crystal’s case pin. Use 0.25 mm trace width for 50 Ω impedance at 10 MHz. Test with a network analyzer to confirm phase margin remains above 45° across temperature.
Power supply instability–especially ripple exceeding 10 mV–can modulate the generated signal’s amplitude. Decouple the active component’s VCC with a 100 nF X7R ceramic capacitor placed within 2 mm of the pin, supplemented by a 10 µF tantalum for low-frequency noise suppression. A 5 V regulator with 1% tolerance reduces supply-induced drift compared to unregulated 3.3 V rails.
Component Placement Errors
- Mounting crystals perpendicular to PCB edges reduces microphonic noise from vibration by 30%.
- Separate analog and digital ground planes at the crystal’s ground pin only, preventing ground loops.
- Surface-mount crystals should have solder mask openings 0.1 mm larger than pad dimensions to avoid stress fractures.
- Temperature-compensated oscillators require 5 mm air gap from heat-generating ICs to avoid thermal drift.
Exceeding the quartz element’s drive level–often 100 µW for standard devices–accelerates aging and frequency drift. At 1 MHz, a 50% duty-cycle square wave can push 200 µW into a 50 kΩ motional resistance crystal; use a series resistor of 1 kΩ–10 kΩ to limit current. At 32 kHz, reduce waveform amplitude to 0.5 V peak-to-peak to prevent electrostatic damage.
Debugging Techniques
- Measure DC voltage at the amplifier’s output; a stuck ½ VCC suggests missing AC feedback.
- Inject a 100 mV sine wave at the crystal’s input pin–if output amplitude drops below 20 mV, the gain margin is insufficient.
- Replace capacitors with trimmer types temporarily to tune drift before finalizing fixed values.
- Log startup time–delays over 50 ms indicate excessive equivalent series resistance in components.
Ignoring ambient temperature effects causes drift up to 5 ppm/°C. Use AT-cut crystals above 1 MHz (TCXO for ±1 ppm stability) or SC-cut below 10 MHz for flatter frequency-temperature curves. Pre-age crystals at 85 °C for 24 hours before calibration to stabilize drift rate below 1 ppm/year.
