Step-by-Step Guide to Creating a Residential Wiring Schematic Layout

Begin with a load calculation–never guess circuit requirements. A standard US 120V microwave demands 15–20 amps alone; underestimating draws risks overloads. Document every appliance, light fixture, and outlet on a grid before running any cables. Include dedicated circuits for refrigerators, HVAC units, and laundry equipment–these account for 40% of residential breaker trips when improperly sized.

Use #10 AWG copper wire for 30-amp circuits, not #12, even if codes permit it. Voltage drop over 50-foot runs can exceed 3% with undersized conductors, reducing tool performance and shortening motor lifespans. Label every breaker with permanent marker during installation; retroactive tracing wastes hours during troubleshooting.

Position the main service panel within 10 feet of the meter to avoid excessive conduit costs. If local code permits subpanels, place them centrally–bedrooms on one side, kitchen/laundry on another–to minimize wire lengths. Install arc-fault circuit interrupters (AFCIs) on bedroom circuits; they prevent 50% of electrical fires, yet only 60% of homes built pre-2014 comply.

Route cables perpendicular to joists, never diagonally, and maintain 1.25-inch clearance from insulation if stapled. For buried lines, use UF-B cable rated for wet locations–standard Romex corrodes underground in two years. Mark paths with metallic tape; digging accidents sever 3,500 buried wires annually in the US.

Test every outlet with a multimeter after completion–mismatched polarity reverses appliance grounding, risking shock. Keep a spare breaker kit on-site; retailers stock only common sizes, and delays stall projects. Store installation manuals for GFCIs and smart switches; resetting improperly installed units voids warranties.

Electrical Blueprint for Residential Circuits

Begin by dividing the installation into distinct zones: lighting, outlets, and high-power appliances. Assign dedicated circuits for refrigerators, HVAC units, and electric ranges–these require 20A to 50A breakers. For general outlets, use 12-gauge wire on 20A circuits; 14-gauge suffices for 15A lighting lines. Label each breaker clearly in the panel to match the zone (e.g., “Kitchen Outlets,” “Basement Lighting”). Avoid daisy-chaining more than 12 outlets per circuit to prevent voltage drop. Ground fault circuit interrupters (GFCIs) are mandatory within 6 feet of water sources–kitchens, bathrooms, and outdoor areas. Arc fault circuit interrupters (AFCIs) protect all living areas, including bedrooms, to prevent fires from faulty wiring.

Key Circuit Specifications

Zone	Wire Gauge	Breaker Rating	Protections Required
Lighting (indoor)	14 AWG	15A	AFCI
Outlets (general)	12 AWG	20A	AFCI
Kitchen countertops	12 AWG	20A	GFCI + AFCI
Bathrooms	12 AWG	20A	GFCI
Electric range	6 AWG	50A	None (dedicated)

Run wires in parallel paths–avoid mixing low-voltage (e.g., thermostat) and power lines in the same conduit to prevent interference. Use ¾-inch conduits for 12-gauge wire bundles; ½-inch works for 14-gauge. In unfinished basements or attics, encase all cables in metal conduit or schedule 40 PVC for rodent protection. Mark cable runs on studs every 4 feet during rough-in for future reference. Test every circuit with a multimeter before closing walls: verify 120V at outlets, 240V at appliances, and 0V between hot and ground. Keep a detailed sketch of the layout, including wire lengths and junction box locations, for troubleshooting.

Critical Elements for a Residential Electrical Blueprint

Begin with a main service panel location, specifying its amperage rating (100A, 200A, or 400A) and whether it’s surface-mounted or recessed. Include subpanels if the layout spans multiple floors or detached structures, labeling each with its dedicated breaker capacity. For modern installations, mark spaces for smart breakers or surge-protection modules.

Outline circuit pathways using straight lines or right-angle turns to indicate conduit runs, distinguishing between Romex (NM-B), THHN in conduit, and armored cable (BX). Note junction boxes at every turn or splice, with their dimensions (4″ square or octagonal). Separate lighting, outlet, and appliance circuits, assigning each a unique identifier (e.g., “L1” for lighting, “O3” for outlets).

Load Distribution and Specialized Circuits

Dedicate circuits for high-demand appliances: 20A for kitchen outlets (GFCI-protected), 30A for electric dryers, 50A for ranges. Label ground-fault circuit interrupters (GFCIs) within 6 feet of sinks, outdoor outlets, and basements. Include arc-fault circuit interrupters (AFCIs) for bedroom and living area outlets, specifying their trip thresholds (typically 5mA for GFCIs, 30mA for AFCIs).

Map low-voltage networks separately–thermostats, doorbell transformers, and security system wiring–using dashed lines. Specify voltage drops for runs exceeding 50 feet (3% for branch circuits, 5% for feeders). Mark telecom and coaxial cable pathways, noting wall plates with Cat6 or RG-6 termination points. For EV chargers, detail conduit size (1.5″ minimum) and dedicated 40–60A circuit capacity.

Safety and Compliance Annotations

Annotate local code requirements directly on the plan: minimum box fill calculations, conductor sizing (12 AWG for 20A, 10 AWG for 30A), and grounding electrode connections (copper vs. galvanized rods). Label AFCI/GFCI protection zones per NEC 210.12 and 210.8. For pools or hot tubs, include equipotential bonding grids and insulated ground conductors. List emergency disconnects for HVAC units and water heaters, placing them within line of sight.

Color-code conductors: black/red for hot, white for neutral, green/bare for ground. Use red for switched legs on lighting circuits. For three-phase systems, distinguish phases with orange or blue. Add a legend for symbols–outlets (duplex, split-wired), switches (single-pole, three-way, dimmers)–and reference a table for wire gauge-to-circuit amperage compatibility. Finalize with a load calculation summary, ensuring total demand doesn’t exceed 80% of panel capacity.

How to Create a Residential Circuit Blueprint from Scratch

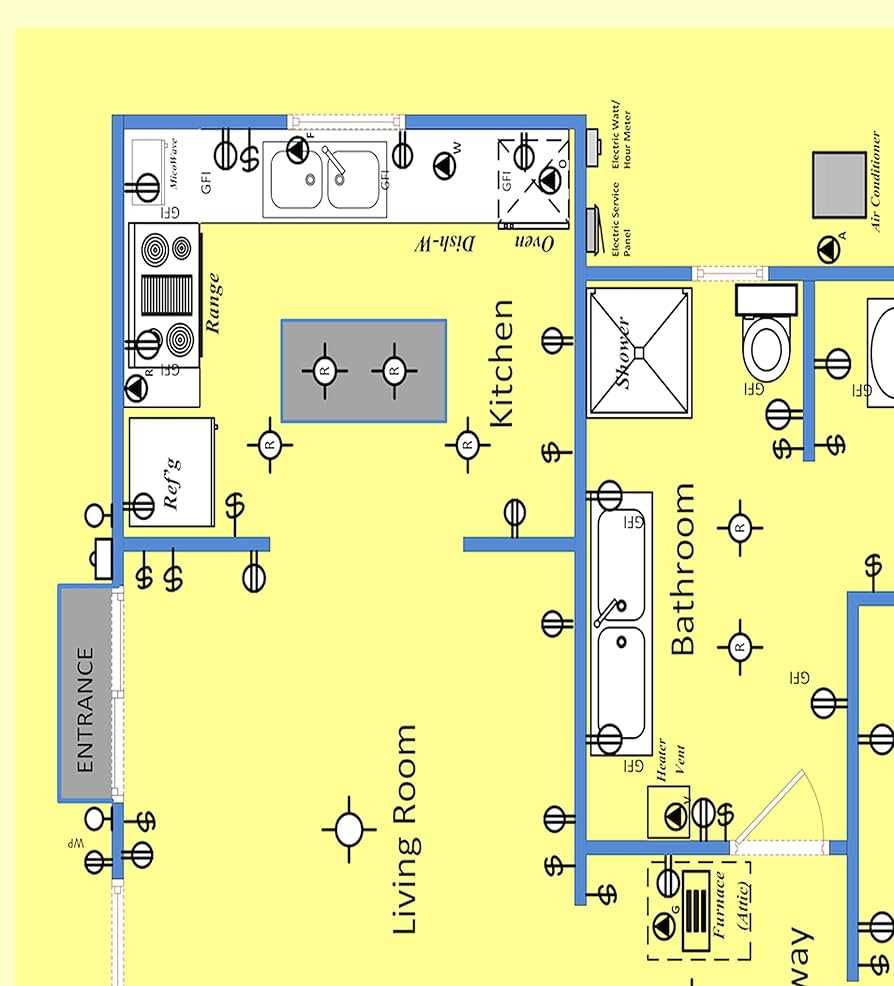

Begin by sketching the floor layout on graph paper, scaling each room to match the actual dimensions. Use a 1:50 ratio for small apartments and 1:100 for larger properties. Mark structural elements–walls, doors, windows, and outlets–with precise measurements, as inaccuracies here will cascade through the entire plan. Label each space with its intended function to clarify power needs later.

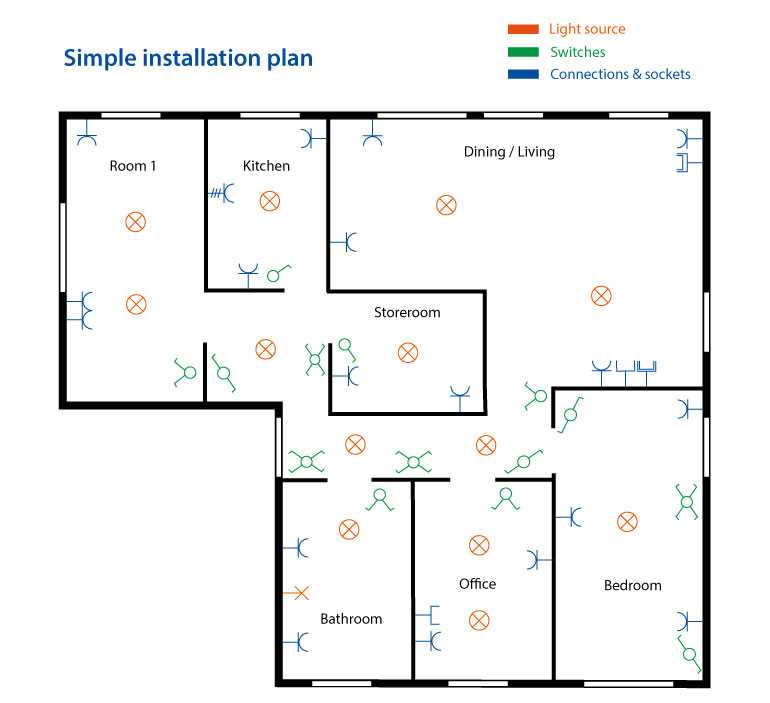

Select standardized symbols for electrical components and apply them consistently across the sketch. Outlets should follow IEC 60617 or ANSI Y32.9 standards, with circles for sockets, rectangles for switches, and dashed lines for hidden conduits. Differentiate between single-pole, three-way, and GFCI outlets by adapting the base symbol–add a “T” inside the circle for three-way and a small rectangle beneath for GFCI protection.

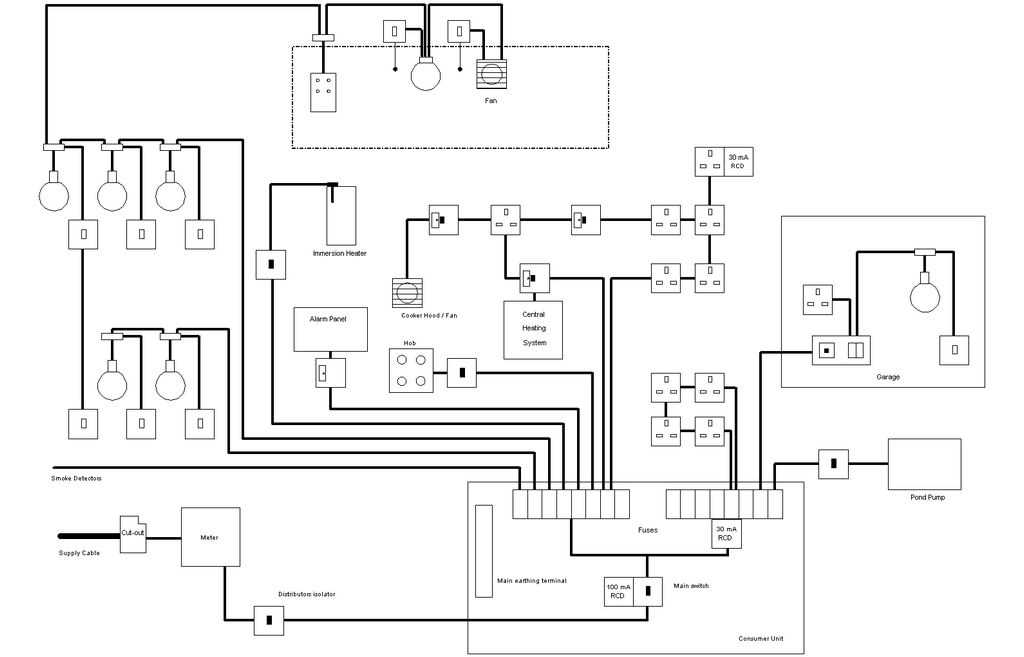

Trace power flow starting at the service panel. Draw a bold line from the main breaker to each branch circuit, splitting at junction boxes into thinner lines that reach individual devices. Use color coding: red for 240 V circuits (ovens, dryers), blue for 120 V lighting, black for general receptacles. Indicate wire gauge next to each line–12 AWG for 20 A circuits, 14 AWG for 15 A–to ensure compliance with NEC Table 310.16.

Identify load zones within each room and balance them across breakers. Group kitchen small-appliance circuits (mandatory two 20 A circuits per NEC 210.11(C)) and bathroom receptacles on separate lines to isolate high-draw devices. Add dedicated circuits for refrigerators, HVAC units, and home offices using heavier 10 AWG wire at 30 A breakers if needed. Label each breaker with its assigned circuit and calculated load in watts.

Annotate every connection with cable types (NM-B, UF, THHN) and conduit specifications where applicable. For exposed work, specify EMT for indoor use or PVC Schedule 40 for underground runs. Include grounding paths by drawing a separate green or bare wire back to the panel, terminating at the ground bus. Finalize the draft by cross-referencing breaker labels with the circuit map, then scan the graph paper into a vector editor to generate a scalable digital file for permits and contractors.

Critical Errors in Electrical Layout Plans

Mislabeling conductors causes confusion during installation and maintenance. Use consistent color coding (e.g., red for live, blue for neutral, green/yellow for earth) and label every wire at both ends. Omitting labels on junction boxes or switch terminals adds hours of troubleshooting later. Store spare labels in a waterproof pouch near the distribution board for quick reference.

Overloading circuits risks fire hazards. Calculate load requirements before finalizing the design. For example, a 15-amp circuit should not exceed 1,800 watts. Common violations include:

• Connecting high-wattage appliances (e.g., space heaters, 1,500W microwaves) to general-purpose outlets.
• Grouping multiple outlets on a single 20-amp circuit without derating (reduce load by 10% per additional outlet).
• Ignoring surge protection for sensitive electronics (dedicate a circuit for computers or medical devices).

Incorrect Wire Gauge Selection

Using undersized wires leads to voltage drops and overheating. Refer to the NEC Table 310.16 for ampacity ratings:

1. 14 AWG (15A) – lighting circuits, small appliances.
2. 12 AWG (20A) – kitchen outlets, garage tools.
3. 10 AWG (30A) – electric dryers, window AC units.
4. 6 AWG (55A) – stoves, subpanels in detached garages.

Avoid “just enough” sizing–add 20% buffer for future expansion. Aluminum wiring (terminated with COPALUM connectors) requires one size larger gauge than copper for equivalent loads.

Failing to isolate critical systems creates single points of failure. Separate the following into distinct circuits:

• Refrigeration (dedicated circuit to prevent spoilage during outages).
• Sump pumps (use a GFCI breaker with alarm notification).
• Security systems (backup power via UPS with minimum 4-hour runtime).
• HVAC controls (label the transformer output for quick replacement).

Bond all metal enclosures to the grounding system with #6 AWG bare copper or larger. Verify continuity with a megohmmeter (

Poor Documentation Practices

Skipping as-built revisions wastes time when modifying the system. Record these details in real time:

• Panel schedules (breaker numbers, connected devices, wire sizes).
• Conduit fill percentages (NEC Chapter 9, Table 4 for maximum allowed wires).
• Manual switch and dimmer compatibility (LED drivers often require 0-10V or DALI control).
• Emergency shutdown procedures (label main disconnect within 3 feet of the service entrance).

Store digital copies in PDF/A format (preserves layers) and back up to two independent locations. Include a legend for symbols–e.g., ¤ for junction boxes, ⊗ for ceiling fans.

Ignoring local code amendments leads to costly rework. For example:

• California (CEC) mandates arc-fault circuit interrupters (AFCIs) for bedroom circuits.
• Florida requires hurricane-rated disconnects for generators.
• Texas permits conduit underground feeder (UF) cable only in specific counties.

Submit plans to the authority having jurisdiction (AHJ) for review before installation. Keep a copy of approved drawings on-site for inspections. Use permanent markers for labeling–laser-printed labels fade after 18 months.
