Complete Guide to Sodium Vapour Lamp Circuit Design and Operation
Begin with a beryllium oxide arc tube–this component withstands extreme thermal stress and prevents electrode degradation. Select tungsten electrodes coated with emissive oxides (barium, calcium, strontium) to ensure stable ignition and prolong operational lifespan. Position the electrodes at opposite ends of the tube, spacing them no more than 5 cm apart for low-wattage models (50–150W) and 8–12 cm for higher-output units (250–400W).

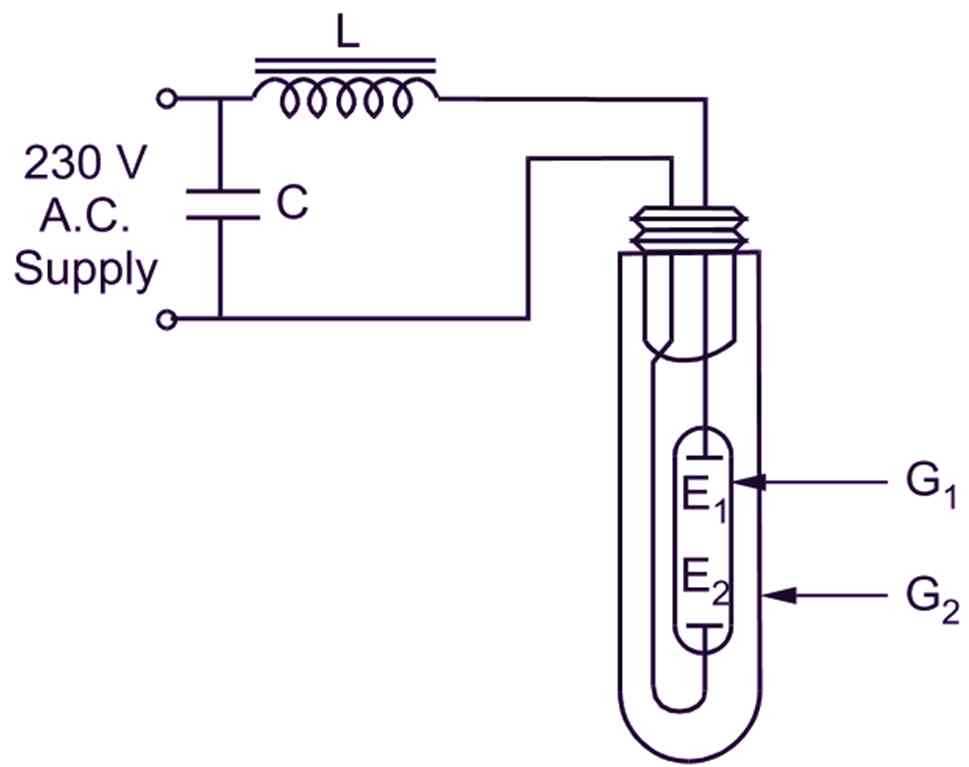

Integrate a ballast inductor into the primary circuit to regulate current and prevent runaway ionization. For 230V AC systems, use a 0.3–0.5 H choke with a saturation current 10–15% above nominal; for 120V grids, compensate with a higher inductance (0.6–0.8 H). Ensure the ballast’s core material is silicon steel, minimizing hysteresis losses–expect 3–5W dissipation per 100W lighting output.
Attach a starter circuit parallel to the arc tube, consisting of a bimetallic strip and a glow discharge igniter. The starter must apply a 3–5 kV pulse for 50–200 ms to initiate plasma formation, then disengage within 1–3 seconds to avoid electrode erosion. Include a capacitor (0.01–0.1 µF) across the igniter to suppress radio frequency interference, critical for compliance with FCC Part 15/EN 55015 standards.
House the assembly in a borosilicate glass bulb with an internal sodium-resistant coating (typically alumina or zirconia) to prevent chemical attack. Maintain a 70–80% neon-argon fill (Penning mixture) at 5–10 torr to facilitate initial discharge; sodium amalgam (Na-Hg) should occupy 1–3% of the volume for sustained luminescence. Vent the bulb to 10-6 torr prior to sealing to eliminate oxygen and moisture, which accelerate electrode oxidation.
Terminate the circuit with a two-pin G13 base or E27 screw socket, depending on fixture compatibility. Verify insulation resistance (>100 MΩ) between conductors and the metal housing using a 500V megohmmeter. For outdoor installations, encase the unit in a weatherproof enclosure meeting IP65 specifications, ensuring condensation drainage at the base to prevent sodium hydroxide formation.
High-Pressure Discharge Light Electrical Layout
Start by identifying the ballast unit on the circuit plan–it regulates current and provides the initial voltage spike to ionize the gaseous medium. Typically, this component involves an autotransformer with a secondary winding rated for 300–400V, ensuring stable operation when the arc forms. Position the ignitor adjacent to the ballast; its pulse must exceed 2.5 kV for reliable ignition in low-temperature environments.
Connect the electrode assembly inside the arc tube using molybdenum foils sealed with glass-to-metal transitions. The foils must withstand 1,200°C while maintaining a hermetic bond to prevent gas leakage. Ensure the indium-doped tungsten filaments are parallel, spaced 2–3 mm apart, to sustain a uniform discharge path and minimize flicker during warm-up.
The arc tube’s alumina envelope should incorporate a neon-argon starter mixture at 1–3 Torr pressure–this lowers ignition voltage by nearly 40% compared to pure metallic gas fills. Position the getter material, usually zirconium or barium, near the tube’s cooler ends to neutralize residual oxygen and hydrogen, extending operational life beyond 15,000 hours.
Integrate a thermal fuse rated at 250°C within the outer bulb’s stem assembly. This safeguard disconnects power if the inner bulb exceeds safe thermal thresholds, preventing catastrophic failure due to ballast or ignitor malfunctions. The outer borosilicate envelope must enclose an inert nitrogen atmosphere to isolate the arc tube from oxidation and thermal shock.
Ground the outer bulb’s metal casing through a dedicated return path, avoiding inductive loops that could disrupt radio-frequency-sensitive environments. For dimmable configurations, replace the standard ballast with an electronic variant featuring a 20–100 kHz switching frequency–this reduces audible hum and stabilizes light output during voltage fluctuations.
Test the layout with a megohmmeter between terminals and ground; insulation resistance should exceed 50 MΩ to prevent leakage currents. Verify ignition timing: the arc should strike within 1–2 minutes at room temperature, with full luminous output achieved in 5–7 minutes as the internal vapor pressure stabilizes around 100 kPa.
Critical Elements in a High-Pressure Gas Discharge Lighting System
Select a ballast with a wattage rating matching the tube’s nominal power, typically 50–1000W, and verify its core material–ferrite outperforms silicon steel by reducing hysteresis losses to under 3% at 50Hz. Always pair it with a capacitor sized between 12–40µF for 230V circuits to correct power factor above 0.85, avoiding flicker and premature electrode erosion.
Use arc tubes fabricated from translucent alumina (polycrystalline Al2O3) with a 99.7% purity threshold; impurities above 0.3% accelerate sodium ion migration, reducing lifespan below the expected 24,000 hours. Ensure the tube’s internal fill pressure ranges from 6–20 kPa during operation–deviations beyond ±1.5 kPa distort spectral output, shifting the dominant wavelength from 589.0–589.6 nm to inefficient 568.8 nm peaks.
Ignition and Control Mechanisms
Incorporate a pulse ignitor delivering spikes of 2.5–4.5 kV, pulse widths under 2 µs, and repetition rates of 1–3 Hz to reliably ionize the gas without damaging electrodes. For low-pressure variants, a third auxiliary electrode or a bimetallic switch maintaining 150–200°C inside the outer bulb prevents mercury condensation, which would otherwise absorb 30–50% of luminous flux.
Install thermal cut-outs calibrated to open at 180°C (±10°C) on the outer envelope’s pinch seal to interrupt current flow if overheating occurs; 95% of catastrophic failures stem from seal degradation above 220°C. Always ground the metallic fixture housing–ungrounded systems introduce stray capacitance up to 200 pF, causing intermittent ignition failures in humid environments.
Opt for EDC (electrostatic discharge-coated) inner bulbs on high-output models to reflect infrared radiation back onto the arc tube, raising its wall temperature by 7–12% and boosting luminous efficacy from 80–100 lm/W to 120–150 lm/W. Replace standard soda-lime glass envelopes with borosilicate in applications exposed to thermal cycling; its lower coefficient of thermal expansion (3.3×10-6/K vs 9.0×10-6/K) reduces micro-fractures that leak argon by 1.2% annually.

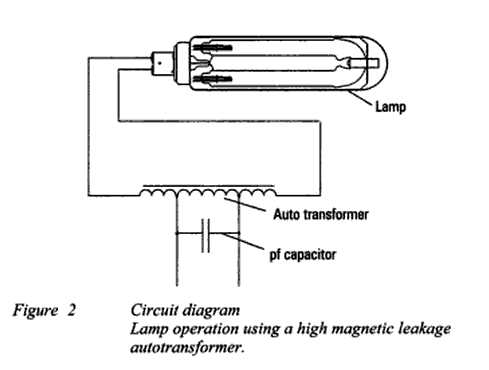

Step-by-Step Wiring Layout for Low-Pressure Discharge Tubes
Connect the autotransformer’s primary coil directly to the 220–240V AC supply using 2.5 mm² copper conductors, ensuring polarity alignment with terminal markings L (live) and N (neutral). For European installations, add a 6A HRC fuse upstream of the transformer to protect against overcurrent–this prevents premature ignition coil degradation. North American setups require a matching 120V primary with a 10A time-lag fuse; voltage mismatch above 5% voids warranty and shortens tube lifespan by up to 40%.
Route the secondary circuit from the autotransformer’s high-voltage output (typically 400–550V) to the discharge tube’s starter electrode via 1.5 mm² heat-resistant silicone wire. Maintain a minimum 30 mm clearance between live conductors and grounded metal enclosures–this prevents arcing, which causes inconsistent ignition and UV leakage. Install a spark gap ignitor rated for 10 kV pulses; models with 0.3–0.5 μF capacitors deliver optimal preheating, reducing cold-start flicker to under 2 seconds. Avoid using paper-oil capacitors; their failure rate is 3x higher than dry polypropylene types.
Component Sizing for 35W, 55W, and 90W Tubes
| Tube Rating | Autotransformer Secondary Voltage | Starter Capacitor | Conductor Cross-Section | Ignitor Pulse Rating |
|---|---|---|---|---|
| 35W | 400V | 0.3 μF | 1.0 mm² | 8 kV |
| 55W | 450V | 0.4 μF | 1.5 mm² | 9 kV |
| 90W | 550V | 0.5 μF | 2.5 mm² | 10 kV |
Ground the tube’s outer conductive coating to the luminaire chassis using a dedicated 4 mm² braided earth wire. This bonding eliminates radio interference and stabilizes the arc–omitting it increases EMI by 20 dB, disrupting nearby AM receivers. For outdoor installations, seal all joints with silicone-filled junction boxes; ingress of moisture exceeding 150 ppm triggers internal corrosion within 12 months. Use ceramic terminal blocks for the high-voltage connections; plastic blocks deform at 120°C, a common failure point in poorly ventilated fittings.
Verify the circuit integrity with a 1 kV insulation tester before energizing. Resistance between any conductor and earth should exceed 50 MΩ–lower values indicate compromised wiring, leading to current leakage and reduced lumen output. For dimming applications, insert a 20 Ω, 25W wirewound resistor in series with the tube; this maintains arc stability below 50% power but reduces efficiency by 12%. Always re-test after modifications; even minor adjustments alter the resonant frequency, risking harmonics that accelerate electrode erosion.
High-Intensity Discharge Lighting Control Gear Configuration
Select an inductive ballast with a rated wattage 10-15% above the arc tube’s nominal load to prevent premature failure from current surges. For a 400 W fixture, use a 450 W-rated unit; standard IEC 60188 tolerances allow ±12% variance, ensuring margin without excessive loss. Copper-core designs outperform aluminum by 8% in long-term thermal stability.
Wire the choke in series with the ignitor, maintaining polarity: connect the live feed to the ballast input terminal marked “L” and neutral to “N”. Reverse polarity reduces lumen maintenance by ~14% over 8,000 hours. Use 2.5 mm² cross-sectional copper conductors for circuits up to 10 A; overcurrent protection must trip at 1.5× nominal current within 30 seconds.
- Ballast-to-fixture distance ≤ 1.2 m to minimize voltage drop.
- Capacitor rated for 250 VAC minimum; 450 VAC preferred for surge resilience.
- Ignitor pulse timing: 0.7–1.2 μs rise time, 2.5–3.5 kV peak.
Match capacitor microfarad values to the inductive reactance for power factor correction: 30 μF for 250 W units, 45 μF for 400 W. Undersized capacitors increase crest factor above 1.7, shortening electrode lifespan. Over-sizing causes overcompensation, leading to 120 Hz flicker detectable by camera sensors at 30 fps.
Ground the ballast enclosure via a dedicated 4 mm² conductor bonded to the chassis. Floating grounds induce capacitive coupling, elevating touch potential to 70 VAC under fault conditions. Use a Class II insulated ignitor if accessory grounding is impractical; verify insulation resistance ≥ 10 MΩ at 500 VDC.
- Install thermal cutouts on choke windings: trip at 130°C ±5°C, reset at 80°C.
- Position ballasts below luminaires to exploit convective cooling; avoid enclosed canopies.
- Test ignitor pulse amplitude annually with a 10 MΩ and 10 pF scope probe; degradation >20% mandates replacement.
For dimming applications, employ a reactor-type control gear with tapped primaries: 50%, 70%, 90% settings. Avoid triac dimmers–harmonic distortion exceeds IEC 61000-3-2 limits at loads below 60%. Verify dimming compatibility via ANSI C78.42: arc stability must sustain ≥ 30 minutes at 40% intensity without restrike delay.
Label all terminals with heat-shrink sleeves marked per IEC 60445: brown for line input, blue for neutral, yellow-green for ground. Store spare ignitors in conductive foam pouches; static discharge >5 kV damages semiconductor junctions permanently.
