Understanding Chiller Schematic Diagrams Key Components and Flow

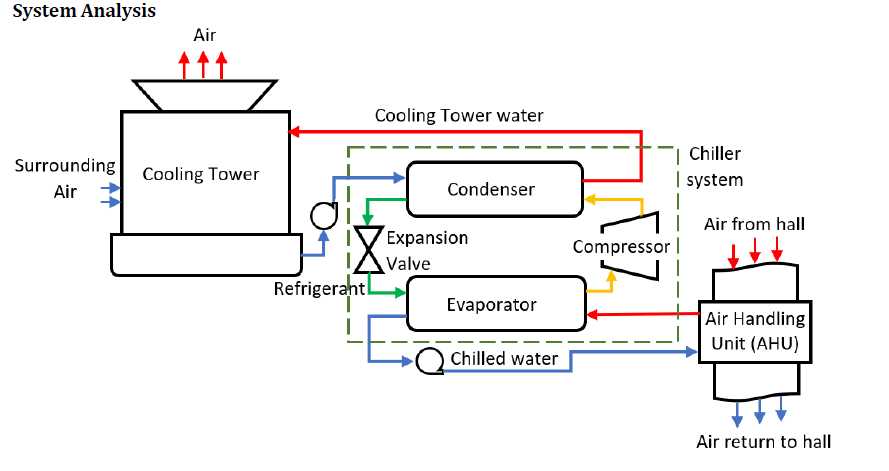

Begin by identifying the refrigerant flow path. Trace the lines from the compressor outlet through the condenser coils, expansion valve, and evaporator before returning to the compressor inlet. Mark pressure zones: high-pressure sections (condenser side) typically operate at 150–300 psi, while low-pressure zones (evaporator side) range between 30–80 psi. Use color-coding–red for high-pressure, blue for low–to simplify troubleshooting.

Prioritize safety labels on the layout. Locate isolation valves, pressure relief devices (set to release at 25% above max operating pressure), and emergency shutdown switches. Verify their proximity to critical components: shutdown switches should be within 1 meter of compressors and pumps. Include annotations for torque specs: flange bolts require 50–60 ft-lbs; refrigerant line fittings need 20–25 ft-lbs to prevent leaks.

Map electrical circuits separately. Compressor motors often use 460V three-phase power with a locked rotor amperage (LRA) of 200–400A–ensure wiring gauges (6 AWG for 30A circuits) match rated current. Highlight control signals: thermostat inputs (0–10V DC) and flow switches (NO/NC contacts) should connect to PLC inputs or relay coils with 24V DC power supplies. Omit generic symbols; use manufacturer-specific icons for variable frequency drives (VFDs) to avoid miswiring.

Validate cooling load calculations before finalizing the layout. Actual tonnage (1 ton = 12,000 BTU/h) must match the evaporator’s heat exchange surface area. For air-cooled units, condenser coil rows (typically 2–4) determine efficiency: 3-row coils drop EER by 12% compared to 4-row. Include pump curves: circulating pumps should achieve 20–30 GPM per ton at 20–50 ft. head for optimal delta-T (10°F minimum across evaporator).

Incorporate maintenance access points directly into the design. Space filers, strainers, and sight glasses at 1.2–1.5 meters above floor level. Avoid placing sensors (RTDs, pressure transducers) behind structural elements–line-of-sight to components reduces response time during diagnostics. For glycol-based systems, note fluid viscosity: at 40°F, 30% propylene glycol increases pump load by 8%.

Key Components of a Refrigeration Cycle Layout

Begin by clearly labeling the four primary elements: compressor, condenser, expansion valve, and evaporator. Position the compressor at the top right of the layout, ensuring adequate space for inlet and outlet refrigerant pipes–use 12 mm copper tubing for R-134a systems and 16 mm for R-410A to prevent pressure drops exceeding 2%. The condenser coil should occupy the upper half of the layout, angled at 5° to facilitate condensate drainage. Include a receiver tank downstream of the condenser for systems above 5 tons to stabilize refrigerant flow during load fluctuations.

Component	Optimal Placement	Critical Specification
Compressor	Top right, 30 cm clearance	1.5–2x rated horsepower for start-up surge
Condenser	Upper layout, 5° tilt	Finned coils: 0.15–0.2 m²/kW heat rejection
Expansion Device	Midpoint, adjacent to evaporator	Thermal expansion valve: ±0.7 bar superheat tolerance
Evaporator	Lower layout, 15 cm above base	Plate-type: 3–5 m² per kW cooling capacity

Piping Configurations for Peak Performance

Route liquid lines vertically downward from the condenser to the receiver, then horizontally with a continuous 1% slope toward the expansion valve–use insulated copper tubing (K=0.035 W/m·K) with soldered joints to eliminate leaks. For evaporator suction lines, maintain a 2% upward slope toward the compressor, incorporating a P-trap every 6 meters to capture oil. Install double risers with oil traps for vertical runs exceeding 4 meters to prevent accumulation; size the riser diameter to sustain a minimum velocity of 3.5 m/s for oil return. Place shut-off valves at both ends of each major line segment for maintenance isolation, specifying ball valves with stainless steel internals for ammonia-based systems to resist corrosion.

Critical Parts and Their Standard Representations in Cooling System Blueprints

Begin with the compressor icon–universally depicted as a circle with an internal triangle pointing clockwise. Ensure the triangle’s base aligns with the circle’s edge; deviations can mislead maintenance teams during troubleshooting. Label capacity directly beneath: “RT” (refrigeration tons) or “kW,” matching the unit’s specifications. Omit vague annotations like “large” or “small,” as precise values prevent overloading during expansion.

The condenser coil appears as a wavy line intersecting a rectangular block. Extend the wavy line beyond the block’s edges by 5mm to distinguish it from evaporator coils, which use identical wavy lines confined within their boundaries. Add arrowheads on refrigerant lines entering/leaving to denote direction; reverse flow markings on subcooling circuits must use dashed arrows, not solid, to avoid misinterpretation.

Expansion devices require distinct symbols based on type. Thermal expansion valves (TXVs) adopt a diamond shape with a central horizontal line, while electronic valves use the same diamond with a slashed vertical line. Capillary tubes, often neglected, demand a simple zigzag line with annotated internal diameter (e.g., “Ø2.5mm”). Pair each valve symbol with an adjacent text box specifying model numbers–omitting this step risks substituting incompatible replacements during retrofits.

Evaporator coils mirror condenser symbols but include a dashed rectangle encasing the wavy line to indicate insulation. Terminals for defrost heaters–often overlooked–insert a resistor symbol (zigzag with two parallel lines) above the coil’s left edge, linked by a dotted line. Verify defrost relay compatibility by cross-referencing the zigzag’s wire gauge with OEM tables; undersized gauges overheat during peak loads.

Auxiliary Elements and Their Placement Rules

• Pumps: Circle with inscribed arrow pointing outward; differentiate primary (solid arrow) from backup pumps (dashed arrow). Include motor kW rating inside the arrowhead to prevent undersizing during redundancy planning.
• Filters: Vertical rectangle with horizontal line mid-height; annotate micron rating (e.g., “50μ”) beside it. Stacked filters require staggered symbols–misalignment here can obscure flow paths during hydraulic analysis.
• Sensors: Arrowhead pointing into a line for temperature probes; pressure sensors replace the arrowhead with a “T”-shaped stub. Color-code sensor wires in blueprints: red for power, blue for signal, black for ground. Reverse wiring invalidates BAS integration.

Refrigerant lines split into three standard colors: liquid lines (solid red), suction lines (dashed blue), and hot gas bypass (dotted green). Avoid mixing line weights–liquid lines demand 1pt thickness; suction lines require 0.75pt. Crossovers between colors trigger false alarms in leak detection systems, so reserve red/blue gradients exclusively for high-pressure alarms.

Common Pitfalls in Symbol Integration

1. Group electrical controls (starters, relays) below mechanical components, not beside. Vertical separation prevents signal interference during electrostatic discharge events.
2. Thermal cutoffs–depicted as a resistor symbol with an “X” through the center–must align with actual fuse ratings. A 25A cutoff drawn on a 30A circuit invites overload failures.
3. Valves with solenoid actuators integrate a slim rectangle adjacent to the valve symbol, annotated with “24V/120V.” Omit this, and contractors may wire actuators to incorrect voltages.
4. Oil separators require a downward-pointing semicircle beneath the compressor icon. Absent this, oil buildup calculations rely on unreliable guesswork.

Document every symbol’s layer in CAD/GIS software: mechanical components (Layer 1), electrical (Layer 2), plumbing (Layer 3). Lock Layer 1 before exporting final blueprints–unintended edits here corrupt dimension scaling during contractor reviews. Embed OEM naming conventions (e.g., Carrier’s “30XA-020”) into each component’s tooltip; generic labels force technicians to cross-reference manuals manually, slowing emergency repairs.

How to Interpret Refrigeration Unit Connection Charts

Locate the power supply lines first–typically marked L1, L2, L3 for three-phase systems or L, N for single-phase. These feed the compressor contactor and circulation pumps. Verify voltage matches the label near the terminals; most industrial units run on 400-480V three-phase, while smaller models may use 230V. Cross-check with the unit’s technical sheet if colors seem inconsistent–many manufacturers use black (L1), red (L2), blue (L3), but standards vary by region.

Trace the control circuit next, starting at the safety devices. Look for:

• Pressure switches: Low-pressure (cut-out ~20 psi) and high-pressure (~350 psi) must interrupt compressor operation if exceeded.
• Flow switches: Confirm water movement before allowing compressor start; failure triggers immediate shutdown.
• Thermal overloads: Protect motors; reset only after cooling period (typically 5-10 minutes).

Identify the auxiliary relay controlling condenser fans–these engage after compressor start with a 2-5 second delay.

Map the signal cables–often thinner wires in 1.5-2.5 mm² gauge–connecting sensors to the PLC or dedicated controller. Common signals include:

• Return water temperature: PT100 or thermocouple, usually labeled TE-101.
• Leaving water temperature: Same sensor type, label TE-102.
• Evaporator pressure: Transducer output 4-20mA, connected to AI-01.

Terminate all shielded cables at a single ground point to prevent signal noise.

Decode color-coding if the chart lacks explicit labels. Industry conventions:

• Red: Compressor or pump power feed (L1 phase).
• Yellow: Safety interlocks or alarm outputs.
• Green/Yellow: Ground–verify continuity to chassis.
• Black: Neutral or common return in DC circuits.
• Blue: Control voltage (24VAC/DC or 110VAC).

Never assume; measure with a multimeter before touching terminals. Reverse polarity on 24VDC control circuits can destroy relays.

Validate the diagram against physical connections. Use a continuity tester with the power off to confirm:

1. Compressor contactor coil activates when start button is pressed.
2. Safety switches break the circuit during fault conditions.
3. Fan relays engage 3-5 seconds after compressor start.
4. All sensor wiring matches the chart’s pin assignments.

Document any deviations–handwritten notes on the chart prevent future troubleshooting errors. Replace any frayed wires (minimum 600V insulation rating) and torque terminals to manufacturer specs–typically 6-8 Nm for M6 screws.
