Key Steps for Creating and Reading Electrical Schematic Diagrams

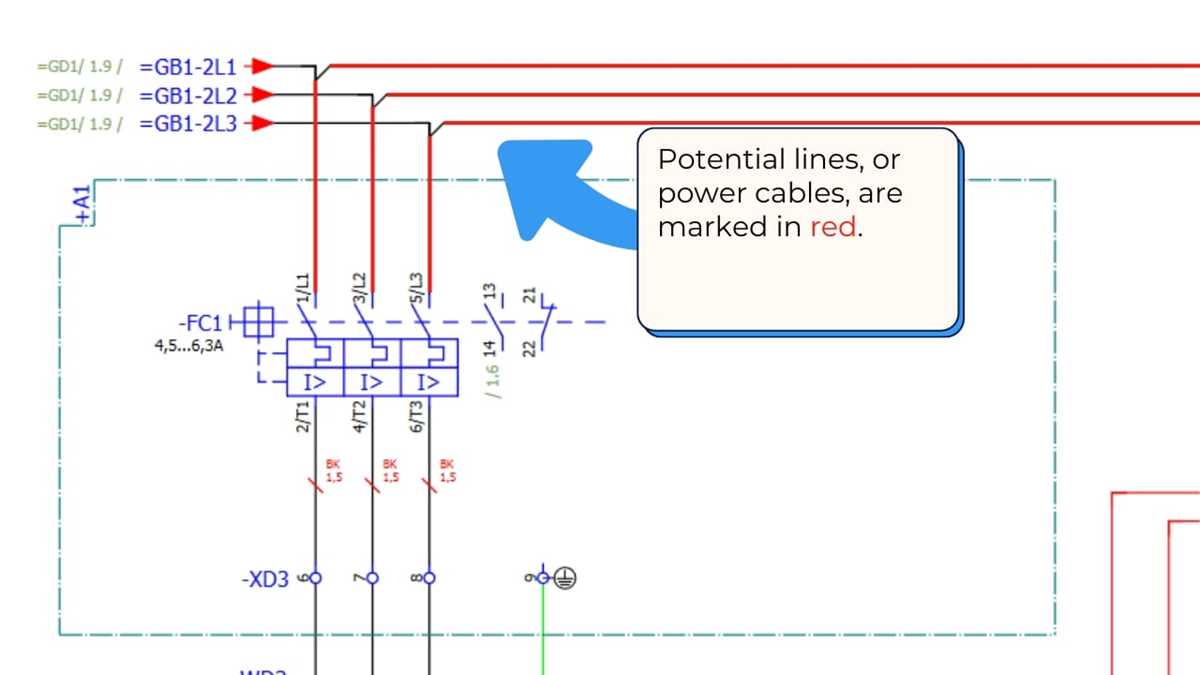

Begin by separating power and signal routes into distinct layers. Use red for high-voltage lines, blue for low-voltage, and green for grounding. Label every conductor with its function–L1, N, GND–and cross-reference with a bill of materials. Avoid overlapping traces unless shielding is explicitly required; even then, maintain a 2mm clearance for 24V circuits.

Place components in logical groups: transformers near the input, relays adjacent to actuators, and sensors close to the controller. Route control lines in straight segments with 90-degree bends only when unavoidable–diagonal routing reduces interference in dense layouts. Mark test points at each critical junction: power entry, fuse outputs, and microcontroller pins. Use through-hole vias for connections between layers, but limit them to essential links to prevent signal degradation.

For AC circuits, ensure neutral and ground never share a path after the main breaker. Use a star topology for grounding: dedicate a single point near the power source and branch outward. DC circuits benefit from daisy-chaining only if current draw is below 500mA; otherwise, employ a bus bar or terminal strip. Verify every connection with a multimeter before energizing–resistance should read

Document each revision with a timestamp and checksum-like identifier (e.g., V2.1_20240318_HASH). Store files in two formats: vector-based for editing and rasterized for archival. Include a checklist in the corner of the plan: fuses rated for 125% of expected load, insulation thickness per IEC 60364, and compatibility tables for mixed wire gauges (e.g., 14AWG stranded + 18AWG solid).

Building Electrical Plans: Step-by-Step Assembly

Start by labeling every connection point on your circuit layout with a unique identifier–use alphanumeric codes (e.g., “PWR-IN-01”, “GND-CPU-03”) rather than generic terms like “power” or “ground.” This eliminates ambiguity when referencing points during testing or troubleshooting. For multi-layer boards, assign distinct prefixes for each layer (e.g., “L1-“, “L2-“) to track path intersections without cross-referencing physical revisions.

Verify component compatibility before tracing paths. Check datasheets for pin functions, voltage tolerances, and current ratings–especially for MOSFETs, relays, and microcontrollers. A 5V logic output driving a 3.3V input without a level shifter will fail silently; use resistor dividers or dedicated ICs (e.g., TXB0104) for conversion. For high-current traces (above 500mA), increase copper width: 1oz copper requires 0.4mm width per ampere, while 2oz needs only 0.2mm.

• Route critical signals (clocks, reset lines) first–they demand shortest paths with minimal vias to reduce impedance.
• Separate analog and digital grounds at the power supply, connecting them at a single point (star topology) to prevent noise coupling.
• Use ferrite beads (e.g., BLM18PG121SN1) on data lines entering sensitive circuits to filter high-frequency interference.
• Leave 2-3mm clearance between adjacent traces carrying >24V to comply with IPC-2221 safety standards.

Testing and Validation Techniques

Before powering the assembly, measure continuity with a multimeter between all terminal pairs–look for unexpected shorts (below 0.5Ω) or open circuits (above 1MΩ). Use an oscilloscope to verify signal integrity: probe reset lines for clean transitions (no ringing above 10% of Vcc) and confirm clock signals match expected frequencies within ±5% tolerance. For I2C/UART busses, check pull-up resistor values (typically 2.2kΩ for 3.3V logic) to ensure rise times meet protocol specifications (e.g., I2C: max 1μs for 100kHz mode).

1. Log every test result with timestamps and observed values–include voltage, current, waveform screenshots, and environmental conditions (temperature/humidity).
2. For MCUs, verify bootloader functionality by attempting firmware upload via UART/ICSP before final enclosure assembly.
3. Stress-test power circuits by operating at 110% of maximum expected load for 30 minutes; monitor for thermal anomalies (use FLIR camera or touch–components should stay below 60°C).
4. Document failed tests separately, noting possible causes (e.g., “GPIO5 pulled low externally–check external switch connection”).

Common Pitfalls to Avoid

Never route traces underneath inductors, transformers, or switching regulators–induced currents will corrupt nearby signals. For printed circuit assemblies, use thermal relief pads on through-hole components to improve solderability, but avoid them on high-current pads (e.g., power MOSFET drain connections) to prevent overheating. When connecting off-board peripherals, add transient voltage suppression diodes (e.g., SMAJ5.0A) across relay coils and motor terminals to clamp voltage spikes exceeding the circuit’s rating.

How to Read Circuit Symbols in Electrical Blueprints

Begin by memorizing the five core symbols that appear in nearly every layout: resistors, capacitors, inductors, power sources, and switches. Resistors are depicted as zigzag lines or rectangles with an “R” label–standard values like 1kΩ or 470Ω will be adjacent. Capacitors appear as two parallel lines (non-polarized) or a curved line opposite a straight one (polarized); look for “C” and microfarad values (e.g., 100nF). Inductors resemble coiled springs or a series of loops with an “L” identifier. Power sources include batteries (two unequal parallel lines) and AC supplies (a circle with a sine wave). Switches vary but often show breakable contacts or toggles.

Trace current paths by following thin black lines–these represent conductive traces. Junctions, where lines intersect, indicate connections only if marked with a dot. If no dot appears, the lines cross without electrical contact. For integrated circuits, note the pin numbering: counterclockwise from the top-left (pin 1), often marked with a notch or dot. Diodes–including LEDs–have a triangle pointing toward a line; the triangle’s direction shows forward current flow. Transistors use three-line symbols: emitter (arrow), base (middle line), and collector (third line).

Decoding Labels and Annotations

Component labels follow strict conventions. Resistors use “R” plus a number (R1, R2), capacitors “C,” inductors “L,” and semiconductors “Q” (transistors) or “D” (diodes). Test points might appear as circles labeled “TP” or “X.” Ground symbols vary: a downward triangle for chassis ground, three descending lines for earth ground, and a horizontal line with descending branches for signal ground. Voltage rails are labeled with “+V” or “-V” followed by the value (e.g., +5V, -12V).

Examine notation for tolerance and ratings. Resistors include a percentage tolerance (5%, 1%) or a letter code (J=5%, K=10%). Capacitors specify voltage ratings (e.g., 25V, 50V) next to their values. Polarized components have a “+” or “-” sign; reversing them can damage circuits. Transformers show primary and secondary windings with labels like “PRI” and “SEC,” along with turns ratios (e.g., 1:1, 2:1). Fuses appear as rectangles with “F” and current ratings (e.g., 500mA).

Use color-coding as a secondary reference. Red traces typically indicate positive voltage, black or blue for ground, and green for signal returns. Component bodies often match schematic colors: red for resistors, blue for capacitors, yellow for inductors. In multilayer boards, dotted lines represent inner-layer traces. If symbols overlap or seem ambiguous, cross-reference with the bill of materials for exact part numbers–manufacturers like Texas Instruments or STMicroelectronics provide datasheets detailing pinouts and functionality.

Step-by-Step Process for Creating Precise Electrical Layouts

Begin by listing all components in the circuit with their exact specifications. Include part numbers, ratings (voltage, current, resistance), and physical dimensions if relevant. Use a structured table or spreadsheet to organize this data–later cross-reference it with the visual plan to avoid errors. Skipping this step leads to mismatches between symbols and real-world parts, causing costly revisions.

Select symbols that adhere to industry standards (IEC 60617 or IEEE 315) for consistency. Avoid custom symbols unless absolutely necessary; even then, document them thoroughly in a legend. Standard symbols reduce ambiguity and ensure anyone interpreting the layout understands connections instantly. For non-standard parts, create a symbol library with clear labels and notes.

Draw connections using straight lines with 90-degree bends–avoid diagonal or curved paths unless the circuit requires them (e.g., RF designs). Label every line with wire gauge, color codes, or signal names. If using multiple layers (e.g., power, ground, signals), assign distinct colors or line styles and include a key. Use thicker lines for high-current paths and thin lines for control or low-power signals.

Organizing the Layout for Clarity

• Place the power source at the top-left corner and ground references at the bottom. This convention mirrors natural flow, reducing cognitive load when tracing paths.
• Group related components (e.g., resistors, capacitors, ICs) into functional blocks. Leave ample spacing between blocks to insert annotations or test points later.
• Align components horizontally or vertically wherever possible. Misaligned elements create visual chaos and increase the risk of misreading the plan.
• Avoid crossing lines unless unavoidable. When intersections occur, use a small semicircle “jump” marker to indicate no electrical connection between wires.

Add textual annotations directly on the layout, not in separate documents. Include:

1. Reference designators (e.g., R1, C3, U2) on or near each component.
2. Critical values (e.g., “10kΩ,” “22µF”) with tolerances if necessary.
3. Net names for buses or critical nodes (e.g., “VCC,” “DATA_CLK”).
4. Special instructions (e.g., “Twist pairs for noise immunity,” “Keep traces

Verify the layout using a disciplined checklist. Simulate the circuit in a tool like LTspice or Ngspice to catch logical errors. Print the plan at 100% scale and overlay it on a physical prototype board to check for dimensional inaccuracies. Address discrepancies immediately–revisions on paper are cheaper than rework after assembly.

Archive the final version with a revision history. Include: date, author, changes made, and approvals. Store files in universal formats (PDF, DXF, Gerber) alongside native project files. Distribute only approved versions to avoid confusion. For collaborative projects, use version control systems (Git with LFS for binary files) to track changes and restore previous iterations if needed.
