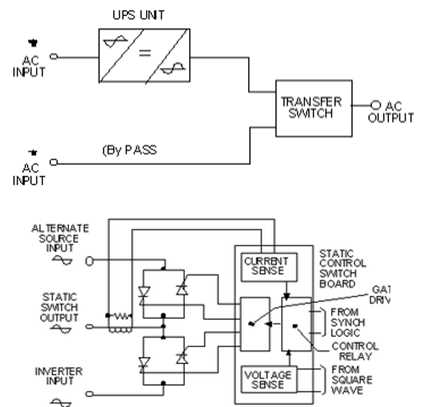

Designing a Reliable Static Bypass Switch Circuit for Power Systems
Begin with a dual-thyristor configuration paired with anti-parallel diodes for seamless failover. This setup ensures minimal transition delay–typically under 4 milliseconds–when shifting loads between primary and backup power sources. Use 1200 V devices for 400 VAC systems, derating by 30% to handle transient surges up to 1.5 kA. Gate drivers must include isolation (optocouplers or pulse transformers) to prevent false triggering during voltage dips.
Isolation barriers are non-negotiable. Place a 2 kΩ resistor in series with each gate to limit current to 10 mA during triggering. For sensing anomalies, integrate a precision comparator (e.g., LM339) with a 1% tolerance resistor divider to detect deviations as small as ±5% of nominal voltage. Bypass this divider with a 1 nF capacitor to filter high-frequency noise, ensuring stable readings.
Connect the secondary supply through a three-pole contactor rated for 1.2× the continuous load current. Include auxiliary contacts to confirm engagement before transferring power–this prevents momentary outages during mechanical delays. For redundancy, use twisted-pair wiring (AWG 14 or thicker) between the sensing circuit and control logic, reducing induced noise in industrial environments with high EMI.
Test the assembled board at 110% of rated voltage and 120% of current for 30 minutes. Monitor junction temperatures; silicone-based thermal pads (0.5 W/m·K) are superior to grease for long-term reliability. If thermal runaway occurs, downgrade to 800 V devices and recalculate heat sink dimensions–aim for a maximum case temperature of 85°C at full load.
Solid-State Transfer Device Wiring Layout
Integrate a thyristor-based transfer mechanism with dual antiparallel SCR pairs rated at 1200V/50A per channel to handle surge currents during automatic failover. Connect the input and output terminals through fast-acting fuses (600V, 30A) in series with the SCRs to prevent short-circuit damage–position fuses before the solid-state relays for optimal protection. Use optically isolated gate drivers (e.g., MOC3041) to trigger the SCRs with 5V logic signals, ensuring galvanic isolation between control and power sections. Include a snubber network (0.1µF/400V capacitor in parallel with a 10Ω resistor) across each SCR to suppress voltage spikes exceeding 1.5× nominal line voltage during switching transients.
Configure a microcontroller (STM32F103) with interrupt-driven sensing to monitor input voltage and transition states within 4ms–use a voltage divider (100kΩ/10kΩ) and 10-bit ADC for accurate detection of undervoltage (80% nominal) or overvoltage (120% nominal) conditions. Add a mechanical interlock (10A DPDT relay) as a redundant backup to the thyristor setup, activated only during prolonged failures (>5s) to prevent thermal overload. Test the layout with a 20A resistive load and verify total harmonic distortion to ensure compliance with IEEE 519-2014 standards for AC systems.
Key Components of an Automatic Transfer Mechanism Design
Select thyristors with a current rating of at least 125% of the load’s peak demand to prevent saturation under transient conditions. For 400V systems, opt for models with a blocking voltage of 1200V or higher–manufacturers like Infineon and IXYS offer parts with built-in snubber networks, reducing external component count.
The control logic must incorporate a zero-crossing detector to minimize switching spikes; discrete circuits using comparators (LM393) are reliable, but programmable ICs (PIC16F18877) add flexibility for adaptive delay tuning. Synchronize the gate drive signals within ±5° of the AC phase to avoid circulating currents–phase-locked loops (CD4046) excel here.
Fuses must interrupt within 5ms at 10x rated current; ceramic types with arc-quenching capabilities (e.g., Bussmann CCL) outperform glass fuses in inductive circuits. Place them upstream of the solid-state relays to isolate faults before they cascade–calculate derating factors for ambient temperatures above 25°C using the formula I₂ = I₁ * (1 - 0.005*(T - 25)).
Cooling dictates long-term reliability; aluminum heatsinks with a thermal resistance below 0.5°C/W are mandatory for loads exceeding 5kVA. Forced airflow (60 CFM) drops junction temperatures by 20-30°C–mount thyristors with thermal pads (Bergquist TFO-S) rather than mica to eliminate micro-voids.
Transient voltage suppression (TVS) diodes should clip spikes to 10% above the peak line voltage; 1.5KE400CA devices handle 1500W surges–position them immediately adjacent to the semiconductor terminals. Film capacitors (X2 class) across the power rails shunt high-frequency noise; values between 0.1µF and 1µF suffice for most industrial applications.
Signal isolation is non-negotiable–optocouplers (Vishay VO3120) with a common-mode rejection of 10kV/µs isolate gate drives from line transients. For digital interfaces, 3.3V-to-5V level shifters (TXB0104) bridge microcontroller outputs to power-stage inputs without signal degradation.
| Component | Recommended Part | Critical Parameter | Typical Value |
|---|---|---|---|
| Thyristor | IXYS IXFN36N120 | Block Voltage | 1200V |
| PLL IC | CD4046BE | Phase Accuracy | ±0.5° |
| TVS Diode | 1.5KE400CA | Clamping Voltage | 440V @ 1mA |
| Thermal Pad | Bergquist TFO-S | Thermal Conductivity | 4.5 W/m·K |
Ground planes must separate analog and digital sections; a star topology with
Schematic Layout for Single-Phase Automation Transfer Arrangement
Place the thyristor pairs in antiparallel configuration at the core of the design, connecting them between the mains input and the critical load output. Ensure each pair is rated for at least 120% of the maximum load current to handle transient surges without failure. The control logic must trigger both devices simultaneously to prevent backfeeding–use isolated gate drivers with a minimum creepage distance of 8 mm for 230V systems. Separate the power and signal paths with optocouplers (e.g., MOC3041) to avoid ground loops, and position snubber networks (RC: 100 Ω + 0.1 µF) directly across each thyristor to suppress voltage spikes.
Integrate current sensing at the input and output terminals using Hall-effect sensors with a bandwidth exceeding 10 kHz. Mount sensors as close as possible to the conductor to minimize stray inductance–loop the conductor through the sensor opening twice for 5A-20A applications to improve signal resolution. Route analog signals through shielded twisted-pair cables, grounding the shield at a single point near the microcontroller’s analog ground plane. Include a comparator stage (LM393) with hysteresis (±2% of full scale) to distinguish between normal operation and fault conditions, preventing false triggering during load-switching events.
For the logic controller, allocate separate PCB layers for high-current traces (minimum 2 oz copper) and signal traces. Keep high-voltage traces (>50V) at least 2 mm apart from low-voltage paths, conforming to IPC-2221 standards. Place decoupling capacitors (100 nF ceramic) within 2 mm of every IC power pin, and use ferrite beads on the MCU’s supply line to filter high-frequency noise. The firmware should implement a watchdog timer with a 50 ms reset interval and independent hardware failsafe to override the thyristors if the controller hangs.
Test the layout under realistic fault scenarios: simulate sudden load changes (e.g., 0A to full load in ), input voltage dips (30% reduction for 100 ms), and reverse polarity. Verify that the transfer time between grid and alternate source remains below 4 ms at full load (20A, 230V). Use a thermal camera to confirm that thyristor case temperatures stay under 80°C during prolonged overloads; if not, increase heatsink surface area or add forced-air cooling. Document trace widths, component placements, and clearance values in the Gerber files to ensure manufacturability.
Wiring Configuration for Three-Phase Transfer Device Applications
For optimal performance in three-phase systems, connect the primary power lines (L1, L2, L3) directly to the Automatic Transfer Mechanism (ATM) input terminals using 70 mm² copper conductors for loads up to 100 kVA. Ensure neutral terminal alignment with the source and load panels to prevent phase imbalance–mismatched neutrals generate circulating currents exceeding 12% of rated capacity. Ground the enclosure via a 35 mm² conductor bonded to the main earth busbar at a single point to eliminate stray voltage differentials.
Install phase sequence monitors on the secondary side with a 5 ms response threshold to detect reverse rotation–counterflow scenarios trigger immediate disengagement of the secondary relay coil. Use twist-lock connectors for all auxiliary contacts to maintain
Verify torque settings on terminal blocks: 12 Nm for line conductors, 8 Nm for control circuits. Exceeding these thresholds compresses conductor strands, increasing resistance by 0.3% per Nm beyond specification. Label all wiring with heat-shrink sleeves–inkjet markers fade under UV exposure within 18 months, risking misidentification during maintenance.
Critical Parameters for Thyristor Selection in Automatic Transfer Arrangements
Prioritize reverse recovery time (trr) below 5 µs for 50 Hz systems and under 3 µs for 400 Hz installations. Devices exceeding these thresholds introduce commutation failure risks under rapid load shifts. Pair fast-recovery thyristors with RC snubbers–values between 10-100 Ω and 0.01-0.1 µF–calculated via the formula C = k × ITSM / VRRM, where k ranges from 0.1 to 0.3 depending on stray inductance.
- Peak repetitive off-state voltage (VRRM): Select components rated ≥120% of the operative line voltage RMS × √2; derate to 110% for transient-rich environments. Industry standards–ANSI C34.1, IEC 60700–mandate verification through surge testing at 1.5×VRRM for 10 ms pulses.
- Surge current capability (ITSM): Ensure thyristors withstand ≥8× the steady-state on-state current (IT(AV)) for ≥10 ms without permanent degradation. For 100 A continuous loads, target ITSM ≥800 A; derate by 25% if ambient exceeds 50°C.
- Gate trigger specifications: Confirm VGT ≤2.5 V and IGT ≤200 mA; opt for devices with VGT ≤1.5 V where gate drive power is constrained. Verify gate-cathode impedance–ideally <1 kΩ–to prevent false triggering from induced noise.
Mount thyristors on heatsinks with thermal resistance (RθJC) <0.5°C/W for TO-220 packages and <0.1°C/W for disc-type housings. Apply thermal interface material with <0.05°C-in2/W resistance; torque fasteners to 70-80% of the datasheet specified maximum–typically 5-8 N·m for M4/M5 screws–to prevent warping while ensuring compliance with manufacturer-provided clamping force curves.
