Complete 2002 Nissan Sentra Electrical Wiring Diagram Guide and Schematics

Locate the fuse box under the dashboard on the driver’s side–the primary access point for most circuit connections in this vehicle variant. Remove the cover by pressing the release tabs and cross-reference the printed labels inside with the colored wires exiting each slot. Pink, blue, and brown leads correspond to specific functions: ignition feed, headlight switch input, and ECM ground respectively. Verify continuity with a multimeter before assuming a blown fuse; corrosion at the terminal clips is a frequent failure point.

Trace engine bay wiring harnesses from the firewall to the alternator and starter motor. The orange cable (thick gauge) delivers charging current; any fraying or exposed copper demands immediate replacement with OEM-spec cable to prevent fire hazards. Sensor circuits–particularly the MAF, coolant temperature, and oxygen probes–use twisted pair wiring with shielding to minimize interference. Bypassing this shielding with aftermarket splices disrupts fuel trim calculations and triggers persistent ECM error codes.

Interior dash illumination relies on gridded circuits embedded in the instrument cluster. If gauges flicker or fail, disassemble the cluster faceplate carefully; brittle solder joints at the backlight resistor array commonly crack after prolonged heat cycles. Reflow suspect joints with rosin-core solder rated for automotive applications–avoid high-wattage irons that risk melting adjacent plastic tabs.

ANTI-theft systems integrate into the ignition cylinder via a transponder coil. Tampering with the wiring ring around the cylinder without reprogramming the ECM immobilizes the engine. Use the manufacturer-provided scan tool to sync new keys; generic OBD-II adapters lack the proprietary protocols needed for security recoding.

Ground leads for audio components terminate at a dedicated bolt near the rear quarter panel. Loose connections manifest as alternator whine or amplifier shutoff under heavy bass loads. Clean all grounding surfaces with dielectric grease after tightening–raw metal contacts oxidize rapidly in humid climates.

For HVAC controls, follow the green/white stripe wire from the blower motor resistor to the cabin fan switch assembly. Resistance readings should drop incrementally across each speed setting; excessive resistance indicates a degraded resistor pack behind the glovebox. Replace the entire module if individual resistors are soldered–single-component repairs fail prematurely.

Electrical Schematic Reference for GA14DE Sedan Models

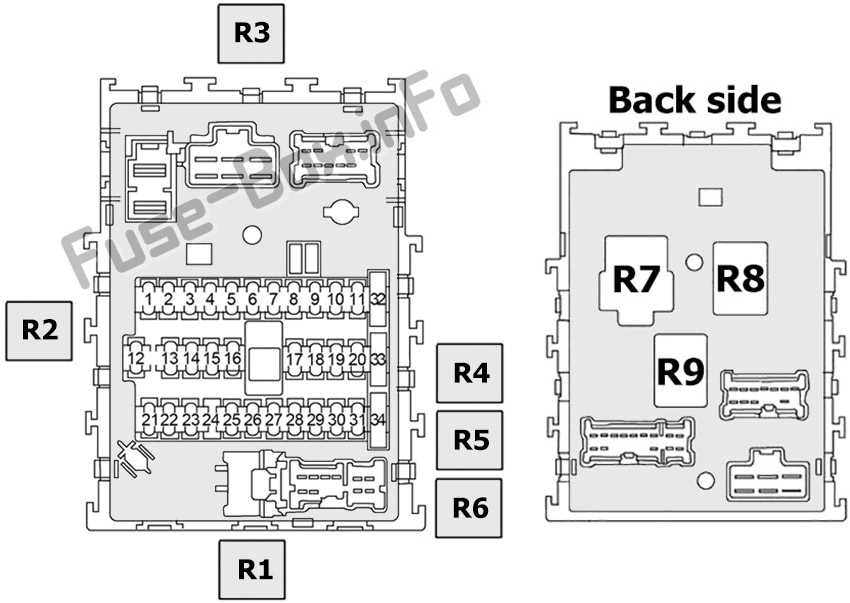

Locate the main fuse block under the dashboard on the driver’s side–remove the lower panel by releasing two 10mm screws to expose relays and blade fuses. Label each connector with masking tape before unplugging to prevent cross-wiring during reassembly.

• Pinout colors follow JIS standards: solid red (B+) at terminals A1–A3, solid black (ground) at B10–B12, stripe patterns denote signal lines (e.g., yellow-black = starter relay control).
• Multi-meter settings: 20V DC for power checks, 200Ω for sensor resistances; probe connector backs without piercing insulation.
• ECM harness connector C101 (16-pin white) requires a breakout adapter for safe probing–never bridge pins without isolating battery ground first.

Critical circuit paths include:

1. Ignition coil power: follows thick purple wire from ignition switch through 30A fuse (#15) to coil terminals; voltage drop above 0.3V indicates corroded splice near the strut tower.
2. Fuel pump relay activation: triggered by ECM pin C101-1 (gray-red stripe) via 1.5 seconds pulse at each key cycle; failure mode often tracks to corroded ground at G401 near the rear seatbelt anchor.
3. Neutral safety switch: wired through a green-brown stripe to starter solenoid; continuity test requires shifting lever to neutral–open circuit confirms misaligned transmission linkage.

Common failure zones cluster under the intake manifold–exhaust heat accelerates wire brittle cracking on MAF and TPS harnesses. Re-splice damaged sections with TXL 14-gauge equivalent, using adhesive-lined heat shrink over joints; avoid electrical tape for engine-bay applications.

Air conditioning compressor engagement relies on a three-step interlock:

• Pressure switch (high/low) confirms refrigerant charge before activating.
• Throttle position sensor input above 20% pedal angle blocks engagement to prevent stalling.
• ECM relay coil ground (black-blue stripe) completes path to compressor clutch coil–ohm test should read 3.2–4.8Ω; values outside range indicate internal short.

For lighting circuits, headlamp bulbs run high-current feeds directly from the under-hood junction box (IPDM); the 5-pin day-time running lamp module uses a distinct purple-white signal wire–tracing this through the firewall rubber grommet prevents accidental fusebox overload when retrofitting HID kits.

Blower motor resistor block located behind the glove box controls speeds 1–3; failure typically involves the third speed resistor burning open–replace the entire assembly (part #27215-4M400) rather than attempting solder repairs, as the ceramic substrate fractures easily. Always verify connector C55 pinout matches wire colors before reattaching: solid orange for +12V, graded gray stripes for variable resistance outputs.

Finding the Complete Electrical Blueprint for Your Early 2000s Compact Sedan

Start with the manufacturer’s official repair manual–service guides from Alldata or Mitchell1 contain verified schematics specific to the model’s trim and engine configuration. Nissan’s original documentation labels connectors with precise codes (e.g., “M33” for the instrument cluster harness), which third-party sources often omit. Locate the harness routing section first; it maps where each wire bundle exits the dashboard, doors, and engine bay, reducing guesswork if tracing faults.

Check forums dedicated to compact Japanese cars–enthusiast sites like NissanClub or Sentra.net archive user-uploaded scans of OEM diagrams that dealers once provided. Filter posts by year grouping to find scans marked “B15 chassis” (the internal platform code for this generation). Users often annotate these with color corrections or splice notes for aftermarket installs, saving hours of verification.

If digital copies are unavailable, visit a salvage yard specializing in late-90s to early-2000s small sedans. The fusebox cover typically prints the diagram’s legend, and disconnecting the main harness plug reveals wire colors and termination points directly. Label each exposed terminal with masking tape immediately to avoid misconnection during reassembly.

Decoding Color Standards in the Compact Sedan’s Electrical Blueprint

Begin by locating the main harness connector labeled “M1” near the underdash fuse box. The solid black wire (BLK) functions as the primary ground reference–trace its path first when diagnosing voltage drops. Pair this with the white/black stripe (WHT/BLK) circuit, which carries switched 12V ignition power; resistance above 0.3 ohms between these two points indicates corrosion at splice points J-37 or J-38 behind the left kick panel. For rapid continuity checks, use a multimeter set to the 200Ω range–expected readings should fall between 0.1-0.5 ohms on intact circuits, excluding wiring runs exceeding 6 meters where minor increases are normal.

Chassis and Interior Circuit Variations

Shift focus to the blue/red stripe (BLU/RED) wires feeding the instrument cluster illumination. Unlike the yellow/red stripe (YEL/RED) circuits powering headlamps, these maintain a lower gauge (20 AWG) and terminate at pin 12 of the combination meter connector. Verify proper operation by measuring voltage at the fuse block terminal: 12.0-14.5V DC with lights off, dropping to 0.3-0.7V when activated (pulse-width modulated dimming). For rear lighting arrays, note the pink/blue stripe (PNK/BLU) cables–these handle brake light signals and share grounding with the purple/black stripe (PPL/BLK) backup light circuit at chassis ground G-101, located beneath the spare tire well.

Critical safety circuits use distinctive dual-stripe patterns. The light green/black stripe (LT GRN/BLK) couples the SRS control module’s diagnostic line; severing this wire without deploying a resistor dummy (3.3kΩ ±5%) triggers permanent airbag fault codes. Similarly, the brown/white stripe (BRN/WHT) cables integrate the ABS sensor network. These demand shielded routing–excessive skew error (over ±0.8V) between paired sensors (e.g., wheel speed differentials) suggests damaged shielding, often from incorrectly routed aftermarket audio cables near the rear quarter panels. For splice repairs, crimp connectors must meet SAE J1676 Class T standards; solder-only connections risk fatigue under thermal cycling.

Identify engine bay harness segments by their cross-linked polyolefin insulation–purple/orange stripe (PPL/ORG) marks the fuel pump relay trigger, while orange/green stripe (ORG/GRN) denotes OBD-II port pins 4/5 (factory diagnostic lines). When probing these, ensure ignition is off; parasitic loads above 30mA necessitate checking for shorted actuators (common at the evap purge valve). For auxiliary equipment retrofits, avoid tapping into the dark blue/yellow stripe (DK BLU/YEL) circuit–this 10 AWG feed powers the alternator’s voltage regulator and carries up to 120A peak. Instead, utilize the unused accessory slot (fuse #32, 10A), monitored via the light blue/orange stripe (LT BLU/ORG) wire at the junction box near the glove compartment.
