Understanding TV Circuit Diagrams How They Work and Key Components
Begin by locating the power supply section on the board layout–labeled PSU or SMPS. Trace the AC input line through the fuse, bridge rectifier, and smoothing capacitors to confirm voltage conversion stages. Check for 24V, 12V, and 5V rails feeding downstream components. If voltages are absent, measure resistance across the primary coil of the flyback transformer and compare readings to the manufacturer’s reference values.
Identify the horizontal and vertical deflection circuits by following thick red lines leading to the yoke connectors. Test the horizontal output transistor (H.O.T.) for continuity between collector and emitter while disconnected. Replace if leakage exceeds 0.5mA. For vertical issues, measure the waveform at the IC output pins–expect a sawtooth pattern at 50Hz or 60Hz depending on the region.

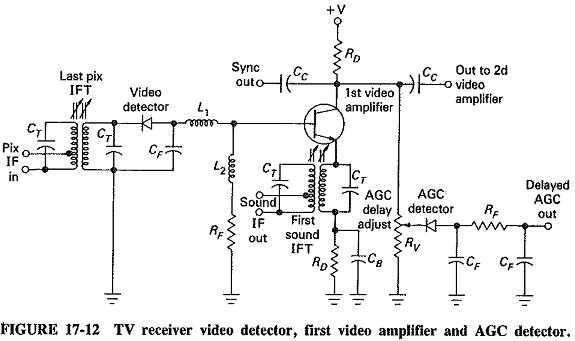

Examine the tuner and IF stages by probing the RF input and SAW filter outputs. Weak signals often point to faulty PLL voltage on the varactor diodes; verify 0-33V tuning voltage at the tuner’s VT pin. For video distortion, inspect the chroma decoder section–look for 3.58MHz or 4.43MHz crystal oscillators and confirm their output amplitude does not drop below 500mV.
Use an oscilloscope to verify the ABL (Automatic Brightness Limiter) circuitry. Check for correct waveform shapes at the CRT driver IC inputs–expect pulsed signals adjusting cathode voltage. If screen brightness flickers, measure the EHT (Extra High Tension) voltage at the flyback transformer’s focus pack; deviations above ±5% indicate faulty components.
Isolate the audio path by tracking the signal from the IF detector to the amplifier IC. Test the mute circuit by measuring voltage at the mute transistor base–expect 0V during normal operation. If audio is distorted, bypass the coupling capacitors and check for DC offset at the speaker terminals; values above ±50mV suggest failed electrolytics.
Understanding TV Circuit Layouts for Troubleshooting
Start by locating the power supply section on the board–typically identifiable by large capacitors and a transformer. Measure the output voltage at the main filter capacitor (usually 1000µF or larger) against the TV’s service manual; deviations above ±5% indicate a failing rectifier or voltage regulator. Replace bulging or leaky capacitors immediately, even if the TV powers on, as they cause intermittent failures and signal distortion.
Trace the video signal path from the tuner to the T-Con (timing controller) board using a multimeter in continuity mode. Check for broken solder joints on connectors, especially near the LVDS cable interface–these are common failure points in flat-panel TVs. If the screen shows vertical lines or flickering, bypass the cable with a temporary jumper to confirm a faulty LVDS or eDP connection.
Isolate horizontal or vertical sync issues by probing the deflection IC or chipset. A hot IC without input signal suggests a shorted output stage; replace it with an exact match (e.g., STV9302 for CRT deflection). For LCD/LED TVs, verify the gamma correction and backlight driver voltages–most drivers output 24V for LED strips, and a reading below 20V indicates a failing inverter or open-circuit LED string.
For no-sound symptoms, test the audio amplifier IC (e.g., TDA2030, TA8216) for DC voltage at the output pins. Absence of signal coupled with excessive heat points to a blown IC, often caused by shorted speaker coils. Replace the IC and check the accompanying mute circuit transistors, commonly SMD types like MMBT3904, which fail due to power surges.
When replacing components, match exact part numbers–generic substitutes risk overheating or incorrect signal timing. Use a hot-air rework station for surface-mount components; apply flux to prevent bridging. Keep a schematic of the specific TV model handy (e.g., from Electro-Tech-Online or manufacturer archives) to cross-reference resistor values and transistor configurations.
For persistent ghosting or color bleeding, recalibrate the color decoder IC (e.g., TDA6111 for CRT RGB outputs). Adjust the voltage at the screen grid pins in 0.1V increments until image clarity improves. If the issue persists, inspect the CRT socket for carbon tracking or replace the tube if phosphor burn-in is visible under a flashlight test.
Key Components of a CRT TV Circuit Layout
Locate the flyback transformer (LOPT) immediately–it’s the tall, cylindrical part often mounted near the CRT’s neck. This component generates the high-voltage supply (20–35 kV) for the electron guns and maintains the anode potential. Check for cracked insulation or bulging caps; these failures cause arcing, visible as bright blue flashes inside the tube or audible hissing. Replace defective LOPTs with exact model-matched units–generic substitutes won’t regulate voltage correctly, risking screen burn or horizontal collapse.
Identify horizontal and vertical deflection coils wound around the CRT’s yoke. The horizontal coil (thicker wire, 3–7 turns) drives the 15.6 kHz scanning current, while the vertical coil (thinner, 200–500 turns) handles the 50/60 Hz frame sweep. Measure coil resistance: 1–3 Ω for horizontal, 10–30 Ω for vertical. Out-of-spec readings indicate shorted turns, causing trapezoidal distortion or single-line collapse. Rewind or replace yokes as a unit–individual coils are not user-serviceable.
- Power supply board: Filter capacitors (220–470 µF/250–400V) smooth the rectified mains; bulging or leaky caps drop rail voltages, dimming the screen or causing horizontal shrinkage. Test with ESR meter–values above 3 Ω warrant replacement. Snubber capacitors (1–4.7 nF/1.6–2 kV) across switching transistors suppress voltage spikes; cracked or open snubbers destroy horizontal output stages.
- Video amplifier: Three discrete transistors (or IC) drive the CRT cathodes (R, G, B) at 60–120V. Gain is set by emitter resistors (typically 47–100 Ω); increased resistance raises contrast but clips whites. Replace transistors in matched sets (e.g., 2SC2688) to avoid color push. Adjust screen grid (G2) potentiometer only after verifying cathode voltages–misadjustment accelerates phosphor burn.
- Synchronization section: The 3.58 MHz (NTSC) or 4.43 MHz (PAL) crystal feeds the color decoder. Drift causes hue shifts or lack of color lock; replace with ±20 ppm stability crystals. Horizontal oscillator IC (e.g., TDA1180) generates the 15.6 kHz pulse–failed ICs manifest as no sync or shrunken horizontal lines. Check for cracked solder joints on oscillator coils (adjustable slugs).
Examine the CRT socket and neck board for carbonized traces or cold solder joints. The socket’s 12-pin configuration delivers heater (6.3V AC), focus (0–1 kV), and G2 (200–500V) voltages. Failed heater voltage dims the screen; check with multimeter in diode mode–verified connections should read
Safety resistors (2–5 W fusible types) protect critical paths–identify by their physically larger size and color-coded bands (red/gold for 1 kΩ, orange/white for 1.5 kΩ). Failed resistors open-circuit, often without visual damage; test in-circuit with ohmmeter (expected: ±10% tolerance). Bypass capacitors (0.1–0.47 µF/250V) across mains inputs suppress RFI–shorted caps trip fuses or overheat SMPS. Replace with X/Y safety-rated types only; generic capacitors cause chassis leakage or fire hazards under fault conditions.
How to Read Power Supply Section in LCD TV Circuit Layouts
Locate the standby power segment first. It typically includes a small transformer or primary-side regulator near the AC input. Check for markings like “STBY,” “5VSB,” or “VCC” on components–these identify the standby voltage rail. The standby IC or transistor will be labeled “Q” or “U” followed by a number, often connected to a diode bridge or switching element. Trace the path from the AC inlet through a fuse, then to a varistor (MOV), and into the rectifier.
Identify the main switching stage next. Look for the power MOSFET or IGBT (marked “Q” with high voltage ratings like 600V or 800V) and the PWM controller IC. Common IC series include TNY (Power Integrations), FA (Freescale), or FAN (Fairchild). The IC will have pins labeled “DRAIN,” “SOURCE,” “FB,” and “GND”–these indicate connections to the transformer primary winding, feedback loop, and ground. The transformer will be a multi-winding component with labels like “PRI” (primary) and “SEC” (secondary).
Examine the feedback loop components. The optocoupler (usually a 4-pin or 6-pin device marked “PC” or “IC”) isolates the primary side from the secondary. Its output connects to the PWM controller’s feedback pin (often “FB”). Nearby resistors (e.g., “Rfb”) and capacitors (e.g., “Cfb”) form a voltage divider or filtering network. Check for a TL431 or equivalent shunt regulator on the secondary side–it sets the output voltage by adjusting the optocoupler’s current.
Inspect secondary rectification. Each output rail (e.g., 24V, 12V, 5V) has its own diode (often a Schottky marked “D” with a high current rating) and smoothing capacitors (labeled “C” with values like 1000μF/35V). Look for series pass transistors or synchronous rectifiers (marked “Q” or “SR”)–these replace diodes in modern designs to improve efficiency. The rails will feed into point-of-load regulators or directly to the mainboard via connectors labeled “CN” or “J” with pinouts like “24V,” “GND,” “BL_ON.”
Verify protection circuits. Overvoltage protection (OVP) uses zener diodes or dedicated ICs monitoring secondary rails. Overcurrent protection (OCP) relies on current-sense resistors (low-value, e.g., 0.1Ω) near the MOSFET source or transformer primary. Short-circuit protection engages if output voltages drop below thresholds–check for components like “SCP” or “OCP” near the PWM controller.
Key Component Codes and Their Roles
| Marking | Component Type | Typical Function |
|---|---|---|
| TNY2xx, TNY3xx | PWM Controller IC | Primary-side switching control |
| PC817, PS2561 | Optocoupler | Isolated feedback from secondary to primary |
| TL431 | Shunt Regulator | Precision voltage reference for feedback |
| SB560, HER306 | Schottky Diode | Secondary-side rectification |
| FQU11N60C | Power MOSFET | Primary switching (600V/11A rating) |
Decode transformer winding labels. Primary windings (“P1,” “P2”) connect to the MOSFET and ground. Secondary windings (“S1,” “S2”) correspond to output rails–check for dots indicating phase polarity. Auxiliary windings (“AUX”) often supply bias voltages for the PWM controller or standby circuits. Measure DC resistance with a multimeter (e.g., primary: 0.5–2Ω, secondary: 0.1–0.5Ω) to detect open or shorted coils.
Trace the AC path from inlet to rectifier. The fuse (marked “F” or “FUSE”) sits immediately after the power cord input. A thermistor (NTC) may follow, limiting inrush current. The rectifier bridge (4 diodes or a single-package component) converts AC to DC–the output should measure ≈300V relative to ground. Film capacitors (“CX,” “CY”) filter noise, while bulk capacitors (“CE”) smooth the DC bus voltage. Check for ESR on electrolytic caps (values 1Ω indicates failure).
Cross-reference IC datasheets for pinouts. The PWM controller’s enable pin (“EN,” “ON/OFF”) may connect to a standby signal from the mainboard–a missing or low signal keeps the TV in standby mode. The feedback pin (“FB”) receives voltage from the optocoupler; if this path is open, the output will rise until OVP triggers. Always compare measured rail voltages with the board’s silk-screened labels–discrepancies point to failed diodes, capacitors, or ICs.
