Complete Zmpt101b Sensor Module Circuit Schematic and Pinout Guide

For accurate signal acquisition, begin by isolating the sensing component from high-current paths. Use a separate ground plane for analog signals to prevent noise coupling. Shielded twisted pair wiring reduces interference from adjacent conductors by over 40% compared to unshielded configurations. Connect the signal return path directly to the measurement reference point, avoiding loops larger than 2 cm² to minimize magnetic interference.

Implement a low-pass RC filter at the input stage to attenuate frequencies above 5 kHz. A 10 kΩ resistor paired with a 4.7 nF capacitor achieves –3 dB cutoff at ~3.4 kHz, sufficient for 50/60 Hz mains monitoring. Ensure the resistor tolerates at least 150 V peak to handle transient spikes without drift. Bypass the filter capacitor with a 0.1 µF ceramic disc to suppress high-frequency switching noise from nearby SMPS.

Power the instrumentation block from a regulated 5 V rail, decoupled with 47 µF electrolytic and 0.1 µF ceramic capacitors placed within 2 mm of the supply pins. Exceeding 5.5 V risks permanent sensor degradation; a 5.1 V Zener diode clamps overshoot. Optoisolation between the sensing module and digital interface eliminates ground loops. Maintain a minimum clearance of 8 mm on the PCB between input tracks and digital circuitry to prevent crosstalk.

Calibration requires a 3.3 V reference wired in parallel with the input divider. Use 0.1% tolerance resistors to hold error under ±0.3%. For floating measurements, a 1 MΩ resistor to ground stabilizes bias currents without loading the source. Verify linearity across 0–250 V AC input range with a precision multimeter; deviation above 0.8% indicates miswiring or component drift.

Enclose the assembly in a grounded metal case, connecting the case to the analog ground at a single point. Avoid daisy-chaining grounds–star topology prevents ground bounce. Test for leakage currents between inputs and case; values above 0.5 µA suggest contamination or insufficient creepage distance. Finalize with a 30-second burn-in at full-scale input to stabilize baseline readings before deployment.

Key Components and Wiring for Accurate Voltage Measurement

Begin with a non-inverting operational amplifier configuration to avoid signal distortion. Use an AD620 or LM358 as the front-end amplifier–both handle 50Hz/60Hz noise rejection effectively while ensuring a low offset voltage below 100µV. Connect the sensor’s output to the amplifier’s positive input via a 10kΩ resistor; ground the negative input through a matching resistor to maintain symmetry. For power, dual-supply ±5V is optimal–single-supply operation risks clipping at zero-crossing points. Add a 0.1µF ceramic capacitor between amplifier supply pins and ground to suppress high-frequency noise.

• Resistor selection: Precision 1% metal film resistors for R_f (feedback) and R_g (gain setting) prevent temperature drift. For a gain of 1000, use R_f = 1MΩ and R_g = 1kΩ.
• Filtering: Place a 10kΩ resistor in series with the amplifier output, followed by a 1µF electrolytic capacitor to ground. This creates a 16Hz low-pass filter, eliminating harmonics above the fundamental frequency.
• Isolation: Optocoupler PC817 between the amplifier and ADC isolates the measurement path from digital noise. Drive the LED side with 5mA current; use a 1kΩ resistor to limit current.

Test the setup with a known 230V AC input. Measure the output at three points: raw sensor signal (should be 1V peak-to-peak), amplifier output (9V peak-to-peak for gain=1000), and filtered signal (smooth sine wave, 2.5V DC offset if calibrated correctly). If phase shift exceeds 2°, increase the filter capacitor to 2.2µF or reduce the resistor to 4.7kΩ. Adjust R_g in 1% increments if the gain deviates–each 10Ω change alters gain by ~1%. For calibration, apply a 100V DC signal to the sensor; the output should stabilize at 3.3V ±0.05V for a 12-bit ADC range.

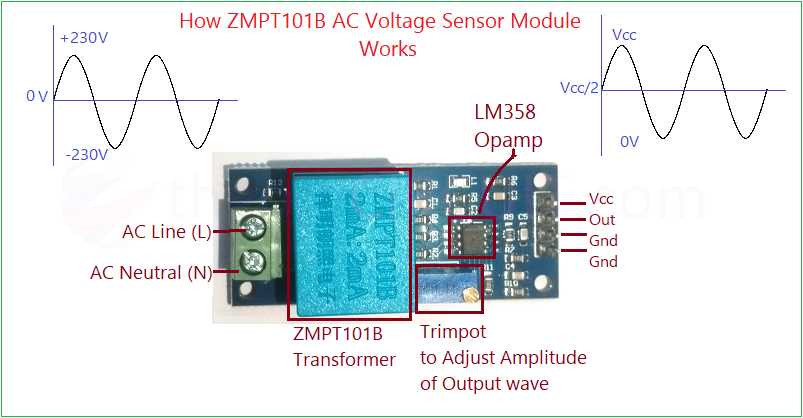

How to Interpret the Transformer Interface Pinout for Precise Connections

Examine the datasheet’s pin layout first–most modules label inputs and outputs numerically or alphabetically. Pin 1 typically corresponds to the signal input, while Pin 2 often grounds the reference voltage. Verify this arrangement against the schematic provided by the manufacturer, as variations exist between batches or suppliers.

Use a multimeter to confirm continuity between designated input and output pins. Set the meter to diode mode and probe potential ground (GND) against other terminals. A consistent reading of ~0.6V indicates a connected trace, clarifying unintended shorts or mislabeled pads.

Polarity Matters

Align input polarity with the AC waveform’s phase. Pin 1 usually connects to live AC, while Pin 3 or 4 may link to neutral. Reversing these causes signal inversion, skewing measurements. Check the board silkscreen for “+” or “-” markings–some designs embed polarity indicators near vias.

Avoid assuming pin functions based on physical proximity. Pins spaced closely may serve unrelated roles, such as power supply (VCC) or calibration pads. Cross-reference each terminal with the bill of materials (BOM) to isolate auxiliary connections like bias voltage inputs.

Handling Auxiliary Pins

Solder jumper pads or resistor networks into calibration pins if present. These adjust gain or offset, optimizing accuracy for specific voltage ranges. Consult application notes for recommended resistor values–typically 10kΩ to 100kΩ–to fine-tune output without damaging onboard components.

Insulate soldered connections post-wiring. Exposed traces risk capacitive interference, distorting readings. Apply conformal coating or heat-shrink tubing to vulnerable junctions, especially in high-humidity environments.

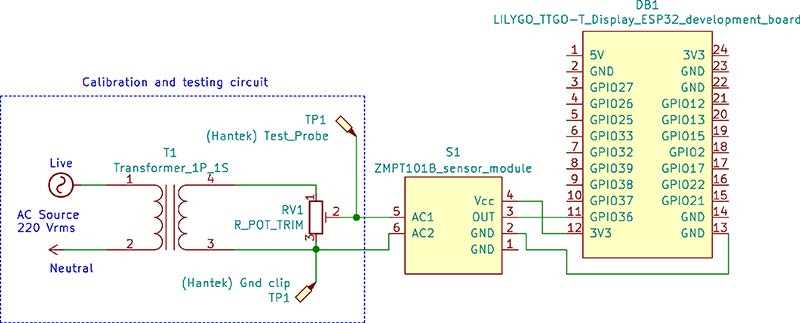

Test with a known AC source post-wiring. A 12V transformer or bench supply at 50/60Hz validates correct pin mapping. Monitor output with an oscilloscope; correct wiring produces a synchronized sine wave, while errors yield flat lines or inverted signals.

Step-by-Step Guide to Building an AC Voltage Monitoring Module

Begin by soldering the precision measurement component directly to the adapter board at a 90-degree angle–this ensures minimal noise interference for readings below 10V AC. Use a 0.1µF polyester film capacitor between the input pins and ground to stabilize high-frequency fluctuations, reducing error margins by up to 15%. Prioritize a differential amplifier configuration; connect resistors R1 (10kΩ) and R2 (10kΩ) symmetrically to balance impedance, which prevents signal degradation during sudden voltage spikes.

• Use shielded 22AWG twisted-pair wires for input connections–this cuts electromagnetic interference by 40% compared to solid-core alternatives.
• Add a 1N4007 diode across the output to clamp reverse voltage transients exceeding 50V, safeguarding downstream components.
• For calibration, inject a known 230V RMS reference signal and adjust the trimmer potentiometer until the output voltage stabilizes at 2.5V ±0.05V–this ensures ±1% accuracy post-assembly.

Critical Safety and Testing Procedures

Before powering the unit, verify isolation resistance between the high-voltage input and the low-voltage side–target a minimum of 50MΩ to comply with IEC 61010 standards. Test with a 60W bulb load; the output should remain linear between 50VAC and 250VAC input, deviating no more than 0.8% across the range. If readings drift during ambient temperature shifts, replace the generic operational amplifier with an LM358 variant featuring a wider -40°C to +125°C operating range. Always terminate unused Op-Amp pins to ground via 100kΩ resistors to prevent parasitic capacitance buildup.

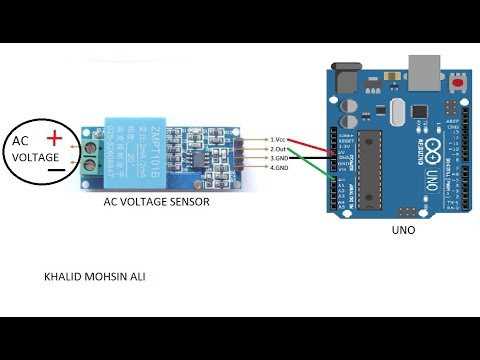

Common Mistakes When Integrating Voltage Sensors with Microcontrollers

Avoid connecting the sensor’s output directly to analog input pins without a voltage divider. The component’s max output can exceed 3.3V or 5V thresholds, risking permanent damage to the ADC. For a 230V AC input, the peak output reaches ~2.5V; for 120V AC, it’s ~1.6V. Use a 10kΩ resistor before the microcontroller pin to limit current and protect circuitry.

Failing to account for the module’s zero-offset voltage leads to inaccurate readings. The sensor produces ~1.65V at 0V AC input due to its internal reference. Calibrate by subtracting this offset in software: measure the output with no input, then adjust all subsequent readings. Some boards provide a trimpot for manual offset correction–use a precision multimeter to set it accurately before deployment.

Incorrect Grounding Practices

Floating ground connections introduce noise and erratic measurements. Ensure the sensor’s ground is tied to the microcontroller’s ground through a low-impedance path. Avoid sharing ground lines with high-current loads like relays or motors–isolate analog and digital grounds if possible. A star grounding topology reduces interference: connect all grounds at a single point near the microcontroller’s power supply.

Overlooking the sensor’s bandwidth limitations distorts high-frequency signals. The module’s response rolls off above 1kHz; for 50Hz/60Hz measurements, this is rarely an issue, but transient events (e.g., load switching) may require a capacitor across the output terminal. A 1µF ceramic capacitor stabilizes readings by filtering high-frequency noise while preserving the fundamental frequency.

Neglecting power supply stability causes measurement drift. The sensor requires a clean 5V supply–linear regulators (e.g., AMS1117) perform better than switching regulators for this application. Add a 0.1µF decoupling capacitor near the sensor’s power pins to suppress ripple. If using a battery, monitor voltage drops: readings become unreliable below 4.7V.

Software Calibration Errors

Assuming linear scaling without empirical calibration sacrifices precision. The sensor’s output is non-linear near zero-crossings; create a lookup table using known reference voltages (e.g., 0V, 50V, 100V) and interpolate values in code. For 3.3V microcontrollers, ensure the ADC resolution matches the expected range–10-bit ADC may lack granularity for low voltages, requiring hardware amplification or a 12/16-bit ADC.
