How to Wire a Honeywell Heat Pump Thermostat Step-by-Step Guide

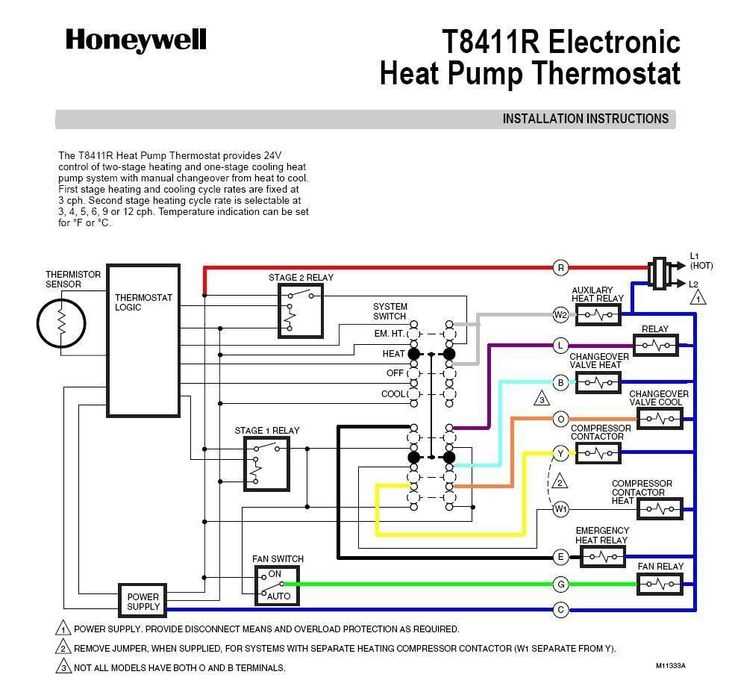

Start by identifying the R (power), C (common), O/B (reversing valve), Y1 (compressor), and W2/AUX (emergency/secondary stage) terminals on your device. Mislabeling these will disrupt performance or damage components. Verify the manufacturer’s color coding–most systems follow red (R), blue (C), orange (O/B), yellow (Y1), and white (W2), but variations exist.

Connect the low-voltage wires with crimp connectors or screw terminals, ensuring no bare strands touch adjacent contacts. For variable-speed models, add a separate G (fan) wire–standard configurations ignore this, but oversights lead to erratic cycling. Test continuity with a multimeter before powering on; readings should match the control board specs (±10% tolerance).

For dual-fuel setups, integrate an isolating relay between the indoor coil and backup heater. Wire the relay’s coil to Y2 (secondary compressor) and its contacts to the heater’s L1/L2 terminals. Omitting this risks simultaneous operation of incompatible modes, tripping breakers or overheating.

Label each connection with heat-shrink tubing or printed tags. Include the terminal function and voltage (e.g., “C – 24VAC”). Store a dated photograph of the finished setup–documentation prevents errors during future maintenance or upgrades.

Final checks: 1) Confirm the transformer amperage (typically 20–40VA) matches the system’s total load. 2) Ensure the reversing valve defaults to cooling mode (O-terminal energized). 3) Set the dip switches or configuration menu for 2H/1C or 1H/2C based on your unit’s staging. Deviations cause improper defrost cycles or insufficient output.

Guide to Connecting Climate Control Devices for Optimal Performance

Start by locating the labeled terminals on your climate regulator’s baseplate–most models use R, C, W, Y, G, O/B, and E for emergency heating. Verify compatibility with your 24V HVAC system by checking for a dedicated reversing valve relay (O/B), which requires a jumper if absent in older setups. Use 18-gauge solid copper wire for connections, ensuring no exposed strands bridge adjacent terminals to prevent short circuits.

For single-stage configurations, connect the compressor relay to Y and the blower motor to G, while dual-fuel systems need W for auxiliary stages. Confirm the manufacturer’s color-coding against your equipment: typical sequences include red (R), blue (C), white (W), yellow (Y), green (G), and orange/purple (O/B). Reverse valve polarity differs–carrier systems often use O, while Trane models default to B. Label each wire before detachment.

Advanced Troubleshooting for Multistage Units

Multistage units demand precise jumper placement between Rc and Rh if powered by separate transformers. For variable-speed handlers, add a separate control wire to the variable-speed motor’s dedicated terminal, often marked “VS” or “COMM.” Check the low-voltage fuse–typically 3-5 amps–if the display fails to power on after wiring. Replace corroded terminals with gold-plated connectors to reduce oxidation in humid climates.

Outdoor sensor integration requires linking the remote sensor’s leads to the “S” terminals, adjusting the differential setting to 2°F for optimal cycling. For defrost modes, wire the defrost board’s “DF” terminal to the regulator’s auxiliary input, if available. Always cap unused wires with wire nuts and secure them away from moving parts to comply with NEC standards. Test for continuity with a multimeter before restoring power.

Ground loops pose risks–connect the C wire directly to the transformer’s ground, not the equipment chassis. For smart regulators, ensure Wi-Fi modules interface with existing Z-wave or Zigbee hubs via dedicated “GC” terminals. Document all connections with a photograph for reference during maintenance.

Key Connection Points on Climate Control Interfaces for Dual-Fuel Systems

Locate the R (or Rh/Rc) terminal first–it supplies 24V power from the transformer. On dual-transformer setups, Rh connects to heating circuits while Rc handles cooling, but many modern units merge these into a single R. Verify voltage with a multimeter before proceeding: absence of power indicates a tripped breaker or blown fuse upstream, not a terminal issue.

The Y terminal activates the compressor in cooling mode. If your system has a separate Y2 for second-stage cooling, ensure jumper wires match the manufacturer’s staging requirements–improper connections will force single-stage operation, reducing efficiency by up to 30%. Label wires before disconnecting; color codes vary (blue for Y is common, but red or yellow may appear in older models).

For auxiliary heating (emergency/backup), the W or W1/W2 terminals engage electric resistance strips or gas furnaces. Confusion here risks overheating: W2 must align with the system’s staging settings (typically O/B-controlled). Cross-reference with the outdoor unit’s defrost board–mismatched wiring triggers defrost cycles at random intervals, increasing energy waste. Use needle-nose pliers to secure connections; loose strands cause intermittent failures.

Reversing valve control divides into two schemes:

• O-terminal: Powers the valve in cooling mode (standard for most North American systems).
• B-terminal: Energizes in heating mode (common in Asian/European setups).

Check the outdoor unit’s label–reversing this polarity will invert operation without warning. A dead short here may short-circuit the board; always disconnect power before testing continuity.

The G terminal manages the indoor blower fan independently of temperature calls. If fan-only mode fails, inspect the motor relay–G should show 24V during fan operation. Some advanced interfaces combine G with Y for constant circulation; this requires jumper removal. For variable-speed blowers, G may link to a separate G2 or G3 terminal; consult the air handler’s schematic for pin assignments.

Auxiliary functions like dehumidification (DH) or ventilation (V) occupy dedicated terminals, often unmarked. Trace these wires to the equipment’s control board: DH typically bridges to Y, while V connects to a damper actuator. Miswiring these bypasses critical humidity controls or forces continuous outdoor air intake, degrading performance. Test with a thermohygrometer; ideal indoor RH should stabilize between 40–60%.

Ground (C) terminals provide a neutral return path for smart features. Without a proper C connection, Wi-Fi modules and display backlights fail unpredictably. Measure voltage between R and C–24V confirms a complete circuit. For older boards, C may share a terminal with B or O; separate them if the system uses a floating transformer. Always use 18-gauge or thicker wire for C to prevent voltage drop.

Step-by-Step Guide to Installing a Climate Control Device for Dual-Fuel Systems

Turn off the power supply to the HVAC unit at the circuit breaker before handling any electrical terminals. Label each existing wire with masking tape, marking them according to their terminal designations (e.g., R, C, O/B, Y, G, W, E). Use a multimeter set to voltage mode to verify no current is present at the control board. This step prevents short circuits and ensures safe handling.

Mount the new regulation unit’s baseplate on the wall using anchors if necessary, ensuring it is level to avoid sensor inaccuracies. Connect the labeled wires to the corresponding terminals on the device, matching each wire to its designated slot: red (power), blue (common), orange/brown (reversing valve), yellow (cooling), green (fan), white (auxiliary heating), and any emergency heat or demand response wires. Tighten terminal screws securely to prevent loose connections, which can cause intermittent failures.

Restore power at the breaker and configure the device settings via its interface. Select the system type (dual-fuel or variable-speed compatibility) and adjust staging delays if applicable. Calibrate temperature sensors by running a test cycle, observing the outdoor unit’s defrost mode and auxiliary heat engagement. If errors persist, revisit wire connections for misplacements or damaged insulation, particularly in low-voltage circuits prone to interference.

Resolving Misconfigured Connections in Climate Control Devices

Begin by verifying the labeled terminals on the backplate match the system’s control board. Common mismatches occur when auxiliary stage outputs (W2/O/B) are incorrectly paired with primary heating or cooling stages (Y1, W1). Use a multimeter set to ohms (Ω) to test continuity between the device and outdoor unit–any reading above 0.5Ω indicates a loose or broken connection. Replace damaged cables immediately; stranded wires with frayed ends often cause intermittent failures.

Check the reversing valve (RV) setting if the unit cycles between heating and cooling unpredictably. On most models, the RV terminal should connect to the O/B wire, but some older systems require it on the B side. Consult the technical manual for your specific model number–located on the inner panel–to confirm the correct polarity. Incorrect RV wiring can force the system into defrost mode prematurely, reducing efficiency by up to 30%.

Label all wires before disconnecting anything. Use colored tape or a marker to tag each wire according to its terminal. Many misconfigurations stem from guessing wires after a power disruption or system upgrade. If the control panel displays an error code (e.g., “E4,” “CL,” or “FC”), cross-reference it with the manufacturer’s troubleshooting guide to pinpoint the issue–often tied to misrouted auxiliary power or signal wires.

Test the low-voltage circuit with a voltmeter. The transformer should output 24V AC between the R (power) and C (common) terminals. If voltage is absent or fluctuates, inspect the transformer’s fuse or circuit breaker. A faulty transformer can mimic wiring issues, causing the system to fail silently. For dual-fuel systems, ensure the emergency heat relay engages properly by manually triggering the W2/Aux terminal–if it doesn’t, the thermistor or relay board may need replacement.

Inspect the heat anticipator adjustment if the system short-cycles. A miscalibrated anticipator (typically a small resistor near the W1 terminal) can cause the device to turn off prematurely. Measure the resistance with an ohmmeter and adjust the dial to match the system’s heating load amperage–usually between 0.1 and 1.2 amps. Incorrect settings waste energy and strain compressors.

Advanced Diagnostics for Persistent Issues

If the system responds to commands but fails to maintain temperature, probe the signal wires (Y, G, O/B) for voltage drops during operation. A drop below 20V AC suggests excessive resistance, often due to corroded connectors or undersized wires. Upgrade to 18-gauge solid copper wire for runs longer than 50 feet. For smart models, ensure Wi-Fi modules receive stable power–intermittent power loss resets scheduling and calibration settings, requiring a full recalibration through the device’s menu.
