Vp110 Battery Charger Circuit Design and Wiring Guide Explained

If you need a reliable 3-stage charging circuit for a 3.7V lithium cell, start with a TP4056 module as the core. This IC handles constant-current, constant-voltage, and trickle phases automatically, requiring minimal external components. Pair it with a 1N5817 Schottky diode on the output to prevent reverse current–critical when the input power drops.

For input regulation, use a LM2596-5.0 buck converter set to 5V. This ensures stable voltage before it reaches the charging IC, even with a 9–18V DC source. Add a 10µF ceramic capacitor at the LM2596’s output and a 220µF electrolytic near the TP4056 input to suppress noise. Include a 1kΩ NTC thermistor adjacent to the cell holder to monitor temperature; connect it to the TP4056’s thermistor pin for overheat safety.

For visual feedback, install a bicolor LED (red/green) on the TP4056’s status pins. Red indicates charging, green signals full capacity. Route the LED current through 470Ω resistors to limit draw. Add a tactile switch in series with a 10kΩ resistor to the EN pin for manual enable/disable. This lets you halt charging without unplugging the power.

For PCB layout, separate high-current traces (input, output) from signal paths. Use 2oz copper for the charging loop and vias to reinforce heat dissipation near the TP4056. Place the input capacitor within 5mm of the LM2596’s Vin pin to minimize transient spikes. Test under load with a 1A electronic load to verify ripple stays below 50mVp-p.

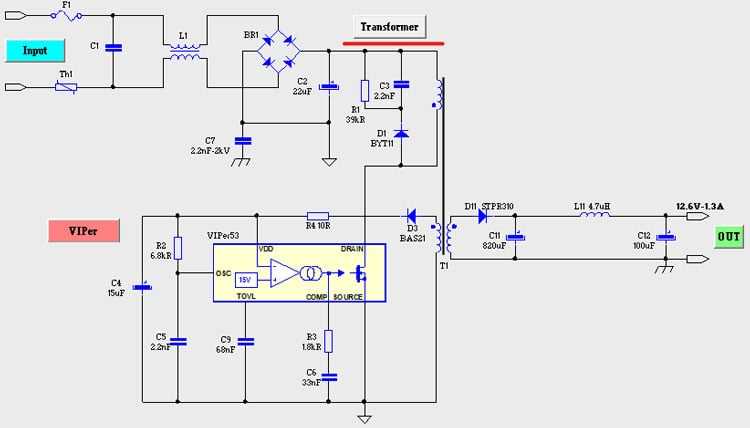

Understanding the Electrical Blueprint of a 12V Power Supply Unit

Begin with identifying the primary AC input section–typically marked by a fuse, EMI filter, and rectification block. Replace generic diodes with ultrafast recovery types (e.g., UF4007) to minimize voltage drop during high-frequency switching. Verify the fuse rating matches the device’s maximum wattage; a 2A slow-blow fuse suffices for most 60W designs.

Examine the PWM controller IC–often a UC3843 or similar–mounted near the transformer. Check feedback resistors (Rf1, Rf2) for precise output voltage: adjust Rf2 to 10kΩ for 13.8V nominal output, while keeping Rf1 at 1kΩ. Ensure the compensation network (Ccomp, Rcomp) uses 1nF polyester film capacitors and 22kΩ resistors to stabilize transient response.

• Solder points for the MOSFET (IRFZ44N or equivalent) must handle ≥20A peak currents. Reinforce traces with 2oz copper or wire bridging.
• Optocoupler (PC817) isolates feedback; confirm its pull-up resistor connects to the IC’s 5V reference pin.
• Snubber circuits across MOSFET drain-source (10Ω + 0.1µF) suppress ringing below 500kHz.

For transformer selection, use an EE25 core with 30 turns primary (0.5mm wire) and 5 turns secondary (1mm wire). Bifilar windings reduce leakage inductance to <5µH. Core gaps must not exceed 0.2mm to prevent saturation at 100kHz switching frequency.

Output filtering demands dual-stage LC networks: first stage (47µH choke + 1000µF/25V electrolytic) reduces ripple to <50mVpp; second stage (10µH + 470µF low-ESR) ensures <10mVpp at full load. Replace electrolytics every 3 years if operating in ≥50°C environments.

Thermal protection features typically employ an NTC thermistor (10kΩ at 25°C) near the MOSFET. Calibrate the shutdown threshold to 85°C by adjusting the voltage divider feeding the PWM’s thermal pin. Forced-air cooling is mandatory if ambient exceeds 40°C.

1. Test under load: Draw 5A from the output while monitoring AC ripple with an oscilloscope. Expect <1% THD.
2. Calibrate using a 0.1% precision 10kΩ potentiometer in place of Rf2 for fine adjustments (±0.1V).
3. Finalize by coating PCB traces with acrylic conformal coating to prevent corrosion in humid conditions.

Common failure modes include overheated MOSFETs (check gate drive resistors ≥47Ω) and bulging capacitors (replace with 105°C-rated Nichicon types). Always verify isolation resistance (≥10MΩ) between primary and secondary before connecting to sensitive electronics.

Troubleshooting Components Step-by-Step

Isolate faulty sections using a multimeter in diode mode: probe the rectifier diodes (expected 0.5–0.7V drop). Suspect the transformer if DC resistance deviates by >10% from calculated values (e.g., 0.1Ω primary, 0.01Ω secondary). Replace suspect ICs only after confirming stable 12V and 5V rails via test points.

Key Components in the Power Supply Unit Circuit Design

Start by selecting a high-frequency transformer core with low hysteresis losses, such as ferrite N87 or PC44 material, optimized for 50-100 kHz switching. Ensure the primary winding uses Litz wire (AWG 20-24) to minimize skin effect losses, while secondary windings should have sufficient cross-sectional area to handle peak currents without saturation. Windings must follow a interleaved pattern to reduce leakage inductance below 1.5% of the magnetizing inductance for stable operation.

Use a synchronous rectifier configuration over traditional diodes to cut conduction losses by up to 70%. Pair low R_ds(on) MOSFETs (e.g., Infineon IPB019N04N or Vishay SiRA70DP) with drivers like the UCC27533 to ensure fast turn-off times and prevent shoot-through. Dead-time control is critical–target 50-100 ns to avoid cross-conduction while minimizing reverse recovery losses. For lower power designs, Schottky diodes (Vishay VS-10BQ015) remain viable where efficiency drops below 3%.

The control IC should integrate overcurrent, overvoltage, and thermal protection in a single package. STMicroelectronics’ L6565 or TI’s UCC28C43 offer valley-switching for reduced EMI and adjustable frequency dithering to spread spectral noise. Compensate the feedback loop with a Type III network (two poles, two zeros) to stabilize the output across load variations. The error amplifier’s bandwidth should exceed 5 kHz but stay below 1/10th of the switching frequency to prevent subharmonic oscillations. Optocouplers like the PC817 or TLP271 require a stiff bias voltage (e.g., 10V Zener) to maintain linear response under transient loads.

Input filtering demands a common-mode choke (e.g., Murata DLW5BSN102SQ2) with a minimum inductance of 10 mH and current rating 150% above nominal input. Pair it with X/Y capacitors (Kemet R46KN41005030J) to shunt high-frequency noise while meeting safety standards (IEC 60384-14). The inrush current limiter (typically an NTC thermistor) must reset fully between cycles–use a bypass relay or MOSFET to short it during steady-state operation. For PFC stages, a boost converter with a 65 mΩ MOSFET (e.g., STW40N65M5) and fast-recovery diode (e.g., STTH8S06DI) improves line regulation to ±1%.

Output capacitors must balance ESR, ripple current handling, and longevity. Use a mix of low-ESR polymer capacitors (Nichicon PCV1A102MCL1GS, 100 µF) and ceramic (Murata GCM55DR72A564ME47L, 47 µF) to suppress voltage spikes. Place additional snubber circuits (RCD or Landsman topology) across switch nodes if ringing exceeds 20% of the input voltage. Gate resistors should be sized to limit peak currents to 1 A per MOSFET during switching transitions, preventing gate oxide degradation over time.

Thermal management dictates component placement. Mount power semiconductors on isolated heat sinks with a thermal resistance below 1°C/W. Apply thermal gap pads (Bergquist 575) between devices and heatsinks to fill microscopic imperfections. Forced-air cooling isn’t always necessary–ensure passive heatsinks are oriented vertically to promote natural convection. Critical traces (e.g., mosfet drain/source, transformer primary/secondary) require 2 oz copper pours with stitching vias spaced ≤1 cm apart to distribute heat and reduce impedance.

Step-by-Step Assembly of the Power Supply Adaptation Circuit

Begin by verifying the input voltage range of the 18V nominal power source matches the specifications of the voltage regulator module. A 7812 IC or equivalent LDO should handle currents up to 1.5A without thermal shutdown under continuous load. Mount the regulator on a heatsink with a minimum 25 cm² surface area if ambient temperatures exceed 40°C. Connect input capacitors (470µF, 25V) as close as possible to the regulator’s input pins to suppress voltage spikes; failure to do so risks erratic regulation.

1. Solder the rectifier bridge (KBPC2510 or four 1N4007 diodes) onto a perforated board, ensuring correct polarity–mark the AC input and DC output terminals with permanent ink to prevent miswiring during final assembly. Test continuity with a multimeter before proceeding.
2. Add a smoothing capacitor (3300µF, 35V) directly after the rectifier; values below 2200µF may result in ripple exceeding 100mVpp at full load. Use low-ESR types if available.
3. Install the current-limiting resistor (0.5Ω, 5W wirewound) between the regulator output and the load terminal. A 2A fuse in series protects against short circuits; select a fast-acting fuse with 125% of nominal current.
4. Attach LED indicators: a green 3mm LED with 470Ω series resistor for power-on status, and a red LED with 1kΩ resistor to signal charging activity. Position LEDs near the enclosure front panel for visibility.

Secure all connections with 20AWG silicone-coated wire for low-voltage paths and 16AWG for high-current routes. Verify polarity at each stage–reverse voltage applied to electrolytic capacitors will destroy them instantly. After assembly, apply a 12V test load (e.g., 10Ω, 20W resistor) and measure output voltage with a multimeter. Adjust the potentiometer on variable regulator modules to precisely 13.8V to prevent overcharging lithium-based cells or sulfation in lead-acid units. Use a scope to confirm ripple stays below 50mVpp; higher values indicate insufficient capacitance or ground loop noise.
