Understanding Schematic Diagrams Purpose and Key Components Explained

Grasp circuit representations before touching a single wire. A single misplaced symbol can render a 2,000-component design useless–no voltage reaches the load, no signal propagates, no device functions. Every graphic symbol follows IEEE 315 and ANSI Y32.2 standards, ensuring consistency across schematics whether you’re tracing a power supply for an industrial motor or debugging a surface-mount microcontroller circuit.

Start by isolating power rails–the thick horizontal lines at the top and bottom denote VCC and GND. Trace the solid lines connecting symbols; each represents a copper path, whether etched on a PCB or hand-soldered. Broken lines indicate logical groupings (bus lanes) or mechanical linkages, never an actual conductive route. Missing this distinction leads to bypassing entire subcircuits or misinterpreting control logic.

Resistors carry numerical values (e.g., R1 10k beside a zigzag); capacitors show microfarads (C3 10µF) near parallel lines. Transistors–NPN or MOSFET–are triangles pointing toward the collector/drain. Switches toggle between open and closed states marked by NO (normally open) or NC (normally closed). Cross-reference every label with the bill-of-materials sheet; mismatched part numbers are prime failure culprits.

Schematic editors like KiCad, Altium Designer, or Eagle embed netlists–machine-readable scripts mapping every component pin to its connected node. Export these scripts before writing firmware; a single floating pin halts I²C communication or burns out a gate driver. Ground symbols must converge at a single star point; violating this rule injects noise into analog sensors or corrupts digital data.

Always verify schematics against datasheets. A resistor rated at 0.25 watts dissipates 625 mW if placed across 12V–exceeding this burns the trace or cracks the soldermask. IC power pins require decoupling capacitors (typically 0.1µF) within 2mm of the package; omit them and the device resets randomly during operation. Rotary encoders must have pull-up resistors on both channels; otherwise, firmware reads erratic pulses.

Understanding Electrical Blueprint Essentials

Start by identifying the core symbols in any circuit representation–resistors, capacitors, transistors, and power sources follow standardized shapes. For instance, a resistor appears as a zigzag line, while a capacitor uses two parallel lines. Mismatching these symbols leads to critical errors in execution. Always cross-reference unfamiliar symbols with trusted datasheets like those from IEC 60617 or ANSI Y32.

Label every connection point with voltage, current, or signal type. A 5V power rail marked “VCC” differs from a 3.3V “VDD”–confusing them risks damaging components. Use consistent naming conventions: ground should always be “GND,” not “GRND” or “0V.” Include tolerances where relevant, such as “±5%” for passive components.

Break complex circuits into functional blocks. A microcontroller-based design might separate power regulation, signal processing, and I/O interfaces into distinct sections. This modular approach simplifies troubleshooting–if the output fails, focus on the amplifier block first, not the entire board. Color-code blocks in software tools like KiCad or Altium for clarity.

Verify polarity for polarized components. Electrolytic capacitors and diodes have defined positive/negative terminals. Incorrect orientation causes immediate failure–mark these clearly with “+” and “-” symbols, or use silkscreen labels. For LEDs, the flat edge indicates the cathode; reverse it, and the circuit remains dark.

Component	Symbol Example	Critical Note
NPN Transistor	Arrow pointing outward	Base, collector, emitter–swap collector/emitter and it won’t switch
MOSFET	Three-terminal device with gate	Static-sensitive–ground yourself before handling
IC Power Pin	“V+” and “GND” clearly defined	Check datasheet–some ICs have hidden power pins labeled “AVCC”

Add test points strategically. Place them at signal inputs/outputs, power rails, and ground. This enables debugging without probing tight circuit areas, reducing the risk of short circuits. Label test points with unique identifiers like “TP1” for quick reference during testing.

Simulate before building. Tools like LTspice or Proteus let you model behavior under different conditions–vary input voltages or frequencies to spot design flaws early. Compare simulation results with theoretical calculations; discrepancies often reveal overlooked issues.

Avoid overcrowding. Leave space between high-speed traces (e.g., clock signals) and sensitive analog lines to minimize interference. Follow PCB design rules: keep digital and analog grounds separate but connect them at a single point near the power source.

Document every revision. Track changes with version numbers and dates, noting why alterations occurred–e.g., “v1.2: Replaced 1kΩ with 4.7kΩ for better noise immunity.” Store this alongside the blueprint files to prevent regressions during future modifications.

Key Differences Between Circuit Blueprints and Alternative Engineering Illustrations

Begin by recognizing that electrical layouts focus on functional relationships rather than spatial accuracy. Unlike mechanical blueprints or architectural plans, which prioritize physical dimensions and material properties, these visual representations strip away everything except component interactions. Nodes, connections, and signal flow dominate, while exact placement or scaling holds secondary importance.

Block diagrams share similarities but introduce abstraction layers beyond raw circuitry. Where a wiring chart maintains direct correlations between resistors, transistors, or ICs, block illustrations group systems into functional modules–power stages, microcontrollers, or sensor arrays–without detailing exact pinouts or internal wiring. This shift from concrete to conceptual demands a different interpretation approach: block layouts guide system-level debugging, while wiring charts enable direct troubleshooting.

Electrical wiring illustrations differ by emphasizing real-world cable routing and terminal locations. A circuit representation ignores cable colors, bundling, or physical constraints, but wiring drawings document these details precisely to facilitate installation. For instance, automotive schematics might show an ECU’s connection to a sensor as a straight line, while the wiring version specifies the exact gauge, insulation color, and connector type required.

One critical but often overlooked distinction lies in standards compliance: circuit layouts typically adhere to ANSI Y32.2 or IEC 60617, defining symbols for logic gates, capacitors, or transformers. In contrast, piping or HVAC diagrams follow ISO 1219 or ASME Y14.1, where symbols represent valves, pumps, or ducts. Attempting to interpret a circuit using plumbing conventions–or vice versa–will produce errors, so always cross-reference the governing standard before analysis.

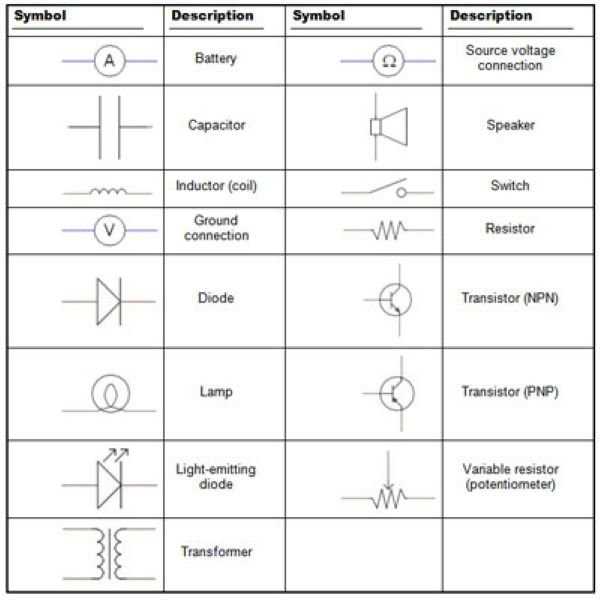

Common Symbols in Circuit Blueprints and Their Functions

Memorize these core symbols to interpret technical layouts swiftly. A resistor is depicted as a zigzag line (IEEE standard) or a rectangle (IEC standard); values like 10kΩ are often annotated beside it. Capacitors appear as two parallel lines (non-polarized) or a curved and straight line (polarized, with the curved side marking the negative terminal). Inductors use a coiled wire symbol, while batteries split into long (positive) and short (negative) parallel lines. Always confirm the standard used–ANSI/IEEE or IEC–as misidentification risks incorrect assembly.

Key Power and Semiconductor Symbols

• Ground: A downward triangle or three descending lines. Variants include chassis ground (straight line with a T-junction) and earth ground (same but with a filled triangle). Misplacement here can cause shorts.
• Transistor: Three terminals (collector, base, emitter) arranged in a T-shape for BJTs. MOSFETs use a similar layout but with a distinct gate structure (line separated from the channel). Verify pinouts–swapping emitter and collector fries the component.
• Diode: Arrow pointing toward a line. LEDs replace the line with a circle and two outward arrows. Reverse polarity destroys most diodes; check datasheets for Vf (forward voltage).
• Switches: Break lines with a movable contact. Common types:
  • SPST: Single line break.
  • SPDT: One input, two outputs (arrow indicates active path).
  • DPDT: Two SPDT switches ganged together.

For integrated circuits (ICs), symbols simplify to rectangles with numbered pins. Pin 1 is marked with a dot, notch, or diagonal cut–locate it first. Shortcuts like omitting VCC/gnd labels save space but demand cross-referencing datasheets. Operational amplifiers (op-amps) use a triangle with +/– inputs and a single output; the power pins (±V_s) are often implied. Always verify supply voltages–exceeding limits by even 0.5V can damage silicon.

Passive Component Variations

Potentiometers combine a resistor and an adjustable tap, drawn as a zigzag with an arrow crossing it. Thermistors and varistors modify the resistor symbol with T or V annotations. Crystals add two parallel lines intersecting a rectangle. Fuses use a straight line with a break–never substitute a fuse with a jumper wire unless testing transient currents. Capacitor tolerance (±5%, ±10%, etc.) is critical in filtering circuits; mismatched values degrade performance.

1. Cross-check symbols against the legend if one exists. Military-grade blueprints often use MIL-STD-15-1/15-2 symbols, distinct from civilian norms.
2. Label all components with unique identifiers (e.g., R1, C3)–skipping this causes confusion during troubleshooting.
3. Use color-coding for nets: power (red), ground (black/green), signals (blue). Consistency prevents costly rework.
4. For logic gates (AND, OR, XOR), note that inversion bubbles (small circles) reverse output states. A single missing bubble flips 1s to 0s.

Failure to recognize these symbols wastes hours. Bookmark a reference sheet or maintain a cheat sheet in your workspace. Prioritize learning active components first–they’re prone to catastrophic failure if miswired. For passives, focus on value ranges (e.g., 100nF vs. 100pF capacitors) and tolerances. When tracing circuits, highlight nets with different colors to separate power, ground, and data paths.
