Complete PJ Dump Trailer Wiring Schematic for Safe Electrical Setup
Begin by securing a 7-way round blade connector with color-coded terminals matching SAE J560 standards–white (ground), brown (tail lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary power), and red (12V+ hot lead). PJ Manufacturing specifies 12-gauge copper wiring for circuits under 15 amps; upsize to 10-gauge for hydraulic pump demands exceeding 20 amps to prevent voltage drop over runs longer than 15 feet. Verify terminal crimping with a torque-resistant crimper, then seal connections with heat-shrink tubing rated for 600V and UV resistance.
Route cables through ¼-inch split conduit along the trailer’s frame, avoiding sharp edges and areas prone to road debris accumulation–particularly near the tailgate hinge and lift cylinder mount. PJ’s modular chassis design includes pre-drilled cable guides; use cable clamps spaced every 18 inches to prevent sagging. For hydraulic-powered models, isolate the pump’s 12V solenoid circuit with a 40-amp fuse within 7 inches of the battery terminal, and ground the system directly to the trailer’s frame via a 3/8-inch stainless stud.
Test all circuits with a load simulator set to 80% of the trailer’s rated capacity–focus on brake light response under sustained hydraulic operation, where transient voltage spikes can exceed 14.5V. PJ’s optional LED lighting kit requires a voltage regulator (LM7812 or equivalent) to buffer the 6V bulb arrays; bypass this for newer 12V systems. Finalize by applying dielectric grease to connectors and wrapping exposed wiring in 3M Scotchcast for abrasion resistance. Document resistance readings: ground-to-terminal should measure , and auxiliary circuits must hold per 10 feet of run.
Electrical Schematic for PJ Heavy-Duty Haulers
Connect the 7-way round plug to the tow vehicle using color-coded cables: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (auxiliary power), red (12V hot lead), and black (electric brakes). Verify each circuit with a multimeter before securing connections to prevent voltage drops.

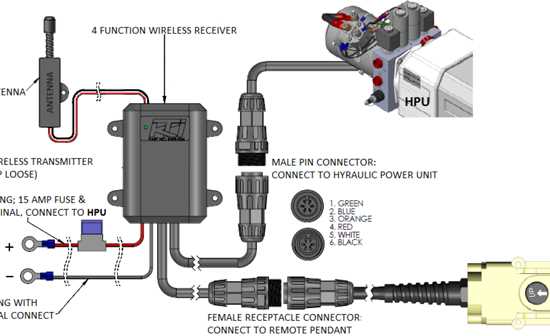

For hydraulic lift systems, wire the power unit directly to the auxiliary circuit (blue wire) with a 40-amp breaker. Use 10-gauge wire for runs under 15 feet and 8-gauge for longer distances. Install a toggle switch in the cab with an LED indicator to monitor pump activation.
- Brake controller: Mount within 12 inches of the driver’s reach. Set gain to 6.5 for single-axle models (7,000 lbs capacity) and 8.0 for tandem-axle (14,000 lbs). Test by pulling the trailer at 25 mph–wheels should lock within 3 seconds.
- Fuse requirements: 30-amp for lighting circuits, 50-amp for brakes, 60-amp for hydraulics. Place fuses no farther than 7 inches from the battery terminal.
- Grounding: Use a 4-gauge bare copper wire bolted to the trailer frame. Sand paint from attachment points to ensure conductivity. Avoid chassis connections near suspension components to prevent signal interference.
LED marker lights require resistors for compatibility with older vehicles. Solder a 6-ohm, 50-watt resistor inline with each amber side light and red rear light. Seal connections with heat-shrink tubing and dielectric grease to prevent corrosion in wet conditions.
For trailers equipped with ramps, install a momentary switch on the tongue connected to a 12V linear actuator. Use a relay to handle the 30-amp draw. Program the switch to reverse polarity after 15 seconds to prevent overheating. Test the ramp’s range of motion before each use–it should extend fully in 8 seconds with a 2,000 lbs load.
- Label all wires at both ends using military-grade sheathing (MIL-SPEC-23053/5).
- Route cables through conduit near sharp edges or moving parts.
- Secure wires every 18 inches with UV-resistant zip ties.
- Apply anti-seize compound to plug threads to prevent galling.
- Avoid routing power cables alongside hydraulic lines to reduce electrical noise.
PJ models with slide-in tarps use a 12V DC motor. Wire it to the auxiliary circuit with a double-pole relay to enable both forward and reverse operation. Add a 20-amp fuse and a thermal cutoff switch rated at 167°F. The tarp should deploy in under 20 seconds with a 5/8-inch pitch sprocket. Lubricate the cable with dry silicone spray every 50 cycles.
Final inspection: Disconnect the vehicle battery. Check continuity between the ground terminal and all light circuits. Measure resistance–values above 0.5 ohms indicate a poor connection. Recheck all hydraulic valves for leaks before first operation, focusing on the 3/8-inch NPT fittings at the pump inlet.
Essential Elements and Conductor Identification in PJ Hydraulic Bed Electrical Layouts

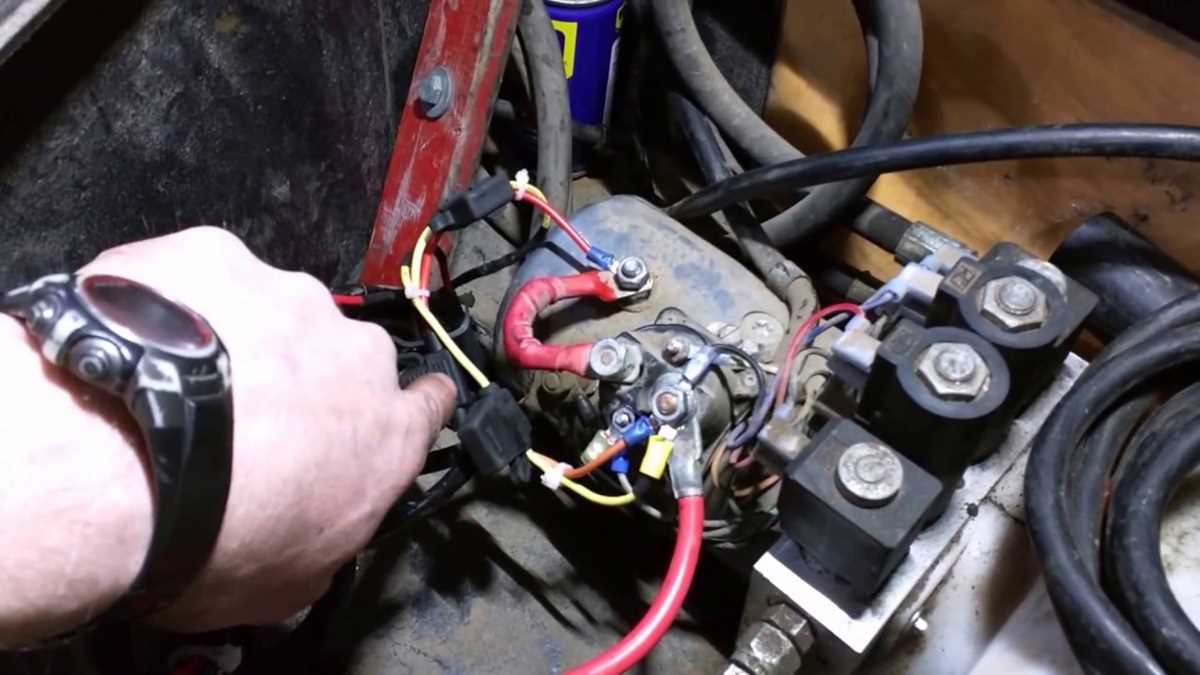

Start by connecting the 7-way round connector’s brake control circuit–typically the blue wire–to the hydraulic pump’s solenoid valve. This conductor carries a 12V signal to engage the lifting mechanism when the controller in the cab activates the bed’s upward motion. Verify continuity with a multimeter before fastening terminals; corrosion in the plug housing is a leading cause of intermittent failures. For dual-axle models, the purple wire often links to the auxiliary power source, delivering consistent voltage to tail lights and clearance markers independent of the main battery.
Critical Circuit Pathways and Troubleshooting Tips
Ground paths demand particular attention: the white conductor must terminate directly to the chassis frame at a clean, unpainted junction to prevent voltage drops. Test resistance between the ground point and the negative battery terminal–readings above 0.5 ohms indicate a compromised connection requiring immediate sanding or relocation. The green and yellow wires govern right and left turn signals, respectively; cross-wiring these will disable the corresponding side’s lighting and create hazardous blind spots during operation. For trailers equipped with backup alarms, the brown wire supplies power to this safety feature–ensure it’s fused at 10A to avoid meltdowns under sustained current.
Use heat-shrink tubing on all splices, especially where wires exit the frame near pivot points; vibration breaks down inferior insulation over time. The red conductor, powering the hydraulic pump’s motor, should be routed away from sharp edges and secured with loom protectors–exposed strands can short against metal surfaces during loading cycles. For trailers with electric brakes, the black wire carries the brake output signal; splice this only with marine-grade butt connectors to resist moisture ingress from road spray. Replace any factory-standard bullet connectors with gold-plated alternatives if the trailer operates in high-humidity environments.
Step-by-Step Guide to Connecting the 7-Way Plug on a PJ Heavy-Duty Hauler
Begin by stripping ½ inch of insulation from each wire of the vehicle-side harness using a precision wire stripper–avoid nicking copper strands, as this reduces conductivity. Match the wires to the pinout below by color and function; verify polarities with a multimeter set to 12V DC before making permanent connections. Crimp each terminal using a ratcheting crimper (AWG 12-14 gauge) and heat-shrink tubing to seal splices–standard electrical tape will degrade under vibration.
Route the harness through the frame rail, securing it every 18 inches with nylon zip ties rated for UV resistance. Ground the white (neutral) wire directly to the hauler’s chassis using a #10 stainless steel screw and star washer–paint or corrosion must be scraped away for a bare-metal bond. For the blue (auxiliary) cable, connect it to a relay if integrating winch or lift gates, ensuring a 30-amp fuse is inline to prevent overload.
7-Way Connector Pinout Reference
| Pin | Color | Function | Voltage (Test) |
|---|---|---|---|
| 1 | Yellow | Left Turn/Stop | 12V (flashing) |
| 2 | Green | Right Turn/Stop | 12V (flashing) |
| 3 | White | Neutral/Ground | 0V (continuity) |
| 4 | Brown | Tail/Marker Lights | 12V (steady) |
| 5 | Blue | Auxiliary (Winch/Lift) | 12V (switched) |
| 6 | Red | Brake Controller | 12V (variable) |
| 7 | Black | Battery Hot | 12V (constant) |
After attaching the plug housing, apply dielectric grease to the contacts to repel moisture–focus on the brass pins, not the plastic casing. Test all circuits with a 7-way tester or an incandescent bulb load (LED bulbs may not draw sufficient current to reveal poor connections). For trailers with hydraulic lifts, ensure the black (battery) cable is fused at 40 amps within 7 inches of the tow vehicle’s battery terminal to comply with SAE J2863 standards.
Diagnosing Electrical Problems in PJ Hauling Equipment
Begin by testing the connector pins with a multimeter set to continuity mode. Corrosion on the seven-way plug is the most frequent culprit–disassemble the housing and scrub contacts with a wire brush dipped in baking soda solution. Replace any pin exhibiting resistance above 0.5 ohms or showing pitting deeper than 0.2mm.
If tail lamps flicker at idle but stabilize at higher RPM, inspect the vehicle’s alternator output. A reading below 13.8V at the auxiliary battery terminal indicates insufficient charging. Bypass the trailer-side voltage regulator temporarily to confirm if the issue lies in the power distribution module. Remember: voltage drop across the battery isolator should never exceed 0.3V.
Grounding Failures and Hidden Shorts
Trace the negative return path back to the frame ground stud–loose or painted connections are common. Scrape chassis paint until bare metal is exposed, then secure with a star washer to prevent bolt rotation. For intermittent shorts, disconnect each circuit sequentially while monitoring current draw. A 12V circuit drawing more than 200mA unloaded signals a fault.
Snubber capacitors installed across relay coils often degrade; replace any with ESR above 10 ohms or capacitance below 0.22µF. Check hydraulic pump solenoids for internal leakage–unplug the harness and measure coil resistance. Values under 20 ohms or over 80 ohms mean replacement is needed.
Verify the modular control box firmware version using the OEM diagnostic port. Older revisions (pre-2021) may misinterpret brake light signals, causing false engagement of auxiliary functions. Update via the manufacturer’s software suite–ensure the laptop’s USB port delivers at least 500mA during flashing.
High-Current Circuit Anomalies
Inspect the 40A circuit breaker feeding the winch or hydraulic motor. Reset the breaker only once; if it trips again, use a clamp meter to measure in-rush current. Anything above 60A during startup indicates winding degradation or mechanical binding. Replace the motor if no-load current exceeds 5A at 12V.
