Step-by-Step Yamaha Starter Relay Wiring Guide with Diagram

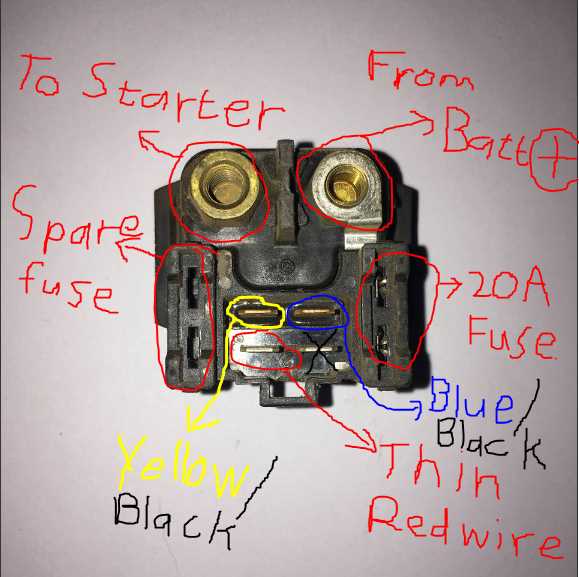

Begin by locating the solenoid switch on your bike’s engine bay–typically mounted near the battery or on the frame. The primary wires include a thick red cable (direct battery feed), a thinner ignition-controlled input (often purple or yellow), and two smaller connections: one to the starter motor and another grounded terminal. Always disconnect the battery’s negative terminal before probing any circuits to prevent short circuits or accidental engagement of the motor.

For models produced between 1995 and 2005, the trigger device uses a 4-pin design. Pin A receives 12V constant power, Pin B connects to the ignition switch, Pin C grounds through the frame, and Pin D links to the electric motor’s drive gear. If your solenoid clicks but fails to crank, test Pin B for voltage during key-on; absence indicates a faulty ignition switch or blown fuse. Verify ground continuity at Pin C with a multimeter–readings above 0.5 ohms suggest corrosion or loose mounting.

Cold climates increase resistance in electrical contacts. Clean all terminals with a wire brush and apply dielectric grease to prevent oxidation. Replace any relay showing signs of melted plastic or burnt odor–these often signal internal shorting. For aftermarket upgrades, ensure compatibility: units rated below 30A may overheat under repeated cranking cycles. Install an inline fuse holder (20A max) between the battery and relay’s input terminal for added protection.

When tracing connections, use a service manual specific to your model year–pinouts can vary between 600cc and 1000cc variants. Mark each wire with masking tape before detachment to avoid confusion during reassembly. If headaches persist, substitute a known-good solenoid to isolate the issue. High-resistance connections frequently mimic faulty solenoids; eliminate these first before condemning the unit.

Understanding the Electrical Connection Layout for Bike Activation Systems

Locate the solenoid switch’s primary terminals first: the thick input cable from the battery (usually red) attaches to the large 30-terminal, while the output cable (heavy-gauge, often yellow or white) connects to the 87-terminal leading to the motor’s engagement coil. The 85-terminal should interface with the ignition switch via a thinner wire (typically black with a colored stripe), while the 86-terminal grounds to the frame or engine block–verify continuity with a multimeter (resistance under 0.5 ohms) to prevent voltage drop.

• Use a 40A fuse inline between the battery and 30-terminal to prevent overloads.
• Solder all connections and insulate with heat-shrink tubing to avoid corrosion.
• Test the triggering circuit by applying 12V briefly to the 85-terminal; a distinct click confirms proper operation.
• Replace the component if voltage at 87-terminal drops below 11.5V during cranking–this indicates internal contact degradation.

Finding the Electrical Activation Switch on Two-Wheelers and Off-Road Machines

Begin by inspecting the region beneath the seat or side panels–most manufacturers place the ignition control module in this area for ease of access during maintenance. On sport models like the R1 or MT series, it’s often secured near the battery compartment, hidden behind a plastic cover. Check for a compact, rectangular component with attached cables; this is typically the unit you need.

For dirt bikes and quads, examine the front frame section or beneath the headlight assembly. Models such as the WR250R or Grizzly often route power components along the steering column, concealed under a protective housing. Look for a small box with spade connectors or a multi-pin plug–this distinguishes the part from other electronics nearby.

Key Identification Markers

Most activation switches feature a distinct label with a part number or a symbol resembling a coil and contacts. If visual confirmation is unclear, trace the cable coming from the push-button mechanism–the wire should lead directly to the module. Avoid confusing it with the fuse block, which is usually larger and organizes multiple connections.

Dual-sport and enduro bikes sometimes integrate the unit into the instrument cluster or fairing. Remove the front panel carefully to expose the area near the ignition barrel–there’s a high chance the module is mounted here. Always disconnect the battery before probing to prevent accidental shorts.

Troubleshooting Access Difficulties

If the module isn’t immediately visible, consult the service manual for model-specific illustrations. Some older twin-cylinder engines (e.g., XT660Z) may require removing the gas tank or airbox to reach the activation device. Label wires before unplugging to simplify reassembly.

Off-road vehicles with winches or auxiliary lighting often split power circuits, placing the activation switch near the handlebars or cargo rack. Use a multimeter to test continuity if the location remains unclear–start with the thickest cable, as it usually carries primary current to the engine solenoid.

Step-by-Step Color-Coded Electrical Hookup for Power Activation Module

Begin by locating the ignition feed cable, typically a red or red/black striped wire, and connect it to the terminal marked “B” or “30” on the control unit. This wire carries the primary voltage from the battery and must be secured with a crimp connector or solder to prevent shorts. Ensure the connection is insulated with heat-shrink tubing.

Next, attach the yellow or yellow/red wire–the trigger lead–to the “S” or “85” terminal. This line originates from the ignition switch or engine control module (ECM) and signals the device to engage. Verify continuity with a multimeter before proceeding; a weak or intermittent connection will cause failure. If the bike uses a separate ignition relay, trace this wire back to confirm it’s not spliced incorrectly.

Ground and Output Connections

Identify the black or black/white wire–the ground–and attach it to the “E,” “86,” or chassis point. Poor grounding is the most common issue; scrape paint or corrosion from the mounting surface to guarantee a low-resistance path. For the output side, connect the thick green or green/white wire to the “M” or “87” terminal. This cable supplies current to the motor solenoid; use a 10-gauge connector for high-amp applications.

• Red/black (alternator output) – Optional fusion to terminal “B” if voltage regulation is needed.
• Blue/white – May link to the ECM for diagnostic feedback; omit if not applicable.
• Brown/white – Rarely used; connects to neutral switch on some models; leave disconnected unless specified in service manual.

Finalize by testing with a 12V test light: probe the output terminal while turning the ignition. If the light illuminates but the engine doesn’t crank, inspect the solenoid or motor brushes. If no power is detected, recheck the trigger and ground paths–resistance should read . Tape all connections with electrical-grade adhesive vinyl for weatherproofing.

Measuring Voltage on a Bike’s Electrical Switch with a Multimeter

Set the multimeter to DC voltage, 20V range. Connect the black probe to the battery’s negative terminal or a clean chassis ground. The red probe goes to the input terminal of the switch–usually marked with a “+” or “30” on the housing. With the ignition off, voltage should read near 0V. Turn the key to “ON”; the meter should display battery voltage (12.6–13.2V). A drop below 12V signals corroded connectors or a weak battery.

Next, test the output terminal–often labeled “87” or “S”. With the ignition on, probe here; the reading should match battery voltage. If not, the switch contacts are burnt or stuck open. Press the start button: voltage should briefly drop to ~0.5V as current flows to the motor solenoid. A reading above 2V during cranking indicates high resistance in the contacts.

Check the control circuit terminal–typically marked “85” or “50”–while someone holds the start button. The multimeter should show a momentary spike to ~10V. If the reading stays near 0V, the trigger signal isn’t reaching the switch: inspect the ignition switch, clutch/neutral safety interlocks, or wiring harness for breaks.

For swap tests, disconnect the switch and bridge the input and output terminals with a jumper wire. Cranking should engage the solenoid. If it does, the switch is faulty. If not, the issue lies downstream–solenoid, motor, or battery. Always probe terminals with the switch still installed to capture voltage drops under load.

Use a back-probe technique on connector pins without disconnecting them. Insert a fine multimeter probe into the wire side of the plug for accurate readings. Bulging, melted, or discolored plastic on the connector indicates overheating–replace the switch and inspect the motor for binding resistance.

Log voltage readings across multiple cranking cycles. Consistent drops below 9V during attempts suggest a failing battery or excessive starter current draw. Compare readings to factory specs: most bikes maintain 10.5V or higher while cranking. Lower values require a load test on the battery.

Inspect the switch’s ground terminal–marked “86” or “ground”–by probing between it and chassis ground. Voltage should read 0V. Any reading above 0.2V reveals a poor ground: clean the mounting surface and retest. Loose or corroded grounds cause intermittent activation and premature switch failure.

Record all readings in sequence: battery voltage, input, output, control, and ground. Cross-reference with a service manual’s voltage chart. Discrepancies pinpoint specific faults–worn contacts, shorted coils, or broken signal paths. Replace switches showing erratic readings after verifying clean, tight connections.
