How to Wire the Fuel Pump on a 1992 Ford F150 Step by Step Guide
For the EEC-IV controlled trucks with the sequential fuel injection (SFI) setup, the inertia switch must be reset after any collision or electrical disruption–failure to do so guarantees no power to the in-tank module. Trace the violet/yellow (VY) wire from the 40-amp fuse (position 15 on the passenger-side fuse box) directly to the relay; this is the switched power feed that energizes the relay coil. If voltage is absent at pin 85 of the relay socket, inspect the ignition feed from the key switch–corrosion at the bulkhead connector (C201) is the most common failure point.
From the relay output (pin 87), the circuit continues via a black/light-green (BK/LG) wire to the inertia switch, then branches to the in-line splice S517 before reaching the sender unit. At the sender assembly, the BK/LG wire terminates at the motor solenoid–verify 12V here with the key in RUN but engine off. If voltage is present but the motor does not prime, confirm continuity on the dark-green/yellow (DG/Y) ground path back to the chassis ground G101; paint or undercoating often blocks proper contact.
For trucks equipped with the return-style system, the pressure regulator control wire (gray/red, GR/R) must show ~0.5V at idle rising to ~4.5V under full load–values outside this range indicate a faulty PCM output driver or shorted sender resistor. Always probe at the harness connector (C240) with the engine running to prevent false positives from stored voltage spikes. Replace any splices (S517, S542) exhibiting more than 0.2Ω resistance with solder-sealed butt connectors; crimps fail within 3-5 years in high-vibration zones.
When bench-testing the module, apply 12V to the BK/LG terminal and ground the DG/Y terminal–listen for a steady whine; humming or intermittent operation signals internal brush wear. If replacing the unit, transfer the built-in strainer from the old module–aftermarket units often omit this critical component, leading to premature failure from debris.

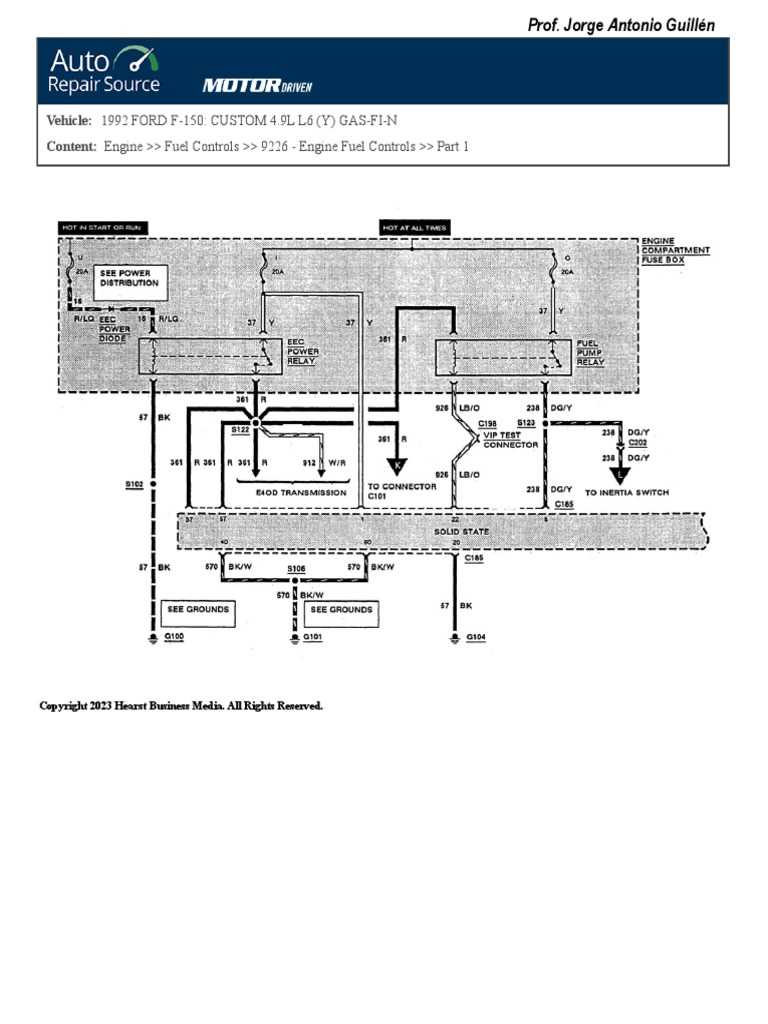

Electrical Schematic for the 1991-1993 Light-Duty Truck Fuel Delivery System
Locate the inertia switch first–it’s a critical safety feature mounted under the dashboard on the passenger side. This device cuts power during sudden impact, preventing post-collision fires. If the engine cranks but won’t start, press the reset button on the switch firmly until it clicks. No tools required, but verify continuity with a multimeter if resetting fails to restore operation.
Trace the power feed from the battery to the relay, typically found in the engine bay fuse box near the master cylinder. The relay handles two circuits: one 12V constant from the battery and a second triggered by the ignition switch. Use a test light to confirm voltage at terminal 30 (constant) and 86 (switched) when the key is turned to “RUN.” A missing signal at 86 often points to a faulty ignition module or blown fuse (check fuse #22, 20A).
- Relay pinout:
- 30 – Battery positive
- 85 – Ground
- 86 – Ignition-switched power
- 87 – Output to delivery module
- 87a – Unused (no contact in standard relays)
- Resistance check between 85 and 86 should read 50-120 ohms; anything above 200 ohms indicates a failing relay.
Inspect the delivery module’s ground connection–a common failure point. The black/light blue stripe wire terminates at a dedicated grounding stud on the chassis rail, just behind the driver-side headlight. Clean the stud with a wire brush and apply dielectric grease to prevent corrosion. Measure voltage drop across the ground circuit while the system is active; anything over 0.2V suggests high resistance caused by loose mounting or oxidation.
For persistent no-start conditions, bypass the relay temporarily by jumpering terminals 30 and 87 with a paperclip. If the assembly turns on (audible hum near the tank), the relay or its wiring is at fault. If silent, probe the tank sender’s float switch with a multimeter–the pink/black wire should show near-zero resistance when the tank is below 3/4 full. Over 5 ohms suggests an internal break in the sender’s rheostat.
Replace damaged wires in pairs–never splice an individual conductor. The OEM harness uses 16-gauge wiring for the delivery circuit:
- Power feed: yellow/orange stripe
- Switched trigger: dark green/light green stripe
- Ground: black/light blue stripe
Heat-shrink butt connectors to 18-gauge minimum if repairs are unavoidable. Avoid electrical tape; moisture intrusion guarantees eventual failure. Test all repairs under load–key-on, engine-off (KOEO)–before reassembling trim panels.
Pinpointing Relay and Connector Points for the Electrical Supply System
Begin under the hood on the driver’s side near the firewall–locate the power distribution box identified by its black plastic cover and labeled relay slots. The inertia switch sits adjacent to it, recognizable by its square shape and single red button on top. Remove the cover by pressing the clips on each corner to reveal the relay slots.
| Relay Position | Function | Wire Colors |
|---|---|---|
| Slot #303 | Primary circuit control | Dark green/yellow stripe, light blue/orange stripe |
| Slot #304 | Secondary circuit activation | Gray/red stripe, pink/black stripe |
| Inertia switch output | Emergency cutoff | Tan/light green stripe |
Trace the harness downward from the relay box along the frame rail–follow the tan/light green striped line until it splits near the rear axle. Disconnect the sending unit connector beneath the truck bed by releasing the locking tab; two pins correspond to ground (black/orange) and signal return (pink/black). Ensure terminals are corrosion-free before reconnecting.
For bench testing, use a multimeter set to continuity–probe the relay socket terminals against chassis ground while another person toggles the ignition. A failed reading indicates either an open circuit in the harness or a faulty solenoid coil, requiring splice inspection at the splice pack near the transfer case or replacement of the entire feeder bundle.
Guide to Electrical Circuit Colors for the 1991-1993 Heavy-Duty Pickup Fuel Delivery System
Locate the inertia switch first–it’s typically mounted near the firewall on the passenger side. Confirm power flow by checking the dark green/yellow (DG/Y) wire with a multimeter; this is the primary feed from the relay. Interrupting this circuit triggers safety shutdown, so verify continuity before proceeding. The light blue/red (LB/R) lead from the oil pressure sender bridges power when the engine runs, acting as a failsafe if relay control fails–test this under cranking conditions.
Critical Connections and Their Functions
The relay’s 87 terminal sends red/light green (R/LG) current to the tank sender unit, while the 85 pin receives brown/white (BN/W) ground via the PCM. Corrosion on the orange/yellow (O/Y) wire at the back of the engine bay causes voltage drops–clean terminals with dielectric grease if resistance exceeds 0.5 ohms. For direct tank access, the gray (GY) wire carries low-level signal to the gauge cluster, but splice checks should focus on the dark blue/orange (DB/O) at the 30-amp fuse link, as this is the main load path.
When tracing faults, prioritize the black/pink (BK/P) at the fuel module–this is the sole ground return and must show continuity to chassis within 0.1 ohms. If parasitic draw exceeds 50mA, pull the relay and probe the yellow/white (Y/W) control wire from the ECM; a reading above 12.6V here indicates a stuck solenoid or shorted harness. Use a scan tool to command the relay on/off, observing voltage swings at the tank’s violet/yellow (V/Y) connector–steady 11.5V+ confirms proper operation under load.
Testing Voltage and Continuity in the Electrical Supply Path
Disconnect the inertia switch and probe its output terminal with a multimeter set to 20V DC. A reading below 10.5V indicates a voltage drop upstream–inspect the relay contacts, fuse connections, and wiring harness splices for corrosion. Clean terminals with 400-grit sandpaper, then apply dielectric grease to prevent future oxidation.
For continuity checks, switch the multimeter to ohms mode. Place one probe on the sender unit’s ground lug and the other on the battery negative terminal. Resistance should not exceed 0.2 ohms. If higher, trace the ground path: remove paint from chassis mounting points with a wire brush, then secure with a star washer to ensure metal-to-metal contact.
Measure voltage at the module’s power input while cranking the engine. A steady 11.8V–12.8V confirms proper supply, but intermittent drops suggest a failing alternator diode trio–replace the diode plate if voltage fluctuates more than 0.4V. Use a graphing multimeter to capture transient spikes during startup.
Inspect the harness for chafed insulation near moving components, such as the driveshaft tunnel or steering column. Exposed wires can short to ground, mimicking a failed component. Wrap damaged sections with heat-shrink tubing rated for 105°C, not electrical tape, which degrades under heat cycles.
Critical Test Points
- Relay socket pins 30, 85, 86, and 87–verify 12V at pin 30 with key off; pin 86 should show 12V with key on.
- Sender unit plug–pin A (signal) should toggle between 0.5V and 4.5V as the arm sweeps.
- Frame ground stud–tighten to 12 Nm to prevent resistance buildup.
If voltage is present but the delivery system remains inoperative, load-test the circuit. Connect a 10-amp load resistor across the module’s output terminals and monitor voltage drop. A drop below 10V under load indicates internal corrosion–replace the module rather than attempting repairs.
For ground-side issues, use a jumper wire to bypass the chassis ground temporarily. If operation restores, the factory ground strap may be insufficient. Install an additional 8 AWG braided wire from the module’s ground stud directly to the battery negative terminal.
Document all readings and test conditions. Cross-reference with OE service data to identify anomalies specific to early 90s models, such as spliced harnesses near the transmission crossmember or degraded molded connectors. Replace connectors showing green corrosion with pigtails crimped using Molex-style seals.
