Complete 2003 Ford Expedition Wiring Diagram Guide for Electrical Troubleshooting

Start with the factory service manual–specifically section 8W-40 for the full vehicle harness layout. Factory schematics break down each circuit by color code, terminal identification, and fuse allocation, eliminating guesswork. Avoid third-party “universal” diagrams; they omit critical revisions like O2 sensor rewiring (pinouts differ between early and late production units).

For the powertrain control module (PCM), focus on pages 8W-1500 through 8W-1503. These illustrate the 60-pin connector with voltage references (e.g., pin 58 should read 4.8V KOEO). If diagnosing a no-start condition, cross-reference with the crankshaft position sensor (CKP) wiring–located in the engine bay harness bundle near the bellhousing. Use a multimeter with a 10MΩ impedance to avoid false readings from induced voltage.

Troubleshoot instrument cluster failures by isolating the Vehicle Speed Sensor (VSS) circuit. The gray/light blue wire (pin 11 at the dash connector) carries a 12V reference; resistance should measure 1,100–1,400 ohms at operating temperature. If values deviate, inspect the wheel speed sensor for corroded terminals–common failure points include the rear axle ABS harness.

Access aftermarket repair databases like Mitchell or AllDataDIY for OEM-level pin charts. These include ground locations (e.g., G102 under the left fender) and splice points for trailer brake controllers–critical if retrofitting electronic stability control (ESC). For alternator charging issues, verify the dark green/white wire at the alternator’s “S” terminal (should switch from 0V to 12.6V when load-tested). Bypass generic forums; verified schematics list wire gauge (e.g., 14 AWG for lighting circuits) and fusible link placements.

Electrical Schematic Guide for 2002-2004 Large SUV Models

Locate the fuse panel under the dashboard on the driver’s side–remove the lower cover to access terminal clusters for the power distribution box. Pinpoint fuse #30 (20A) controlling the interior lamp relay; a blown fuse here disables dome lights and cargo area illumination. Trace the violet/yellow stripe wire from terminal 13 (relay socket) to ground G102 near the rear liftgate latch for voltage drop tests.

For rear window defroster troubleshooting, follow the orange/light blue wire from the climate control module (CCM) connector C1056, pin 8, to the defroster grid relay inside the rear fuse box. Check continuity at relay terminals 85 and 86; resistance should read 70-120 ohms. If open, replace the relay (Ford part #F5TZ-14N086-AA) before testing with a known-good 12V source.

PCM harness connector C175 (48-pin) secures engine sensor data. Verify sensor ground integrity by probing the brown/white wire at pin 47; voltage should match chassis ground (±0.1V). If discrepancies appear, inspect the splice S103 behind the left kick panel–corrosion here disrupts MAF, TPS, and ECT signals. Clean contacts with DeoxIT D5, then reseal with dielectric grease.

To diagnose blower motor failure, disconnect the electrical connector at the resistor pack (located behind the glove box). Test the dark blue/orange wire at terminal 2 for 12V during ignition RUN–absence indicates a faulty climate control switch or broken circuit in the C220 harness. Replace the resistor pack (factory #YL1Z-19E624-DA) if fan operates only on high speed.

Anti-lock brake system wiring centers on the EBCM (connector C1045). Probe the yellow/black wire (pin 32) for 5V reference; a no-reading condition suggests a severed loop or internal EBCM failure. Inspect the left front wheel speed sensor harness for chafing against the upper control arm–zip-tie sections showing exposed copper conductors cause intermittent ABS codes C1233-C1235.

Cruise control module wiring splits at splice S204 under the hood. Follow the tan/red wire from pin 9 (brake switch) to the actuator motor–voltage loss here prevents engagement. Test actuator motor resistance (3-7 ohms) with an ohmmeter; readings outside spec require replacement (OEM #F65Z-9C788-AA). Replace the vacuum reservoir if diaphragm integrity fails under 20 inHg test pressure.

Radio harness modifications require splicing the pink/light green wire (C1 connector, pin 14) for steering wheel audio control signals. Use a 16-gauge T-tap to prevent signal degradation; secure all connections with adhesive-lined heat shrink tubing. Factory-installed navigation units draw power from the ignition feed (fuse #23, 10A)–verify fuse continuity before diagnosing “no power” symptoms.

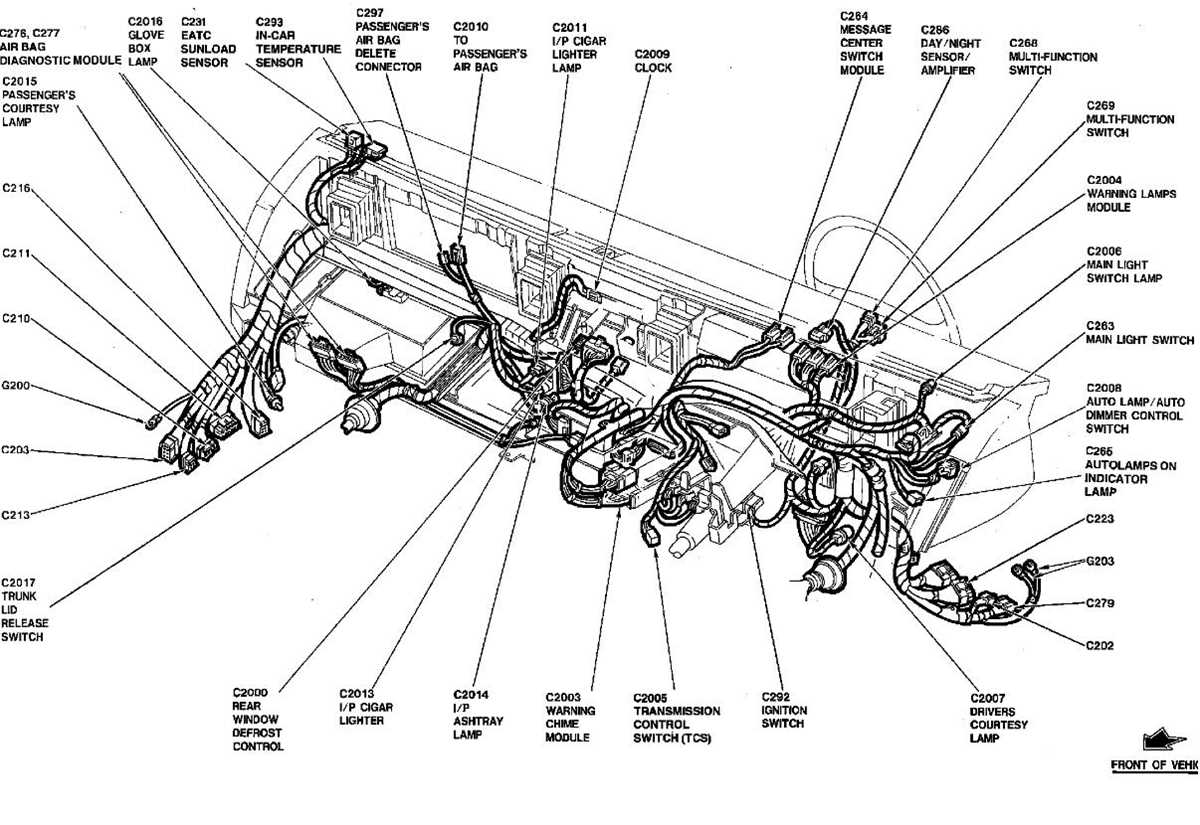

Finding Primary Electrical Bundle Attachments Beneath the Instrument Panel

Begin by removing the lower trim panel beneath the steering column–this snap-in cover is held by five clips along its edges. Use a flat-head screwdriver to gently pry at the seam near the pedal assembly, working outward to avoid cracking the plastic. Once detached, set it aside to expose the metal reinforcement bar and the cluster of connector blocks directly behind it.

Locate the central fuse relay box mounted to the left of the brake pedal; its white or gray locking tabs must be depressed to release the harness plugs. Adjacent to this, identify three critical attachment points:

• The large rectangular plug (black, 16–24 pins) for the body control module, secured by a push-down latch.
• The smaller rectangular connector (tan or blue, 8–12 pins) feeding the instrument cluster, locked by a side-release mechanism.
• The cylindrical OBD-II port connector (green or black), often hidden behind a rubber grommet–pull this forward to inspect wires for fraying.

Trace the thickest cable bundle–typically a mesh-shielded loom–from the firewall grommet downward. This main trunk splits into two branches under the dash: one routes left toward the door jamb (power window/lock feeds), while the other curves right into the footwell, terminating at the BCM. Mark these divisions with colored tape before disconnecting to prevent mix-ups during reassembly.

Inspect the firewall bulkhead connector, a circular multi-pin plug entering from the engine bay. Rotate its outer collar counterclockwise to unlock, then wiggle the plug free–avoid tugging individual wires, as pins may bend. Check the rear for corrosion; clean terminals with a wire brush if necessary, then apply dielectric grease before reattaching.

Use a multimeter to verify continuity between the ground stud (bare bolt on the driver’s side kick panel) and each harness pin before testing circuits. Set the meter to 200-ohm scale and probe:

1. The black/yellow stripe wire (constant 12V feed) at pin 10 of the BCM connector.
2. The tan/light blue stripe wire (ignition-switched power) at pin 5 of the cluster plug.
3. The solid red wire (fused battery input) entering the relay box’s main bus bar.

Readings above 0.5 ohms indicate resistance issues requiring further tracing.

Reinstall components in reverse order, ensuring all plastic clip retainers audibly snap into place. Test functions–illumination, wipers, and HVAC–sequentially to confirm no shorts exist before finalizing panel attachment. Secure loose strands with spiral wrap, keeping bundles away from moving pedals to prevent abrasion.

Tracing Sensor and Injector Circuits in the Motor Bay

Begin by locating the PCM on the driver’s side firewall–its connector holds key signals for critical components. Pin assignments typically follow: C112 (24-pin) feeds injectors 1–4, while C113 (32-pin) handles 5–8. Use a multimeter set to 20V DC; probe each pin against ground while cranking the engine to verify 12V pulses on injector circuits. Failed readings point to open harnesses or corroded terminals.

Identify the MAF sensor near the airbox; its four-wire harness includes a 5V reference (red), ground (black), signal (blue), and intake air temp (white). Cross-reference voltages: 0.5–4.5V at idle (signal wire) confirms proper airflow calibration. Deviations suggest frayed insulation or loose connectors–trace the route to the intake manifold for abrasion points.

Component	Wire Color	Expected Voltage (Key On)	Failure Symptom
TPS	White/Black	0.5–1.0V (closed)	Erratic idle/stalling
ECT	Yellow/Red	0.5V (hot)	Overheating/fan issues
O2 Sensor (Bank 1)	White	0.1–0.9V (cycling)	Poor fuel economy

For injector resistance checks, disconnect the harness and measure across injector terminals–values should read 11–18 ohms at room temperature. Lower readings indicate internal shorts; higher suggests open coils. Probe the harness side of the injector connector with the multimeter in continuity mode while wiggling the wiring–audible drops reveal intermittent breaks.

Trace the crankshaft position sensor (CKP) wiring from the harmonic balancer to the PCM. The CKP harness typically uses three wires: 5V reference (orange), ground (black), and signal (tan). At KOEO, the signal wire should toggle between 0–5V; failure here often mimics a no-start condition. Verify the flywheel teeth integrity–chipped teeth distort CKP readings.

Inspect the camshaft position sensor (CMP) harness routed along the valve cover. Its wires (typically pink/black for signal, black for ground) must show consistent 5V swings on a scope or multimeter during cranking. Frayed wires near the engine block are common; splice repairs here require marine-grade heat shrink to prevent moisture ingress.

Isolate the IAT sensor (integrated with MAF or standalone) and test its white wire–voltage should drop as intake air temperature rises (3.5V at 32°F, 1.5V at 100°F). Replace the sensor if readings plateau, but first inspect the harness for shorts to ground near the throttle body. For quick validation, substitute a known-good sensor to rule out ECU calibration issues.
