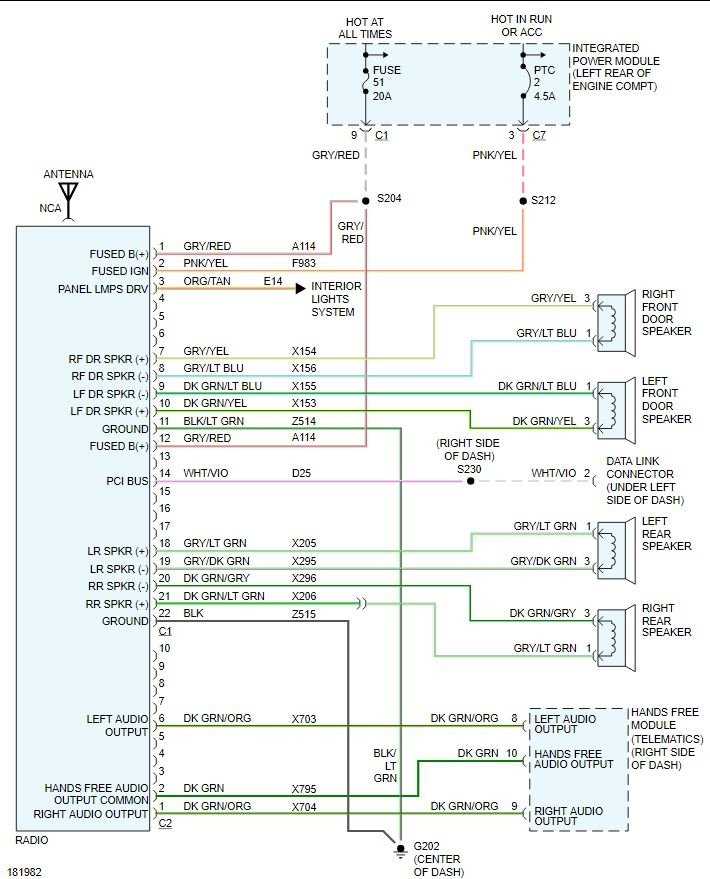

Complete 2008 Dodge Ram 2500 Stereo Wiring Harness Color Code Guide
Locate the factory harness behind the dashboard’s lower panel near the driver’s knee bolster. Pinout configuration differs between base and premium sound systems–base models use a 10-pin connector (A, B, C, D), while upgraded versions add a secondary 8-pin harness (E, F) for amplified signals. Disconnect the negative battery terminal before probing wires to prevent shorts or module resets. Probe colors follow a non-standard palette: solid orange (constant 12V), green/white tracer (ground), and violet/black (accessory). Verify each circuit with a multimeter–nominal readings should stabilize at 12.4V (constant) and 13.8V (accessory engagement).
Aftermarket head units require an ISO adapter (Metra 70-1002 or equivalent) to bridge factory connectors without splicing. Cutting wires risks disabling integrated chimes, steering wheel controls, or retained accessory power. Instead, use harness extensions labeled for “Year 1” body style trucks–these account for the unique squib circuits routed through the dash. Amplifier taps (if present) use RCA inputs at 2V sensitivity; install a line-level converter if substituting with higher-output decks to avoid clipping.
Speaker wiring lacks fuses–replace with 10A inline fuses on all positive leads post-installation. Door speakers (6×9 coaxial) run on 18-gauge wire (yellow/white, gray/black), while the rear soundbar uses 16-gauge (light blue/dark blue). T-tap connectors are unreliable long-term; solder and heat-shrink all splices. If retaining the factory subwoofer (under-seat, 6.5″ dual-voice coil), maintain the original 55W resistor across the amplifier’s remote turn-on lead to prevent shutdown codes.
For vehicles equipped with Uconnect, retain the microphone assembly by splicing into the pink/black (-) and pink (signal) wires. Omitting this step may disable hands-free functions. Test all functions before reassembling panels–steering wheel controls often require additional programming via a scan tool (DRBIII or aftermarket equivalents).
Color-Coded Harness Guide for Heavy-Duty Pickup Audio Systems
Locate the 12-pin ISO connector behind the factory head unit–it’s the black rectangular plug nearest the climate controls. Here’s the exact pin-to-function breakdown:
| Pin Number | Wire Color | Signal Purpose | Aftermarket Tip |
|---|---|---|---|
| 1 | Yellow w/ red stripe | Constant 12 V battery | Fuse at 20 A before splicing |
| 4 | Pink | Switched ignition | Trigger for amplifier remote turn-on |
| 5 | Black | Ground | Scrape paint to chassis; torque to 8 ft-lbs |
| 8 | Gray | Front right speaker (+) | Use 18-gauge copper for runs >12 ft |
| 9 | Gray w/ black stripe | Front right speaker (–) | Twist with Pin 8 to reject noise |
Disable SYNC module temporarily by unplugging the small blue 4-pin connector above the HVAC ducts. This prevents CAN bus errors when testing speaker outputs. If the instrument cluster flickers, reconnect SYNC before proceeding–alternator voltage should stabilize within 30 seconds.
Rear door tweeters share the same positive and negative leads as the front; tap into the main harness at the B-pillar grommet for cleanest signal. Subwoofer pre-out is purple on Pin 11; low-pass filter at 80 Hz for 6×9 woofers, or boost gain +3 dB if using sealed boxes.
Adapter Connector Checklist

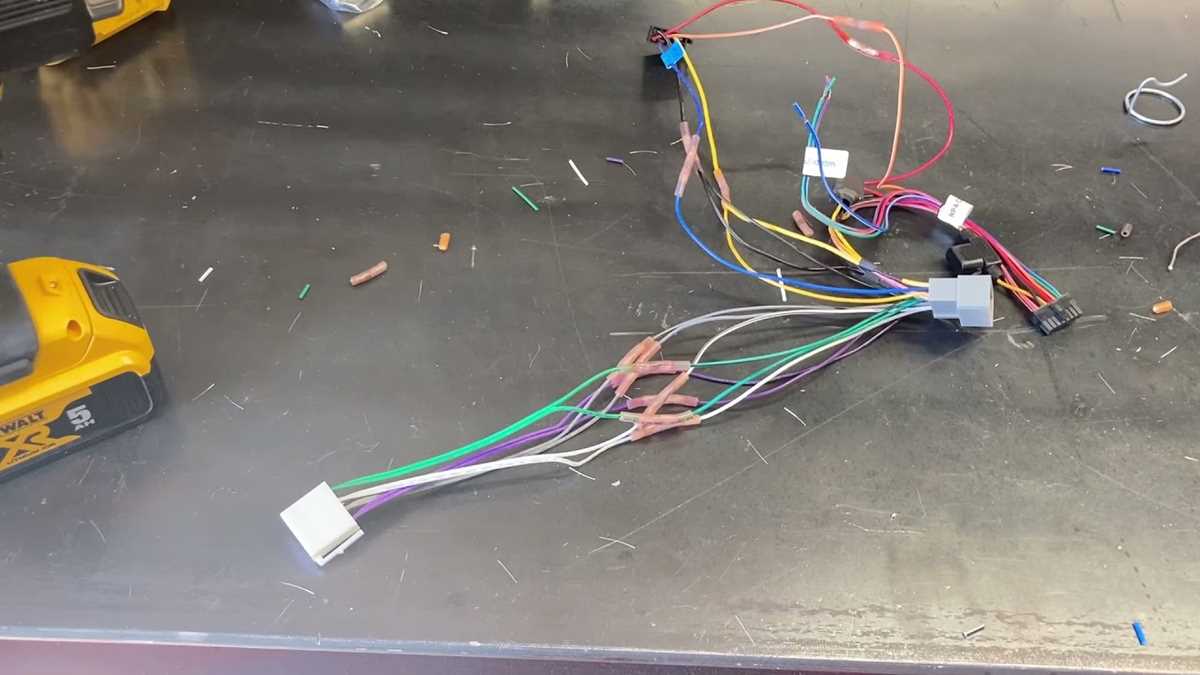

Metra 70-1002 harness adapter includes OEM plug terminals–verify continuity with a multimeter set to 200 Ω scale before soldering. Factory antenna lead is dark blue on Pin 10 and must be crimped to an RCA converter if using amplified satellite radio.
Locating the Factory Radio Wiring Harness Connector
Disconnect the negative battery terminal before handling any electrical components to prevent short circuits or damage to the audio system. The main wiring interface is typically concealed behind the center dashboard panel, requiring the removal of the trim surrounding the climate controls and display screen.
The connector sits on the rear of the original head unit, secured by a plastic snap-lock mechanism. Press the release tab firmly upward while pulling the harness straight out–avoid twisting or yanking, as delicate pins inside can bend. If resistance persists, check for additional screws or hidden clips holding the assembly in place.
Trace the harness bundle downward–it follows a rigid plastic conduit toward the vehicle’s firewall. On the driver’s side, near the pedal assembly, a secondary junction may exist where power and speaker wires split into individual circuits. Look for a white or gray plastic cover removing with a quarter-turn.
The main harness consists of 16–24 wires, color-coded as follows:
- Dark Green/Orange: Left front speaker (+)
- Dark Green/Light Blue: Left front speaker (–)
- Violet/Yellow: Right front speaker (+)
- Violet/Orange: Right front speaker (–)
- Brown/White: Left rear speaker (+)
- Brown/Tan: Left rear speaker (–)
- Light Green/White: Right rear speaker (+)
- Light Green/Dark Blue: Right rear speaker (–)
- Yellow: Constant 12V power
- Red: Switched 12V ignition
- Black: Ground
- Pink/Light Green: Amplifier turn-on
- Light Blue/White: Antenna control
If the harness appears frayed or wires are improperly spliced, use a multimeter to verify continuity before proceeding. Set the meter to the 20V DC range and probe each wire from the connector’s end to the corresponding speaker or fuse box terminal. Absence of voltage indicates a broken circuit requiring repair.
Access the fuse block under the dashboard to confirm power sources. The constant 12V line connects to fuse #18 (20A), while the ignition-switched line runs through fuse #20 (10A). If voltage readings are inconsistent, inspect the fuse box for corrosion or loose connections–common issues in high-mileage vehicles.
Alternative Access Points
In some models, an auxiliary harness hides behind the glove box. Remove the glove compartment by squeezing the left and right sides inward, then detach the hinge pins. A secondary bundle may emerge from the passenger kick panel, routed behind the carpeting–pull the carpet upward to expose it.
For vehicles equipped with rear entertainment systems, a separate harness exists behind the rear seat. Fold the seat forward and remove the lower panel to reveal the connector, often paired with video input wires (yellow RCA-style jacks). Ensure rear speakers and subwoofer outputs match the main harness configuration.
Connecting Aftermarket Audio via Standardized Wire Colors
Match the 12V constant power (yellow) from the vehicle’s harness to the aftermarket head unit’s designated battery input–this wire retains memory for presets and clock settings. Locate the accessory wire (red) and splice it to the switched 12V source, typically found behind the ignition fuse panel; ensure this connection uses a 16-gauge or thicker wire to prevent voltage drop during peak demand. Ground the unit with the black wire by securing it to a bare metal surface, scraping away paint or corrosion to guarantee a low-resistance path–failure here causes humming or intermittent operation.
Speaker outputs follow a consistent color scheme across most OEM harnesses: front left positive (gray), front left negative (gray/black), front right positive (white), front right negative (white/black), rear left positive (green), rear left negative (green/black), rear right positive (purple), and rear right negative (purple/black). Verify impedance compatibility–aftermarket amplifiers often require 4-ohm loads, while factory systems may use 2-ohm or bridged configurations. If adding a subwoofer, tap the blue/white remote turn-on wire to trigger external amplifiers; avoid splicing this into the main power feed, as it can overload the circuit.
Determining Speaker Cable Thickness and Terminal Pinouts
Begin by measuring conductor cross-sections with a micrometer–most factory-installed audio feeds on heavy-duty pickups use 18 or 16 AWG for mid-range drivers, while subwoofer channels demand 12 to 10 AWG to handle peak currents up to 50 amps. Locate the harness behind the receiver; the left-front positive lead is typically coded light green, its negative return striped with violet, whereas rear-door pairs switch to solid gray paired with gray/black tracers.
Verify polarity with a 9V battery–briefly touching each pair will make the cone move outward if wired correctly; reversed connections invert acoustic phase, cancelling bass frequencies below 200 Hz. Factory connectors on dual-cab models terminate in 0.5 mm blade sockets; replace crushed terminals with gold-plated spade lugs rated for 220°C insulation to prevent oxidation under 4-ohm loads.
When splicing aftermarket amplifiers, strip 8 mm of insulation, twist strands tightly, and crimp with a closed-barrel terminal rated for 30A continuous draw–avoid solder-only joints, which fatigue under engine vibration at 15 Hz. Label each run with heat-shrink tubing color-matched to the factory code: red/POS, white/NEG for front tweets, solid brown for center-channel if equipped.
Test every connection with a digital multimeter set to 200Ω–expected readings should be 3.5Ω ± 0.5 for door woofers and 0.8Ω for tweeters; any deviation indicates partial short or corroded pin contact, which requires re-seating terminals or replacing the pigtail harness.
Secure Power and Ground Connections for Audio Systems
Strip only 5-7mm of insulation from power and ground cables to prevent short circuits–excessive exposed wire increases risk. Use a ratcheting crimper with AWG-appropriate dies for terminals; soldering alone weakens strands under vibration. For 4-gauge or thicker cables, apply heat-shrink tubing over crimped connections to seal moisture and protect against corrosion. Avoid twisting wires together–this creates resistance points that overheat under load. Test continuity with a multimeter before finalizing connections; readings above 0.5 ohms indicate poor contact requiring rework.
Ground connections demand direct contact with bare metal, not painted or coated surfaces. Sand the mounting point to chassis ground using 80-grit sandpaper until shiny, removing oxidation and primer. Apply dielectric grease to the bolt threads before securing the terminal to block future corrosion; re-tighten after 24 hours as settling loosens initial torque. For amplifiers, run a dedicated ground wire to the battery’s negative terminal instead of sharing grounds–shared paths induce noise, especially in vehicles with computer-controlled modules. Verify ground integrity by monitoring voltage drop under load: discrepancies above 0.1V suggest inadequate grounding.
Power wires must be fused within 45cm of the battery to comply with SAE J1128 standards–longer unfused runs risk fire. Use an ANL or MIDI fuse with a rating matching the wire’s capacity (e.g., 100A for 4-gauge, 150A for 2-gauge). Route wires through factory grommets where possible; when drilling new holes, deburr edges and apply split-loom tubing to prevent chafing. Separate power cables from signal wires by at least 15cm to minimize electromagnetic interference–cross them at 90-degree angles if unavoidable. Secure wires every 30cm with nylon ties to prevent movement, focusing on high-vibration areas like the transmission tunnel and firewall.
