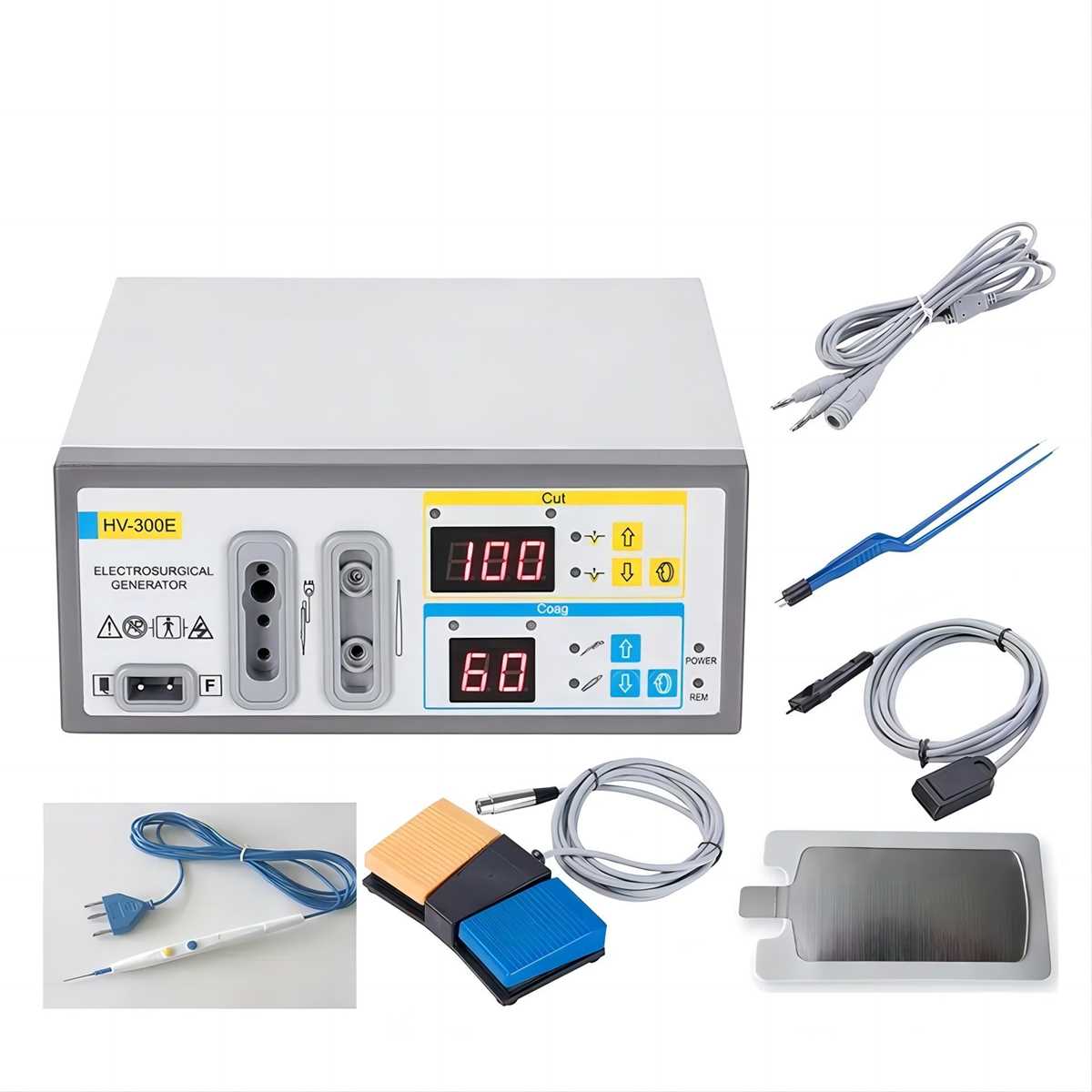

Understanding the Key Components of Electrosurgical Unit Circuit Design
Isolate the RF output stage from control logic using galvanic isolation. Opt for high-speed optocouplers or isolated gate drivers with a minimum creepage distance of 8 mm to comply with IEC 60601 standards. The transformer core should handle switching frequencies above 350 kHz without saturation, preferably using ferrite materials like N87 or 3F3. Ensure primary-to-secondary isolation exceeds 4 kVrms to prevent leakage currents exceeding 10 µA under fault conditions.
Implement a full-bridge topology for the RF inverter to minimize voltage stress on MOSFETs. Select devices with a drain-source voltage rating of at least 600 V (e.g., IXYS IXFN32N120 or Infineon IPW60R041C6) and a rise time under 50 ns to reduce switching losses. Gate drive resistors should be sized between 5–15 Ω to balance turn-on speed and overshoot. Include a snubber circuit (1–10 nF capacitor in series with 1–10 Ω resistor) across each MOSFET to suppress ringing at the switching node.
Design the waveform generator with a microcontroller-free analog front-end. Use a precision waveform synthesizer IC (e.g., Analog Devices AD9954 or Texas Instruments DAC3484) to generate pure sine, blend, or pulsed modes. The DAC reference voltage must be stable within ±0.1% over temperature fluctuations from 0°C to 70°C. Filter the output with a 3rd-order Butterworth low-pass filter (cutoff at 5 MHz) to eliminate harmonic distortion above 1%.
Incorporate arc detection using a high-speed comparator ( The comparator should trigger when the voltage drops below 20 V for more than 50 µs, indicating arcing. Route this signal to a hardware shutdown latch to disable the RF inverter within 100 µs. Use a sense resistor (0.1 Ω, 1% tolerance) in series with the return electrode to monitor current, avoiding ground loops with differential signaling.
Power supply regulation must be redundant for critical components. The main converter should deliver 24 VDC at 5 A with ripple under 50 mVpp, while the isolated bias supply for microcontrollers and sensors requires ±1% regulation. Use a forward converter with synchronous rectification (e.g., TI LM5117 controller) for efficiency above 90%. Include a 1 W isolated DC-DC converter for gate drivers to prevent ground bounce during high-side switching.
Thermal management demands active monitoring of heatsink temperatures. Attach NTC thermistors (10 kΩ @ 25°C) to both the MOSFET heatsink and power transformer core. Set thermal cutoff thresholds at 85°C (warning) and 95°C (shutdown). The cooling fan PWM duty cycle should scale linearly between 40% and 100% from 60°C to 80°C, using a 24 V fan with a minimum airflow of 15 CFM.
High-Frequency Surgical Generator Wiring Layout
Always begin by isolating the power input section before analyzing the wiring layout. Verify that the primary transformer handles voltages between 110–240V AC with a tolerance of ±10%, as deviations beyond this range risk damaging the RF amplification stages.
The RF output stage requires direct MOSFET or IGBT switching to achieve clean coagulation waveforms. Use components rated for 400V minimum at peak currents of 2–5A; inferior parts will degrade signal integrity and introduce harmonic distortion, reducing cutting precision. Position heat sinks with thermal paste rated for ≥2.5W/m·K to prevent junction failure under continuous 30-second bursts.
Signal modulation occurs via a microcontroller-driven PWM circuit, typically operating at 300–500 kHz. Ensure the feedback loop includes a 10-bit ADC sampling at 1 kHz to maintain waveform stability. Replace generic optocouplers with high-speed variants (e.g., HCPL-3120) to isolate control signals from high-voltage outputs–failure here risks patient leakage currents exceeding 50 µA, violating IEC 60601 standards.
| Component | Recommended Specification | Failure Risk |
|---|---|---|
| RF MOSFET | ≥400V, ≥5A, RDS(on) < 0.5Ω | Thermal runaway, waveform clipping |
| Isolation Transformer | 1:1 ratio, 3 kV insulation | Ground loops, patient shock hazard |
| Output Filter Capacitor | 100 nF, X7R dielectric, ±10% | Ring artifacts, tissue adherence |
Grounding paths must use stranded copper wire (≥2.5 mm²) terminated with star-point connections at the chassis. Avoid daisy-chaining ground returns, as this creates common impedance pathways; even 1 Ω of shared resistance can introduce 5% waveform distortion during peak loads. Test for ground loops with a 100 kHz oscilloscope probe–spikes above 50 mV indicate poor isolation between functional and protective earth.
For bipolar modes, route active and return electrodes through separate, shielded coaxial cables. Use PTFE insulation rated for 1.5 kV and limit cable length to ≤1.2 m to minimize capacitive losses. Any longer runs require impedance-matched terminators (50 Ω) to prevent standing waves, which degrade coagulation depth by up to 40%.
Implement arc detection using a zero-crossing comparator with 15% indicate an unstable arc, necessitating immediate shutdown. Store fault logs in non-volatile memory (FRAM recommended) with timestamps for post-procedure analysis–this data is critical for identifying intermittent component failures.
Troubleshooting Wiring Anomalies
If the generator fails to initiate cutting, first check the foot pedal interface. Verify the Hall-effect sensor output swings between 0V and VCC (±0.2V) when activated; open circuits here are the #1 cause of false negatives. Next, measure the RF amplifier’s quiescent current–values below 10 mA suggest a blown fuse or shorted MOSFET. Probe the gate drive signals: clean edges rule out driver IC failure, while ringing (>20% overshoot) confirms insufficient gate resistance.
Calibration Protocols
Recalibrate the output every 200 cycles using a 100 Ω resistive load and a calibrated power meter. Adjust the PWM duty cycle in 1% increments until the output power matches ±3% of the target value (e.g., 100W ±3W). For monopolar modes, confirm the return electrode monitor circuit triggers shutdown when impedance exceeds 1 kΩ–this threshold must activate within 50 ms to prevent skin burns.
Critical Elements in Monopolar High-Frequency Surgical Setups
Select the active electrode with a tip geometry matching the procedural requirement–fine needle tips for precise incision, loop configurations for tissue resection, and ball electrodes for coagulation.
Ensure the return pad maintains a contact area of at least 150 cm² for adult patients to prevent thermal injury, adhering to IEC 60601-2-2 standards, which mandate a current density limit of 100 mA/cm².
Verify the generator’s isolated output delivers consistent waveforms–cut mode at 500 kHz with a crest factor of 2.1, blend modes between 3–5, and coagulation at 3 MHz with a crest factor exceeding 5.
Grounding and Safety Mechanisms
Integrate a transformer-based isolation system with a leakage current below 10 µA to comply with FDA 21 CFR Part 898, reducing stray current risks during prolonged procedures.
Equip the system with dual-sensor monitoring: one tracking pad-to-skin impedance (
Use a dedicated patient monitor with ECG synchronization to filter high-frequency artifacts (200–500 kHz) that can distort vital sign readings during activation.
Operational Considerations
Calibrate power settings based on tissue impedance–start at 30 W for adipose layers, increase to 80 W for vascular structures, and reduce to 20 W for delicate areas like bowel serosa to minimize charring.
Replace single-use components (e.g., electrodes, grounding pads) after each procedure to maintain a minimum tensile strength of 12 N in flex tests, preventing detachment or fragmentation during use.
How Active and Return Electrode Pathways Operate During Tissue Division
Ensure the generator outputs a high-frequency waveform between 300 kHz and 3 MHz for optimal cutting–lower frequencies risk neuromuscular stimulation, while higher ranges reduce thermal spread but may compromise arc stability. The active probe must maintain a tip temperature of 100–400°C, achieved by adjusting power density in real time: 50–150 W/mm² for fine dissection, 200–500 W/mm² for rapid transsection. Surface area contact determines current concentration–sharp, needle-like tips create localized vapor pockets, whereas broader blades distribute energy and require compensatory power increases.
Return pad placement drastically influences pathway integrity. Position it on well-vascularized tissue (e.g., thigh, buttock) with impedance under 50 ohms; avoid bony prominences or adipose-heavy regions where impedance exceeds 200 ohms, causing current diversion and potential burns. The pad’s conductive gel should cover at least 80% of its surface, with no air gaps–partial adhesion redirects current through unintended skin layers, raising superficial burn risk by up to 40%. Monitor impedance audibly or via tone feedback: a rising pitch indicates degradation, signaling immediate adjustment or pad replacement.
Current follows the path of least resistance, which can shift dynamically during cutting. For monopolar configurations, the active electrode’s arc seeks the lowest-impedance route to the return pad, often deviating if tissue moisture or metallic instruments intervene. To minimize stray current:
- Keep the active tip within 1 mm of targeted tissue–arcs exceeding 2 mm scatter energy, widening thermal margins.
- Avoid clustering conductive instruments near the surgical field, which can create parallel pathways.
- Use dry-field techniques: blood or saline pools divert current, reducing cutting efficiency by 25–35%.
Waveform selection dictates cutting precision. Pure sine waves (continuous, unmodulated) produce the cleanest incisions with minimal charring but require precise tip control–any hesitation causes heat accumulation. Modulated waveforms (e.g., blended modes) introduce intermittent high-voltage spikes, enhancing hemostasis but increasing thermal necrosis by 10–20%. For delicate procedures (e.g., nerve dissection), employ 500 kHz–1 MHz sine waves at 30–50 W; for bulk tissue (e.g., liver resection), use 2 MHz modulated at 80–120 W with a foot pedal for instant shutdown to prevent overshoot.
Patient factors alter pathway behavior:
- Body mass index: Obese patients exhibit higher baseline impedance, necessitating 10–30% power increases.
- Implants: Metallic prosthetics attract current–position return pads at least 15 cm away or switch to bipolar to eliminate diversion.
- Hydration: Dehydrated tissue resists energy transfer, requiring waveform adaptation (e.g., duty cycle reduction from 70% to 50%).
Preoperative impedance scans (sub-100 kHz tests) reveal hidden irregularities, reducing intraoperative adjustments.
Active tip design directly shapes arc formation. Loop electrodes generate circumferential vaporization, ideal for polypectomy, but demand perpendicular contact to avoid asymmetrical cuts. Needle tips concentrate current at a 0.1–0.3 mm point, achieving micro-precision but risking deep unintended penetration if misangled by more than 5°. Blade electrodes require slow, continuous movement–stagnation leads to carbonization, increasing impedance and forcing power spikes that compromise adjacent structures.
Return pathway failure modes correlate with specific clinical signs:
- Pad detachment: Sudden power drop + odor of burning skin–halt procedure, verify pad adhesion, and check generator error logs for impedance spikes.
- Alternate pathway activation: Patient muscle twitching or metallic taste–identify conductive bridges (e.g., pooled irrigation, retractor contact) and clear the field.
- Current leakage: Subtle localized warm spots distant from the incision–inspect draping and electrode insulation.
Document each incident to refine setup protocols.
For bipolar cutting, both electrodes reside in the instrument tip, confining current to a 1–3 mm zone. This eliminates external pathway risks but introduces new constraints:
- Tip spacing: Wider gaps (>3 mm) disperse energy, while
- Tissue bridging: Moisture or debris conducts across blades, converting cutting to coagulation–maintain a clean, dry field.
- Energy delivery: Bipolar typically requires 30–50% less power than monopolar but demands slower activation to avoid tip overheating (thermal cut-off occurs at 180°C).
