Chevy Malibu 2012 Electrical System Wiring Diagram Guide

For immediate troubleshooting, download the official manufacturer’s schematics from the automaker’s technical service portal using your vehicle identification number. These files include pinpointed fuse locations, ground points, and wire gauge specifications–critical data when diagnosing faults in the instrument cluster or infotainment system.

Key sections to focus on:

– Engine compartment layout: Identifies ignition coils, crankshaft sensor, and cooling fan relays, typically labeled in red (12V power) and black (ground). Verify continuity with a multimeter set to 200 ohms.

– Passenger cabin wiring: Blue wires often handle power windows; yellow stripes denote airbag circuits–never splice into these without a scan tool to avoid triggering diagnostic trouble codes.

Free third-party repositories exist, but cross-check against the official OEM diagrams to confirm wire colors and connector pin-outs. Mismatches risk incorrect repairs, especially in the 1,200-watt amplifier circuit where aftermarket harnesses frequently swap pink and violet feeds.

If the electrical schematic is unavailable, use a factory service manual PDF–a paid resource that includes torque specs for terminal blocks and crimp tools required for splices (AMP Superseal connectors recommended).

Advanced Electrical Layout for Your Mid-Size Sedan: Expert Reference

Locate the fuse block under the dashboard–driver’s side, behind the instrument panel cover–by removing the retaining screws (Torx T15). Pinpoint fuse #32 (10A) controlling the body control module; its failure triggers erratic dashboard alerts. For throttle position sensor recalibration, disconnect the battery negative terminal for 10 minutes, reconnect, then cycle the ignition five times without starting the engine. Use a multimeter (set to 20V DC) on terminals B and C of the TPS connector: voltage should read 0.5-0.7V at idle and 4.5-4.7V at wide open throttle.

• Power window motor replacement: Remove door panel (8 plastic clips, 2 10mm bolts near handle). The passenger-side regulator assembly uses a clutch mechanism–apply dielectric grease to gears before reassembly.
• Headlight circuit diagnosis: Probe the brown/white wire at the headlight switch for 12V with parking lights on. If absent, trace to the under-hood junction block (X5 connector, pin #15).
• Blower motor resistor: Mounted behind the glovebox–resistance values between terminals should be 2.5Ω (low), 1.2Ω (med-low), and 0.5Ω (high). Replace if readings deviate by ±10%.

For parasitic drain testing, disconnect the negative battery cable and insert an ammeter in series. Normal current draw should not exceed 50mA; values above 80mA indicate short circuits. Common culprits include the rear defroster relay (mounted under the rear seat) and the satellite radio module (RPO U2K). Isolate suspect circuits by pulling fuses sequentially until the excess draw disappears–target modules on that circuit for further inspection.

Locating the Full Electrical Schematic for Your Mid-Size Sedan Model

The most reliable source for the official circuit layout is the manufacturer’s service portal. Visit acdelcotds.com and navigate to the technical documentation section. Enter your vehicle’s VIN or select the exact trim level (LS, LT, or ECO) to access the correct version. These files are formatted in vector-based PDFs, ensuring clarity for both on-screen review and printed troubleshooting. Registration is free, though download speeds improve with a premium subscription.

Forums dedicated to General Motors vehicles often host mirrored copies. MalibuOwners.com maintains an archive under its “Technical Resources” thread, while GMInsideNews.com aggregates schematics posted by certified technicians. Verify file integrity by checking the SHA-256 hash against the original on ACDelco–third-party uploads occasionally suffer from compression artifacts or corrupted layers. Prioritize threads with timestamps post-2015, as earlier diagrams omit minor revisions.

Aftermarket manual publishers like Haynes and Chilton distribute enhanced versions through Amazon and eBay. These include additional notes on common failure points (e.g., body control module pinouts, infotainment harness color codes) and overlays for wire routing behind the dashboard. Purchase options range from $22 for a digital-only license to $58 for a hardcopy spiral-bound book. Ensure the edition covers the 2.5L engine variant if applicable–earlier prints focus on the 2.4L model.

Local dealership parts departments retain access via internal software (Tech2Win). Request the “Electrical Center” packet specifically; it consolidates the instrument panel, underhood, and rear wiring sections into a single ZIP. Some dealers charge a $15–$30 administrative fee for burning the files to CD-ROM. Alternately, independent shops using AllDataDIY or Mitchell1 subscriptions can pull the same data–ask for the “Vehicle-Specific Diagram” export rather than generic templates.

Public libraries in states with strong automotive collections (Ohio, Michigan, Texas) often subscribe to ChiltonLibrary.com or ProQuest’s automotive database. Present your library card at branches like the Detroit Public Library or Houston Public Library to access terminals with full-resolution PDFs at no cost. Librarians can retrieve the document using standardized Dewey decimal codes (629.254 for electrical schematics) or the Library of Congress classification TK2790.A9 for mid-size sedan models.

Peer-to-peer networks like the Internet Archive or torrent trackers sometimes host scanned manuals, though quality varies. Search for filenames containing “GM_Global_A_Electrical_Center_v2” or “Body_Wiring_Harness_RevB” to locate the most complete versions. Always cross-reference connector pinouts with a multimeter–DIY scans frequently mislabel signals for the BCM or ABS module. Use a secondary device to verify downloads against virus scanners; some archives bundle adware with the files.

Decoding Electrical Schematics: Color Standards in Vehicle Circuits

Begin by locating the fuse box schematic on the driver’s side kick panel–each colored stripe on the wires corresponds to a specific function. The red lead (RD) always indicates a constant 12V power source, while the yellow (YL) signals switched ignition supply. Connectors labeled BK typically ground circuits, but verify with a multimeter; mistaken assumptions here damage modules.

Orange (OR) and dark green (DKGN) strands represent data buses–never splice these for auxiliary devices. If integrating aftermarket components, tap into light blue (LTBL) wires for accessory power instead. Pink (PK) wires trigger fuel pump relays but carry high current; use a 20A fuse inline when modifying.

Trace circuits from the under-dash harness to the engine bay using the factory service manual’s color map. Dark blue (DKBL) wires control cooling fans; cross-referencing their paths prevents accidental overheating. White (WH) strands with secondary colors (e.g., WH/BK) denote sensor signals–interrupting these alters ECU readings.

For HVAC systems, light green (LTGN) wires activate climate controls, while purple (PPL) strands manage blend door actuators. Avoid back-probing these directly; use a breakout box to avoid damaging delicate connections. Brown (BRN) wires often link exterior lighting–check continuity before assuming failure.

Hybrid harnesses incorporate additional circuitry: tan (TN) wires handle hybrid battery communication. Never disconnect these while the system is powered–residual voltage can exceed 300V. For body control modules, gray (GRY) wires carry serial data; interference here triggers false trouble codes.

Keep a color-coded legend printed when diagnosing circuits–aftermarket parts often deviate from OEM standards. Replace damaged strands with matching gauge wiring; undersized replacements overheat. Label every modification with heat-shrink tubing to maintain clarity for future repairs.

How to Locate Electrical Paths for Power Windows and Door Mechanisms

Begin at the driver-side door module–locate the 20-pin black connector (C1) under the door panel near the latch. Probe terminals 1 and 6 for the window motor feed (orange/black and light blue/black wires, respectively) using a multimeter set to DC voltage. Key on, press the window switch: 12V should appear at terminal 1 when lowering, terminal 6 when raising. No voltage? Move upstream to the body control module (BCM) behind the instrument panel, tracing the harness along the A-pillar conduit. Check fuse F42 (30A) in the under-dash fuse block first–this powers the window relays and door locks directly.

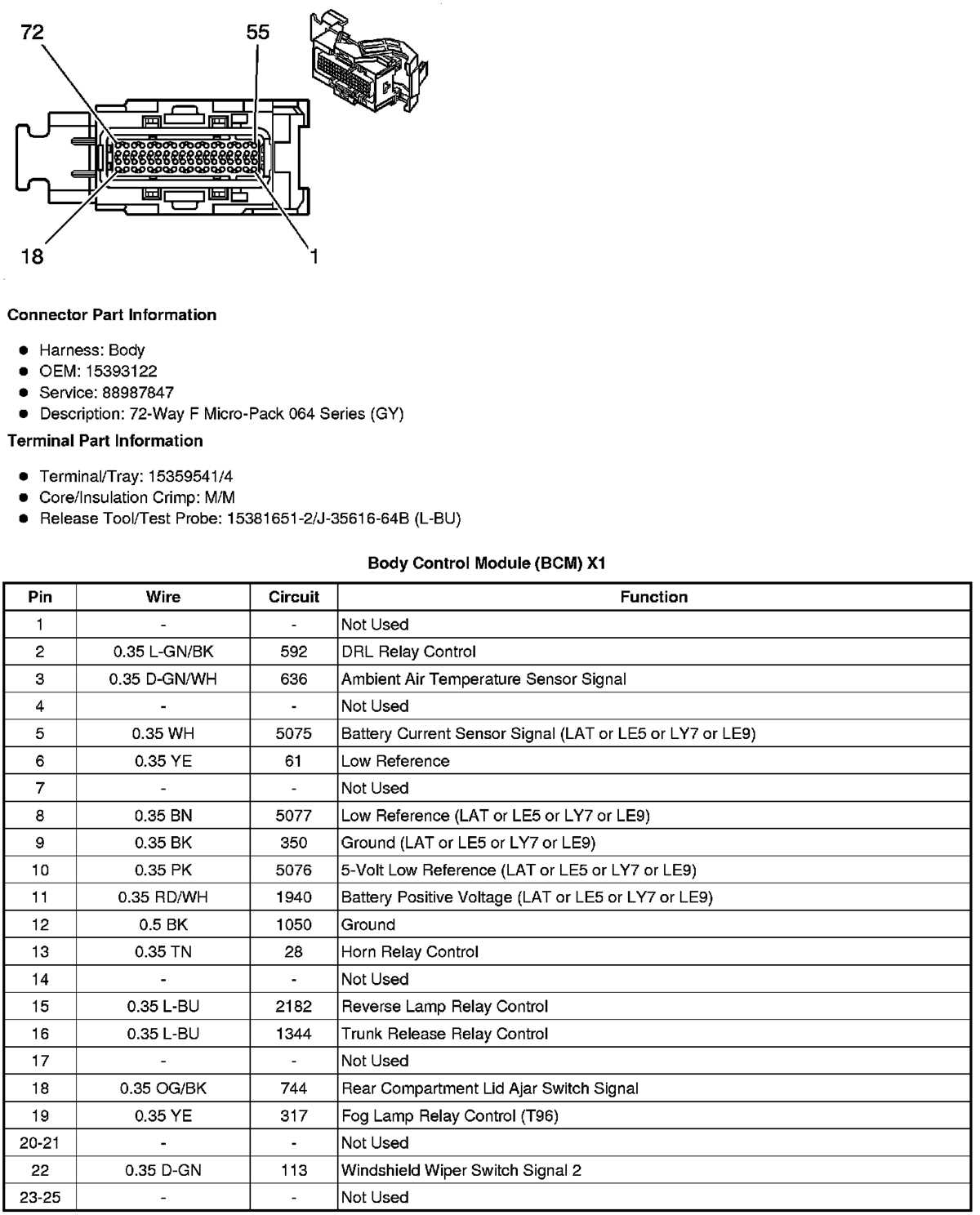

Door lock actuators share a common 14-gauge violet wire from the BCM. Disconnect the passenger front door lock connector (C2, 8-pin white), then trigger the lock switch. Probe terminal 4–momentary 12V pulses should register. If absent, trace the violet wire through the door hinge conduit to the main harness near the kick panel. Follow it into the BCM connector X2 (48-pin dark gray), pin 24. Verify BCM output using a scan tool: PID “Door Lock Switch” should toggle 0/1 when actuated. Missing signal? Replace the BCM if internal corrosion is visible at X2.

Connector	Terminal	Wire Color	Function	Expected Voltage
Driver door C1	1	Orange/Black	Window Down	12V when lowering
Driver door C1	6	Light Blue/Black	Window Up	12V when raising
Passenger door C2	4	Violet	Door Lock Actuator	Pulsed 12V
BCM X2	24	Violet	Lock Command Output	12V pulse on switch press

For rear doors, remove the rear quarter trim to access the harness junction near the seatbelt anchor. Rear window motors use gray connectors (C3/C4), terminals 1 and 2–identical color codes but thinner gauge (18 vs. 16). Lock actuators share the same violet wire, branching off at the B-pillar conduit. Splice an LED test light into the circuit here; faulty actuators often draw

Cross-door circuits converge at the splice pack SP300 under the driver’s seat. Probe the yellow/black wire (lock/unlock common) with the key off–should read 0V. Activate the locks: a 0.5-second pulse confirms proper relay operation. If voltage lingers, suspect a stuck BCM relay or chafed ground at G103 (behind the left kick panel). Oxidized grounds cause erratic window behavior; clean with a wire brush and apply dielectric grease. For intermittent failures, flex the harness at the door hinge while operating the components–flickering lights or voltage drops indicate internal conductor breakage, requiring harness replacement.
